Wilwood Chrysler PT Cruiser / Dodge Neon SRT-4 Front Kit — Red Dynalite, 12.19-inch SRP Drilled/Slotted

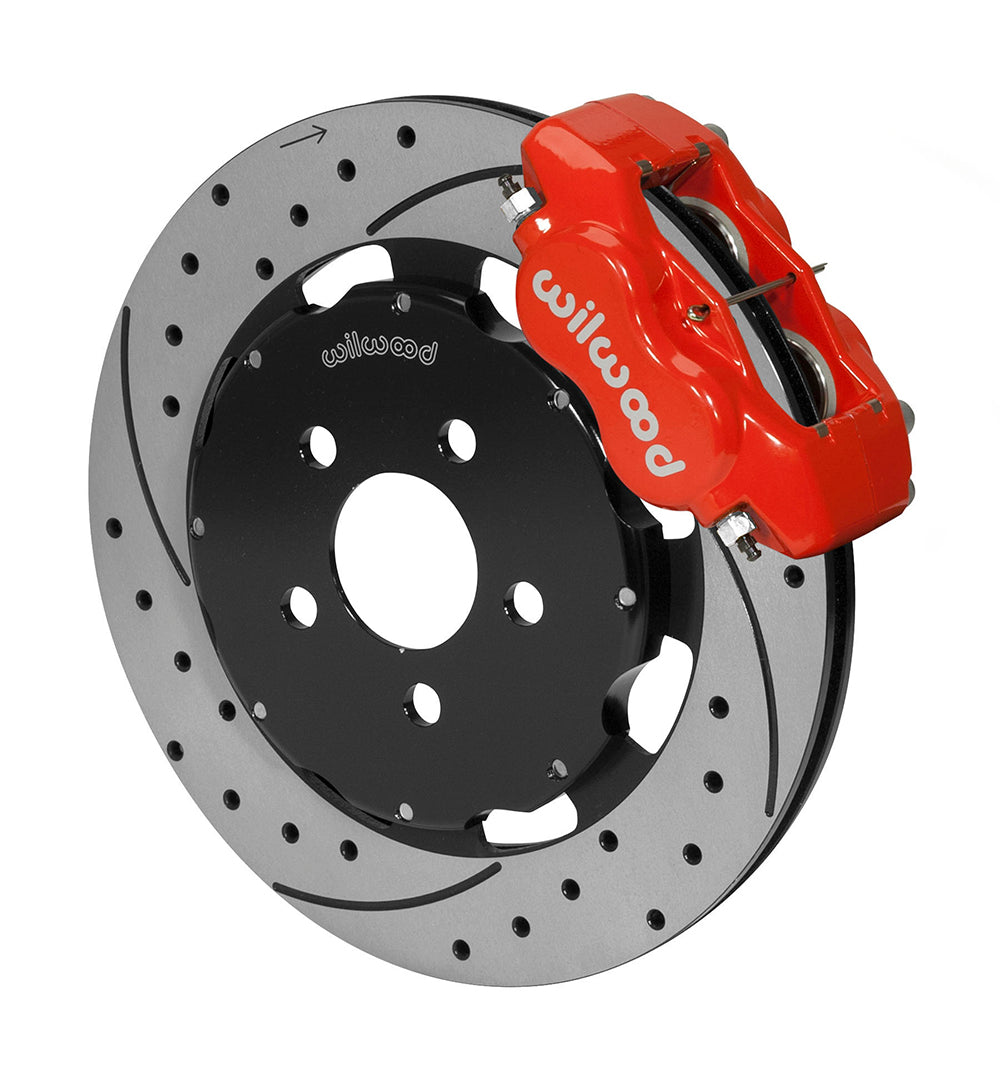

This SRT-4 and PT Cruiser combination makes both the red caliper finish and SRP rotor pattern visible. For Chrysler PT Cruiser / Dodge Neon SRT-4, Wilwood specifies red powder-coated 4-piston calipers and 12.19-inch SRP drilled-and-slotted rotors in this front package. Bill Wood founded Wilwood Engineering in 1977. From Camarillo, California, the company designs and manufactures disc brake systems and components including calipers, brake rotors, master cylinders, valves, fittings and brake lines for motorsport, street-performance and specialized applications. This kit should be matched to the hydraulic and mechanical requirements of the complete vehicle.

Package and installation requirements

• Front brake hose kit 220-6428 is listed separately.

Fitment & Compatibility

PT Cruiser applications span the listed 2001–2010 configurations, including the specific factory rear-brake and turbo qualifiers shown below. Dodge fitment is limited to the 2003–2005 Neon SRT-4; an ordinary Neon is not covered by that listing. This front conversion uses the existing hub, so check its center register, wheel-stud pattern and condition before assembly. DS385 provides the mounting sequence and the wheel-clearance profile for the larger 12.19-inch disc and fixed four-piston caliper. Any prior hub or spindle changes need to be checked independently of the vehicle model. Hydraulic flexlines are separate from the kit; route them through full steering and suspension travel as directed by the installation instructions.

Review the fitment table and numbered notes below together; a matching model name alone does not establish the installation.

Technical Details

• Manufacturer part number: 140-6376-DR.
• Rotor/hat wheel-stud clearance patterns: 5 x 3.93 in.
• Rotor/hat stud-hole clearance diameters: 0.550 in; 13.97 mm. These are hole sizes, not wheel-stud thread specifications.
• The rotor/hat drilling does not change the vehicle hub or axle wheel bolt pattern.
• Rotor dimensions: 12.19 in; 309.63 mm diameter x 0.81 in; 20.57 mm thick.
• Rotor construction: Iron; vented; SRP Drilled & Slotted friction surface.
• Wheel-size guide: 15 in; 381 mm minimum nominal diameter; verify actual template clearance.
• Calipers: 4 pistons; forged aluminum; stainless steel pistons.
• Caliper attachment: lug mount; 1/8-27 NPT hydraulic inlet.
• Caliper finish: Red Powder Coat.

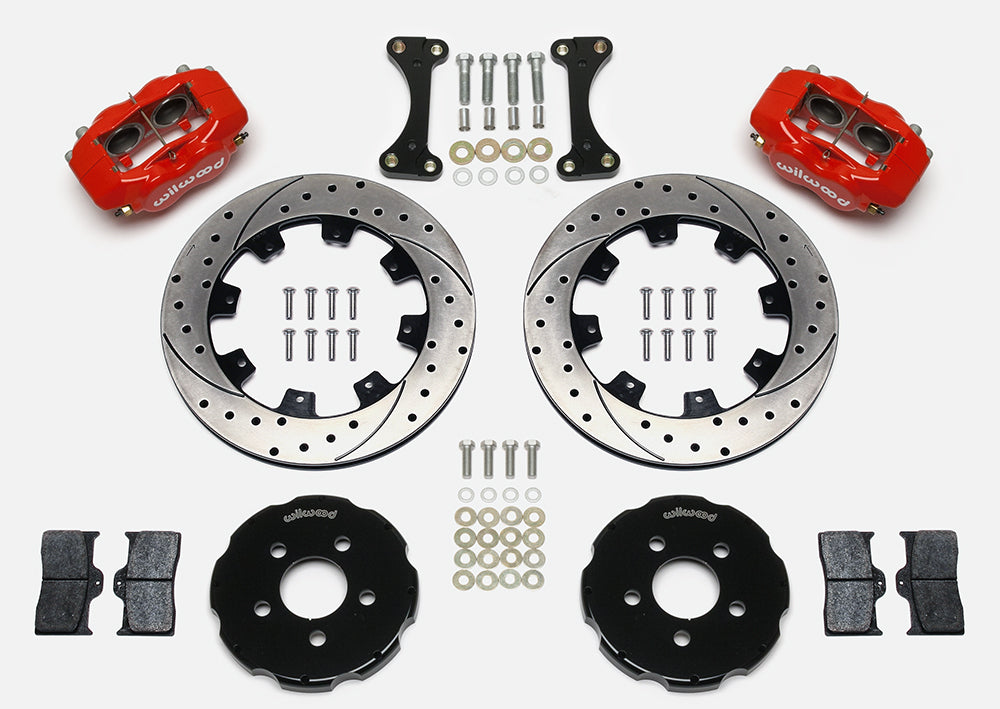

• Sold as one kit. Mounting hardware is included. Hubs are not included.
• Brake pads are included; use the compound and installation instructions specified for this rotor package.
• Spindles, master cylinder, brake booster and hydraulic brake lines are not included.

Manufacturer references

• Wilwood product and configuration information
• Installation instructions

For help selecting the correct package, contact PMB Performance with the installed brake and mounting details. Our team has over 20 years of experience with brake components and fitment.

WARNING: This product can expose you to chemicals including Arsenic, Cadmium, Chromium (Hexavalent compounds), Lead, Nickel, Cobalt and Antimony Trioxide which are known to the State of California to cause cancer or other reproductive harm. For more information go to www.p65warnings.ca.gov.

Vehicle Applications

Application Notes

1. Kit may fit some 15" wheels. Check wheel clearance diagram in kit installation instructions before purchase.
2. Line kit included (manufacturer): None
3. Front line-kit reference: 220-6428
