Wilwood Black Dynalite 12.19-inch SRP Drilled/Slotted Front Brakes — Chrysler PT Cruiser / Dodge Neon SRT-4

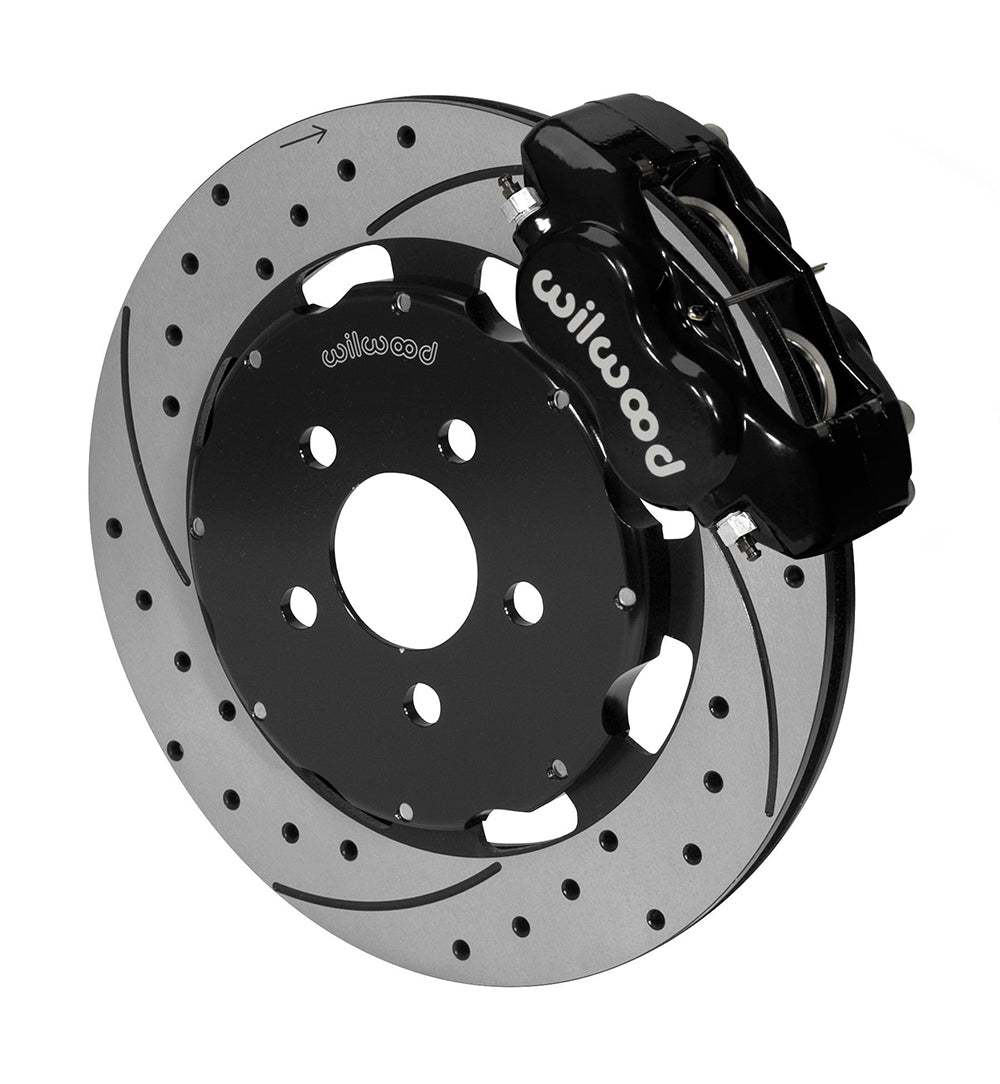

Drilled-and-slotted front rotors give the black-caliper PT Cruiser/SRT-4 kit a distinct disc face. The supplied black powder-coated 4-piston calipers and 12.19-inch SRP drilled-and-slotted rotors are configured for Chrysler PT Cruiser / Dodge Neon SRT-4. Wilwood Engineering began in 1977 under founder Bill Wood and is based in Camarillo, California. The company designs and manufactures disc brake systems and components for motorsport, street-performance and specialized vehicles. Calipers, rotors, master cylinders, valves, fittings and brake lines must be selected around the needs of the complete system.

Fitment & Compatibility

PT Cruiser applications span the listed 2001–2010 configurations, including the specific factory rear-brake and turbo qualifiers shown below. Dodge fitment is limited to the 2003–2005 Neon SRT-4; an ordinary Neon is not covered by that listing. This front conversion uses the existing hub, so check its center register, wheel-stud pattern and condition before assembly. DS385 provides the mounting sequence and the wheel-clearance profile for the larger 12.19-inch disc and fixed four-piston caliper. Any prior hub or spindle changes need to be checked independently of the vehicle model. Hydraulic flexlines are separate from the kit; route them through full steering and suspension travel as directed by the installation instructions.

Use the complete vehicle row and its application notes below to check model year, trim and original brake equipment.

Technical Details

• Manufacturer part number: 140-6376-D.
• Calipers: 4 pistons; forged aluminum; stainless steel pistons.
• Caliper attachment: lug mount; 1/8-27 NPT hydraulic inlet.
• Caliper finish: Black Powder Coat.
• Rotor/hat wheel-stud clearance patterns: 5 x 3.93 in.
• Rotor/hat stud-hole clearance diameters: 0.550 in; 13.97 mm. These are hole sizes, not wheel-stud thread specifications.
• The rotor/hat drilling does not change the vehicle hub or axle wheel bolt pattern.
• Rotor dimensions: 12.19 in; 309.63 mm diameter x 0.81 in; 20.57 mm thick.
• Rotor construction: Iron; vented; SRP Drilled & Slotted friction surface.

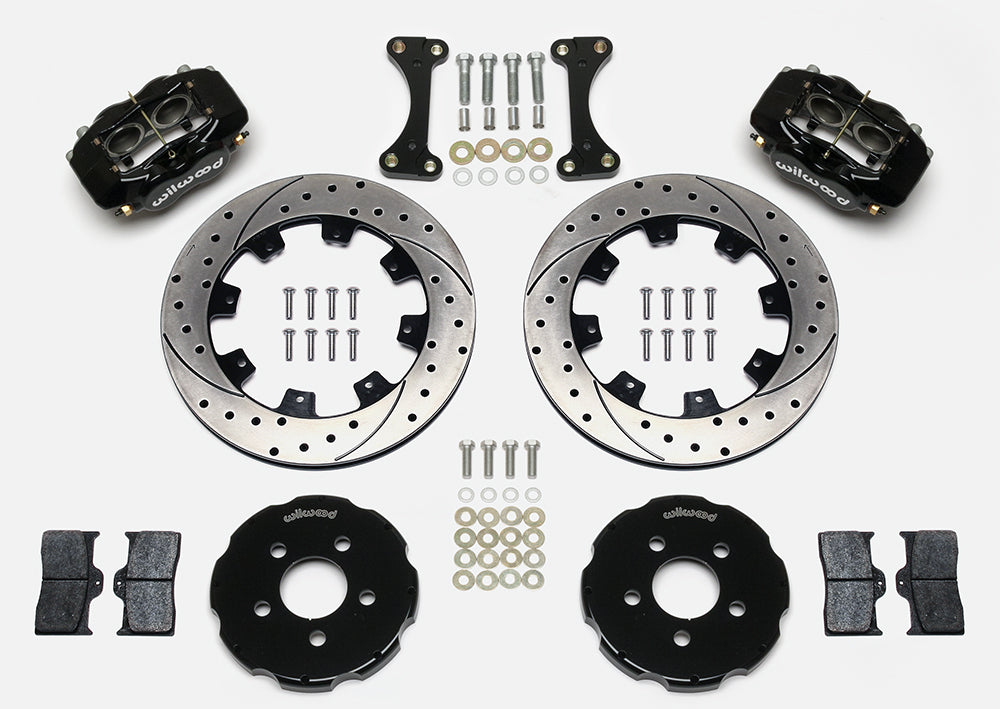

• Sold as one kit. Mounting hardware is included. Hubs are not included.
• Brake pads are included; use the compound and installation instructions specified for this rotor package.
• Spindles, master cylinder, brake booster and hydraulic brake lines are not included.
• Wheel-size guide: 15 in; 381 mm minimum nominal diameter; verify actual template clearance.

Package and installation requirements

• Front brake hose kit 220-6428 is listed separately.

Manufacturer references

• Wilwood product and configuration information
• Installation instructions

With over 20 years of experience, PMB Performance can help you work through the mounting and brake-system details before ordering. Include your vehicle information and any axle, hub or spindle changes when contacting us.

WARNING: This product can expose you to chemicals including Arsenic, Cadmium, Chromium (Hexavalent compounds), Lead, Nickel, Cobalt and Antimony Trioxide which are known to the State of California to cause cancer or other reproductive harm. For more information go to www.p65warnings.ca.gov.

Vehicle Applications

Application Notes

1. Kit may fit some 15" wheels. Check wheel clearance diagram in kit installation instructions before purchase.
2. Line kit included (manufacturer): None
3. Front line-kit reference: 220-6428
