Product details

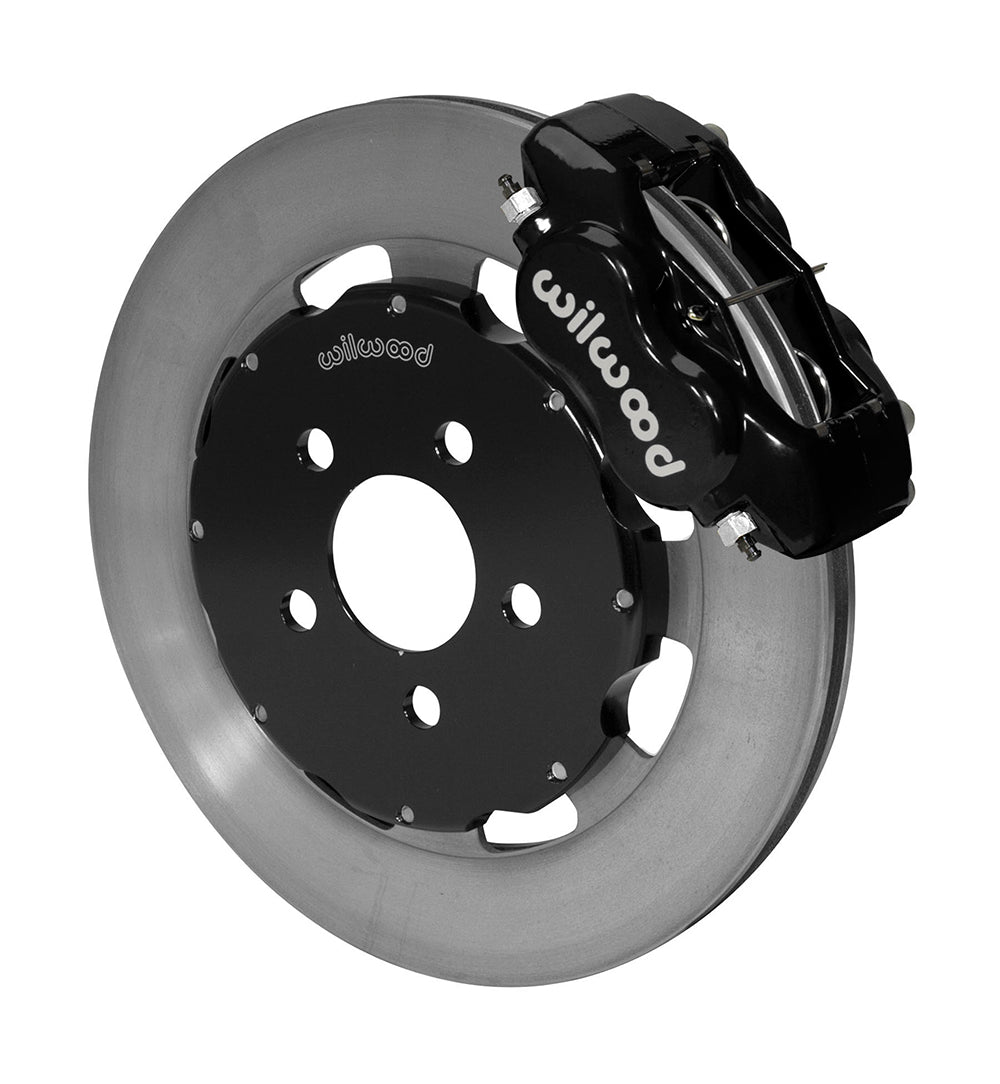

PT Cruiser and SRT-4 owners can retain their front hubs while moving to a four-piston caliper package. This Forged Dynalite front brake kit combines black powder-coated 4-piston calipers and 12.19-inch plain-face rotors. Founded in 1977 by Bill Wood and based in Camarillo, California, Wilwood Engineering designs and manufactures disc brake systems for motorsport, street-performance and specialized applications. Its range includes calipers, brake rotors, master cylinders, valves, fittings and brake lines, selected to work together as a complete brake system.
Technical Details
- Manufacturer part number: 140-6376.
- Rotor dimensions: 12.19 in; 309.63 mm diameter x 0.81 in; 20.57 mm thick.
- Rotor construction: Iron; vented; Plain Face friction surface.
- Calipers: 4 pistons; forged aluminum; stainless steel pistons.
- Caliper attachment: lug mount; 1/8-27 NPT hydraulic inlet.
- Caliper finish: Black Powder Coat.
- Rotor/hat wheel-stud clearance patterns: 5 x 3.93 in.
- Rotor/hat stud-hole clearance diameters: 0.550 in; 13.97 mm. These are hole sizes, not wheel-stud thread specifications.
- The rotor/hat drilling does not change the vehicle hub or axle wheel bolt pattern.
- Wheel-size guide: 15 in; 381 mm minimum nominal diameter; verify actual template clearance.

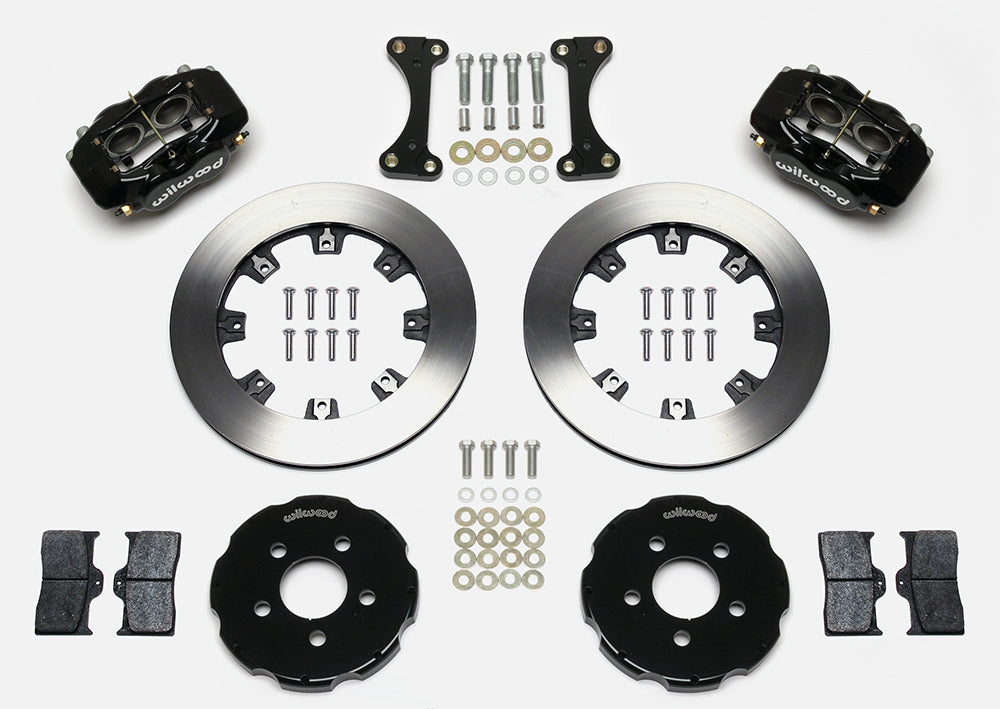

- Sold as one kit. Mounting hardware is included. Hubs are not included.
- Brake pads are included; use the compound and installation instructions specified for this rotor package.
- Spindles, master cylinder, brake booster and hydraulic brake lines are not included.
Fitment & Compatibility
PT Cruiser applications span the listed 2001–2010 configurations, including the specific factory rear-brake and turbo qualifiers shown below. Dodge fitment is limited to the 2003–2005 Neon SRT-4; an ordinary Neon is not covered by that listing. This front conversion uses the existing hub, so check its center register, wheel-stud pattern and condition before assembly. DS385 provides the mounting sequence and the wheel-clearance profile for the larger 12.19-inch disc and fixed four-piston caliper. Any prior hub or spindle changes need to be checked independently of the vehicle model. Hydraulic flexlines are separate from the kit; route them through full steering and suspension travel as directed by the installation instructions.
The application table below identifies the model-year and factory-equipment combinations. Match the entire row, including its numbered notes.
Package and installation requirements
- Front brake hose kit 220-6428 is listed separately.
Manufacturer references
PMB Performance brings more than 20 years of brake and parts experience to fitment questions. Send us the axle or spindle details, current brake equipment and intended wheel dimensions if you need help checking this kit.
WARNING: This product can expose you to chemicals including Arsenic, Cadmium, Chromium (Hexavalent compounds), Lead, Nickel, Cobalt and Antimony Trioxide which are known to the State of California to cause cancer or other reproductive harm. For more information go to www.p65warnings.ca.gov.
Vehicle Applications
| Years | Make | Model | Submodel | Model option | Front brakes | Rear brakes | Kit application | Notes |
|---|---|---|---|---|---|---|---|---|
| 2001-2002, 2010 | Chrysler | PT Cruiser | Disc Brake Rear | Disc | Disc | Front Kit | 1, 2, 3 | |
| 2001-2010 | Chrysler | PT Cruiser | Drum Brake Rear | Disc | Drum | Front Kit | 1, 2, 3 | |
| 2003-2009 | Chrysler | PT Cruiser | Disc Brake Rear, exc Turbo | Disc | Disc | Front Kit | 1, 2, 3 | |
| 2003-2009 | Chrysler | PT Cruiser | Disc Brake Rear, Turbocharged | Disc | Disc | Front Kit | 1, 2, 3 | |
| 2003-2005 | Dodge | Neon SRT-4 | SRT-4 | SRT-4 Only | Disc | Disc | Front Kit | 1, 2, 3 |
Application Notes
- Kit may fit some 15" wheels. Check wheel clearance diagram in kit installation instructions before purchase.
- Line kit included (manufacturer): None
- Front line-kit reference: 220-6428
