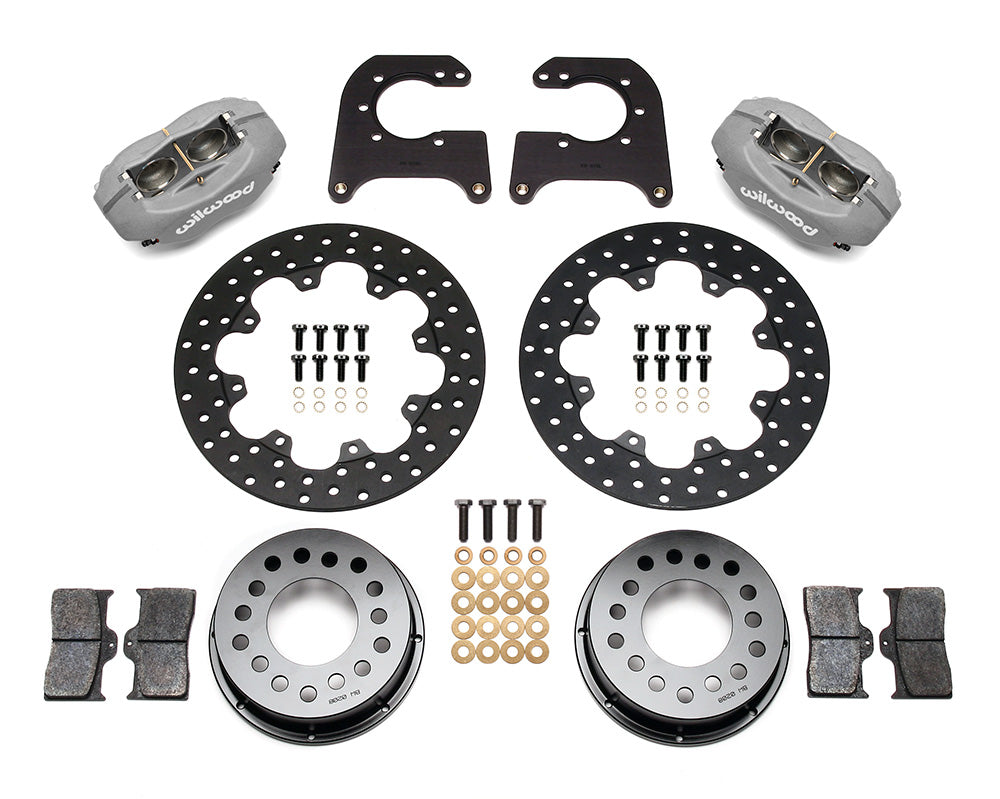

Wilwood Dynalite Rear Drag Kit for Chevrolet 12-bolt Special fixed-bearing axle — 11.44-inch Drilled, Anodized components

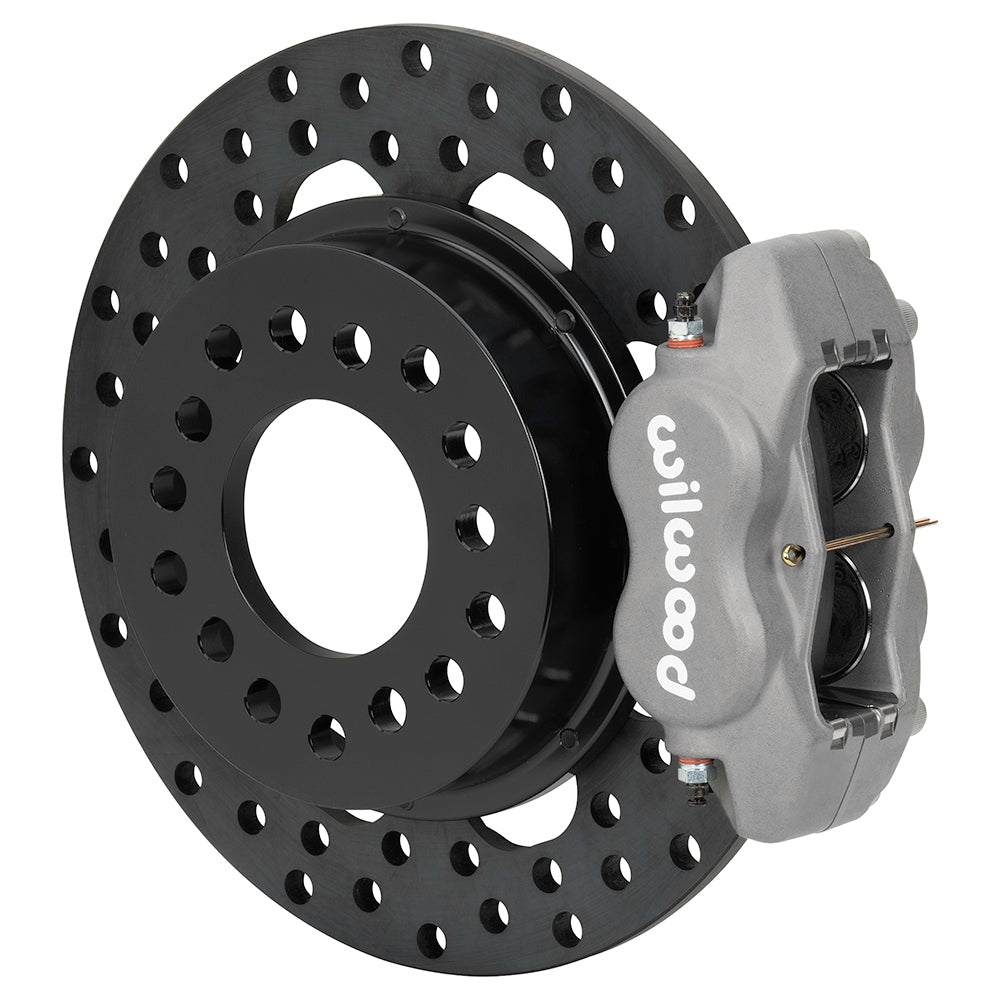

Wilwood Dynalite Rear Drag Kit for Chevrolet 12-bolt Special fixed-bearing axle — 11.44-inch Drilled, Anodized components — product view 2
Wilwood Dynalite Rear Drag Kit for Chevrolet 12-bolt Special fixed-bearing axle — 11.44-inch Drilled, Anodized components
Wilwood Dynalite Rear Drag Kit for Chevrolet 12-bolt Special fixed-bearing axle — 11.44-inch Drilled, Anodized components — product view 2

Wilwood Dynalite Rear Drag Kit for Chevrolet 12-bolt Special fixed-bearing axle — 11.44-inch Drilled, Anodized

SKU: 140-5771-BD

$771.23 Sale
Shipping calculated at checkout.

Fitment questions?

Call (855) 786-7101 or text (801) 304-3141.
Real people. Real answers.

Shipping policyRefund policy

Product details

A lightweight steel drag rotor and Type III anodized caliper distinguish this rear package from Wilwood street brake conversions. This Forged Dynalite rear drag brake kit combines Type III anodized 4-piston calipers and 11.44-inch drilled rotors. Founded in 1977 by Bill Wood and based in Camarillo, California, Wilwood Engineering designs and manufactures disc brake systems for motorsport, street-performance and specialized applications. Its range includes calipers, brake rotors, master cylinders, valves, fittings and brake lines, selected to work together as a complete brake system.

Technical Details

  • Manufacturer part number: 140-5771-BD.
  • Rotor dimensions: 11.44 in; 290.58 mm diameter x 0.35 in; 8.89 mm thick.
  • Rotor construction: Steel; solid; Drilled friction surface.
  • Calipers: 4 pistons; forged aluminum; stainless steel pistons.
  • Caliper attachment: lug mount; 1/8-27 NPT hydraulic inlet.
  • Caliper finish: Type III anodized.
  • Rotor/hat wheel-stud clearance patterns: 5 X 4.5 in; 5 X 114.3 mm; 5 X 4.75 in; 5 X 120.65 mm; 5 X 5 in; 5 X 127 mm.
  • Rotor/hat stud-hole clearance diameters: 0.520 in; 13.21 mm. These are hole sizes, not wheel-stud thread specifications.
  • The rotor/hat drilling does not change the vehicle hub or axle wheel bolt pattern.
  • Housing/flange arrangement: 12 Bolt Special.
  • Axle offset: confirm with Wilwood; the current product page specifies 2.91 inches and the installation cover specifies 2.81 inches.
  • Wheel-size guide: 15 in; 381 mm minimum nominal diameter; verify actual template clearance.
  • Sold as one kit. Mounting hardware is included. Hubs are not included.
  • Brake pads are included; use the compound and installation instructions specified for this rotor package.
  • Spindles, master cylinder, brake booster and hydraulic brake lines are not included.

Fitment & Compatibility

This rear drag package uses the Chevrolet 12-bolt Special housing end with a 3.15-inch fixed bearing. Its solid steel rotor is 11.44 inches in diameter and 0.35 inch thick, unlike the thicker vented iron rotors in street-oriented packages. Wilwood limits this kit to cars equipped with four-wheel disc brakes. Type III anodizing is the specified caliper finish; the suffix should not be interpreted as black powder coating. Axle selection remains unresolved until measurements are confirmed: the live product listing gives 2.91 inches, whereas the DS454 cover identifies 2.81 inches. Contact Wilwood with the measured housing-end details before choosing this kit. The broad modified-GM application rows do not settle that dimensional conflict or identify the rear axle actually installed.

Use the wheel-clearance drawing in the installation instructions before purchase. The catalog minimum diameter is a guide; barrel shape, spoke clearance and wheel offset still determine fit.

The application table below identifies the model-year and factory-equipment combinations. Match the entire row, including its numbered notes.

Package and installation requirements

  • Drag-racing use; four-wheel disc brake applications only.
  • No parking-brake assembly is included.
  • Axle offset remains unconfirmed: the current page says 2.91 inches and DS454 says 2.81 inches.

Manufacturer references

PMB Performance brings more than 20 years of brake and parts experience to fitment questions. Send us the axle or spindle details, current brake equipment and intended wheel dimensions if you need help checking this kit.

WARNING: This product can expose you to chemicals including Arsenic, Cadmium, Chromium (Hexavalent compounds), Lead, Nickel, Cobalt and Antimony Trioxide which are known to the State of California to cause cancer or other reproductive harm. For more information go to www.p65warnings.ca.gov.

Vehicle Applications

Years Make Model Model option Front brakes Rear brakes Kit application Notes
1964-1968 Chevrolet Chevelle w/ Ridetech Hub Spindle Drop Drum Rear Kit 1, 2, 3, 4
1964-1969 Chevrolet Chevelle w/ Ridetech Pin Spindle Drop Drum Rear Kit 1, 2, 3, 4
1964 Oldsmobile 442 w/ Ridetech Hub Spindle Drop Drum Rear Kit 1, 2, 3, 4
1964-1969 Pontiac Beaumont w/ Ridetech Hub Spindle Drop Drum Rear Kit 1, 2, 3, 4
1964-1969 Pontiac Beaumont w/ Ridetech Pin Spindle Drop Drum Rear Kit 1, 2, 3, 4
1967-1969 Chevrolet Camaro w/ Ridetech Hub Spindle Drop Drum Rear Kit 1, 2, 3, 4
1967-1969 Chevrolet Camaro w/ Ridetech Pin Spindle Drop Drum Rear Kit 1, 2, 3, 4
1970 Oldsmobile 442 w/ Ridetech Pin Spindle Drop Drum Rear Kit 1, 2, 3, 4
1973-1974 Buick Apollo w/ Ridetech Hub Spindle Drop Drum Rear Kit 1, 2, 3, 4
1973-1974 Buick Apollo w/ Ridetech Pin Spindle Drop Drum Rear Kit 1, 2, 3, 4

Application Notes

  1. For special end applications. Uses 3.15" fixed bearing.
  2. Universal Flexline kits available: 220-7056 (14"), 220-7699 (16") or 220-8307 (18"). Choose correct length for your application.
  3. This rear service-brake kit does not include a parking-brake mechanism or parking-brake cables. Verify the vehicle's parking-brake requirements before selecting this package.
  4. Line kit included (manufacturer): None
