Wilwood Red Rear Dynalite Conversion for Chevrolet Special Fixed-Bearing Axles — 12.19-inch Plain Rotors components
Wilwood Red Rear Dynalite Conversion for Chevrolet Special Fixed-Bearing Axles — 12.19-inch Plain Rotors components — product view 2
Wilwood Red Rear Dynalite Conversion for Chevrolet Special Fixed-Bearing Axles — 12.19-inch Plain Rotors components
Wilwood Red Rear Dynalite Conversion for Chevrolet Special Fixed-Bearing Axles — 12.19-inch Plain Rotors components — product view 2

Wilwood Red Rear Dynalite Conversion for Chevrolet Special Fixed-Bearing Axles — 12.19-inch Plain Rotors

SKU: 140-5746-R

$979.24 Sale
Shipping calculated at checkout.

Fitment questions?

Call (855) 786-7101 or text (801) 304-3141. We check fitment by VIN.

Shipping policyRefund policy

Product details

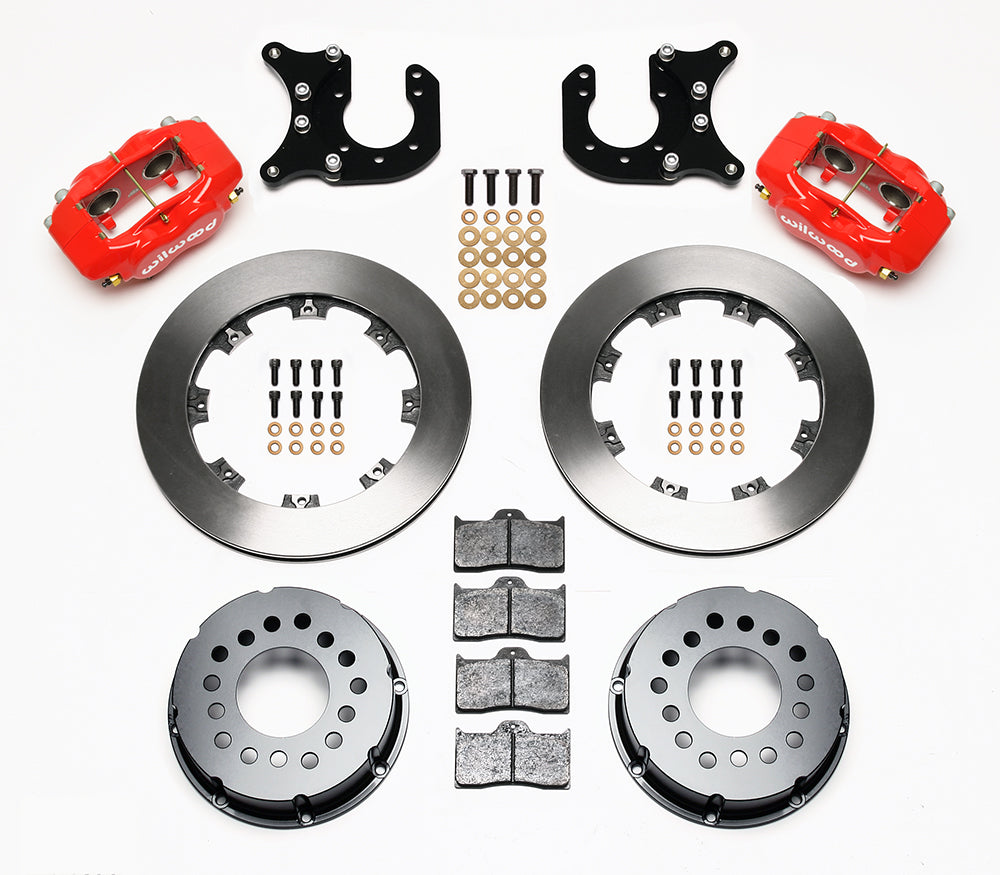

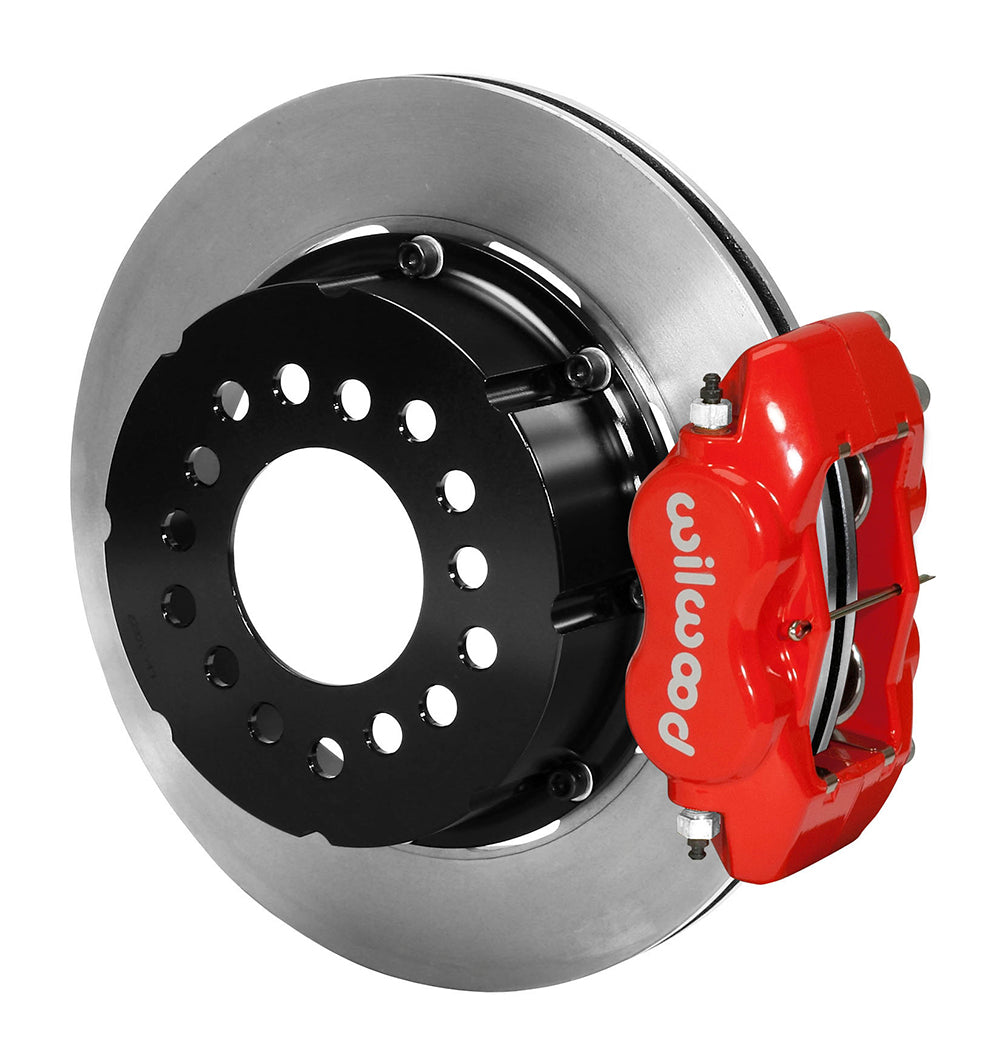

This red-caliper package pairs a plain rotor face with the Special-end mounting system. At the rear axle, this kit pairs red powder-coated 4-piston calipers and 12.19-inch plain-face rotors with the mounting hardware for Chevrolet 12-bolt Special, 3.15-inch fixed bearing. Based in Camarillo, California, Wilwood Engineering was founded by Bill Wood in 1977. It designs and manufactures disc brake systems for motorsport, street-performance and specialized applications, with a range including calipers, rotors, master cylinders, valves, fittings and brake lines. Selecting the mounting and hydraulic components together is part of building the complete brake system.

Technical Details

  • Manufacturer part number: 140-5746-R.
  • Rotor dimensions: 12.19 in; 309.63 mm diameter x 0.81 in; 20.57 mm thick.
  • Rotor construction: Iron; vented; Plain Face friction surface.
  • Housing/flange arrangement: 12 Bolt Special.
  • Axle offset: confirm with Wilwood; the current product page specifies 2.91 inches and the installation cover specifies 2.81 inches.
  • Wheel-size guide: 15 in; 381 mm minimum nominal diameter; verify actual template clearance.
  • Calipers: 4 pistons; forged aluminum; stainless steel pistons.
  • Caliper attachment: lug mount; 1/8-27 NPT hydraulic inlet.
  • Caliper finish: Red Powder Coat.
  • Rotor/hat wheel-stud clearance patterns: 5 X 4.5 in; 5 X 114.3 mm; 5 X 4.75 in; 5 X 120.65 mm; 5 X 5 in; 5 X 127 mm.
  • Rotor/hat stud-hole clearance diameters: 0.520 in; 13.21 mm. These are hole sizes, not wheel-stud thread specifications.
  • The rotor/hat drilling does not change the vehicle hub or axle wheel bolt pattern.
  • Sold as one kit. Mounting hardware is included. Hubs are not included.
  • Brake pads are included; use the compound and installation instructions specified for this rotor package.
  • Spindles, master cylinder, brake booster and hydraulic brake lines are not included.

Package and installation requirements

  • No parking-brake mechanism is supplied. Confirm that this arrangement meets the requirements of the vehicle and its intended use.
  • Axle offset requires confirmation: current product page 2.91 inches; DS293 instruction cover 2.81 inches.

Fitment & Compatibility

Use this package only with the Chevrolet 12-bolt Special housing-end arrangement and its 3.15-inch fixed axle bearing. The listed modified GM applications still require that rear axle hardware; a vehicle name or front spindle conversion does not establish rear-kit fit. Wilwood currently lists a 2.91-inch axle offset, while the DS293 instruction cover specifies 2.81 inches. Measure your axle and have Wilwood confirm the correct kit before ordering.

Wheel selection requires the complete clearance profile in the instructions. Confirm radial and spoke clearance; do not rely on the minimum diameter alone.

The listed applications below retain their equipment qualifiers. Check the matching row and each referenced note before selecting the kit.

Manufacturer references

PMB Performance has more than 20 years of experience helping customers select brake components. Share the measurements and photos of your current setup so we can help check the application and the additional pieces needed.

WARNING: This product can expose you to chemicals including Arsenic, Cadmium, Chromium (Hexavalent compounds), Lead, Nickel, Cobalt and Antimony Trioxide which are known to the State of California to cause cancer or other reproductive harm. For more information go to www.p65warnings.ca.gov.

Vehicle Applications

Years Make Model Model option Front brakes Rear brakes Kit application Notes
1964-1968 Chevrolet Chevelle w/ Ridetech Hub Spindle Drop Drum Rear Kit 1, 2, 3, 4, 5
1964-1969 Chevrolet Chevelle w/ Ridetech Pin Spindle Drop Drum Rear Kit 1, 2, 3, 4, 5
1964 Oldsmobile 442 w/ Ridetech Hub Spindle Drop Drum Rear Kit 1, 2, 3, 4, 5
1964-1969 Pontiac Beaumont w/ Ridetech Hub Spindle Drop Drum Rear Kit 1, 2, 3, 4, 5
1964-1969 Pontiac Beaumont w/ Ridetech Pin Spindle Drop Drum Rear Kit 1, 2, 3, 4, 5
1967-1969 Chevrolet Camaro w/ Ridetech Hub Spindle Drop Drum Rear Kit 1, 2, 3, 4, 5
1967-1969 Chevrolet Camaro w/ Ridetech Pin Spindle Drop Drum Rear Kit 1, 2, 3, 4, 5
1970 Oldsmobile 442 w/ Ridetech Pin Spindle Drop Drum Rear Kit 1, 2, 3, 4, 5
1973-1974 Buick Apollo w/ Ridetech Hub Spindle Drop Drum Rear Kit 1, 2, 3, 4, 5
1973-1974 Buick Apollo w/ Ridetech Pin Spindle Drop Drum Rear Kit 1, 2, 3, 4, 5

Application Notes

  1. For special end applications. Uses 3.15" fixed bearing.
  2. Kit may fit some 15" wheels. Check wheel clearance diagram in kit installation instructions before purchase.
  3. Universal Flexline kits available: 220-7056 (14"), 220-7699 (16") or 220-8307 (18"). Choose correct length for your application.
  4. This rear service-brake kit does not include a parking-brake mechanism or parking-brake cables. Verify the vehicle's parking-brake requirements before selecting this package.
  5. Line kit included (manufacturer): None
