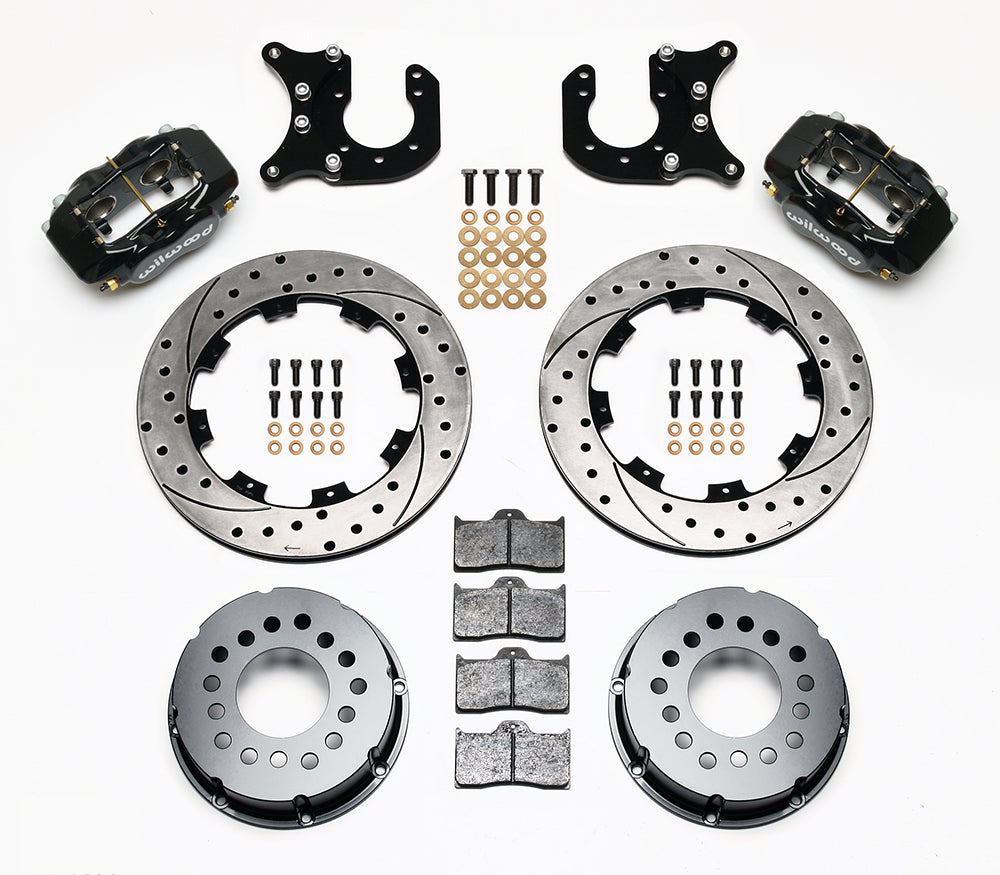

Wilwood Black Dynalite SRP Rear Brakes — Chevrolet 12-Bolt Special 3.15-inch Bearing, 12.19-inch Rotors components

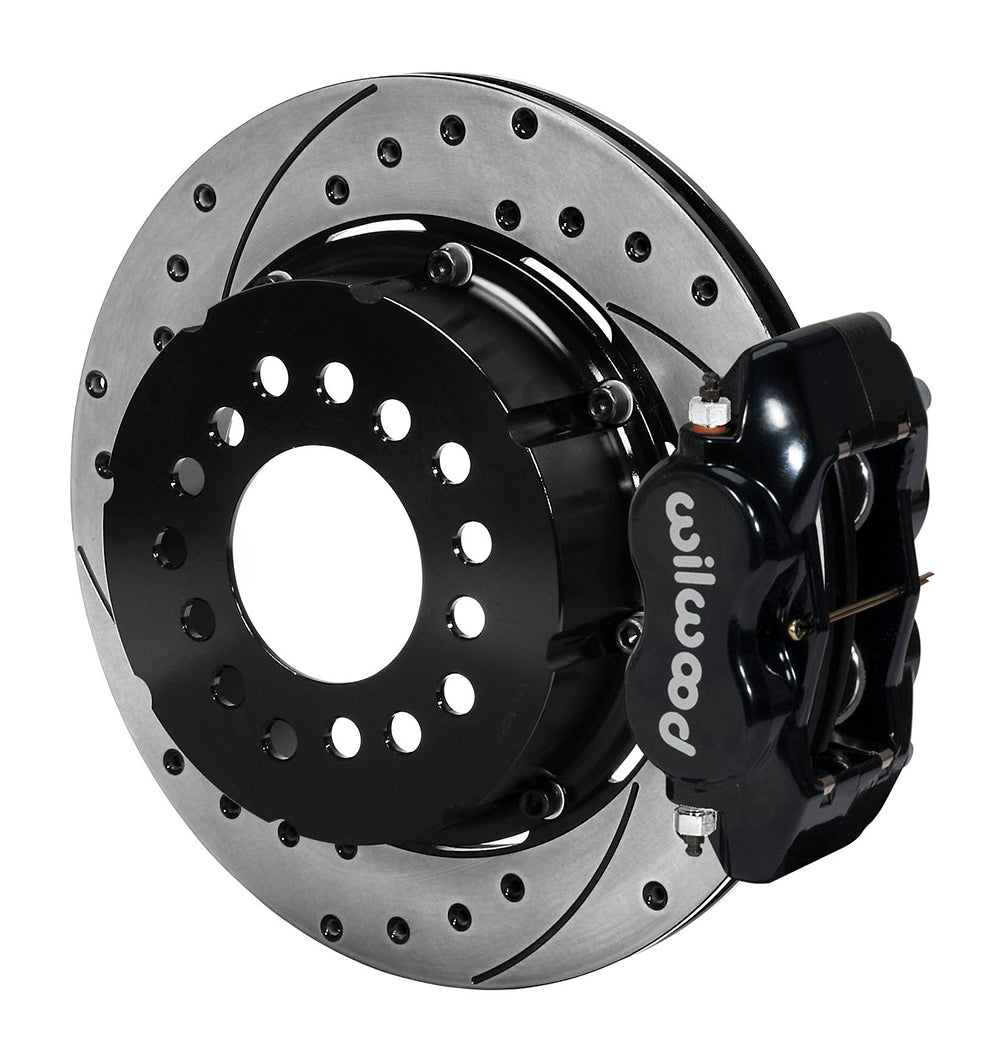

Wilwood Black Dynalite SRP Rear Brakes — Chevrolet 12-Bolt Special 3.15-inch Bearing, 12.19-inch Rotors components — product view 2
Wilwood Black Dynalite SRP Rear Brakes — Chevrolet 12-Bolt Special 3.15-inch Bearing, 12.19-inch Rotors components
Wilwood Black Dynalite SRP Rear Brakes — Chevrolet 12-Bolt Special 3.15-inch Bearing, 12.19-inch Rotors components — product view 2

Wilwood Black Dynalite SRP Rear Brakes — Chevrolet 12-Bolt Special 3.15-inch Bearing, 12.19-inch Rotors

SKU: 140-5746-BD

$1,121.55 Sale
Shipping calculated at checkout.

Fitment questions?

Call (855) 786-7101 or text (801) 304-3141.
Real people. Real answers.

Shipping policyRefund policy

Product details

The black-caliper SRP package is for a measured Special-end axle conversion. The supplied black powder-coated 4-piston calipers and 12.19-inch SRP drilled-and-slotted rotors are configured for Chevrolet 12-bolt Special, 3.15-inch fixed bearing. Wilwood Engineering began in 1977 under founder Bill Wood and is based in Camarillo, California. The company designs and manufactures disc brake systems and components for motorsport, street-performance and specialized vehicles. Calipers, rotors, master cylinders, valves, fittings and brake lines must be selected around the needs of the complete system.

Fitment & Compatibility

Use this package only with the Chevrolet 12-bolt Special housing-end arrangement and its 3.15-inch fixed axle bearing. The listed modified GM applications still require that rear axle hardware; a vehicle name or front spindle conversion does not establish rear-kit fit. Wilwood currently lists a 2.91-inch axle offset, while the DS293 instruction cover specifies 2.81 inches. Measure your axle and have Wilwood confirm the correct kit before ordering.

Check the actual wheel against the manufacturer template, including the inner barrel and back of the spokes. A nominal wheel diameter by itself does not guarantee clearance.

Use the complete vehicle row and its application notes below to check model year, trim and original brake equipment.

Technical Details

  • Manufacturer part number: 140-5746-BD.
  • Calipers: 4 pistons; forged aluminum; stainless steel pistons.
  • Caliper attachment: lug mount; 1/8-27 NPT hydraulic inlet.
  • Caliper finish: Black Powder Coat.
  • Rotor/hat wheel-stud clearance patterns: 5 X 4.5 in; 5 X 114.3 mm; 5 X 4.75 in; 5 X 120.65 mm; 5 X 5 in; 5 X 127 mm.
  • Rotor/hat stud-hole clearance diameters: 0.520 in; 13.21 mm. These are hole sizes, not wheel-stud thread specifications.
  • The rotor/hat drilling does not change the vehicle hub or axle wheel bolt pattern.
  • Rotor dimensions: 12.19 in; 309.63 mm diameter x 0.81 in; 20.57 mm thick.
  • Rotor construction: Iron; vented; SRP Drilled & Slotted friction surface.
  • Sold as one kit. Mounting hardware is included. Hubs are not included.
  • Brake pads are included; use the compound and installation instructions specified for this rotor package.
  • Spindles, master cylinder, brake booster and hydraulic brake lines are not included.
  • Housing/flange arrangement: 12 Bolt Special.
  • Axle offset: confirm with Wilwood; the current product page specifies 2.91 inches and the installation cover specifies 2.81 inches.
  • Wheel-size guide: 15 in; 381 mm minimum nominal diameter; verify actual template clearance.

Package and installation requirements

  • No parking-brake mechanism is supplied. Confirm that this arrangement meets the requirements of the vehicle and its intended use.
  • Axle offset requires confirmation: current product page 2.91 inches; DS293 instruction cover 2.81 inches.

Manufacturer references

With over 20 years of experience, PMB Performance can help you work through the mounting and brake-system details before ordering. Include your vehicle information and any axle, hub or spindle changes when contacting us.

WARNING: This product can expose you to chemicals including Arsenic, Cadmium, Chromium (Hexavalent compounds), Lead, Nickel, Cobalt and Antimony Trioxide which are known to the State of California to cause cancer or other reproductive harm. For more information go to www.p65warnings.ca.gov.

Vehicle Applications

Years Make Model Model option Front brakes Rear brakes Kit application Notes
1964-1968 Chevrolet Chevelle w/ Ridetech Hub Spindle Drop Drum Rear Kit 1, 2, 3, 4, 5
1964-1969 Chevrolet Chevelle w/ Ridetech Pin Spindle Drop Drum Rear Kit 1, 2, 3, 4, 5
1964 Oldsmobile 442 w/ Ridetech Hub Spindle Drop Drum Rear Kit 1, 2, 3, 4, 5
1964-1969 Pontiac Beaumont w/ Ridetech Hub Spindle Drop Drum Rear Kit 1, 2, 3, 4, 5
1964-1969 Pontiac Beaumont w/ Ridetech Pin Spindle Drop Drum Rear Kit 1, 2, 3, 4, 5
1967-1969 Chevrolet Camaro w/ Ridetech Hub Spindle Drop Drum Rear Kit 1, 2, 3, 4, 5
1967-1969 Chevrolet Camaro w/ Ridetech Pin Spindle Drop Drum Rear Kit 1, 2, 3, 4, 5
1970 Oldsmobile 442 w/ Ridetech Pin Spindle Drop Drum Rear Kit 1, 2, 3, 4, 5
1973-1974 Buick Apollo w/ Ridetech Hub Spindle Drop Drum Rear Kit 1, 2, 3, 4, 5
1973-1974 Buick Apollo w/ Ridetech Pin Spindle Drop Drum Rear Kit 1, 2, 3, 4, 5

Application Notes

  1. For special end applications. Uses 3.15" fixed bearing.
  2. Kit may fit some 15" wheels. Check wheel clearance diagram in kit installation instructions before purchase.
  3. Universal Flexline kits available: 220-7056 (14"), 220-7699 (16") or 220-8307 (18"). Choose correct length for your application.
  4. This rear service-brake kit does not include a parking-brake mechanism or parking-brake cables. Verify the vehicle's parking-brake requirements before selecting this package.
  5. Line kit included (manufacturer): None
