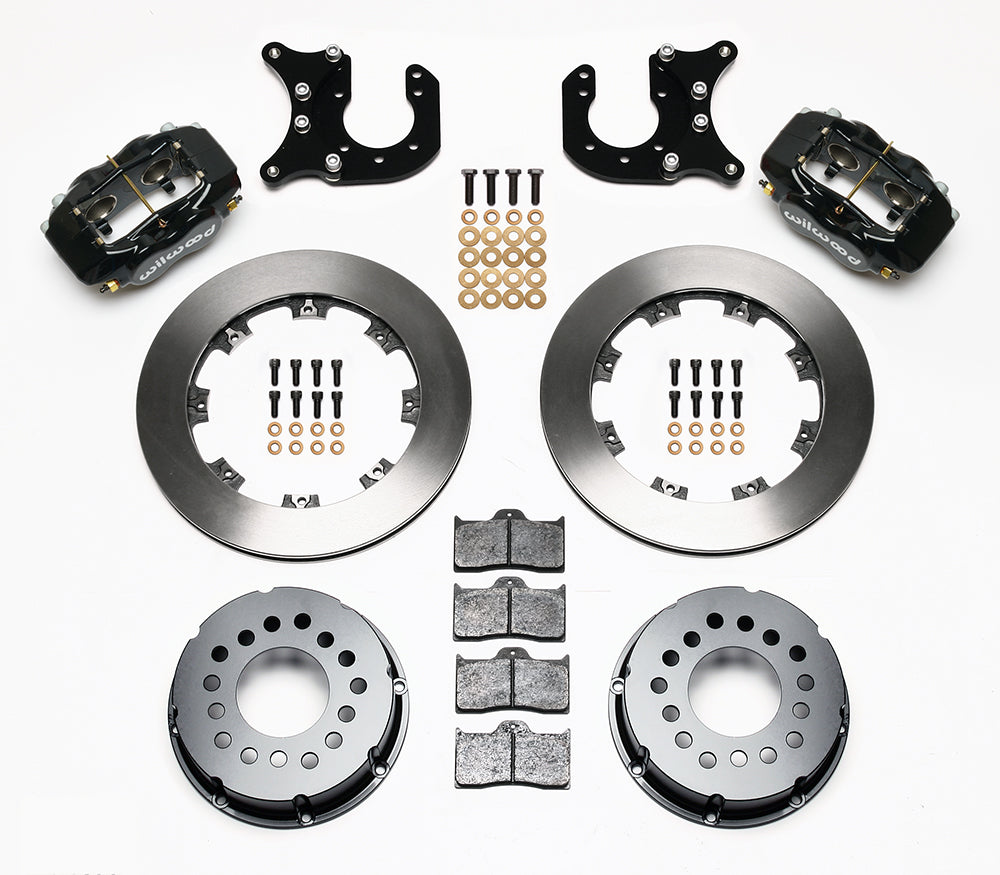

Wilwood Dynalite Rear Kit for Chevrolet 12-Bolt Special Fixed-Bearing Ends — Black, 12.19-inch Plain Rotors components

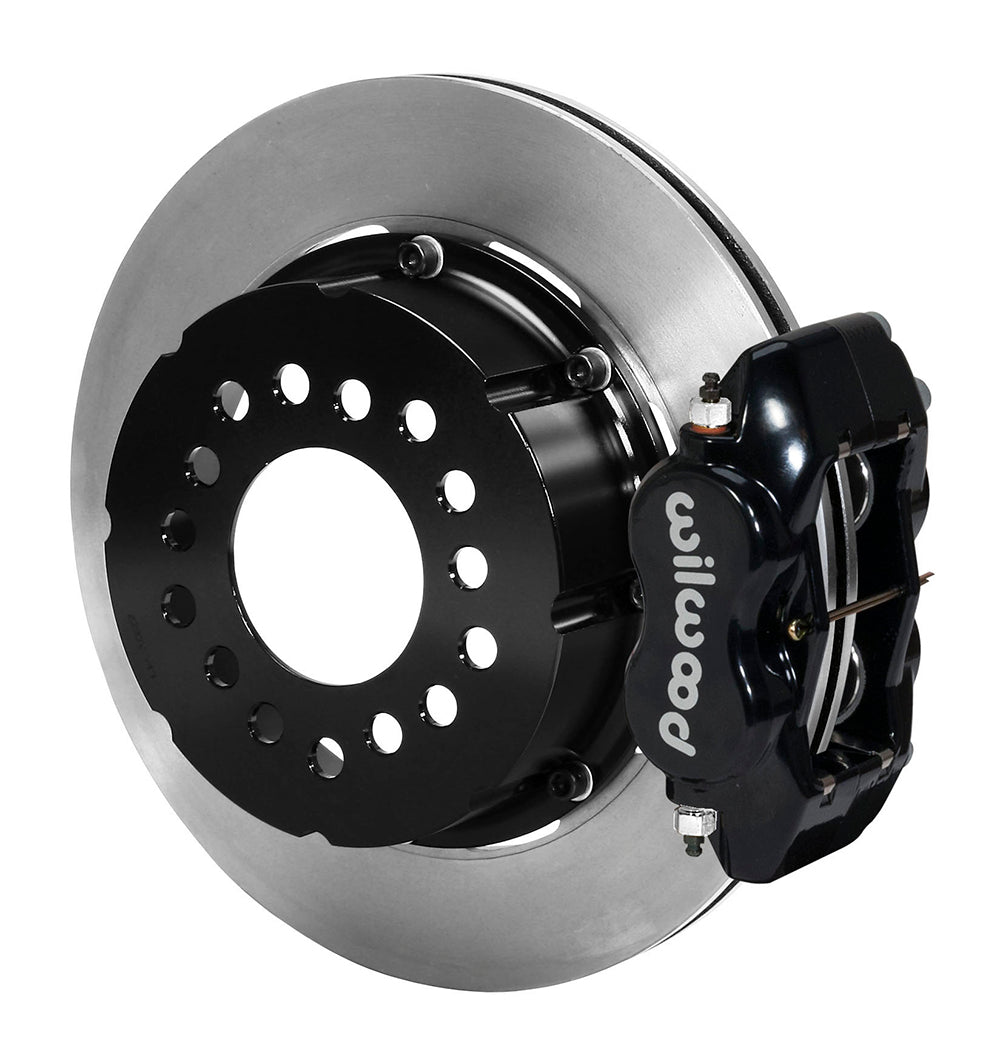

Wilwood Dynalite Rear Kit for Chevrolet 12-Bolt Special Fixed-Bearing Ends — Black, 12.19-inch Plain Rotors components — product view 2
Wilwood Dynalite Rear Kit for Chevrolet 12-Bolt Special Fixed-Bearing Ends — Black, 12.19-inch Plain Rotors components
Wilwood Dynalite Rear Kit for Chevrolet 12-Bolt Special Fixed-Bearing Ends — Black, 12.19-inch Plain Rotors components — product view 2

Wilwood Dynalite Rear Kit for Chevrolet 12-Bolt Special Fixed-Bearing Ends — Black, 12.19-inch Plain Rotors

SKU: 140-5746-B

$979.24 Sale
Shipping calculated at checkout.

Fitment questions?

Call (855) 786-7101 or text (801) 304-3141. We check fitment by VIN.

Shipping policyRefund policy

Product details

A fixed-bearing Special housing end separates this kit from an ordinary C-clip Chevrolet rear axle. This Forged Dynalite rear disc brake kit combines black powder-coated 4-piston calipers and 12.19-inch plain-face rotors. Founded in 1977 by Bill Wood and based in Camarillo, California, Wilwood Engineering designs and manufactures disc brake systems for motorsport, street-performance and specialized applications. Its range includes calipers, brake rotors, master cylinders, valves, fittings and brake lines, selected to work together as a complete brake system.

Technical Details

  • Manufacturer part number: 140-5746-B.
  • Rotor dimensions: 12.19 in; 309.63 mm diameter x 0.81 in; 20.57 mm thick.
  • Rotor construction: Iron; vented; Plain Face friction surface.
  • Calipers: 4 pistons; forged aluminum; stainless steel pistons.
  • Caliper attachment: lug mount; 1/8-27 NPT hydraulic inlet.
  • Caliper finish: Black Powder Coat.
  • Rotor/hat wheel-stud clearance patterns: 5 X 4.5 in; 5 X 114.3 mm; 5 X 4.75 in; 5 X 120.65 mm; 5 X 5 in; 5 X 127 mm.
  • Rotor/hat stud-hole clearance diameters: 0.520 in; 13.21 mm. These are hole sizes, not wheel-stud thread specifications.
  • The rotor/hat drilling does not change the vehicle hub or axle wheel bolt pattern.
  • Housing/flange arrangement: 12 Bolt Special.
  • Axle offset: confirm with Wilwood; the current product page specifies 2.91 inches and the installation cover specifies 2.81 inches.
  • Wheel-size guide: 15 in; 381 mm minimum nominal diameter; verify actual template clearance.
  • Sold as one kit. Mounting hardware is included. Hubs are not included.
  • Brake pads are included; use the compound and installation instructions specified for this rotor package.
  • Spindles, master cylinder, brake booster and hydraulic brake lines are not included.

Fitment & Compatibility

Use this package only with the Chevrolet 12-bolt Special housing-end arrangement and its 3.15-inch fixed axle bearing. The listed modified GM applications still require that rear axle hardware; a vehicle name or front spindle conversion does not establish rear-kit fit. Wilwood currently lists a 2.91-inch axle offset, while the DS293 instruction cover specifies 2.81 inches. Measure your axle and have Wilwood confirm the correct kit before ordering.

Use the wheel-clearance drawing in the installation instructions before purchase. The catalog minimum diameter is a guide; barrel shape, spoke clearance and wheel offset still determine fit.

The application table below identifies the model-year and factory-equipment combinations. Match the entire row, including its numbered notes.

Package and installation requirements

  • No parking-brake mechanism is supplied. Confirm that this arrangement meets the requirements of the vehicle and its intended use.
  • Axle offset requires confirmation: current product page 2.91 inches; DS293 instruction cover 2.81 inches.

Manufacturer references

PMB Performance brings more than 20 years of brake and parts experience to fitment questions. Send us the axle or spindle details, current brake equipment and intended wheel dimensions if you need help checking this kit.

WARNING: This product can expose you to chemicals including Arsenic, Cadmium, Chromium (Hexavalent compounds), Lead, Nickel, Cobalt and Antimony Trioxide which are known to the State of California to cause cancer or other reproductive harm. For more information go to www.p65warnings.ca.gov.

Vehicle Applications

Years Make Model Model option Front brakes Rear brakes Kit application Notes
1964-1968 Chevrolet Chevelle w/ Ridetech Hub Spindle Drop Drum Rear Kit 1, 2, 3, 4, 5
1964-1969 Chevrolet Chevelle w/ Ridetech Pin Spindle Drop Drum Rear Kit 1, 2, 3, 4, 5
1964 Oldsmobile 442 w/ Ridetech Hub Spindle Drop Drum Rear Kit 1, 2, 3, 4, 5
1964-1969 Pontiac Beaumont w/ Ridetech Hub Spindle Drop Drum Rear Kit 1, 2, 3, 4, 5
1964-1969 Pontiac Beaumont w/ Ridetech Pin Spindle Drop Drum Rear Kit 1, 2, 3, 4, 5
1967-1969 Chevrolet Camaro w/ Ridetech Hub Spindle Drop Drum Rear Kit 1, 2, 3, 4, 5
1967-1969 Chevrolet Camaro w/ Ridetech Pin Spindle Drop Drum Rear Kit 1, 2, 3, 4, 5
1970 Oldsmobile 442 w/ Ridetech Pin Spindle Drop Drum Rear Kit 1, 2, 3, 4, 5
1973-1974 Buick Apollo w/ Ridetech Hub Spindle Drop Drum Rear Kit 1, 2, 3, 4, 5
1973-1974 Buick Apollo w/ Ridetech Pin Spindle Drop Drum Rear Kit 1, 2, 3, 4, 5

Application Notes

  1. For special end applications. Uses 3.15" fixed bearing.
  2. Kit may fit some 15" wheels. Check wheel clearance diagram in kit installation instructions before purchase.
  3. Universal Flexline kits available: 220-7056 (14"), 220-7699 (16") or 220-8307 (18"). Choose correct length for your application.
  4. This rear service-brake kit does not include a parking-brake mechanism or parking-brake cables. Verify the vehicle's parking-brake requirements before selecting this package.
  5. Line kit included (manufacturer): None
