Wilwood 12.19-inch Plain Dynalite Rear Kit, Red — Mopar 8-3/4 / Dana 60, 2.36-inch offset

SKU: 140-5591-R

$979.24 Sale
Shipping calculated at checkout.

Fitment questions?

Call (855) 786-7101 or text (801) 304-3141. We check fitment by VIN.

Shipping policyRefund policy

Product details

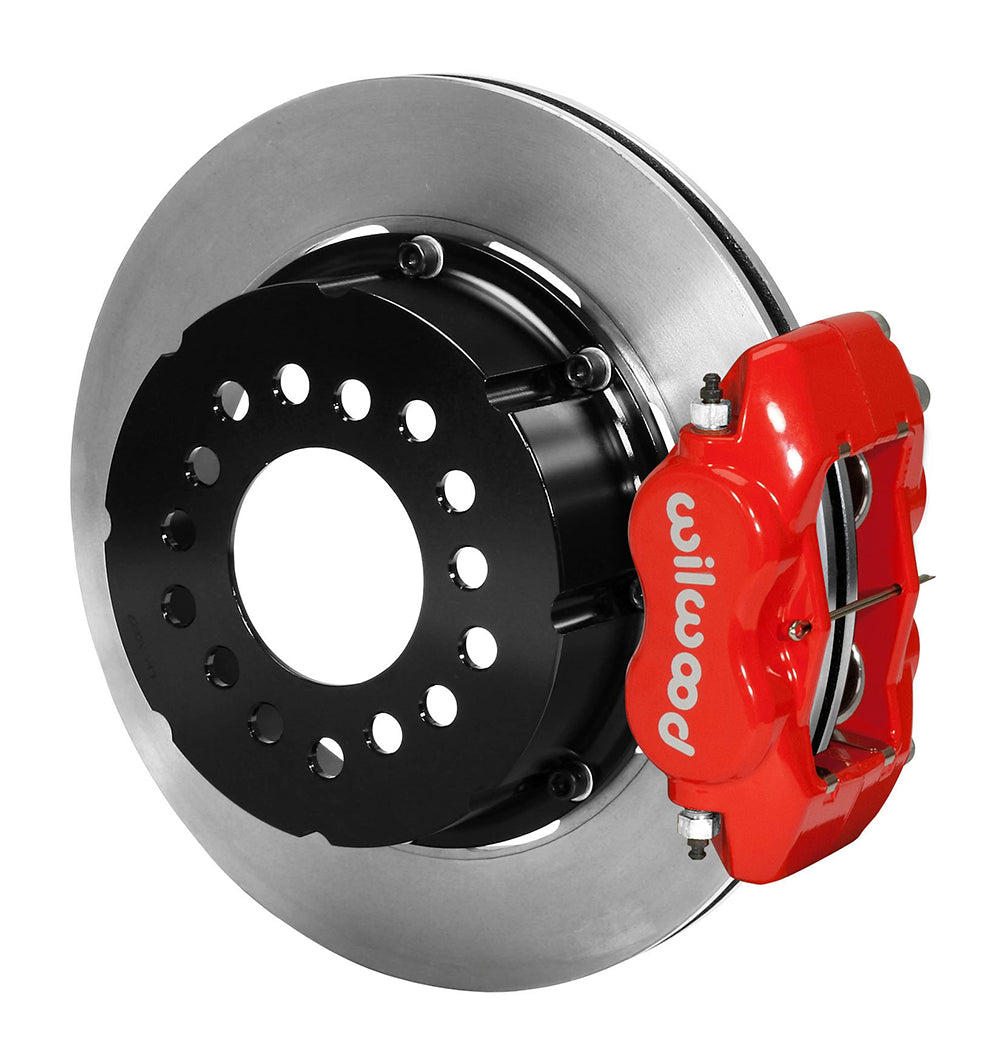

Plain vented discs keep the rotor face uninterrupted alongside red forged calipers. At the rear axle, this kit pairs red powder-coated 4-piston calipers and 12.19-inch plain-face rotors with the mounting hardware for Mopar 8-3/4 / Dana 60, 2.36-inch offset. Based in Camarillo, California, Wilwood Engineering was founded by Bill Wood in 1977. It designs and manufactures disc brake systems for motorsport, street-performance and specialized applications, with a range including calipers, rotors, master cylinders, valves, fittings and brake lines. Selecting the mounting and hydraulic components together is part of building the complete brake system.

Technical Details

  • Manufacturer part number: 140-5591-R.
  • Rotor dimensions: 12.19 in; 309.63 mm diameter x 0.81 in; 20.57 mm thick.
  • Rotor construction: Iron; vented; Plain Face friction surface.
  • Housing/flange arrangement: Mopar/Dana.
  • Axle flange offset: 2.36 in; 59.94 mm.
  • Wheel-size guide: 15 in; 381 mm minimum nominal diameter; verify actual template clearance.
  • Calipers: 4 pistons; forged aluminum; stainless steel pistons.
  • Caliper attachment: lug mount; 1/8-27 NPT hydraulic inlet.
  • Caliper finish: Red Powder Coat.
  • Rotor/hat wheel-stud clearance patterns: 5 X 4.5 in; 5 X 114.3 mm; 5 X 4.75 in; 5 X 120.65 mm; 5 X 5 in; 5 X 127 mm.
  • Rotor/hat stud-hole clearance diameters: 0.520 in; 13.21 mm. These are hole sizes, not wheel-stud thread specifications.
  • The rotor/hat drilling does not change the vehicle hub or axle wheel bolt pattern.

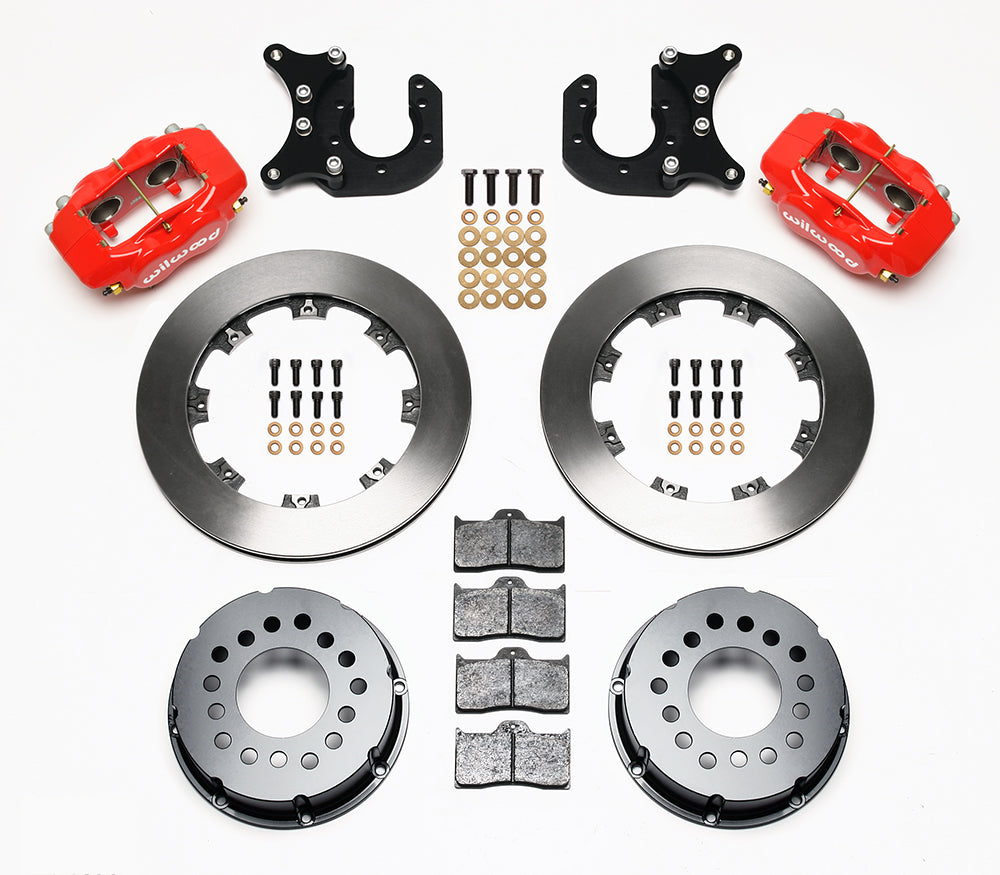

  • Sold as one kit. Mounting hardware is included. Hubs are not included.
  • Brake pads are included; use the compound and installation instructions specified for this rotor package.
  • Spindles, master cylinder, brake booster and hydraulic brake lines are not included.

Package and installation requirements

  • No parking brake is included. Wilwood describes this package for applications that do not require a separate parking brake, including custom and competition installations.

Fitment & Compatibility

This kit mounts to Mopar 8-3/4-inch or Dana 60 rear housing ends with a 2.36-inch axle offset and the specified non-adjustable snap-ring axle bearings. Wilwood identifies Green MO400, Strange A1022 and Moser 9400M bearing arrangements in the installation instructions. Identify the housing end and measure the axle offset before ordering; the differential name alone is insufficient.

Wheel selection requires the complete clearance profile in the instructions. Confirm radial and spoke clearance; do not rely on the minimum diameter alone.
