Product details

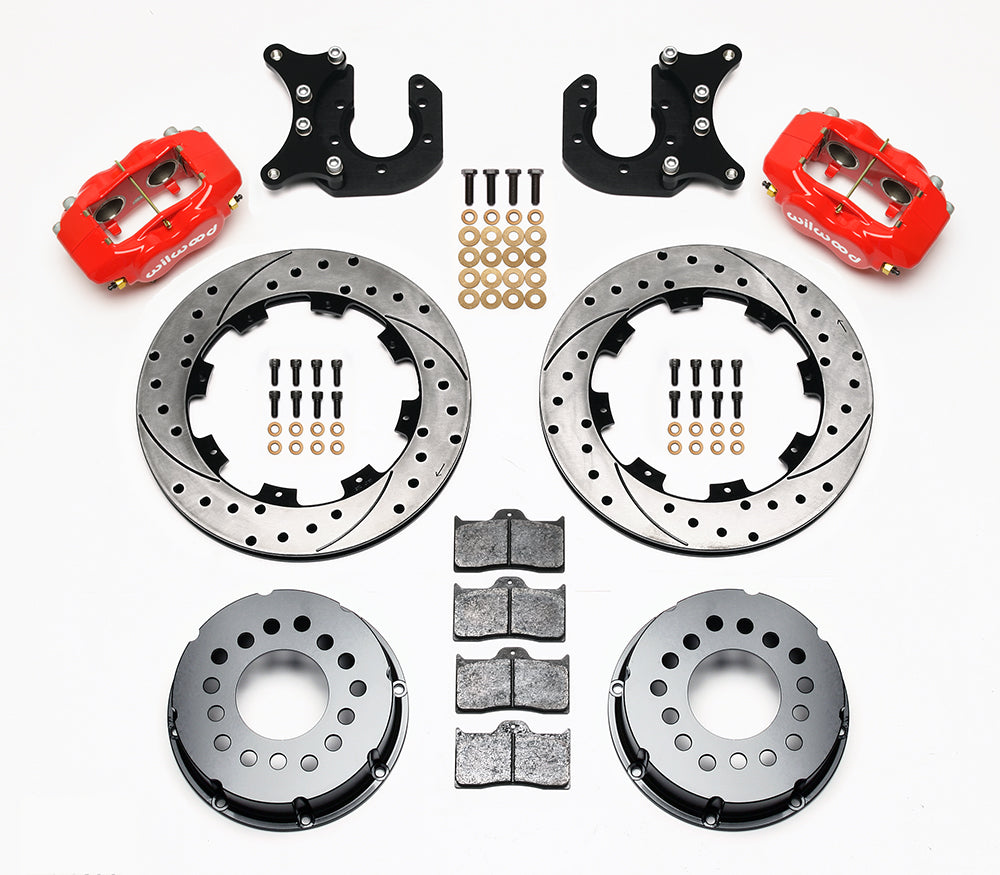

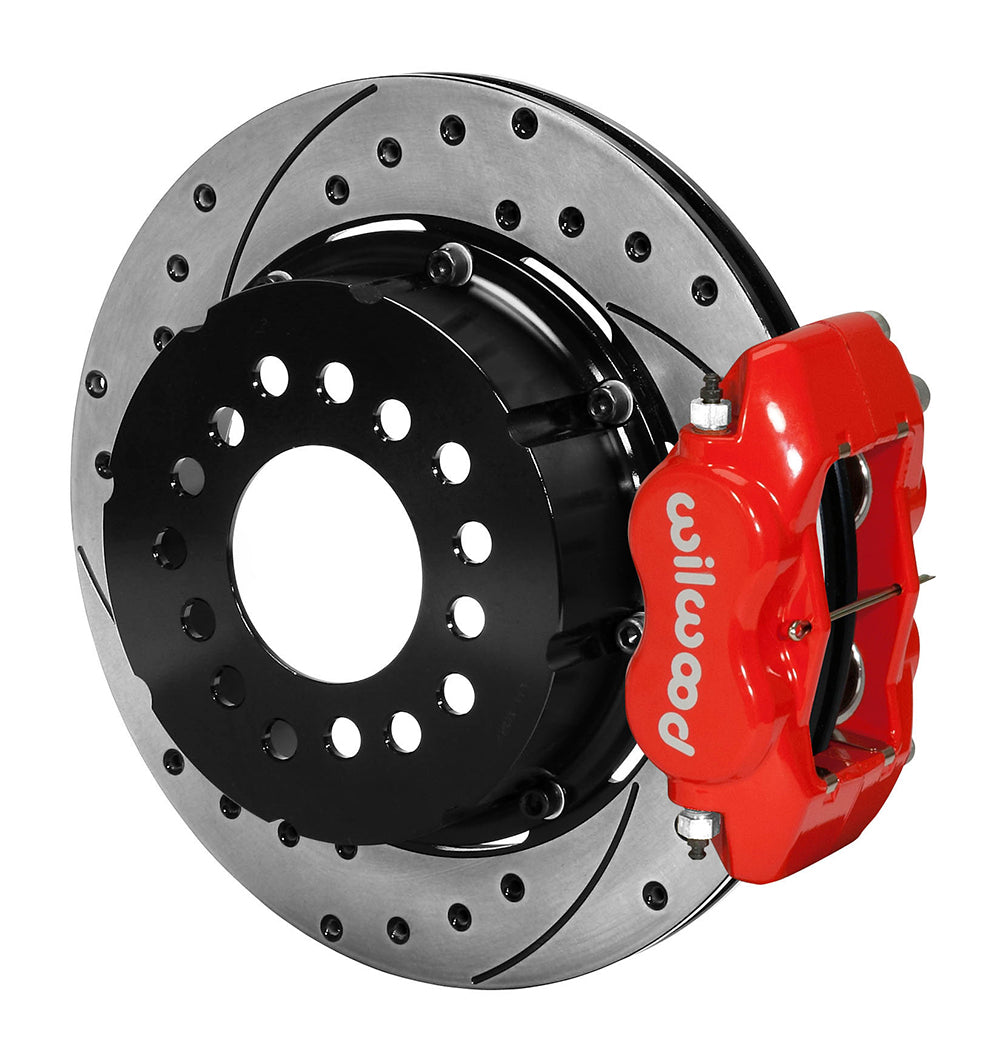

Red calipers and drilled-and-slotted discs identify this Mopar/Dana version. For Mopar 8-3/4 / Dana 60, 2.36-inch offset, Wilwood specifies red powder-coated 4-piston calipers and 12.19-inch SRP drilled-and-slotted rotors in this rear package. Bill Wood founded Wilwood Engineering in 1977. From Camarillo, California, the company designs and manufactures disc brake systems and components including calipers, brake rotors, master cylinders, valves, fittings and brake lines for motorsport, street-performance and specialized applications. This kit should be matched to the hydraulic and mechanical requirements of the complete vehicle.
Package and installation requirements
- No parking brake is included. Wilwood describes this package for applications that do not require a separate parking brake, including custom and competition installations.
Fitment & Compatibility
This kit mounts to Mopar 8-3/4-inch or Dana 60 rear housing ends with a 2.36-inch axle offset and the specified non-adjustable snap-ring axle bearings. Wilwood identifies Green MO400, Strange A1022 and Moser 9400M bearing arrangements in the installation instructions. Identify the housing end and measure the axle offset before ordering; the differential name alone is insufficient.
Before ordering, compare the wheel profile with the Wilwood clearance diagram. The stated minimum size does not establish spoke or barrel clearance for every wheel of that diameter.
Technical Details
- Manufacturer part number: 140-5591-DR.
- Rotor/hat wheel-stud clearance patterns: 5 X 4.5 in; 5 X 114.3 mm; 5 X 4.75 in; 5 X 120.65 mm; 5 X 5 in; 5 X 127 mm.
- Rotor/hat stud-hole clearance diameters: 0.520 in; 13.21 mm. These are hole sizes, not wheel-stud thread specifications.
- The rotor/hat drilling does not change the vehicle hub or axle wheel bolt pattern.
- Rotor dimensions: 12.19 in; 309.63 mm diameter x 0.81 in; 20.57 mm thick.
- Rotor construction: Iron; vented; SRP Drilled & Slotted friction surface.
- Housing/flange arrangement: Mopar/Dana.
- Axle flange offset: 2.36 in; 59.94 mm.
- Wheel-size guide: 15 in; 381 mm minimum nominal diameter; verify actual template clearance.
- Calipers: 4 pistons; forged aluminum; stainless steel pistons.
- Caliper attachment: lug mount; 1/8-27 NPT hydraulic inlet.
- Caliper finish: Red Powder Coat.
- Sold as one kit. Mounting hardware is included. Hubs are not included.
- Brake pads are included; use the compound and installation instructions specified for this rotor package.
- Spindles, master cylinder, brake booster and hydraulic brake lines are not included.
