Product details

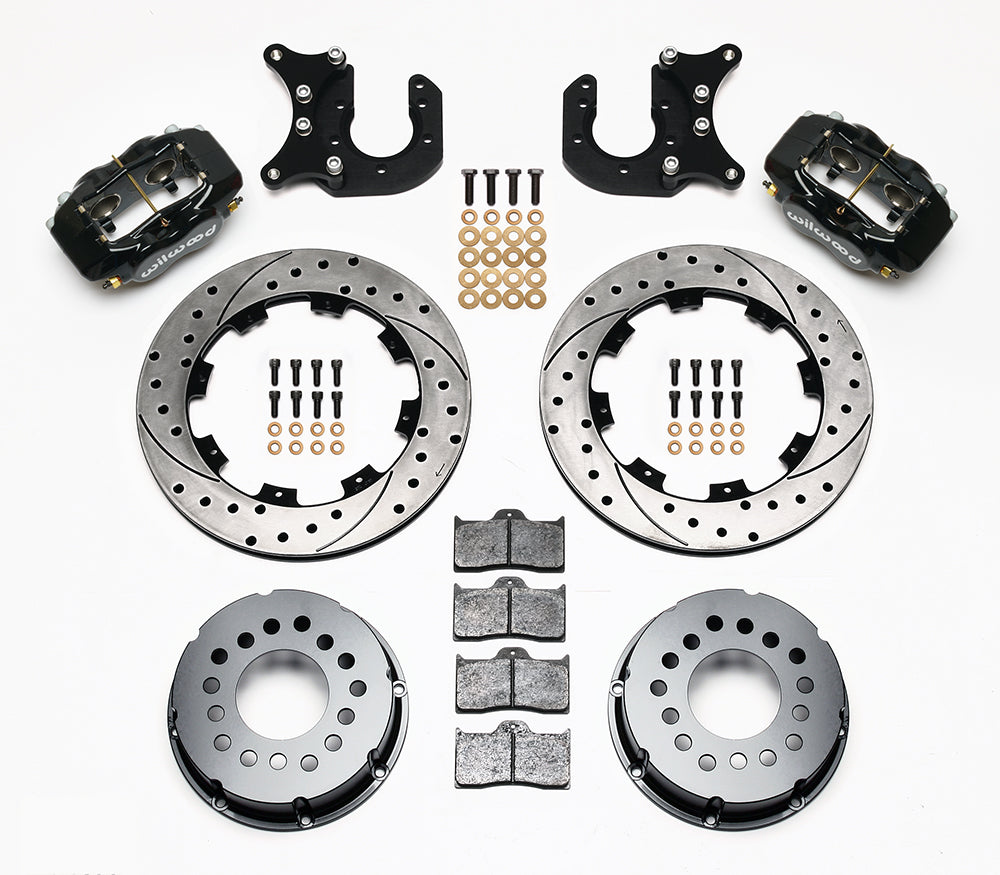

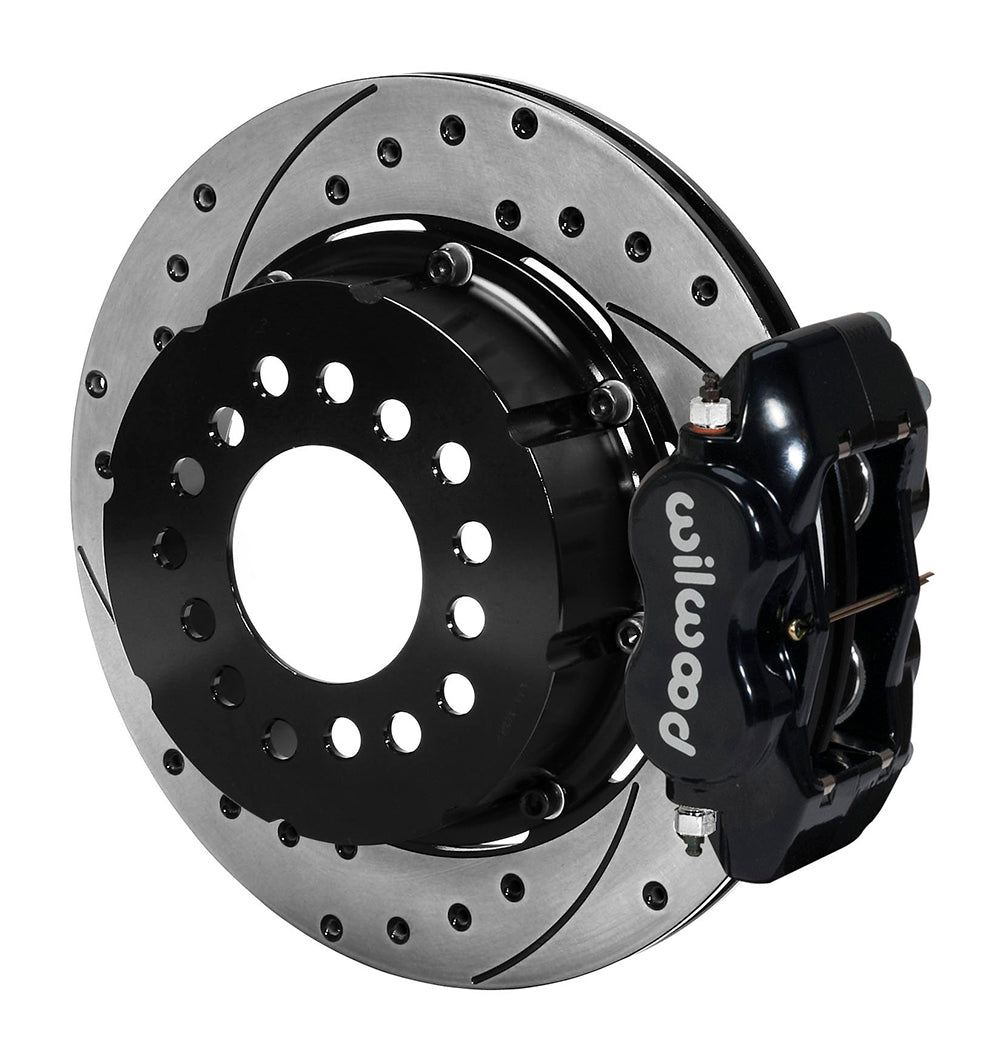

An SRP rotor face changes the visible disc finish without changing the required snap-ring bearing arrangement. The supplied black powder-coated 4-piston calipers and 12.19-inch SRP drilled-and-slotted rotors are configured for Mopar 8-3/4 / Dana 60, 2.36-inch offset. Wilwood Engineering began in 1977 under founder Bill Wood and is based in Camarillo, California. The company designs and manufactures disc brake systems and components for motorsport, street-performance and specialized vehicles. Calipers, rotors, master cylinders, valves, fittings and brake lines must be selected around the needs of the complete system.
Fitment & Compatibility
This kit mounts to Mopar 8-3/4-inch or Dana 60 rear housing ends with a 2.36-inch axle offset and the specified non-adjustable snap-ring axle bearings. Wilwood identifies Green MO400, Strange A1022 and Moser 9400M bearing arrangements in the installation instructions. Identify the housing end and measure the axle offset before ordering; the differential name alone is insufficient.
Check the actual wheel against the manufacturer template, including the inner barrel and back of the spokes. A nominal wheel diameter by itself does not guarantee clearance.
Technical Details
- Manufacturer part number: 140-5591-BD.
- Calipers: 4 pistons; forged aluminum; stainless steel pistons.
- Caliper attachment: lug mount; 1/8-27 NPT hydraulic inlet.
- Caliper finish: Black Powder Coat.
- Rotor/hat wheel-stud clearance patterns: 5 X 4.5 in; 5 X 114.3 mm; 5 X 4.75 in; 5 X 120.65 mm; 5 X 5 in; 5 X 127 mm.
- Rotor/hat stud-hole clearance diameters: 0.520 in; 13.21 mm. These are hole sizes, not wheel-stud thread specifications.
- The rotor/hat drilling does not change the vehicle hub or axle wheel bolt pattern.
- Rotor dimensions: 12.19 in; 309.63 mm diameter x 0.81 in; 20.57 mm thick.
- Rotor construction: Iron; vented; SRP Drilled & Slotted friction surface.
- Sold as one kit. Mounting hardware is included. Hubs are not included.
- Brake pads are included; use the compound and installation instructions specified for this rotor package.
- Spindles, master cylinder, brake booster and hydraulic brake lines are not included.
- Housing/flange arrangement: Mopar/Dana.
- Axle flange offset: 2.36 in; 59.94 mm.
- Wheel-size guide: 15 in; 381 mm minimum nominal diameter; verify actual template clearance.
Package and installation requirements
- No parking brake is included. Wilwood describes this package for applications that do not require a separate parking brake, including custom and competition installations.
