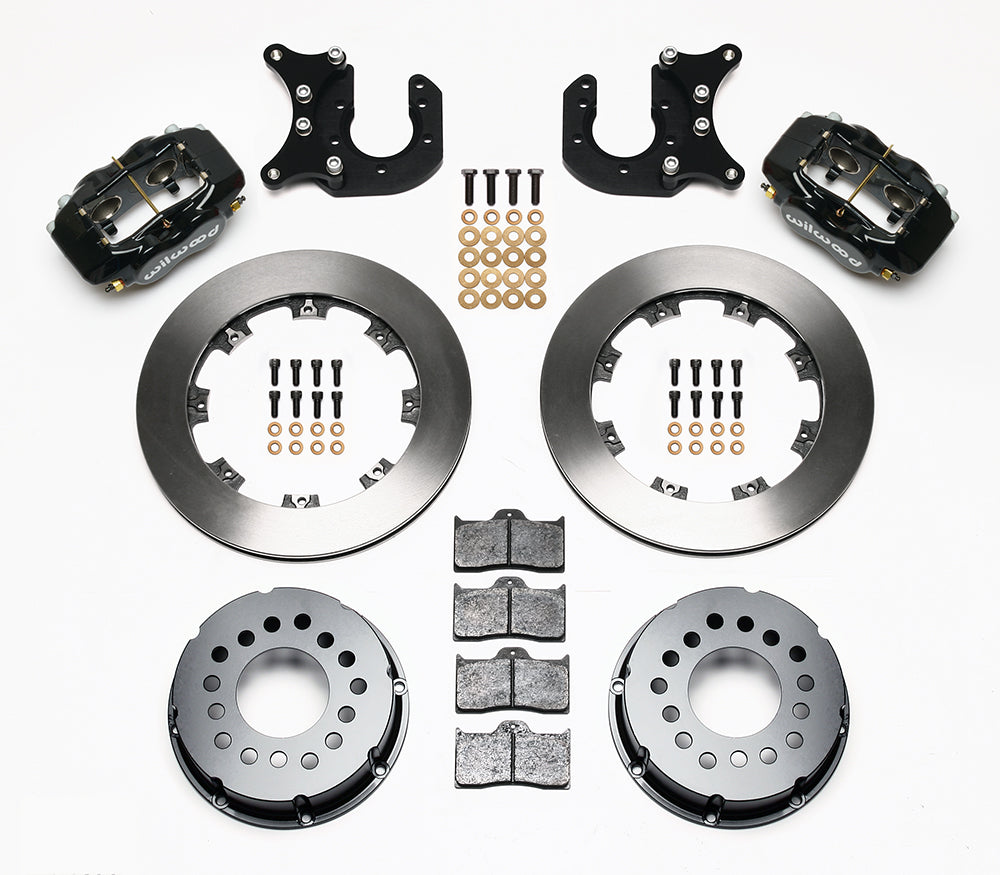

Wilwood Dynalite Rear Kit for Mopar 8-3/4 / Dana 60, 2.36-inch offset — 12.19-inch Plain, Black components

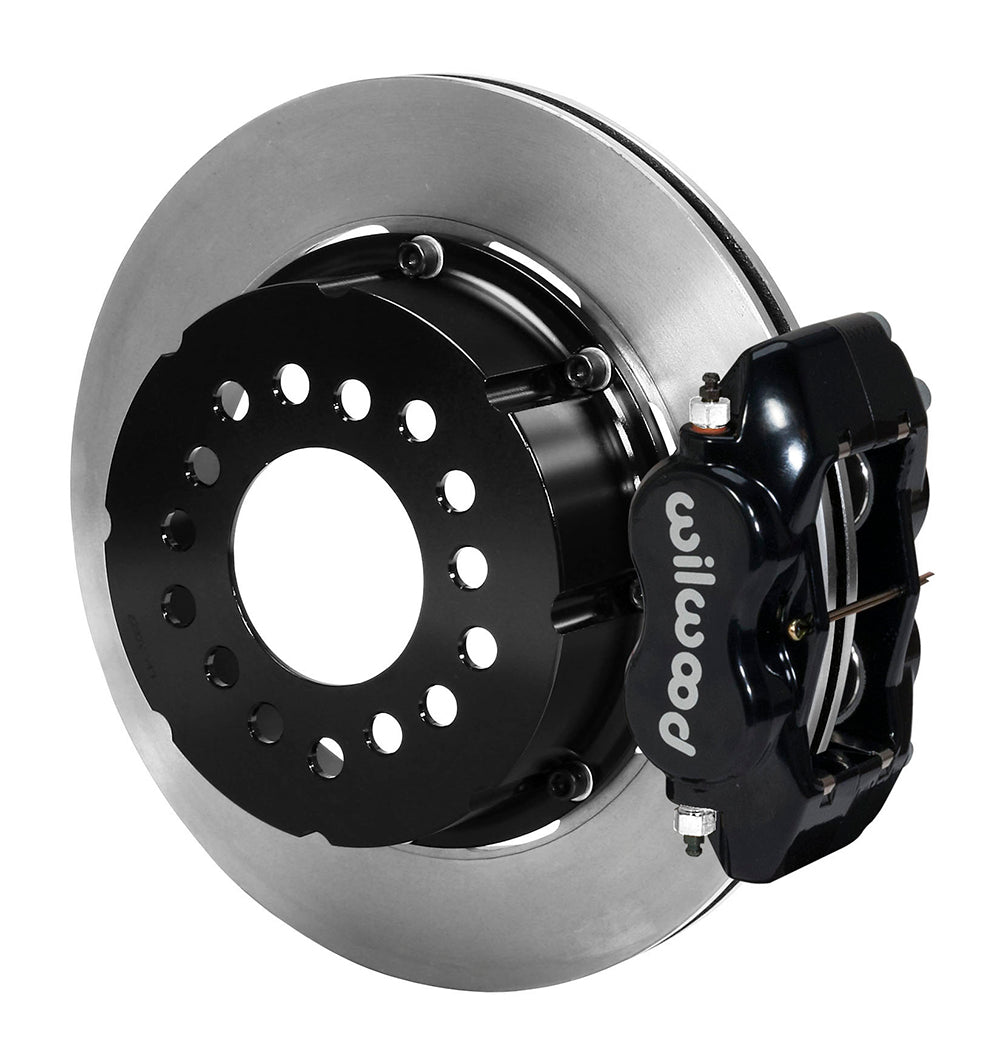

Wilwood Dynalite Rear Kit for Mopar 8-3/4 / Dana 60, 2.36-inch offset — 12.19-inch Plain, Black components — product view 2
Wilwood Dynalite Rear Kit for Mopar 8-3/4 / Dana 60, 2.36-inch offset — 12.19-inch Plain, Black components
Wilwood Dynalite Rear Kit for Mopar 8-3/4 / Dana 60, 2.36-inch offset — 12.19-inch Plain, Black components — product view 2

Wilwood Dynalite Rear Kit for Mopar 8-3/4 / Dana 60, 2.36-inch offset — 12.19-inch Plain, Black

SKU: 140-5591-B

$979.24 Sale
Shipping calculated at checkout.

Fitment questions?

Call (855) 786-7101 or text (801) 304-3141.
Real people. Real answers.

Shipping policyRefund policy

Product details

The rear axle bearing arrangement is the starting point for this conversion. This Forged Dynalite rear disc brake kit combines black powder-coated 4-piston calipers and 12.19-inch plain-face rotors. Founded in 1977 by Bill Wood and based in Camarillo, California, Wilwood Engineering designs and manufactures disc brake systems for motorsport, street-performance and specialized applications. Its range includes calipers, brake rotors, master cylinders, valves, fittings and brake lines, selected to work together as a complete brake system.

Technical Details

  • Manufacturer part number: 140-5591-B.
  • Rotor dimensions: 12.19 in; 309.63 mm diameter x 0.81 in; 20.57 mm thick.
  • Rotor construction: Iron; vented; Plain Face friction surface.
  • Calipers: 4 pistons; forged aluminum; stainless steel pistons.
  • Caliper attachment: lug mount; 1/8-27 NPT hydraulic inlet.
  • Caliper finish: Black Powder Coat.
  • Rotor/hat wheel-stud clearance patterns: 5 X 4.5 in; 5 X 114.3 mm; 5 X 4.75 in; 5 X 120.65 mm; 5 X 5 in; 5 X 127 mm.
  • Rotor/hat stud-hole clearance diameters: 0.520 in; 13.21 mm. These are hole sizes, not wheel-stud thread specifications.
  • The rotor/hat drilling does not change the vehicle hub or axle wheel bolt pattern.
  • Housing/flange arrangement: Mopar/Dana.
  • Axle flange offset: 2.36 in; 59.94 mm.
  • Wheel-size guide: 15 in; 381 mm minimum nominal diameter; verify actual template clearance.
  • Sold as one kit. Mounting hardware is included. Hubs are not included.
  • Brake pads are included; use the compound and installation instructions specified for this rotor package.
  • Spindles, master cylinder, brake booster and hydraulic brake lines are not included.

Fitment & Compatibility

This kit mounts to Mopar 8-3/4-inch or Dana 60 rear housing ends with a 2.36-inch axle offset and the specified non-adjustable snap-ring axle bearings. Wilwood identifies Green MO400, Strange A1022 and Moser 9400M bearing arrangements in the installation instructions. Identify the housing end and measure the axle offset before ordering; the differential name alone is insufficient.

Use the wheel-clearance drawing in the installation instructions before purchase. The catalog minimum diameter is a guide; barrel shape, spoke clearance and wheel offset still determine fit.

Package and installation requirements

  • No parking brake is included. Wilwood describes this package for applications that do not require a separate parking brake, including custom and competition installations.
