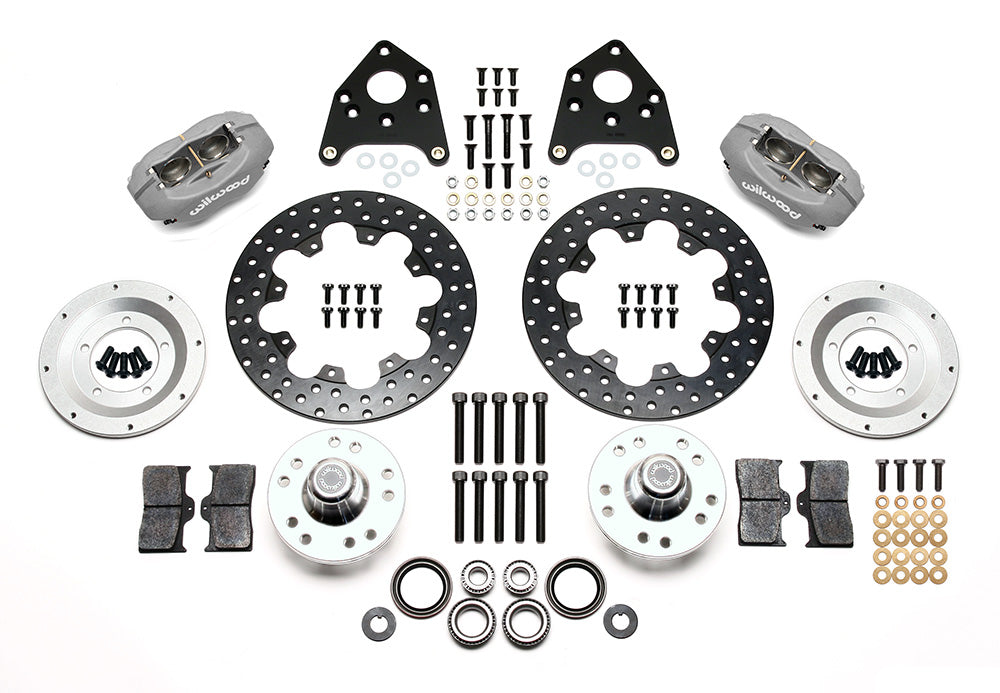

Components laid out for the Wilwood front Dynalite Drag brake kit for Ford/Mercury Matched Spindles, drilled rotors and Type III anodized calipers

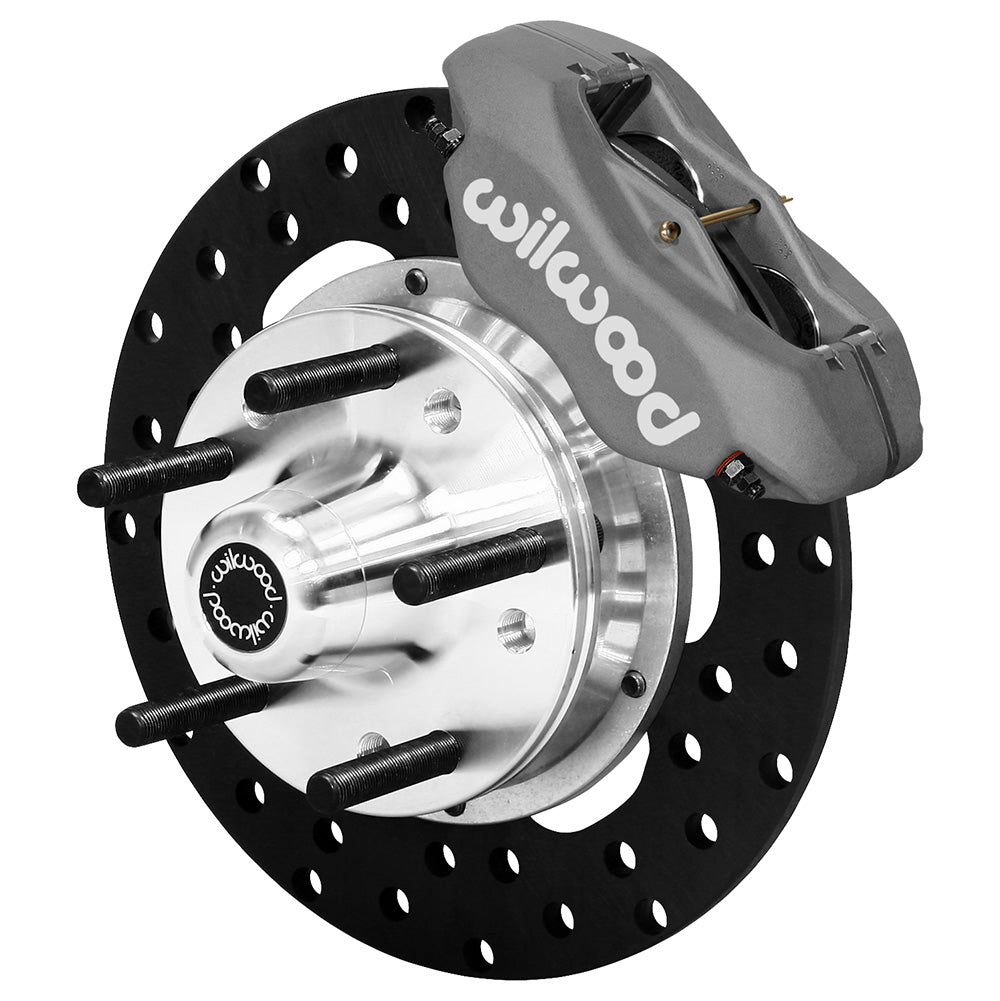

Assembled Wilwood front Dynalite Drag caliper and rotor assembly for Ford/Mercury Matched Spindles, drilled rotor and Type III anodized caliper
Components laid out for the Wilwood front Dynalite Drag brake kit for Ford/Mercury Matched Spindles, drilled rotors and Type III anodized calipers
Assembled Wilwood front Dynalite Drag caliper and rotor assembly for Ford/Mercury Matched Spindles, drilled rotor and Type III anodized caliper

Wilwood Front 11.75-Inch Dynalite Drag Brake Kit for Matched Early Ford/Mercury Spindles

SKU: 140-4307-BD

$1,059.34 Sale
Shipping calculated at checkout.

Fitment questions?

Call (855) 786-7101 or text (801) 304-3141. We check fitment by VIN.

Shipping policyRefund policy

Product details

Wilwood front drag brakes for matched early Ford/Mercury spindles, with 11.75-inch steel rotors. Check V8, production-split and vehicle-weight limits. The manufacturer is Wilwood Engineering of Camarillo, California, established in 1977 by Bill Wood. It designs and manufactures disc brake systems and components, including calipers, brake rotors, master cylinders, valves, fittings and lines for motorsport, street-performance and specialized vehicles; suitability depends on the full brake-system configuration.

Technical Details

  • Manufacturer part number: 140-4307-BD
  • Rotor material and size: Choose this 11.75 x 0.35-inch drilled rotor configuration. The rotor material is steel and its construction is solid.
  • Caliper specification: Finish selection is type iii anodized. Each forged aluminum caliper carries 4 pistons with stainless construction.
  • Caliper interface: 1/8-27 NPT inlet thread; calipers attach through the specified lug mounting layout.
  • Hub wheel drilling: 5 x 4.5 in; 5 x 4.75 in (5 x 114.3 mm; 5 x 120.65 mm)
  • Wheel fit: Check the wheel-clearance diagram; the listed minimum wheel diameter is 15 inches.
  • Kit supply: hubs, mounting hardware
  • Not included: master cylinder, booster, spindles, flexible brake lines
  • Manufacturer use/weight limit: For use on cars up to 2800 pounds with rear discs or on cars up to 2400 pounds with rear drums

Fitment & Compatibility

Check every relevant table row: early Falcon, Ranchero, Comet and Cyclone applications can require V8 spindles, and the 1970 Falcon/Maverick drum-spindle rows have an August 24, 1969 production cutoff. The 1970 Mustang row is GT350/GT500 disc-spindle only. Use DS-246 to confirm the installed spindle and observe the 2,800-pound rear-disc or 2,400-pound rear-drum vehicle limit. Flexible lines and any master-cylinder pushrod changes are separate requirements.

Manufacturer Documents

Wilwood kit specifications and component list

Manufacturer Warning

WARNING: This product can expose you to chemicals including Arsenic, Cadmium, Chromium (Hexavalent compounds), Lead, Nickel, Cobalt and Antimony Trioxide which are known to the State of California to cause cancer or other reproductive harm. For more information go to www.p65warnings.ca.gov.

PMB Performance brings over 20 years of parts and fitment experience. Send the installed brake and axle details for help confirming the correct configuration.

Vehicle Applications

Years Make Model Model option Front brakes Rear brakes Kit application Notes
1963-1964 Ford Falcon V-8 Spindle Only Drum Drum Front Kit 1, 2
1963-1964 Ford Ranchero V-8 Spindle Only Drum Drum Front Kit 1, 2
1963-1964 Mercury Comet V-8 Spindle Only Drum Drum Front Kit 1, 2
1964-1965 Ford Fairlane All Drum Drum Front Kit 3, 4, 5, 1, 2
1964 Mercury Cyclone V-8 Spindle Only Drum Drum Front Kit 1, 2
1965-1966 Ford Falcon Disc Brake V-8 Spindle Only Disc Drum Front Kit 3, 4, 5, 1, 2
1965-1966 Ford Falcon Drum Brake V-8 Spindle Only Drum Drum Front Kit 3, 4, 5, 1, 2
1965-1966 Ford Mustang Disc Brake V-8 Spindle Only Disc Drum Front Kit 3, 4, 5, 1, 2
1965-1966 Ford Mustang Drum Brake V-8 Spindle Only Drum Drum Front Kit 3, 4, 5, 1, 2
1965 Ford Ranchero Disc Brake V-8 Spindle Only Disc Drum Front Kit 3, 4, 5, 1, 2
1965 Ford Ranchero Drum Brake V-8 Spindle Only Drum Drum Front Kit 3, 4, 5, 1, 2
1965-1966 Mercury Comet Disc Brake V-8 Spindle Only Disc Drum Front Kit 3, 4, 5, 1, 2
1965-1966 Mercury Comet Drum Brake V-8 Spindle Only Drum Drum Front Kit 3, 4, 5, 1, 2
1965-1968 Mercury Cyclone Drum Brake Spindle Drum Drum Front Kit 1, 2
1966-1967 Ford Fairlane Disc Brake Spindle Disc Drum Front Kit 3, 4, 5, 1, 2
1966-1969 Ford Fairlane Drum Brake Front Spindle Drum Drum Front Kit 3, 4, 5, 1, 2
1966-1967 Ford Ranchero Disc Brake Spindle Disc Drum Front Kit 3, 4, 5, 1, 2
1966 Ford Ranchero Drum Brake Front Spindle Drum Drum Front Kit 3, 4, 5, 1, 2
1966-1968 Mercury Cyclone Disc Brake Spindle Disc Drum Front Kit 1, 2
1967 Ford Falcon Disc Brake Spindle Disc Drum Front Kit 3, 4, 5, 1, 2
1967-1969 Ford Falcon Drum Brake Front Spindle Drum Drum Front Kit 3, 4, 5, 1, 2
1967 Ford Mustang Disc Brake Spindle Disc Drum Front Kit 3, 4, 5, 1, 2
1967-1969 Ford Mustang Drum Brake Front Spindle Drum Drum Front Kit 3, 4, 5, 1, 2
1967-1968 Ford Ranchero Drum Brake Spindle Drum Drum Front Kit 3, 4, 5, 1, 2
1967 Mercury Caliente Disc Brake Spindle Disc Drum Front Kit 3, 4, 5, 1, 2
1967 Mercury Caliente Drum Brake Spindle Drum Drum Front Kit 3, 4, 5, 1, 2
1967 Mercury Comet Disc Brake Spindle Disc Drum Front Kit 3, 4, 5, 1, 2
1967 Mercury Comet Drum Brake Front Spindle Drum Drum Front Kit 3, 4, 5, 1, 2
1967 Mercury Cougar Disc Brake Spindle Disc Drum Front Kit 3, 4, 5, 1, 2
1967 Mercury Cougar Drum Brake Front Spindle Drum Drum Front Kit 3, 4, 5, 1, 2
1968-1969 Ford Fairlane Disc Brake Spindle Disc Drum Front Kit 4, 5, 1, 2
1968-1969 Ford Falcon Disc Brake Spindle Disc Drum Front Kit 4, 5, 1, 2
1968-1969 Ford Mustang Disc Brake Spindle Disc Drum Front Kit 4, 5, 1, 2
1968-1969 Ford Ranchero Disc Brake Spindle Disc Drum Front Kit 4, 5, 1, 2
1968 Ford Torino Disc Brake Spindle Disc Drum Front Kit 1, 2
1968 Ford Torino Drum Brake Spindle Drum Drum Front Kit 1, 2
1968 Mercury Comet Disc Brake Spindle Disc Drum Front Kit 6, 4, 5, 1, 2
1968-1969 Mercury Comet Drum Brake Front Spindle Drum Drum Front Kit 6, 4, 5, 1, 2
1968-1969 Mercury Cougar Disc Brake Spindle Disc Drum Front Kit 6, 4, 5, 1, 2
1968-1969 Mercury Cougar Drum Brake Front Spindle Drum Drum Front Kit 6, 4, 5, 1, 2
1968 Mercury Montego Disc Brake Spindle Disc Drum Front Kit 1, 2
1968 Mercury Montego Drum Brake Spindle Drum Drum Front Kit 1, 2
1969 Ford Ranchero Drum Brake Front Spindle Drum Drum Front Kit 1, 2
1969 Ford Torino Disc Brake Spindle Disc Drum Front Kit 4, 5, 1, 2
1969 Ford Torino Drum Brake Front Spindle Drum Drum Front Kit 1, 2
1969 Mercury Comet Disc Brake Spindle Disc Drum Front Kit 4, 5, 1, 2
1969 Mercury Cyclone Disc Brake Spindle Disc Drum Front Kit 4, 5, 1, 2
1969 Mercury Cyclone Drum Brake Front Spindle Drum Drum Front Kit 6, 4, 5, 1, 2
1969 Mercury Montego Disc Brake Spindle Disc Drum Front Kit 4, 5, 1, 2
1969 Mercury Montego Drum Brake Front Spindle Drum Drum Front Kit 6, 4, 5, 1, 2
1970 Ford Falcon Drum Brake Front thru 8/24/69 Drum Drum Front Kit 3, 4, 5, 1, 2
1970 Ford Maverick Drum Brake Front thru 8/24/69 Drum Drum Front Kit 3, 4, 5, 1, 2
1970 Ford Mustang Disc Brake GT350 & 500 only Disc Drum Front Kit 4, 5, 1, 2

Application Notes

  1. Line kit included (manufacturer): None
  2. Front line-kit reference: 220-12168
  3. Flexline kits: 1965-67 use 220-6471 (18"), 1968-up use 220-9195 (18").
  4. Master Cylinder may require modification to existing pushrod assembly to install.
  5. This front brake kit supplies service-brake components. A parking-brake mechanism and parking-brake cables are not included; check the vehicle’s rear parking-brake arrangement separately.
  6. Universal Flexline kits available: 220-7056 (14"), 220-7699 (16") or 220-8307 (18"). Choose correct length for your application.
