Product details

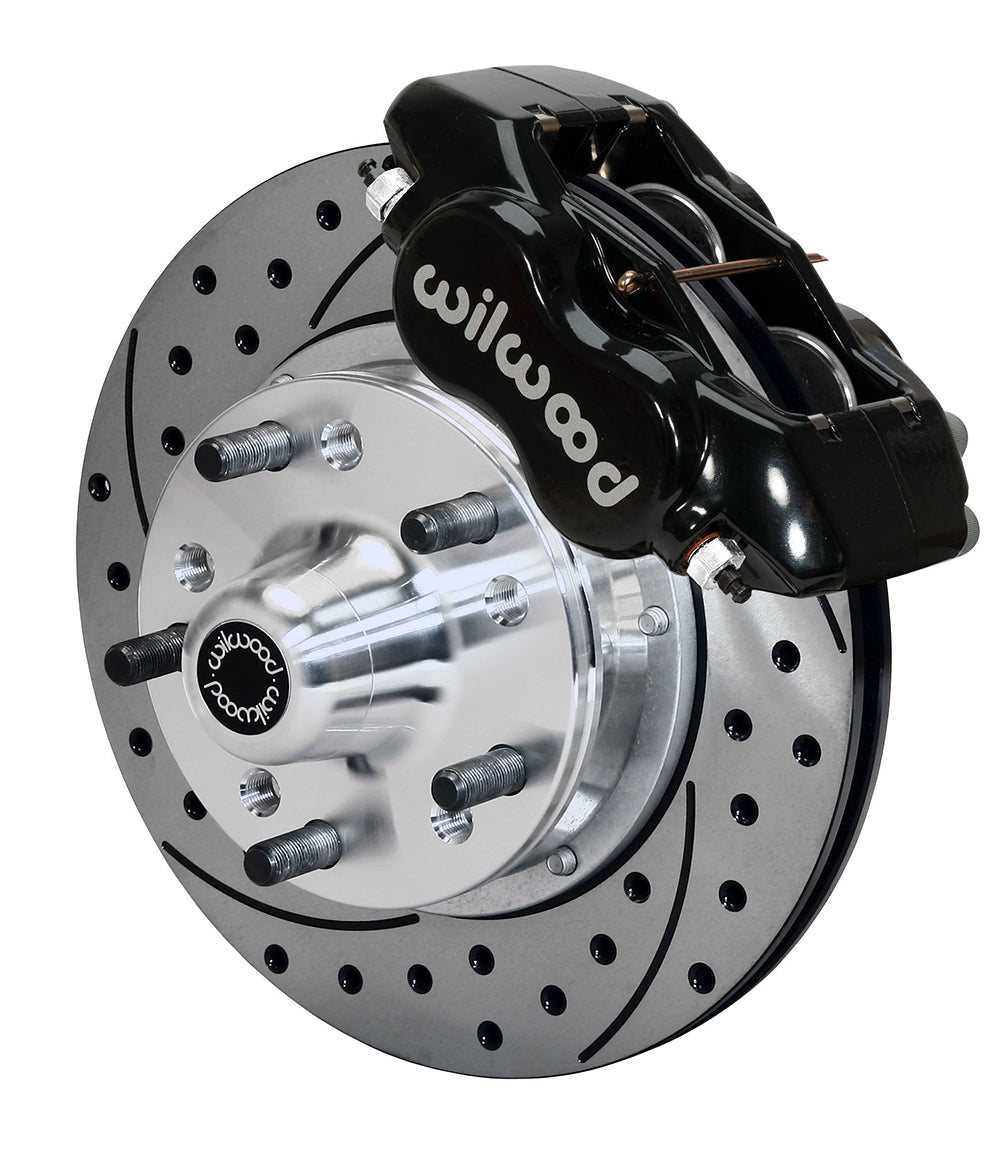

Art Morrison strut front brakes with Wilwood black calipers and drilled/slotted 10.75-inch rotors. Compare the exact strut and mounting instructions. Bill Wood established Wilwood Engineering in 1977. From its base in Camarillo, California, the company designs and manufactures disc brake systems and components, including calipers, rotors, master cylinders, valves, fittings and brake lines. Individual parts are matched to complete motorsport, street-performance or specialized installations.
Technical Details
- Manufacturer part number: 140-4258-BD
- Rotor material and size: Choose this 10.75 x 0.81-inch srp drilled and slotted rotor configuration. The rotor material is iron and its construction is vented.
- Caliper specification: Finish selection is black powder coat. Each forged aluminum caliper carries 4 pistons with stainless construction.
- Caliper interface: 1/8-27 NPT inlet thread; calipers attach through the specified lug mounting layout.
- Hub wheel drilling: 5 x 4.5 in; 5 x 4.75 in (5 x 114.3 mm; 5 x 120.65 mm)
- Wheel fit: Check the wheel-clearance diagram; the listed minimum wheel diameter is 15 inches.

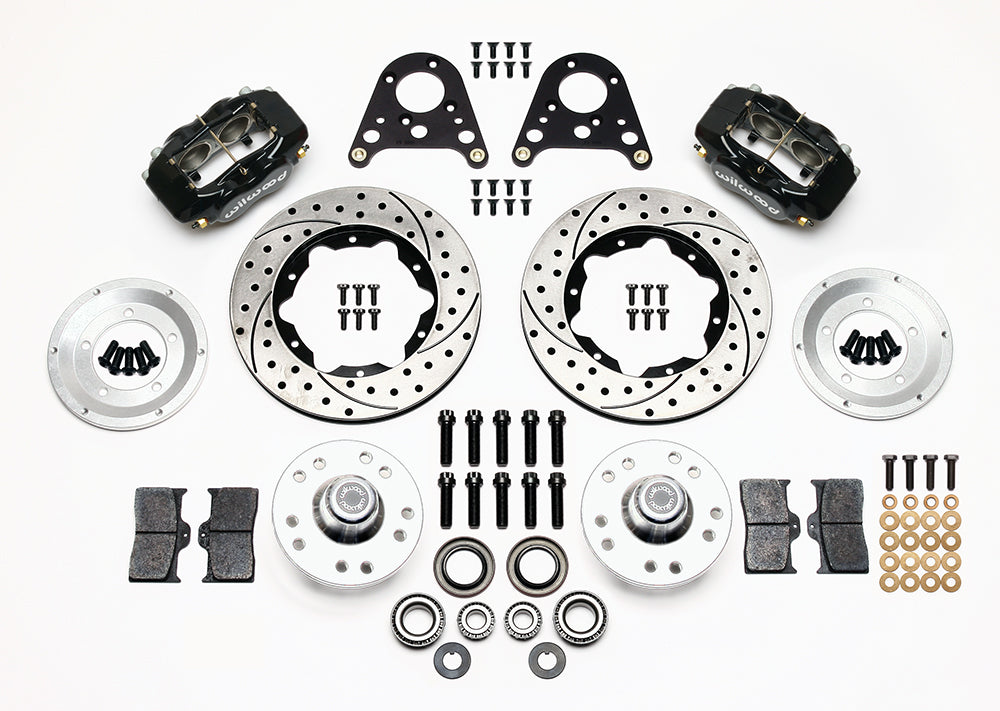

- Kit supply: hubs, mounting hardware
- Not included: master cylinder, booster, spindles, flexible brake lines
Fitment & Compatibility
Verify the exact Art Morrison strut, spindle journals, wheel pattern and caliper bracket against DS-245. This is a strut-specific brake installation rather than a vehicle-model fitment claim. Check the wheel template and select the hydraulic connections separately.
Manufacturer Documents
Wilwood kit specifications and component list
