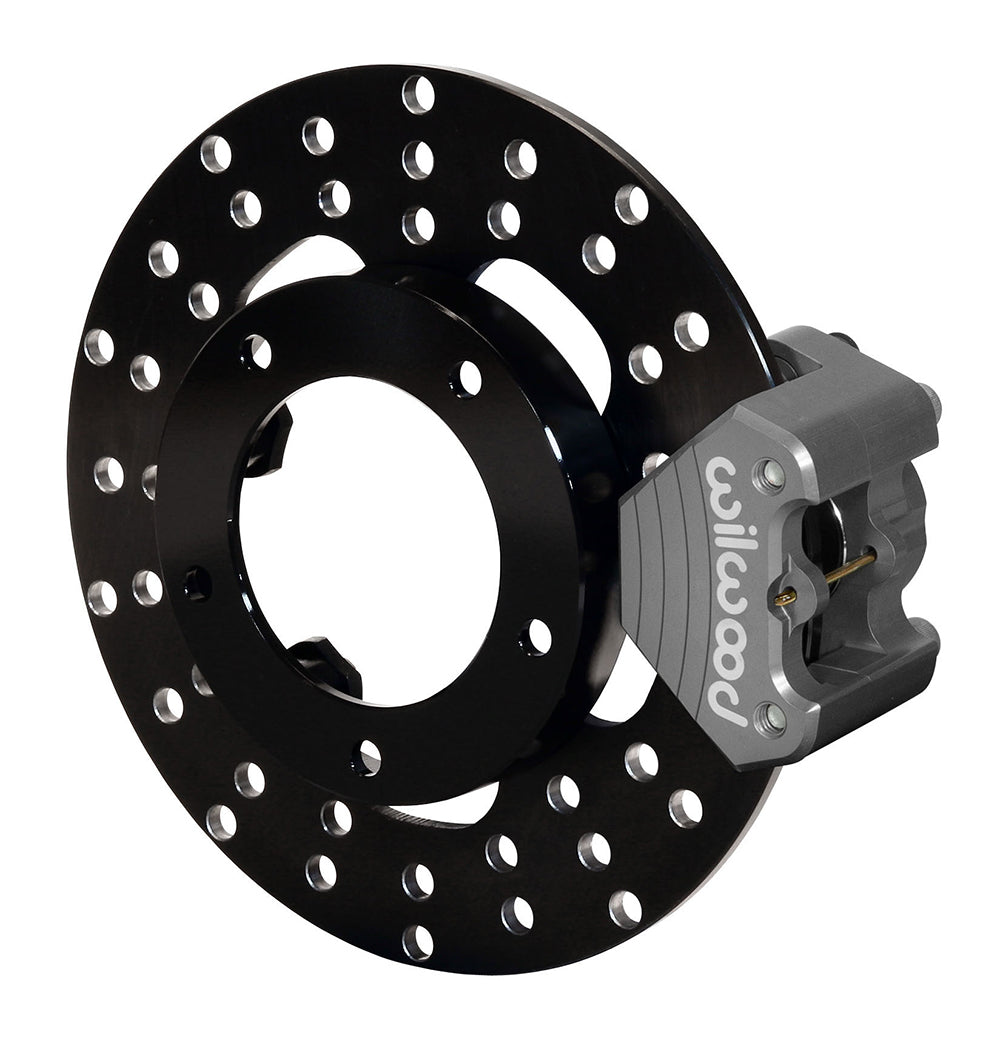

Wilwood Front Single-Floater Staging Brake Kit for P&S Spindle-Mount Wheels, Drilled 10-Inch Rotor

Wilwood light-duty front staging or supplementary brake for P&S spindle-mount wheels. Confirm the exact spindle; rear brakes provide primary stopping. The manufacturer is Wilwood Engineering of Camarillo, California, established in 1977 by Bill Wood. It designs and manufactures disc brake systems and components, including calipers, brake rotors, master cylinders, valves, fittings and lines for motorsport, street-performance and specialized vehicles; suitability depends on the full brake-system configuration.

Technical Details

• Manufacturer part number: 140-3326-D
• Caliper construction: Each billet-aluminum floating caliper has one stainless piston and a Type III anodized finish.
• Rotor dimensions and face: The drilled option uses steel, a 10.00-inch outside diameter and a 0.25-inch running width. Rotor construction is solid.
• Hydraulic and mounting layout: Brake-fluid connection: 1/8-27 NPT; caliper mounting arrangement: floating.
• Spindle-wheel to hat/rotor mounting pattern: 5 x 4.75 inches; the spindle-mount wheel must provide this attachment pattern.

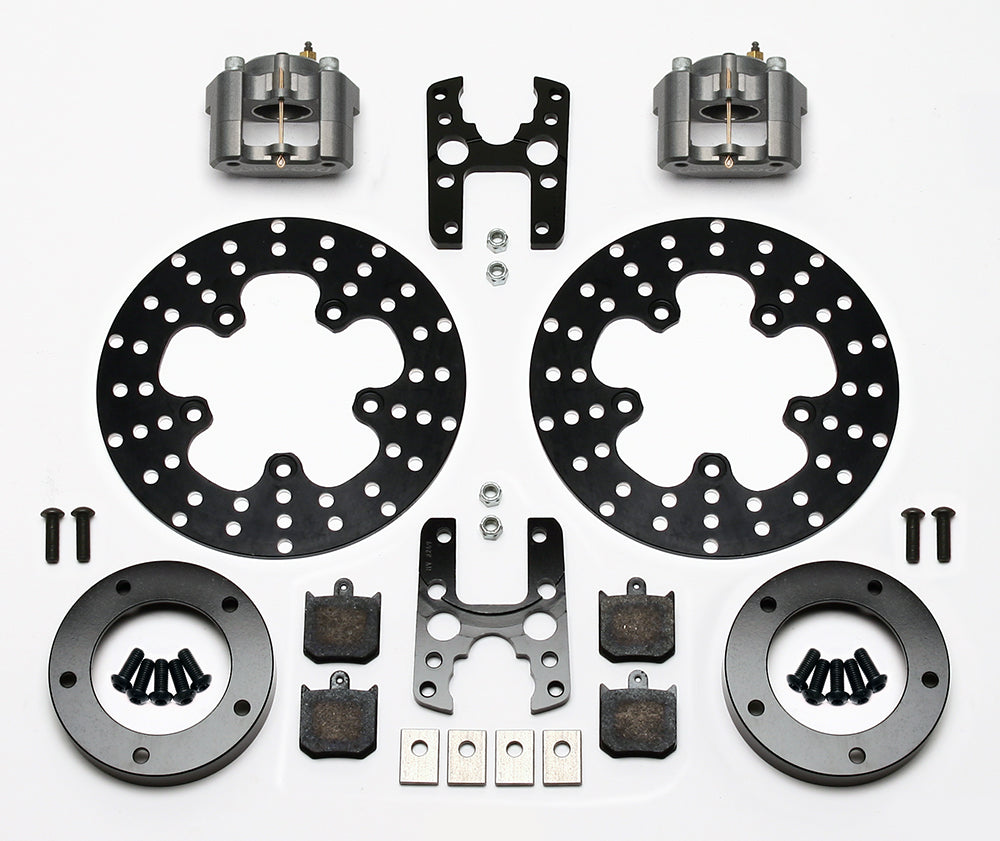

• Package scope: Supplied: mounting hardware. Not included: master cylinder, booster, spindles, flexible brake lines, hubs.
• Brake function: Light-duty staging/supplementary front brake; spindle-mount wheels only

Fitment & Compatibility

DS-217 specifies P&S spindle-mount wheels only. Installation requires welding the bracket assembly to the spindle, and the spindle-mount wheels require a 5 x 4.75-inch bolt circle to attach the hat and rotor. Confirm the precise spindle and wheel mounting arrangement with Wilwood before use; the original Anglia shorthand does not establish compatibility with every Anglia spindle or wheel. This is a light-duty drag component, not a substitute for a complete road braking system.

Manufacturer Documents

• Wilwood DS217 installation instructions

Wilwood kit specifications and component list
