Product details

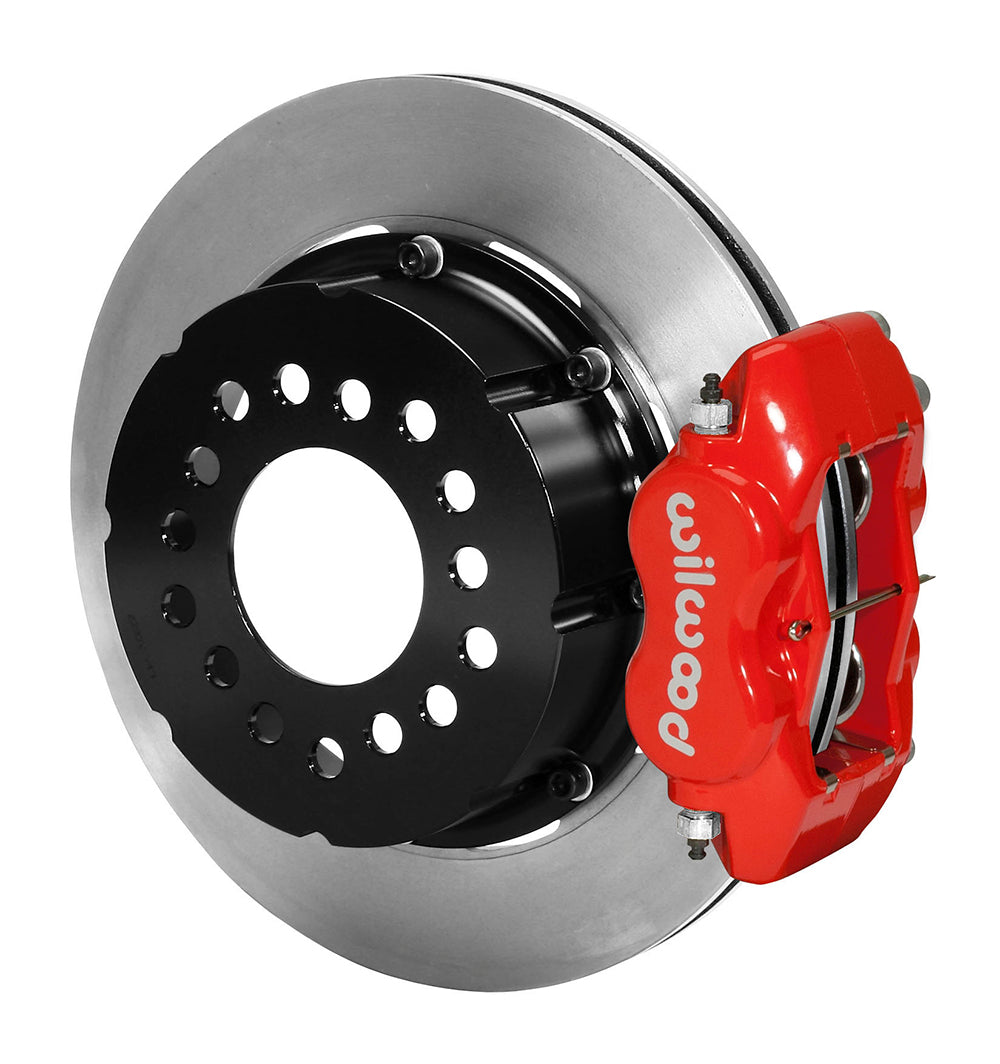

Match a Mustang 8.8-inch five-lug rear end to red Wilwood calipers and plain rotors. Confirm 2.50-inch offset and arrange a separate parking brake. From Camarillo, California, Wilwood Engineering designs and builds disc braking systems for motorsport, street-performance and specialized uses. Founder Bill Wood started the company in 1977. Calipers, brake rotors, master cylinders, valves, fittings and brake lines are selected for the requirements of the complete brake system.
Technical Details
- Manufacturer part number: 140-3018-R
- Calipers supplied: 4-piston forged aluminum construction; piston material stainless; external finish red powder coat.
- Rotor selection: Diameter 12.19 in; width 0.81 in. The selected rotor has a plain face face and vented iron construction.
- Fluid connections: Use the lug-mount bracket arrangement and fittings matched to the 1/8-27 NPT caliper inlet.
- Axle mounting: 8.8 Ford; 2.50 in; 63.5 mm
- Rotor/hat wheel-stud clearance pattern: 5 X 4.5 in; 5 X 4.75 in; 5 X 5 in (5 X 114.3 mm; 5 X 120.65 mm; 5 X 127 mm)
- Wheel fit: A 15-inch wheel is a starting dimension. Confirm the full wheel profile with the kit drawing.

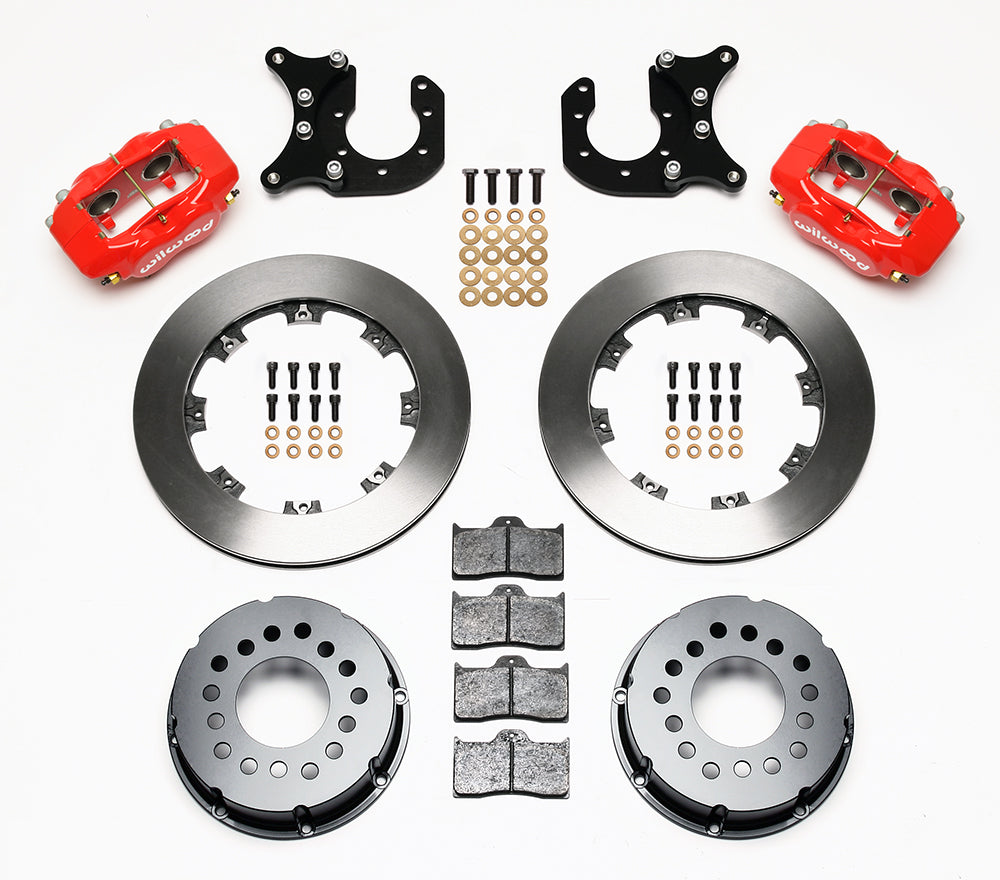

- Package scope: Supplied: mounting hardware. Not included: master cylinder, booster, spindles, flexible brake lines, hubs.
- Parking brake: No parking-brake mechanism supplied
Fitment & Compatibility
DS-209 identifies the Mustang 8.8 five-lug configuration. Check the housing-end pattern, bearing retention and actual 2.50-inch offset; this is not a general fitment claim for every Ford 8.8 axle. Hydraulic lines are separate, and the wheel must clear the caliper and rotor assembly.
Manufacturer Documents
Wilwood kit specifications and component list
Manufacturer Warning
WARNING: This product can expose you to chemicals including Arsenic, Cadmium, Chromium (Hexavalent compounds), Lead, Nickel, Cobalt and Antimony Trioxide which are known to the State of California to cause cancer or other reproductive harm. For more information go to www.p65warnings.ca.gov.
Discuss the current brake arrangement with PMB Performance if a mounting or clearance requirement is uncertain. More than 20 years of experience informs our parts and fitment support.
