Product details

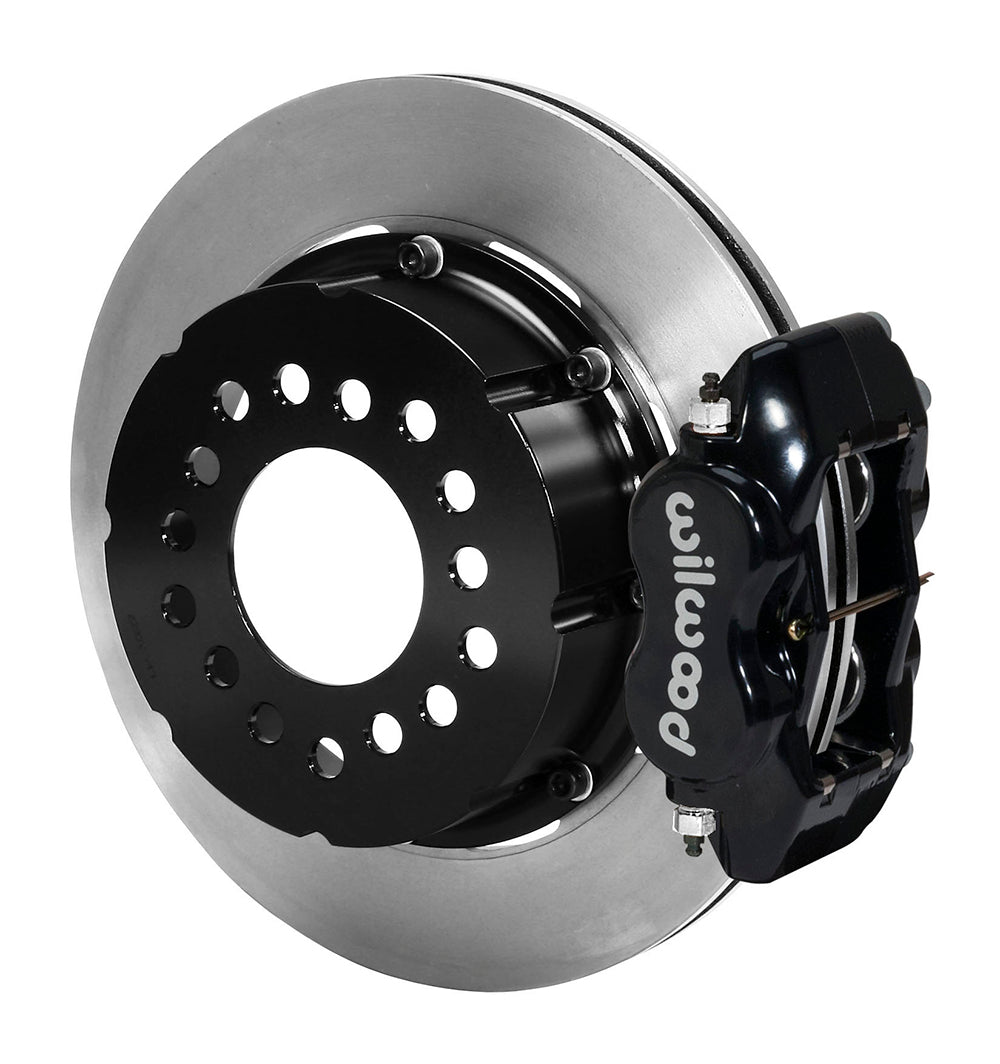

Black Wilwood calipers and plain 12.19-inch rear rotors for Mustang 8.8-inch five-lug axles. Match 2.50-inch offset; no parking brake is provided. Wilwood Engineering, founded by Bill Wood in 1977, is based in Camarillo, California. It designs and manufactures disc brake systems for motorsport, street-performance and specialized applications. Its calipers, brake rotors, master cylinders, valves, fittings and lines must be selected to suit the complete braking system.
Technical Details
- Manufacturer part number: 140-3018-B
- Rotor configuration: 12.19-inch diameter and 0.81-inch thickness; plain face vented iron.
- Caliper assembly: 4 stainless pistons in each forged aluminum caliper, with black powder coat finish.
- Mount and inlet: Lug caliper attachment with 1/8-27 NPT fluid inlets.
- Housing-end requirement: 8.8 Ford; 2.50 in; 63.5 mm
- Rotor/hat wheel-stud clearance pattern: 5 X 4.5 in; 5 X 4.75 in; 5 X 5 in (5 X 114.3 mm; 5 X 120.65 mm; 5 X 127 mm)
- Wheel fit: 15-inch nominal minimum; check both barrel and spoke clearance against the installation template.

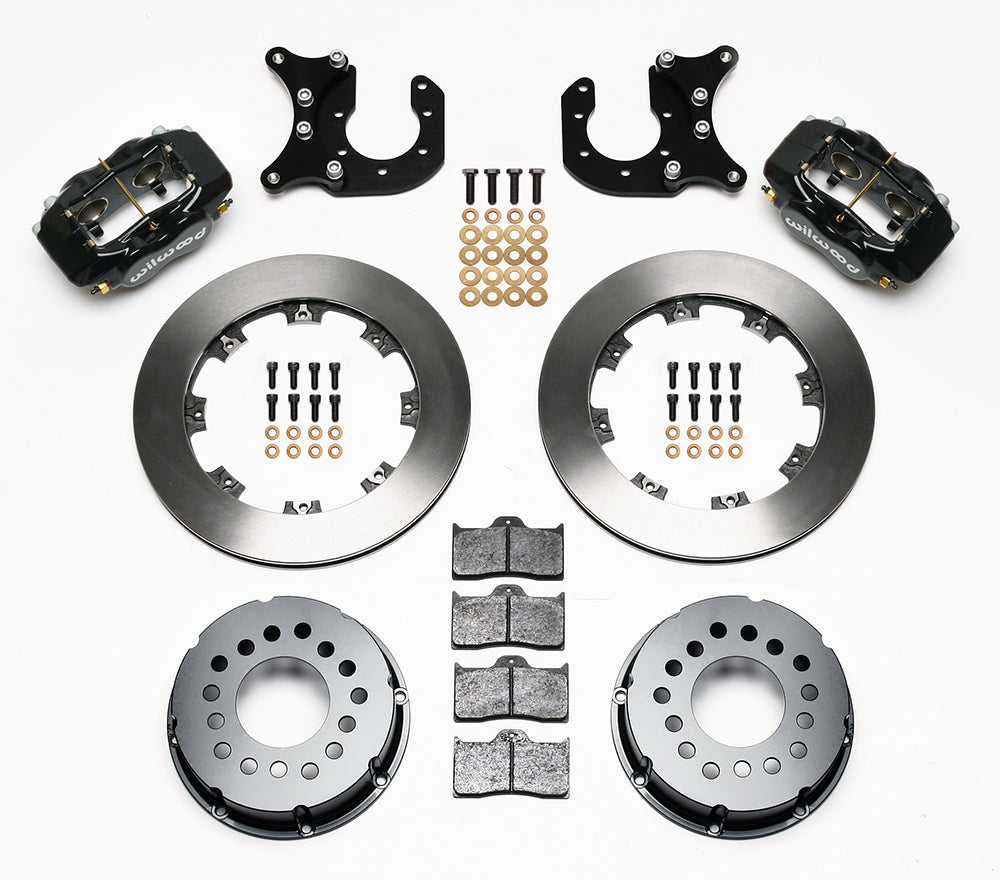

- Kit supply: mounting hardware
- Not included: master cylinder, booster, spindles, flexible brake lines, hubs
- Parking brake: No parking-brake mechanism supplied
Fitment & Compatibility
DS-209 identifies the Mustang 8.8 five-lug configuration. Check the housing-end pattern, bearing retention and actual 2.50-inch offset; this is not a general fitment claim for every Ford 8.8 axle. Hydraulic lines are separate, and the wheel must clear the caliper and rotor assembly.
Manufacturer Documents
Wilwood kit specifications and component list
