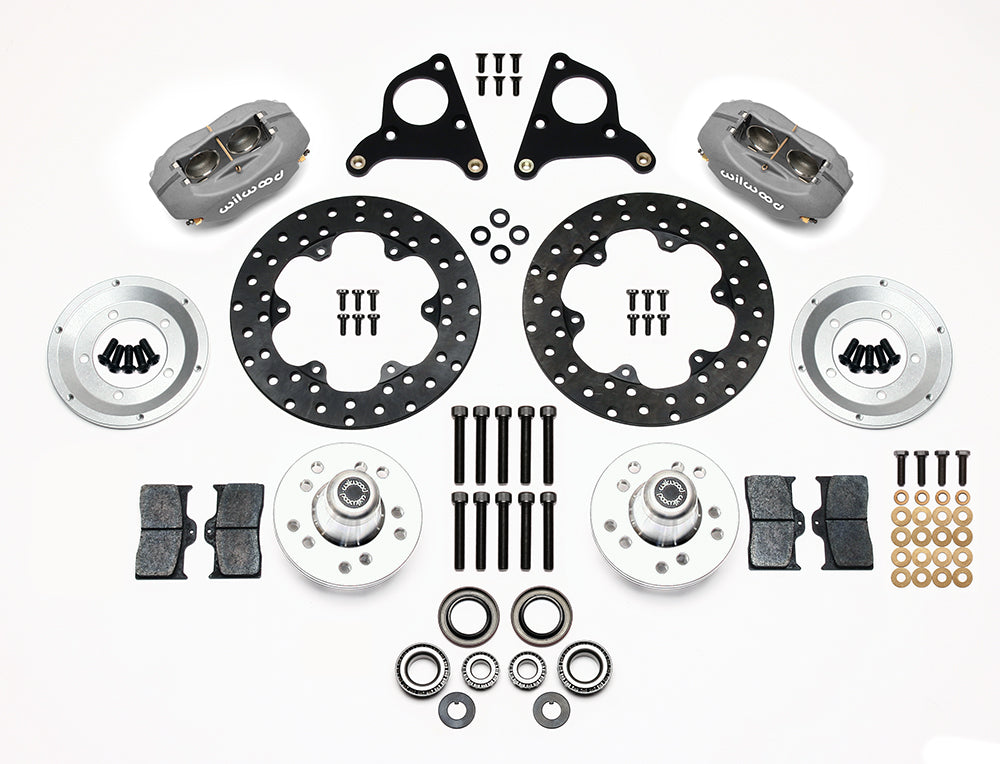

Components laid out for the Wilwood front Dynalite Drag brake kit for Mopar Disc-Brake Spindles, drilled rotors and Type III anodized calipers

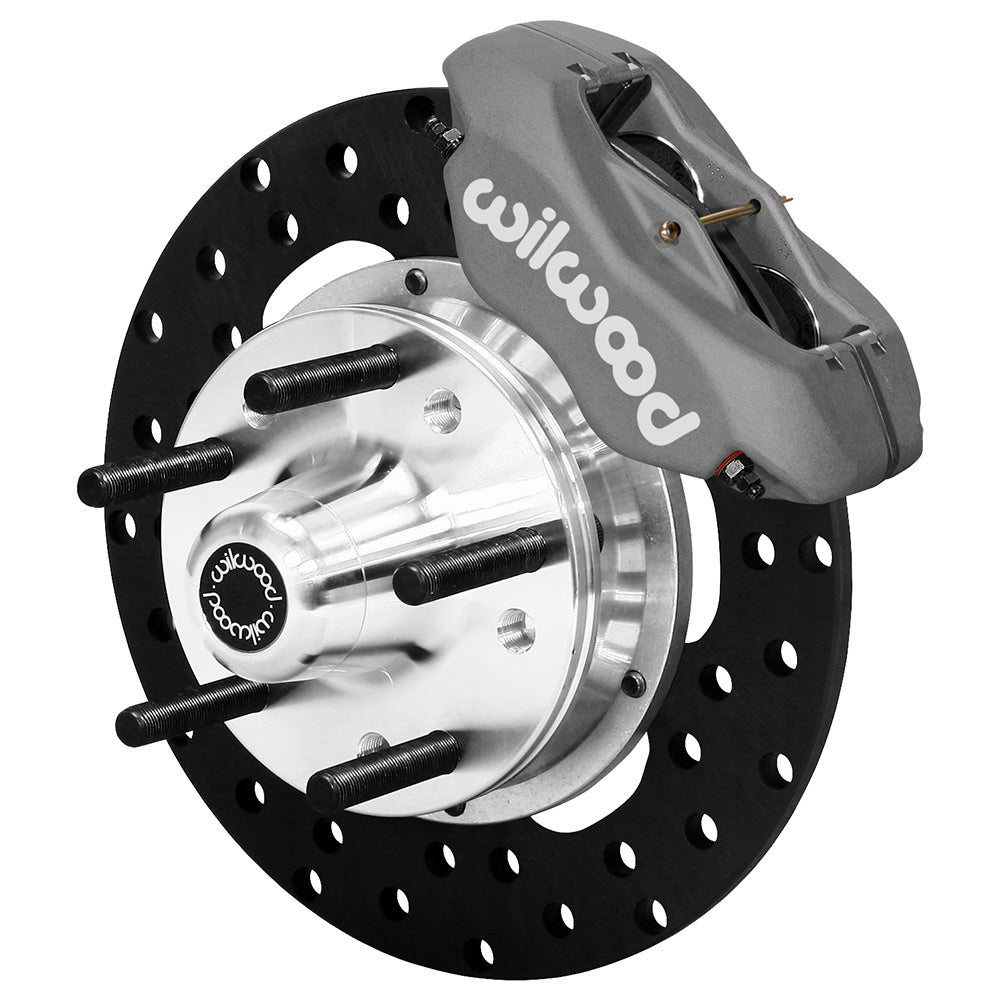

Assembled Wilwood front Dynalite Drag caliper and rotor assembly for Mopar Disc-Brake Spindles, drilled rotor and Type III anodized caliper
Components laid out for the Wilwood front Dynalite Drag brake kit for Mopar Disc-Brake Spindles, drilled rotors and Type III anodized calipers
Assembled Wilwood front Dynalite Drag caliper and rotor assembly for Mopar Disc-Brake Spindles, drilled rotor and Type III anodized caliper

Wilwood Front Mopar Disc-Spindle Drag Conversion, Four-Piston Dynalite and Drilled 10.75-Inch Rotors

SKU: 140-2719-BD

$959.06 Sale
Shipping calculated at checkout.

Fitment questions?

Call (855) 786-7101 or text (801) 304-3141. We check fitment by VIN.

Shipping policyRefund policy

Product details

Wilwood 10.75-inch front drag brakes for matched Mopar disc spindles. Confirm later-year applications and the rear-brake-dependent weight limit. Founded in 1977 under Bill Wood, Wilwood Engineering operates from Camarillo, California. The company designs and manufactures disc brake systems and the calipers, rotors, master cylinders, valves, fittings and lines used within them. Its motorsport, street-performance and specialized applications depend on compatible brake components.

Technical Details

  • Manufacturer part number: 140-2719-BD
  • Brake calipers: For this package, the forged aluminum calipers have type iii anodized exteriors and stainless pistons, 4 per caliper.
  • Rotor geometry: Each rotor is 0.35 inch wide with a 10.75-inch outside diameter; the solid steel design has drilled surfaces.
  • Installation interfaces: Confirm lug mounting and a hydraulic connection compatible with the 1/8-27 NPT inlet.
  • Hub wheel drilling: 5 x 4.5 in; 5 x 4.75 in (5 x 114.3 mm; 5 x 120.65 mm)
  • Wheel fit: Wheel diameter alone is insufficient: test the template for this nominal 15-inch minimum package.
  • Package scope: Supplied: hubs, mounting hardware. Not included: master cylinder, booster, spindles, flexible brake lines.
  • Manufacturer use/weight limit: For use on cars up to 2800 pounds with rear discs or on cars up to 2400 pounds with rear drums

Fitment & Compatibility

DS-171 names 1973–1980 A/B/E/F-body disc-spindle applications; the table below includes selected later applications through 1989. Match the actual spindle and obtain confirmation for the later rows rather than assuming every model shares the same hardware. Observe the 2,800-pound limit with rear discs or 2,400 pounds with rear drums. The table also contains specific Fury, Monaco, Charger production and rear-drive Caravelle qualifications.

Manufacturer Documents

Wilwood kit specifications and component list

Manufacturer Warning

WARNING: This product can expose you to chemicals including Arsenic, Cadmium, Chromium (Hexavalent compounds), Lead, Nickel, Cobalt and Antimony Trioxide which are known to the State of California to cause cancer or other reproductive harm. For more information go to www.p65warnings.ca.gov.

Discuss the current brake arrangement with PMB Performance if a mounting or clearance requirement is uncertain. More than 20 years of experience informs our parts and fitment support.

Vehicle Applications

Years Make Model Model option Front brakes Rear brakes Kit application Notes
1973-1974 Dodge Challenger All Disc Drum Front Kit 1, 2, 3, 4, 5, 6
1973-1974, 1976-1978 Dodge Charger All Disc Drum Front Kit 1, 2, 3, 4, 5, 6
1973-1976 Dodge Coronet All Disc Drum Front Kit 1, 2, 3, 4, 5, 6
1973-1976 Dodge Dart Disc Brake Spindle Disc Drum Front Kit 1, 2, 3, 4, 5, 6
1973-1974 Plymouth Barracuda All Disc Drum Front Kit 1, 2, 3, 4, 5, 6
1973-1974 Plymouth Cuda All Disc Drum Front Kit 1, 2, 3, 4, 5, 6
1973-1976 Plymouth Duster All Disc Drum Front Kit 1, 2, 3, 4, 5, 6
1973-1975 Plymouth Roadrunner All Disc Drum Front Kit 1, 2, 3, 4, 5, 6
1973-1974 Plymouth Satellite All Disc Drum Front Kit 1, 2, 3, 4, 5, 6
1973-1976 Plymouth Scamp All Disc Drum Front Kit 1, 2, 3, 4, 5, 6
1973-1976 Plymouth Valiant Disc Brake Spindle Disc Drum Front Kit 1, 2, 3, 4, 5, 6
1975-1978 Chrysler Cordoba All Disc Drum Front Kit 1, 2, 3, 4, 5, 6
1975 Dodge Charger All from 5/75 Disc Drum Front Kit 1, 2, 3, 4, 5, 6
1975 Dodge Charger All to 5/75 Disc Drum Front Kit 1, 2, 3, 4, 5, 6
1975-1977 Plymouth Fury Except Gran Fury Disc Drum Front Kit 1, 2, 3, 4, 5, 6
1976-1978 Dodge Aspen All Disc Drum Front Kit 1, 2, 3, 4, 5, 6
1976-1978 Plymouth Volare All Disc Drum Front Kit 1, 2, 3, 4, 5, 6
1977-1981 Chrysler Lebaron All Disc Drum Front Kit 1, 5, 6
1977-1978 Dodge Diplomat All Disc Drum Front Kit 1, 2, 3, 4, 5, 6
1977 Dodge Monaco All Except Royal Disc Drum Front Kit 1, 2, 3, 4, 5, 6
1978 Dodge Magnum All Disc Drum Front Kit 1, 2, 3, 4, 5, 6
1978 Dodge Monaco All Disc Drum Front Kit 1, 2, 3, 5, 6
1978 Plymouth Fury All Disc Drum Front Kit 1, 5, 6
1979-1983 Chrysler Cordoba All Disc Drum Front Kit 1, 2, 4, 5, 6
1979-1982 Chrysler New Yorker All Disc Drum Front Kit 1, 5, 6
1979-1981 Chrysler Newport All Disc Drum Front Kit 1, 5, 6
1979-1980 Dodge Aspen All Disc Drum Front Kit 1, 2, 4, 5, 6
1979-1989 Dodge Diplomat All Disc Drum Front Kit 1, 2, 4, 5, 6
1979 Dodge Magnum All Disc Drum Front Kit 1, 2, 4, 5, 6
1979-1981 Dodge St. Regis All Disc Drum Front Kit 1, 5, 6
1979-1980 Plymouth Volare All Disc Drum Front Kit 1, 2, 4, 5, 6
1980-1983 Dodge Mirada All Disc Drum Front Kit 1, 2, 4, 5, 6
1981-1983 Chrysler Imperial All Disc Drum Front Kit 1, 2, 4, 5, 6
1982-1984 Plymouth Caravelle All Disc Drum Front Kit 1, 5, 6
1983-1989 Chrysler Fifth Avenue All Disc Drum Front Kit 1, 5, 6
1985 Plymouth Caravelle All RWD only Disc Drum Front Kit 1, 5, 6

Application Notes

  1. Kit may fit some 14" wheels. Check wheel clearance diagram in kit installation instructions before purchase.
  2. Universal Flexline kits available: 220-7056 (14"), 220-7699 (16") or 220-8307 (18"). Choose correct length for your application.
  3. Master Cylinder will require two bolt to four bolt mounting adapter. Not available for purchase through Wilwood.
  4. This front brake kit supplies service-brake components. A parking-brake mechanism and parking-brake cables are not included; check the vehicle’s rear parking-brake arrangement separately.
  5. Line kit included (manufacturer): None
  6. Front line-kit reference: 220-8307
