Product details

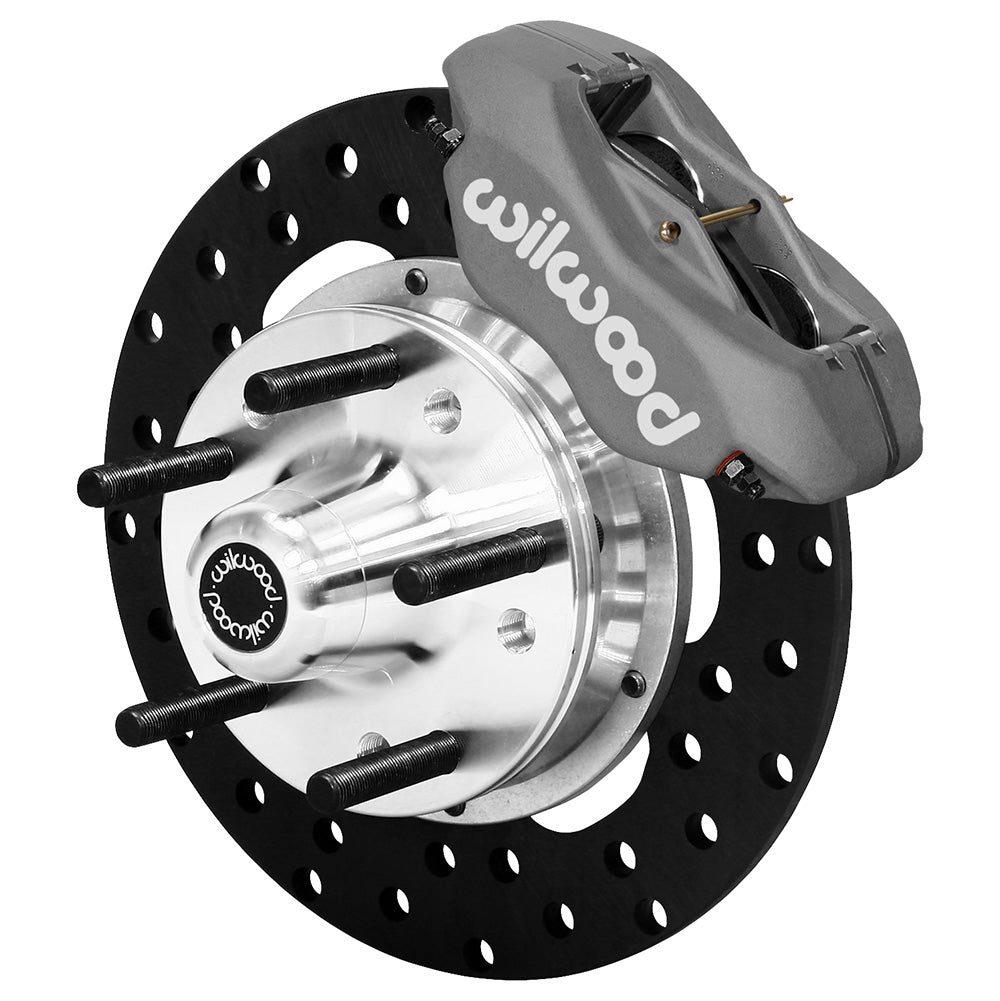

Convert the specified 1965–1972 Mopar A-body 10-inch drum spindle with Wilwood drilled-rotor drag brakes. Confirm rear brakes and vehicle weight. The manufacturer is Wilwood Engineering of Camarillo, California, established in 1977 by Bill Wood. It designs and manufactures disc brake systems and components, including calipers, brake rotors, master cylinders, valves, fittings and lines for motorsport, street-performance and specialized vehicles; suitability depends on the full brake-system configuration.
Technical Details
- Manufacturer part number: 140-2713-BD
- Rotor material and size: Choose this 10.75 x 0.35-inch drilled rotor configuration. The rotor material is steel and its construction is solid.
- Caliper specification: Finish selection is type iii anodized. Each forged aluminum caliper carries 4 pistons with stainless construction.
- Caliper interface: 1/8-27 NPT inlet thread; calipers attach through the specified lug mounting layout.
- Hub wheel drilling: 5 x 4.5 in; 5 x 4.75 in (5 x 114.3 mm; 5 x 120.65 mm)
- Wheel fit: Check the wheel-clearance diagram; the listed minimum wheel diameter is 15 inches.

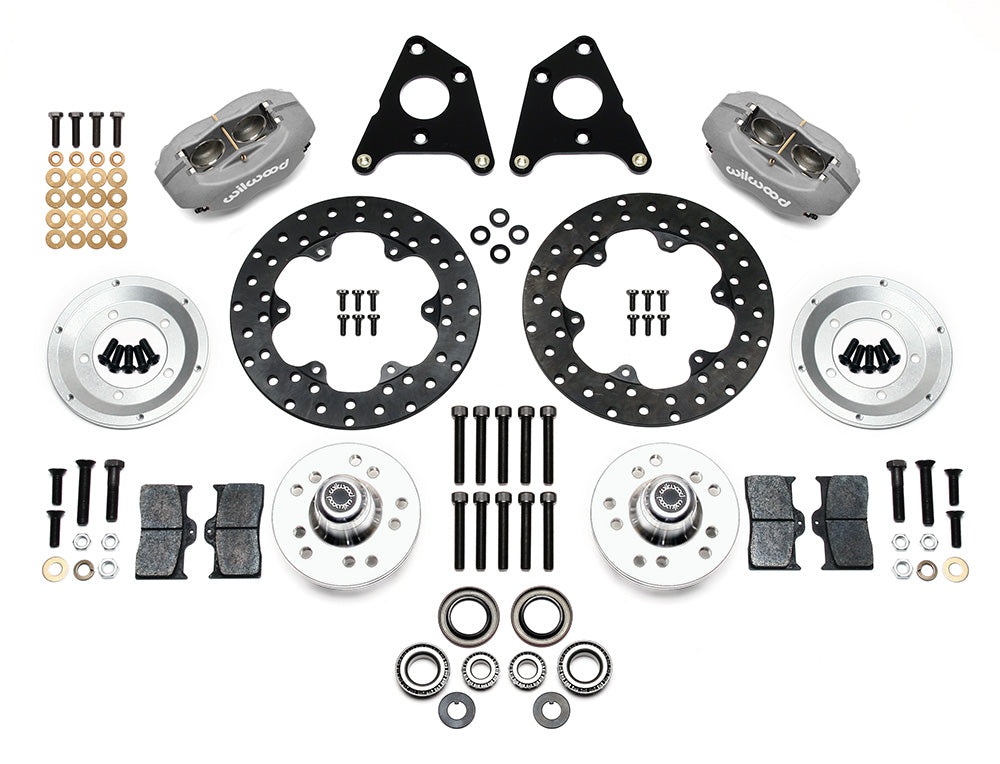

- Kit supply: hubs, mounting hardware
- Not included: master cylinder, booster, spindles, flexible brake lines
- Manufacturer use/weight limit: For use on cars up to 2800 pounds with rear discs or on cars up to 2400 pounds with rear drums
Fitment & Compatibility
Use DS-163 and the table below to verify the 10-inch original drum spindle; the 9-inch drum kit uses another configuration. Vehicle limits are 2,800 pounds when rear discs are fitted or 2,400 pounds with rear drums. Confirm the hydraulic lines and any two-bolt-to-four-bolt master-cylinder mounting adapter separately.
Manufacturer Documents
Wilwood kit specifications and component list
Manufacturer Warning
WARNING: This product can expose you to chemicals including Arsenic, Cadmium, Chromium (Hexavalent compounds), Lead, Nickel, Cobalt and Antimony Trioxide which are known to the State of California to cause cancer or other reproductive harm. For more information go to www.p65warnings.ca.gov.
With over 20 years of experience, PMB Performance can help identify the required brake-system components. Provide the vehicle details and the actual installed hardware when requesting a fitment check.
Vehicle Applications
| Years | Make | Model | Model option | Front brakes | Rear brakes | Kit application | Notes |
|---|---|---|---|---|---|---|---|
| 1965-1972 | Dodge | Dart | 10" Inch Drum Brake Spindle | Drum | Drum | Front Kit | 1, 2, 3, 4, 5, 6 |
| 1965-1969 | Plymouth | Barracuda | 10" Inch Drum Brake Spindle | Drum | Drum | Front Kit | 1, 2, 3, 4, 5, 6 |
| 1965-1972 | Plymouth | Valiant | 10" Inch Drum Brake Spindle | Drum | Drum | Front Kit | 1, 2, 3, 4, 5, 6 |
| 1970-1972 | Plymouth | Duster | 10" Inch Drum Brake Spindle | Drum | Drum | Front Kit | 1, 2, 3, 4, 5, 6 |
| 1971-1972 | Plymouth | Scamp | 10" Inch Drum Brake Spindle | Drum | Drum | Front Kit | 1, 2, 3, 4, 5, 6 |
Application Notes
- Kit may fit some 14" wheels. Check wheel clearance diagram in kit installation instructions before purchase.
- Universal Flexline kits available: 220-7056 (14"), 220-7699 (16") or 220-8307 (18"). Choose correct length for your application.
- Master Cylinder will require two bolt to four bolt mounting adapter. Not available for purchase through Wilwood.
- This front brake kit supplies service-brake components. A parking-brake mechanism and parking-brake cables are not included; check the vehicle’s rear parking-brake arrangement separately.
- Line kit included (manufacturer): None
- Front line-kit reference: 220-8307
