Product details

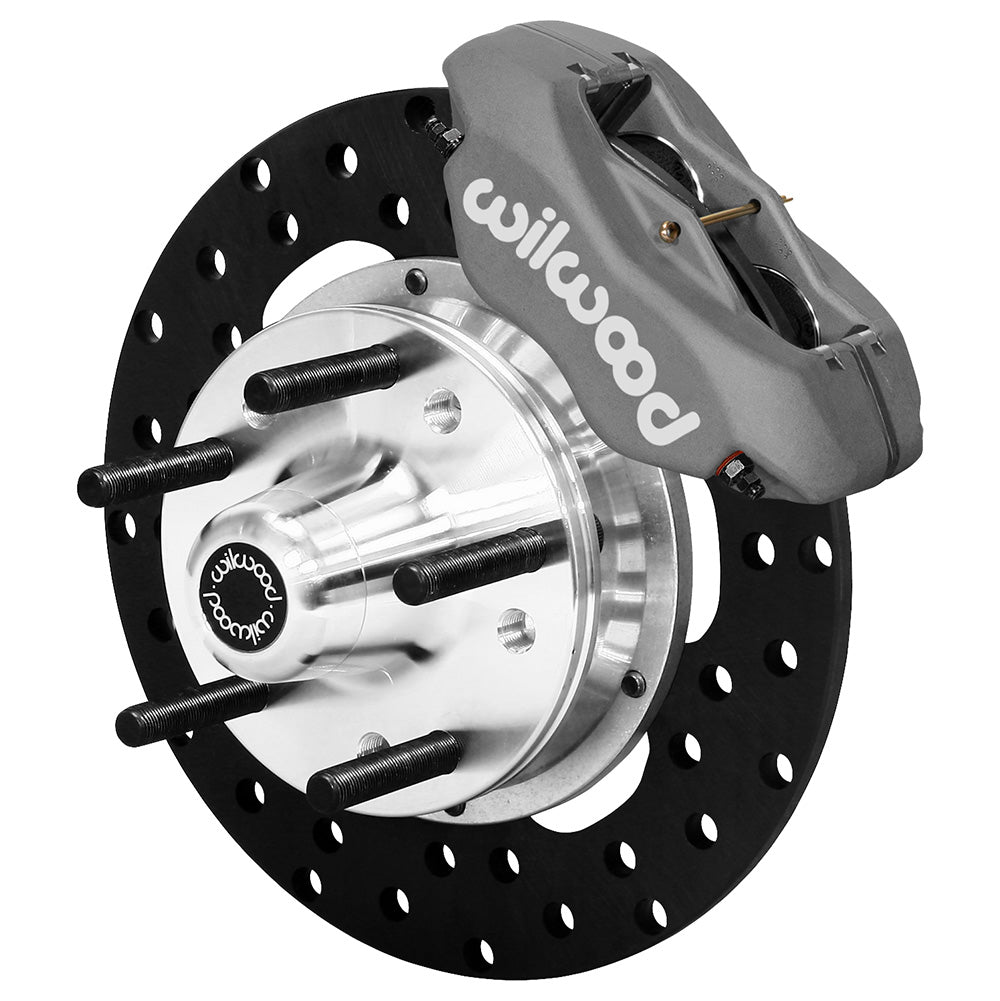

Wilwood front drag brakes for the Mopar A-body 9-inch drum spindle. Verify the exact early-year spindle and the 2,400/2,800-pound weight conditions. Wilwood Engineering, founded by Bill Wood in 1977, is based in Camarillo, California. It designs and manufactures disc brake systems for motorsport, street-performance and specialized applications. Its calipers, brake rotors, master cylinders, valves, fittings and lines must be selected to suit the complete braking system.
Technical Details
- Manufacturer part number: 140-2712-BD
- Calipers supplied: 4-piston forged aluminum construction; piston material stainless; external finish type iii anodized.
- Rotor selection: Diameter 10.75 in; width 0.35 in. The selected rotor has a drilled face and solid steel construction.
- Fluid connections: Use the lug-mount bracket arrangement and fittings matched to the 1/8-27 NPT caliper inlet.
- Hub wheel drilling: 5 x 4.5 in; 5 x 4.75 in (5 x 114.3 mm; 5 x 120.65 mm)
- Wheel fit: A 15-inch wheel is a starting dimension. Confirm the full wheel profile with the kit drawing.

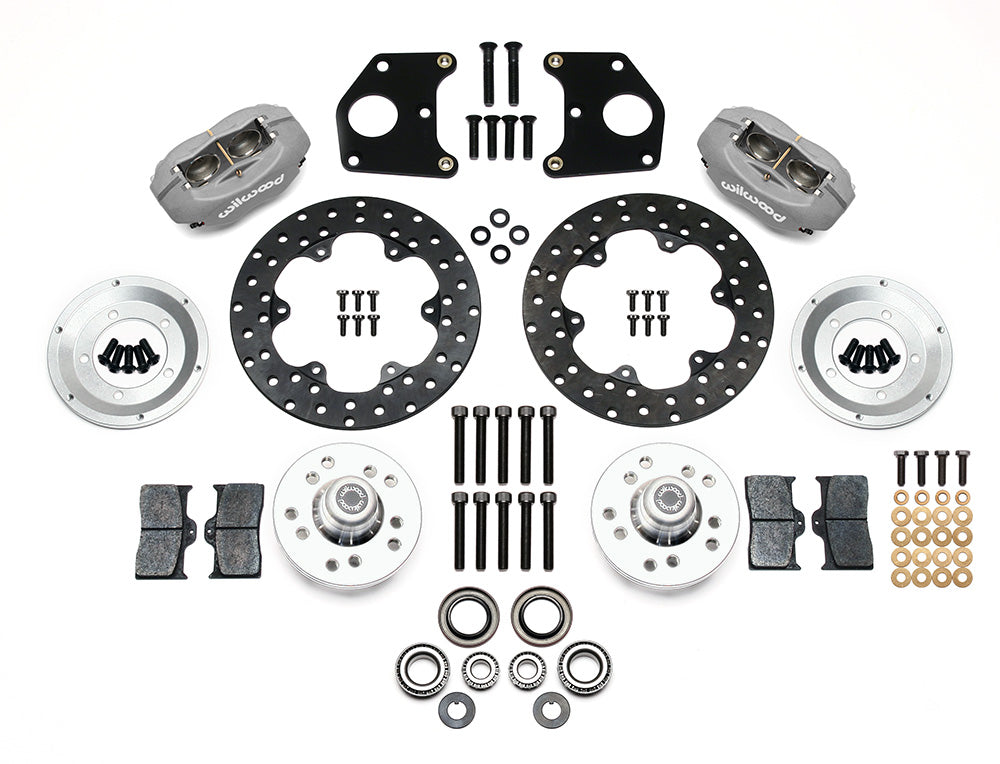

- Package scope: Supplied: hubs, mounting hardware. Not included: master cylinder, booster, spindles, flexible brake lines.
- Manufacturer use/weight limit: For use on cars up to 2800 pounds with rear discs or on cars up to 2400 pounds with rear drums
Fitment & Compatibility
DS-181 specifies 1962–1972 A-body drum-spindle applications, while the fitment table below also lists earlier Valiant and Lancer rows. Confirm those earlier spindle applications with Wilwood before ordering. The required 9-inch drum spindle must be distinguished from the 10-inch version. Observe the 2,800-pound rear-disc or 2,400-pound rear-drum vehicle limit and arrange the appropriate master-cylinder mount adapter.
Manufacturer Documents
Wilwood kit specifications and component list
Manufacturer Warning
WARNING: This product can expose you to chemicals including Arsenic, Cadmium, Chromium (Hexavalent compounds), Lead, Nickel, Cobalt and Antimony Trioxide which are known to the State of California to cause cancer or other reproductive harm. For more information go to www.p65warnings.ca.gov.
Before ordering for a modified vehicle, contact PMB Performance with the relevant dimensions and component numbers. Our team draws on more than 20 years of parts and fitment experience.
Vehicle Applications
| Years | Make | Model | Model option | Front brakes | Rear brakes | Kit application | Notes |
|---|---|---|---|---|---|---|---|
| 1960-1972 | Plymouth | Valiant | 9" Inch Drum Brake Spindle | Drum | Drum | Front Kit | 1, 2, 3, 4, 5, 6 |
| 1961-1962 | Dodge | Lancer | 9" Inch Drum Brake Spindle | Drum | Drum | Front Kit | 1, 2, 3, 4, 5, 6 |
| 1963-1972 | Dodge | Dart | 9" Inch Drum Brake Spindle | Drum | Drum | Front Kit | 1, 2, 3, 4, 5, 6 |
| 1964-1969 | Plymouth | Barracuda | 9" Inch Drum Brake Spindle | Drum | Drum | Front Kit | 1, 2, 3, 4, 5, 6 |
| 1970-1972 | Plymouth | Duster | 9" Inch Drum Brake Spindle | Drum | Drum | Front Kit | 1, 2, 3, 4, 5, 6 |
| 1971-1972 | Plymouth | Scamp | 9" Inch Drum Brake Spindle | Drum | Drum | Front Kit | 1, 2, 3, 4, 5, 6 |
Application Notes
- Kit may fit some 14" wheels. Check wheel clearance diagram in kit installation instructions before purchase.
- Universal Flexline kits available: 220-7056 (14"), 220-7699 (16") or 220-8307 (18"). Choose correct length for your application.
- Master Cylinder will require two bolt to four bolt mounting adapter. Not available for purchase through Wilwood.
- This front brake kit supplies service-brake components. A parking-brake mechanism and parking-brake cables are not included; check the vehicle’s rear parking-brake arrangement separately.
- Line kit included (manufacturer): None
- Front line-kit reference: 220-8307
