Product details

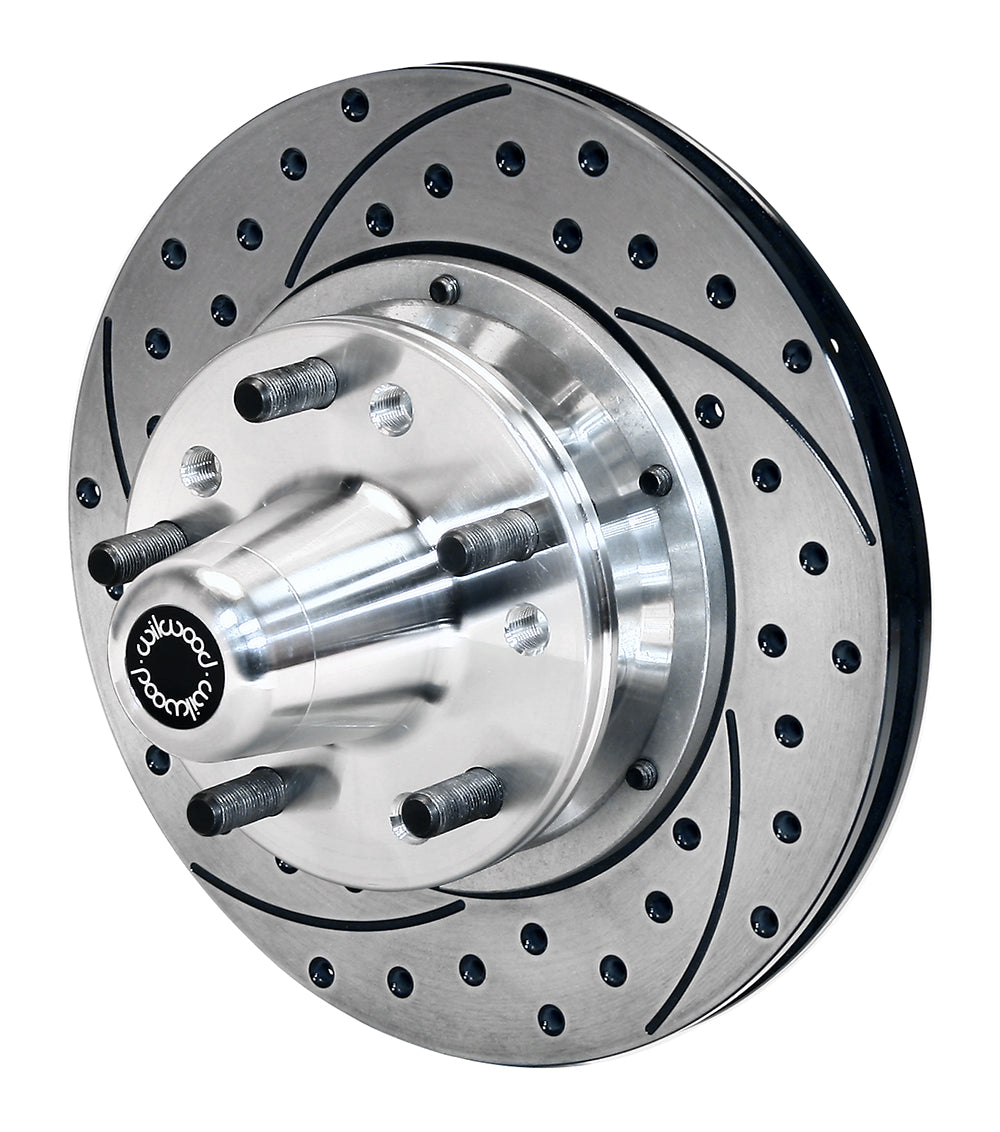

Granada drum-spindle hub kit with Wilwood 11-inch SRP rotors. Check the 1975–1980 spindle and supply matching calipers, brackets and bearings. From Camarillo, California, Wilwood Engineering designs and builds disc braking systems for motorsport, street-performance and specialized uses. Founder Bill Wood started the company in 1977. Calipers, brake rotors, master cylinders, valves, fittings and brake lines are selected for the requirements of the complete brake system.
Technical Details
- Manufacturer part number: 140-2261-D
- Application: Ford Granada Drum Spindles
- Assembly: Spindle Hub and Rotor front conversion
- Rotor diameter / thickness: 11.00 in; 279.4 mm / 0.81 in; 20.57 mm
- Rotor surface: SRP Drilled & Slotted
- Rotor construction: Vented Iron
- Nominal minimum wheel diameter: 14 in; 355.6 mm; verify the wheel-clearance drawing

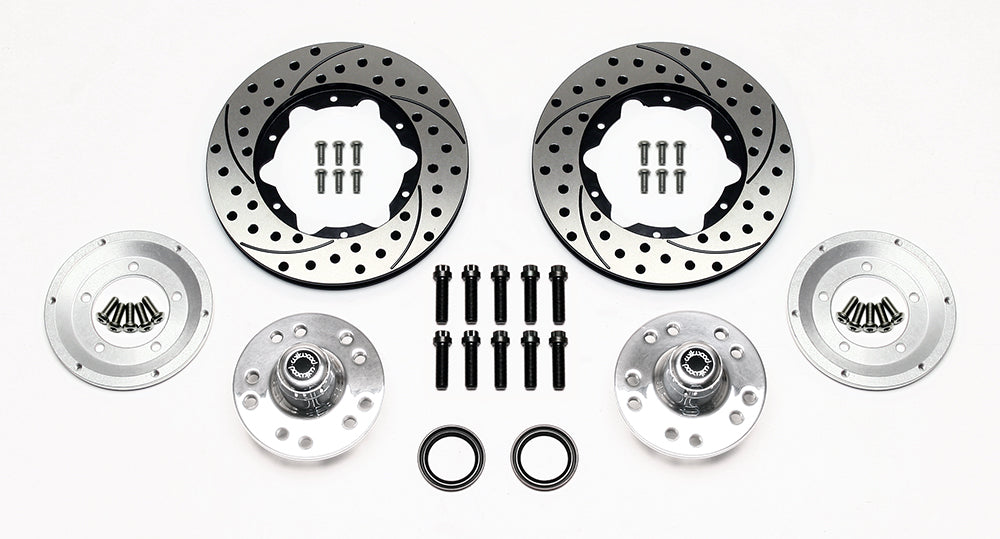

- Supplied rotating parts: Two hub assemblies, rotor adapters, rotors and assembly fasteners per DS-289
- Wheel studs: 1/2-20; dual 5 x 4.50 / 5 x 4.75 patterns per DS-289
- Bearing cones: Reuse existing inner and outer cones; verify condition and spindle match
- Calipers and brackets: Selected separately; not included
Fitment & Compatibility
DS-289 calls for reuse of the existing inner and outer bearing cones, spindle washer, adjusting hardware and dust cap. Verify the spindle journals and wheel pattern before assembly. The instructions require a steel wheel spacer if the wheel contact surface overhangs the hub face and recommend a hub shield for compatible stamped-steel wheels. Read those wheel-support conditions and confirm the matching caliper/bracket arrangement.
