Product details
Wilwood Granada front hubs and 11-inch plain rotors for 1975–1980 drum spindles. Reuse specified bearings; choose calipers and brackets separately. The manufacturer is Wilwood Engineering of Camarillo, California, established in 1977 by Bill Wood. It designs and manufactures disc brake systems and components, including calipers, brake rotors, master cylinders, valves, fittings and lines for motorsport, street-performance and specialized vehicles; suitability depends on the full brake-system configuration.
Technical Details
- Manufacturer part number: 140-2261
- Application: Ford Granada Drum Spindles
- Assembly: Spindle Hub and Rotor front conversion
- Rotor diameter / thickness: 11.00 in; 279.4 mm / 0.81 in; 20.57 mm
- Rotor surface: Plain Face
- Rotor construction: Vented Iron
- Nominal minimum wheel diameter: 14 in; 355.6 mm; verify the wheel-clearance drawing
- Supplied rotating parts: Two hub assemblies, rotor adapters, rotors and assembly fasteners per DS-289
- Wheel studs: 1/2-20; dual 5 x 4.50 / 5 x 4.75 patterns per DS-289
- Bearing cones: Reuse existing inner and outer cones; verify condition and spindle match
- Calipers and brackets: Selected separately; not included

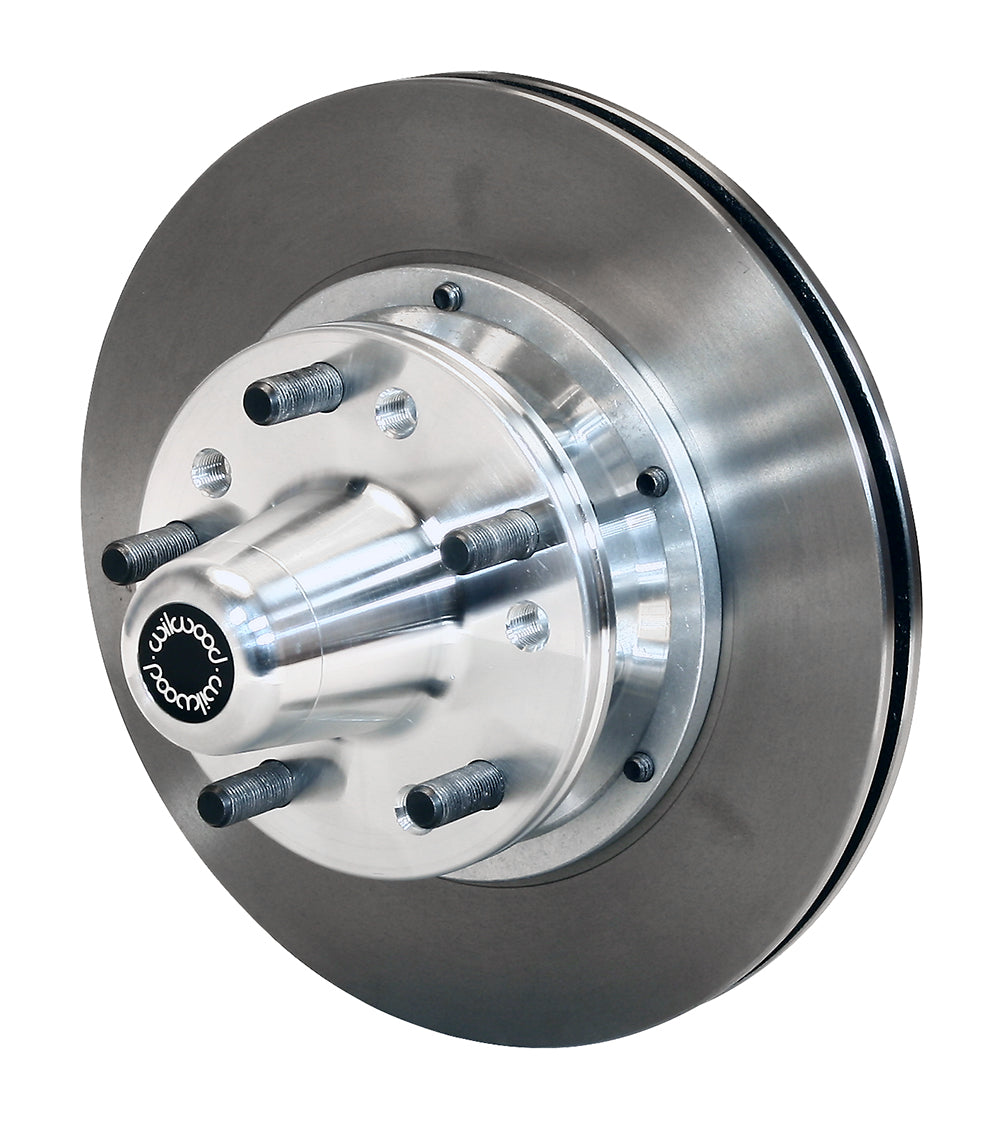

The supplied main photograph shows a drilled-rotor configuration. This part number specifies plain-face rotors; the second image shows the plain-face assembly.
Fitment & Compatibility
DS-289 calls for reuse of the existing inner and outer bearing cones, spindle washer, adjusting hardware and dust cap. Verify the spindle journals and wheel pattern before assembly. The instructions require a steel wheel spacer if the wheel contact surface overhangs the hub face and recommend a hub shield for compatible stamped-steel wheels. Read those wheel-support conditions and confirm the matching caliper/bracket arrangement.
Manufacturer Documents
Manufacturer Warning
WARNING: This product can expose you to chemicals including Arsenic, Cadmium, Chromium (Hexavalent compounds), Lead, Nickel, Cobalt and Antimony Trioxide which are known to the State of California to cause cancer or other reproductive harm. For more information go to www.p65warnings.ca.gov.
Discuss the current brake arrangement with PMB Performance if a mounting or clearance requirement is uncertain. More than 20 years of experience informs our parts and fitment support.
