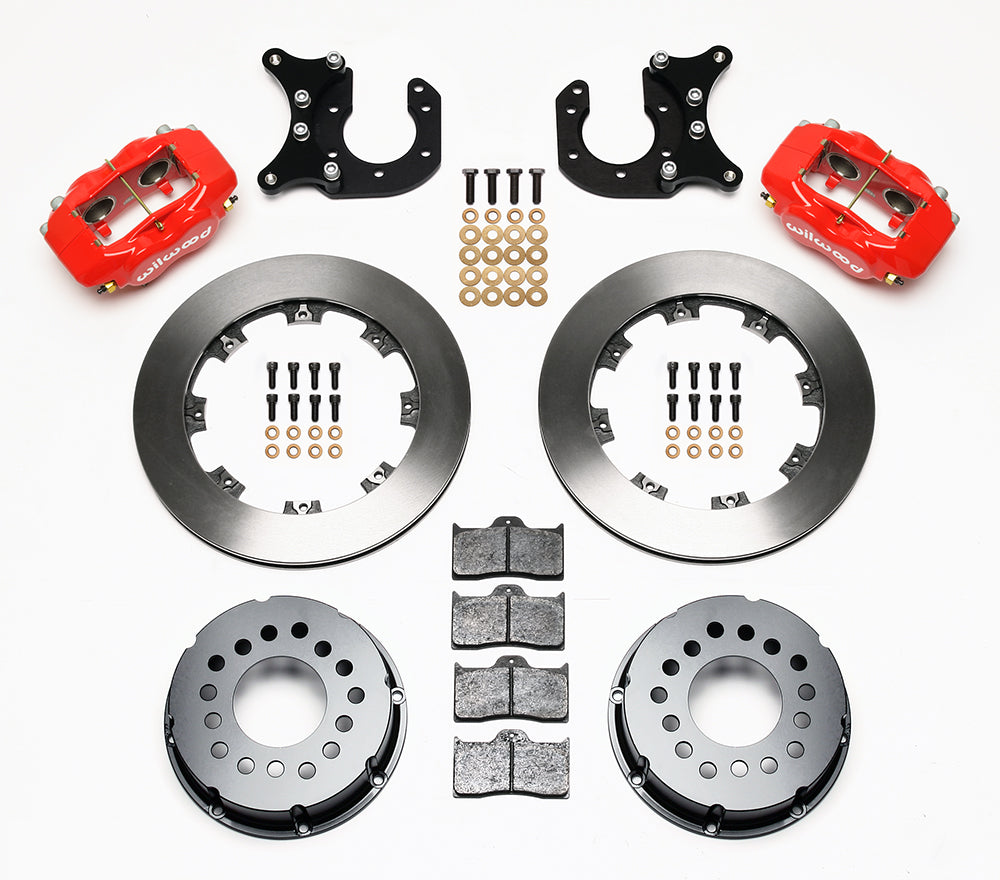

Components laid out for the Wilwood rear Dynalite Pro Series brake kit for New-Style Big Ford Ends, 2.50-Inch Offset, plain face rotors and red powder coat calipers

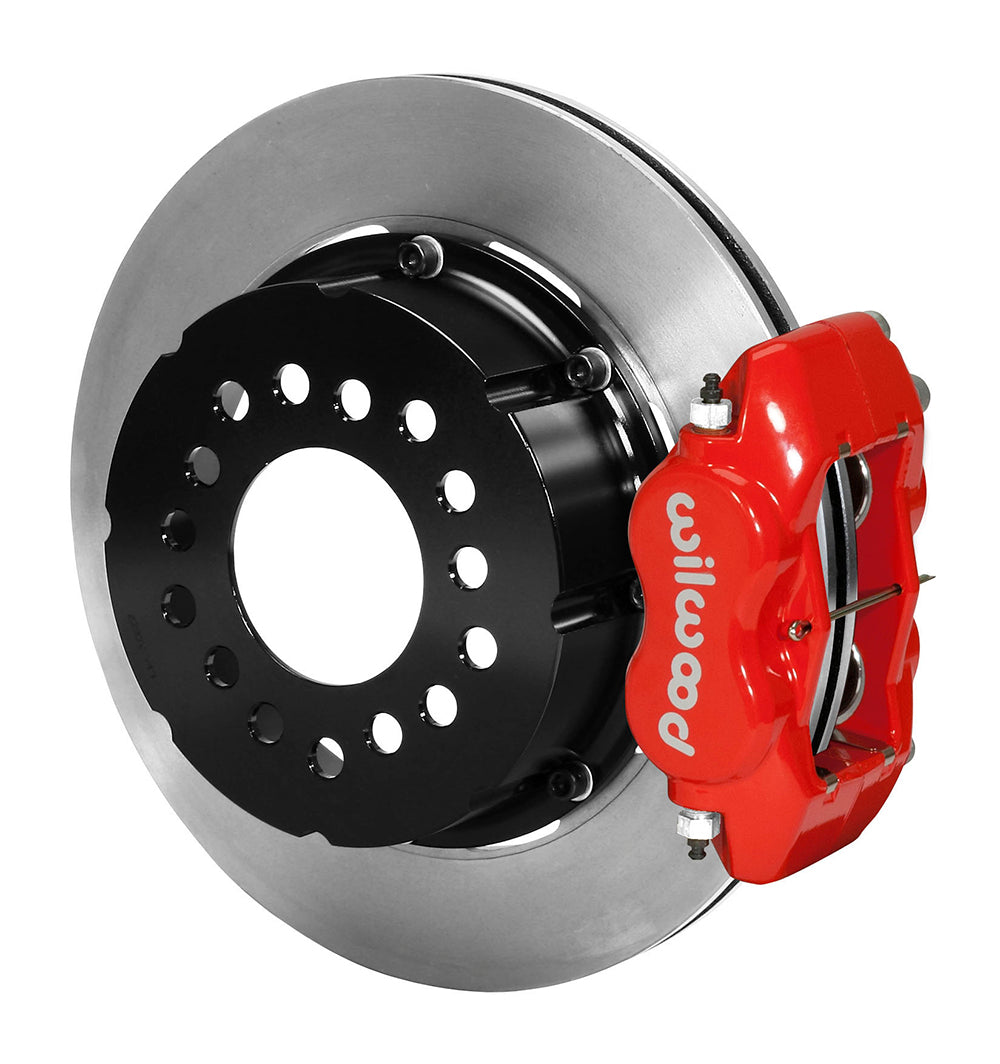

Assembled Wilwood rear Dynalite Pro Series caliper and rotor assembly for New-Style Big Ford Ends, 2.50-Inch Offset, plain face rotor and red powder coat caliper
Components laid out for the Wilwood rear Dynalite Pro Series brake kit for New-Style Big Ford Ends, 2.50-Inch Offset, plain face rotors and red powder coat calipers
Assembled Wilwood rear Dynalite Pro Series caliper and rotor assembly for New-Style Big Ford Ends, 2.50-Inch Offset, plain face rotor and red powder coat caliper

Wilwood Rear New-Style Big Ford Brakes, Plain 12.19-Inch Rotors with Red Dynalite Calipers, 2.50-Inch Offset

SKU: 140-2118-R

$979.24 Sale
Shipping calculated at checkout.

Fitment questions?

Call (855) 786-7101 or text (801) 304-3141.
Real people. Real answers.

Shipping policyRefund policy

Product details

New-style Ford rear conversion with red Wilwood Dynalite calipers and plain 12.19-inch rotors. Match the 2.50-inch axle geometry and wheel pattern. From Camarillo, California, Wilwood Engineering designs and builds disc braking systems for motorsport, street-performance and specialized uses. Founder Bill Wood started the company in 1977. Calipers, brake rotors, master cylinders, valves, fittings and brake lines are selected for the requirements of the complete brake system.

Technical Details

  • Manufacturer part number: 140-2118-R
  • Rotor material and size: Choose this 12.19 x 0.81-inch plain face rotor configuration. The rotor material is iron and its construction is vented.
  • Caliper specification: Finish selection is red powder coat. Each forged aluminum caliper carries 4 pistons with stainless construction.
  • Caliper interface: 1/8-27 NPT inlet thread; calipers attach through the specified lug mounting layout.
  • Housing-end requirement: Big Ford New Style; 2.50 in; 63.5 mm
  • Rotor/hat wheel-stud clearance pattern: 5 X 4.5 in; 5 X 4.75 in; 5 X 5 in (5 X 114.3 mm; 5 X 120.65 mm; 5 X 127 mm)
  • Wheel fit: Check the wheel-clearance diagram; the listed minimum wheel diameter is 15 inches.
  • Kit supply: mounting hardware
  • Not included: master cylinder, booster, spindles, flexible brake lines, hubs
  • Parking brake: No parking-brake mechanism supplied

Fitment & Compatibility

Match the new-style flange in DS-127 and measure the axle offset rather than relying on the Town Car row below. Old-style big Ford and small Ford housing ends are different configurations. Verify the wheel pattern, hydraulic-line selection and the actual wheel profile before installation.

Manufacturer Documents

Wilwood kit specifications and component list

Manufacturer Warning

WARNING: This product can expose you to chemicals including Arsenic, Cadmium, Chromium (Hexavalent compounds), Lead, Nickel, Cobalt and Antimony Trioxide which are known to the State of California to cause cancer or other reproductive harm. For more information go to www.p65warnings.ca.gov.

PMB Performance brings over 20 years of parts and fitment experience. Send the installed brake and axle details for help confirming the correct configuration.

Vehicle Applications

Years Make Model Model option Front brakes Rear brakes Kit application Notes
1990 Lincoln Town Car All Disc Drum Rear Kit 1, 2

Application Notes

  1. Kit may fit some 15" wheels. Check wheel clearance diagram in kit installation instructions before purchase.
  2. Line kit included (manufacturer): None
