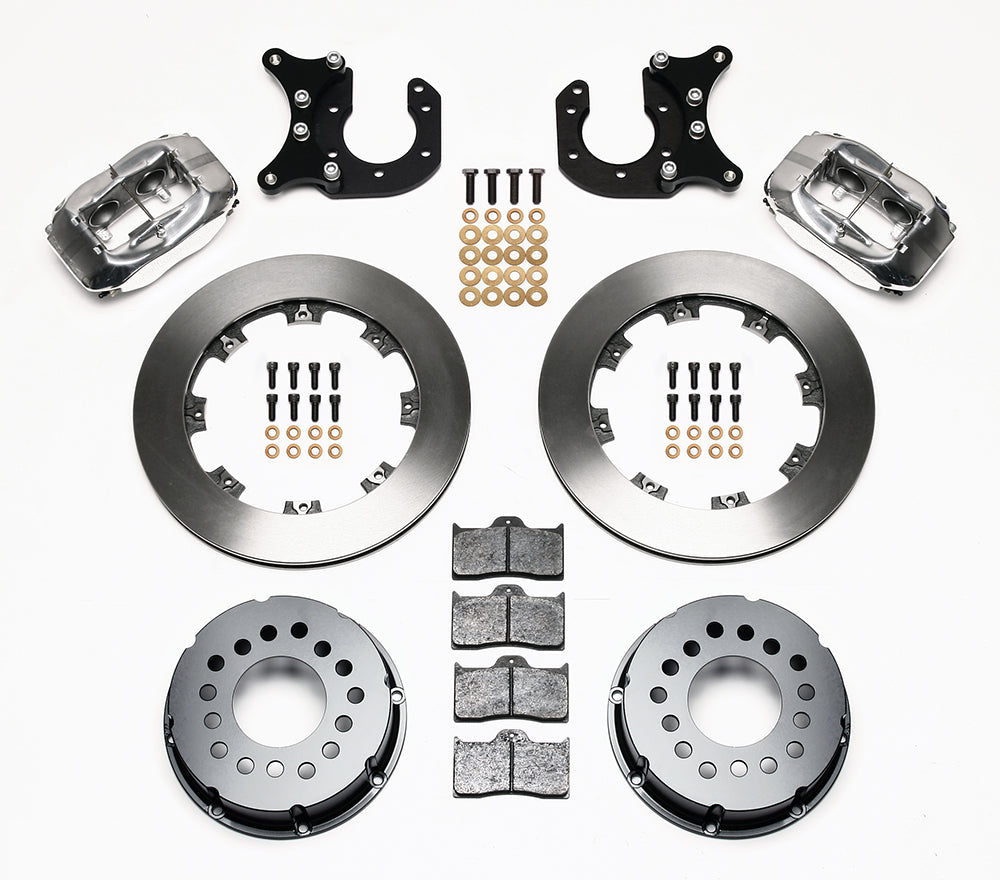

Components laid out for the Wilwood rear Dynalite Pro Series brake kit for New-Style Big Ford Ends, 2.50-Inch Offset, plain face rotors and polish calipers

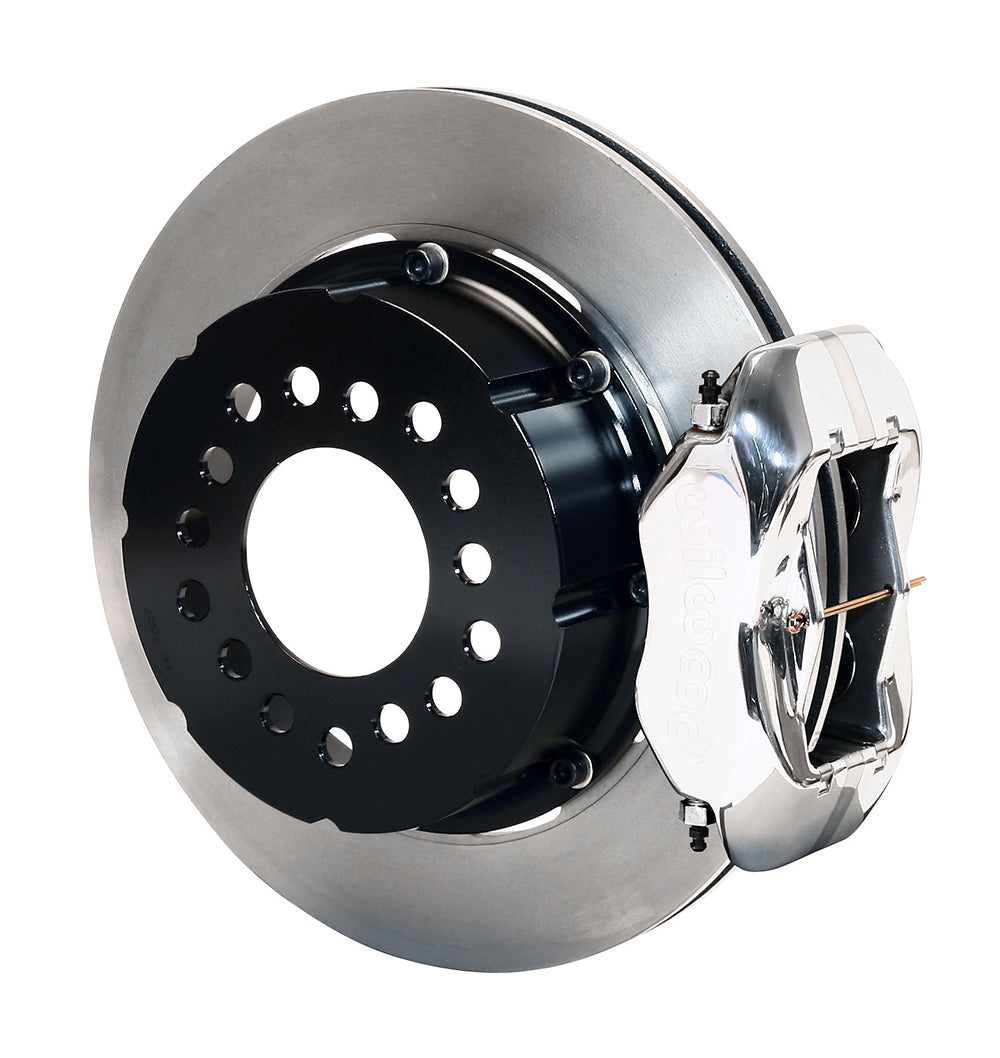

Assembled Wilwood rear Dynalite Pro Series caliper and rotor assembly for New-Style Big Ford Ends, 2.50-Inch Offset, plain face rotor and polish caliper
Components laid out for the Wilwood rear Dynalite Pro Series brake kit for New-Style Big Ford Ends, 2.50-Inch Offset, plain face rotors and polish calipers
Assembled Wilwood rear Dynalite Pro Series caliper and rotor assembly for New-Style Big Ford Ends, 2.50-Inch Offset, plain face rotor and polish caliper

Wilwood Rear New-Style Ford Plain Rotor Set with Polished Dynalite Calipers, 2.50-Inch Axle Offset

SKU: 140-2118-P

$1,193.28 Sale
Shipping calculated at checkout.

Fitment questions?

Call (855) 786-7101 or text (801) 304-3141. We check fitment by VIN.

Shipping policyRefund policy

Product details

A Wilwood rear package pairing polished calipers with plain rotors for new-style Big Ford ends. Verify 2.50-inch offset; no parking brake is included. The manufacturer is Wilwood Engineering of Camarillo, California, established in 1977 by Bill Wood. It designs and manufactures disc brake systems and components, including calipers, brake rotors, master cylinders, valves, fittings and lines for motorsport, street-performance and specialized vehicles; suitability depends on the full brake-system configuration.

Technical Details

  • Manufacturer part number: 140-2118-P
  • Calipers supplied: 4-piston forged aluminum construction; piston material stainless; external finish polished.
  • Rotor selection: Diameter 12.19 in; width 0.81 in. The selected rotor has a plain face face and vented iron construction.
  • Fluid connections: Use the lug-mount bracket arrangement and fittings matched to the 1/8-27 NPT caliper inlet.
  • Axle mounting: Big Ford New Style; 2.50 in; 63.5 mm
  • Rotor/hat wheel-stud clearance pattern: 5 X 4.5 in; 5 X 4.75 in; 5 X 5 in (5 X 114.3 mm; 5 X 120.65 mm; 5 X 127 mm)
  • Wheel fit: A 15-inch wheel is a starting dimension. Confirm the full wheel profile with the kit drawing.
  • Package scope: Supplied: mounting hardware. Not included: master cylinder, booster, spindles, flexible brake lines, hubs.
  • Parking brake: No parking-brake mechanism supplied

Fitment & Compatibility

Match the new-style flange in DS-127 and measure the axle offset rather than relying on the Town Car row below. Old-style big Ford and small Ford housing ends are different configurations. Verify the wheel pattern, hydraulic-line selection and the actual wheel profile before installation.

Manufacturer Documents

Wilwood kit specifications and component list

Manufacturer Warning

WARNING: This product can expose you to chemicals including Arsenic, Cadmium, Chromium (Hexavalent compounds), Lead, Nickel, Cobalt and Antimony Trioxide which are known to the State of California to cause cancer or other reproductive harm. For more information go to www.p65warnings.ca.gov.

With over 20 years of experience, PMB Performance can help identify the required brake-system components. Provide the vehicle details and the actual installed hardware when requesting a fitment check.

Vehicle Applications

Years Make Model Model option Front brakes Rear brakes Kit application Notes
1990 Lincoln Town Car All Disc Drum Rear Kit 1, 2

Application Notes

  1. Kit may fit some 15" wheels. Check wheel clearance diagram in kit installation instructions before purchase.
  2. Line kit included (manufacturer): None
