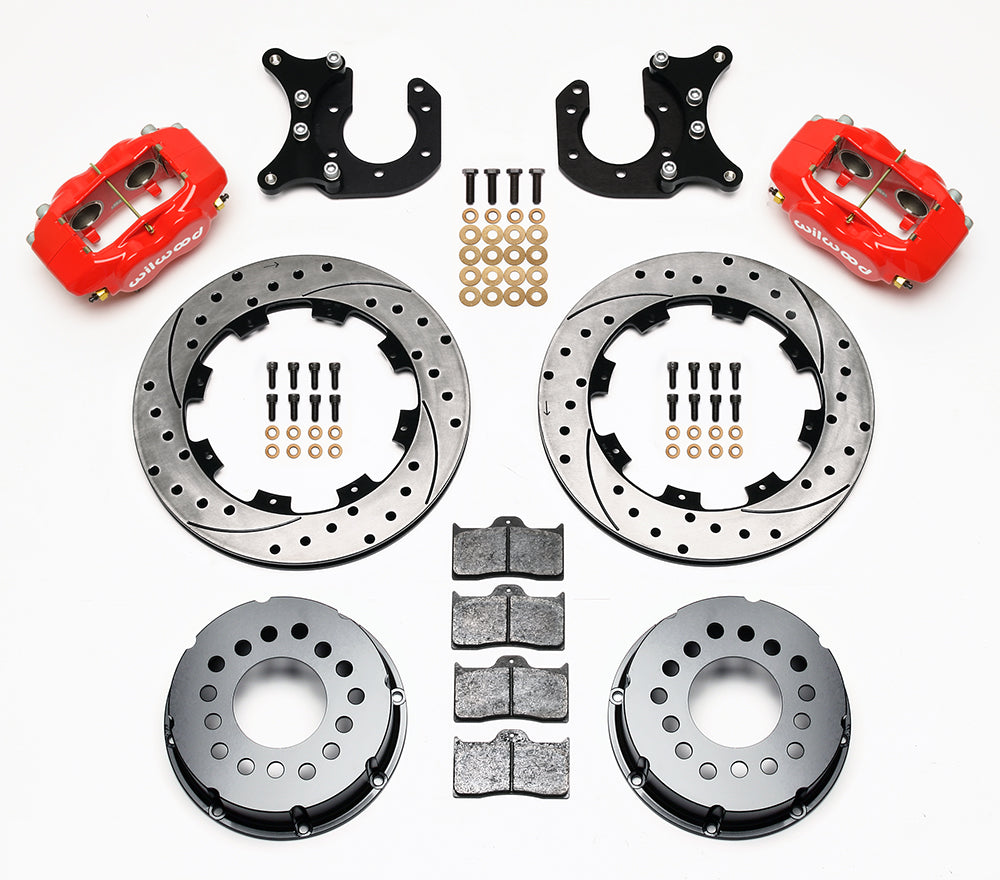

Components laid out for the Wilwood rear Dynalite Pro Series brake kit for New-Style Big Ford Ends, 2.50-Inch Offset, SRP drilled and slotted rotors and red powder coat calipers

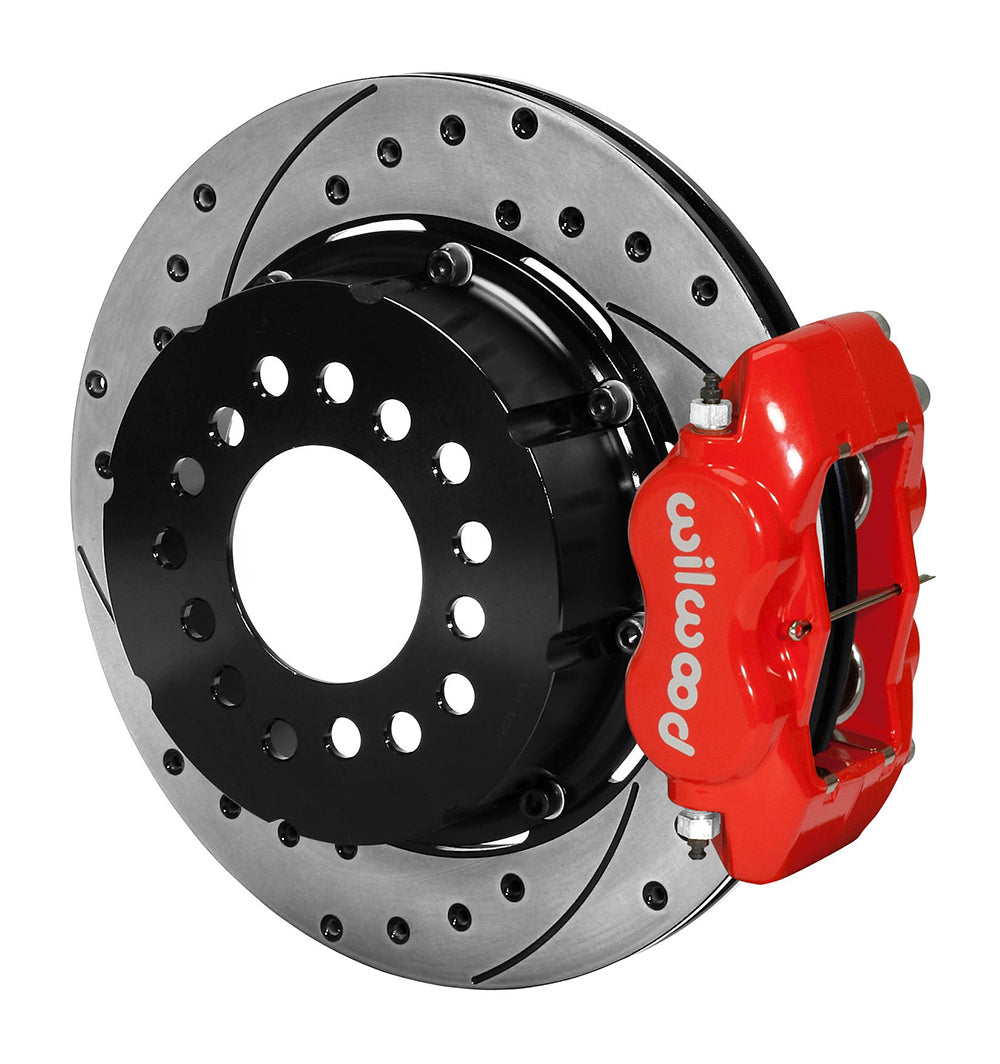

Assembled Wilwood rear Dynalite Pro Series caliper and rotor assembly for New-Style Big Ford Ends, 2.50-Inch Offset, SRP drilled and slotted rotor and red powder coat caliper
Components laid out for the Wilwood rear Dynalite Pro Series brake kit for New-Style Big Ford Ends, 2.50-Inch Offset, SRP drilled and slotted rotors and red powder coat calipers
Assembled Wilwood rear Dynalite Pro Series caliper and rotor assembly for New-Style Big Ford Ends, 2.50-Inch Offset, SRP drilled and slotted rotor and red powder coat caliper

Wilwood Rear 12.19-Inch Drilled/Slotted Kit with Red Calipers for New-Style Big Ford 2.50-Inch Ends

SKU: 140-2118-DR

$1,121.55 Sale
Shipping calculated at checkout.

Fitment questions?

Call (855) 786-7101 or text (801) 304-3141. We check fitment by VIN.

Shipping policyRefund policy

Product details

Fit red Dynalite calipers and Wilwood SRP rear rotors to the specified new-style Ford housing. Compare the flange drawing and 2.50-inch offset. Bill Wood established Wilwood Engineering in 1977. From its base in Camarillo, California, the company designs and manufactures disc brake systems and components, including calipers, rotors, master cylinders, valves, fittings and brake lines. Individual parts are matched to complete motorsport, street-performance or specialized installations.

Technical Details

  • Manufacturer part number: 140-2118-DR
  • Rotating brake parts: Vented iron rotors measure 12.19 inches across by 0.81 inch thick, with srp drilled and slotted friction surfaces.
  • Service calipers: The red powder coat calipers use forged aluminum bodies and 4 stainless pistons apiece.
  • Attachment requirements: The caliper uses a lug mount and accepts the specified 1/8-27 NPT inlet fitting.
  • Housing-end requirement: Big Ford New Style; 2.50 in; 63.5 mm
  • Rotor/hat wheel-stud clearance pattern: 5 X 4.5 in; 5 X 4.75 in; 5 X 5 in (5 X 114.3 mm; 5 X 120.65 mm; 5 X 127 mm)
  • Wheel fit: The nominal 15-inch wheel requirement is conditional on the actual spoke and barrel shape.
  • Kit supply: mounting hardware
  • Not included: master cylinder, booster, spindles, flexible brake lines, hubs
  • Parking brake: No parking-brake mechanism supplied

Fitment & Compatibility

Match the new-style flange in DS-127 and measure the axle offset rather than relying on the Town Car row below. Old-style big Ford and small Ford housing ends are different configurations. Verify the wheel pattern, hydraulic-line selection and the actual wheel profile before installation.

Manufacturer Documents

Wilwood kit specifications and component list

Manufacturer Warning

WARNING: This product can expose you to chemicals including Arsenic, Cadmium, Chromium (Hexavalent compounds), Lead, Nickel, Cobalt and Antimony Trioxide which are known to the State of California to cause cancer or other reproductive harm. For more information go to www.p65warnings.ca.gov.

Discuss the current brake arrangement with PMB Performance if a mounting or clearance requirement is uncertain. More than 20 years of experience informs our parts and fitment support.

Vehicle Applications

Years Make Model Model option Front brakes Rear brakes Kit application Notes
1990 Lincoln Town Car All Disc Drum Rear Kit 1, 2

Application Notes

  1. Kit may fit some 15" wheels. Check wheel clearance diagram in kit installation instructions before purchase.
  2. Line kit included (manufacturer): None
