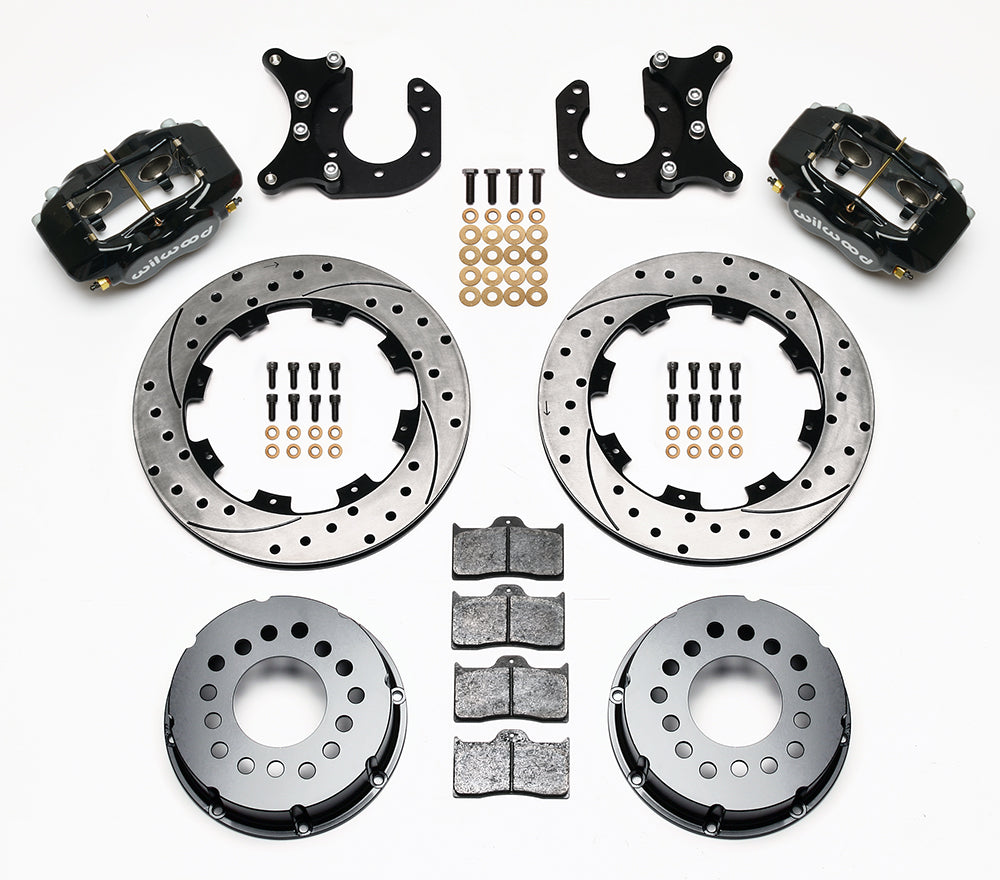

Components laid out for the Wilwood rear Dynalite Pro Series brake kit for New-Style Big Ford Ends, 2.50-Inch Offset, SRP drilled and slotted rotors and black powder coat calipers

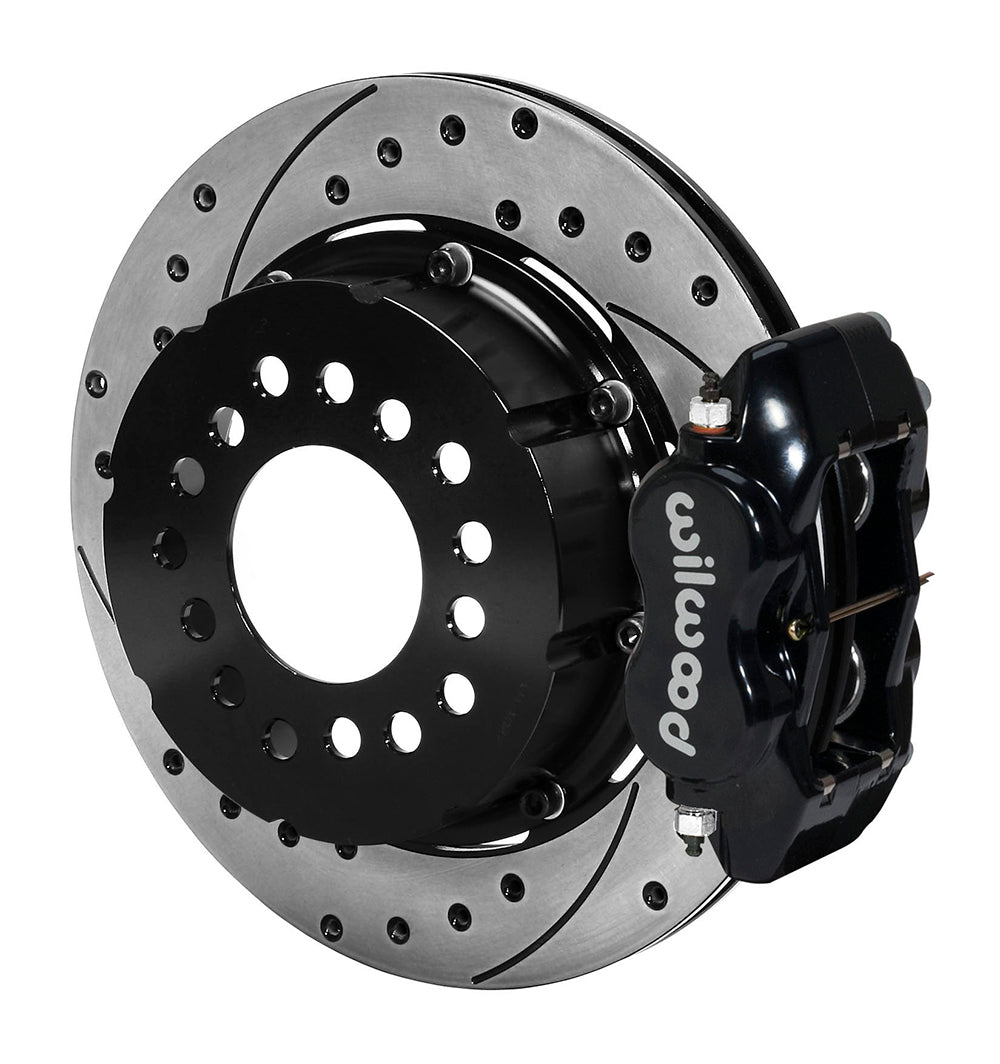

Assembled Wilwood rear Dynalite Pro Series caliper and rotor assembly for New-Style Big Ford Ends, 2.50-Inch Offset, SRP drilled and slotted rotor and black powder coat caliper
Components laid out for the Wilwood rear Dynalite Pro Series brake kit for New-Style Big Ford Ends, 2.50-Inch Offset, SRP drilled and slotted rotors and black powder coat calipers
Assembled Wilwood rear Dynalite Pro Series caliper and rotor assembly for New-Style Big Ford Ends, 2.50-Inch Offset, SRP drilled and slotted rotor and black powder coat caliper

Wilwood Rear Black Dynalite SRP Brake Package for New-Style Big Ford Ends, 12.19 Inches, 2.50-Inch Offset

SKU: 140-2118-BD

$1,121.55 Sale
Shipping calculated at checkout.

Fitment questions?

Call (855) 786-7101 or text (801) 304-3141.
Real people. Real answers.

Shipping policyRefund policy

Product details

New-style Big Ford rear brakes with black Wilwood calipers and drilled/slotted rotors. Measure the 2.50-inch offset and verify wheel clearance. Wilwood Engineering began in 1977 with founder Bill Wood and is based in Camarillo, California. It designs and manufactures disc brake systems and components, including calipers, brake rotors, master cylinders, valves, fittings and brake lines. The company serves motorsport, street-performance and specialized applications, where the complete system determines component selection.

Technical Details

  • Manufacturer part number: 140-2118-BD
  • Rotor configuration: 12.19-inch diameter and 0.81-inch thickness; srp drilled and slotted vented iron.
  • Caliper assembly: 4 stainless pistons in each forged aluminum caliper, with black powder coat finish.
  • Mount and inlet: Lug caliper attachment with 1/8-27 NPT fluid inlets.
  • Housing-end requirement: Big Ford New Style; 2.50 in; 63.5 mm
  • Rotor/hat wheel-stud clearance pattern: 5 X 4.5 in; 5 X 4.75 in; 5 X 5 in (5 X 114.3 mm; 5 X 120.65 mm; 5 X 127 mm)
  • Wheel fit: 15-inch nominal minimum; check both barrel and spoke clearance against the installation template.
  • Kit supply: mounting hardware
  • Not included: master cylinder, booster, spindles, flexible brake lines, hubs
  • Parking brake: No parking-brake mechanism supplied

Fitment & Compatibility

Match the new-style flange in DS-127 and measure the axle offset rather than relying on the Town Car row below. Old-style big Ford and small Ford housing ends are different configurations. Verify the wheel pattern, hydraulic-line selection and the actual wheel profile before installation.

Manufacturer Documents

Wilwood kit specifications and component list

Manufacturer Warning

WARNING: This product can expose you to chemicals including Arsenic, Cadmium, Chromium (Hexavalent compounds), Lead, Nickel, Cobalt and Antimony Trioxide which are known to the State of California to cause cancer or other reproductive harm. For more information go to www.p65warnings.ca.gov.

With over 20 years of experience, PMB Performance can help identify the required brake-system components. Provide the vehicle details and the actual installed hardware when requesting a fitment check.

Vehicle Applications

Years Make Model Model option Front brakes Rear brakes Kit application Notes
1990 Lincoln Town Car All Disc Drum Rear Kit 1, 2

Application Notes

  1. Kit may fit some 15" wheels. Check wheel clearance diagram in kit installation instructions before purchase.
  2. Line kit included (manufacturer): None
