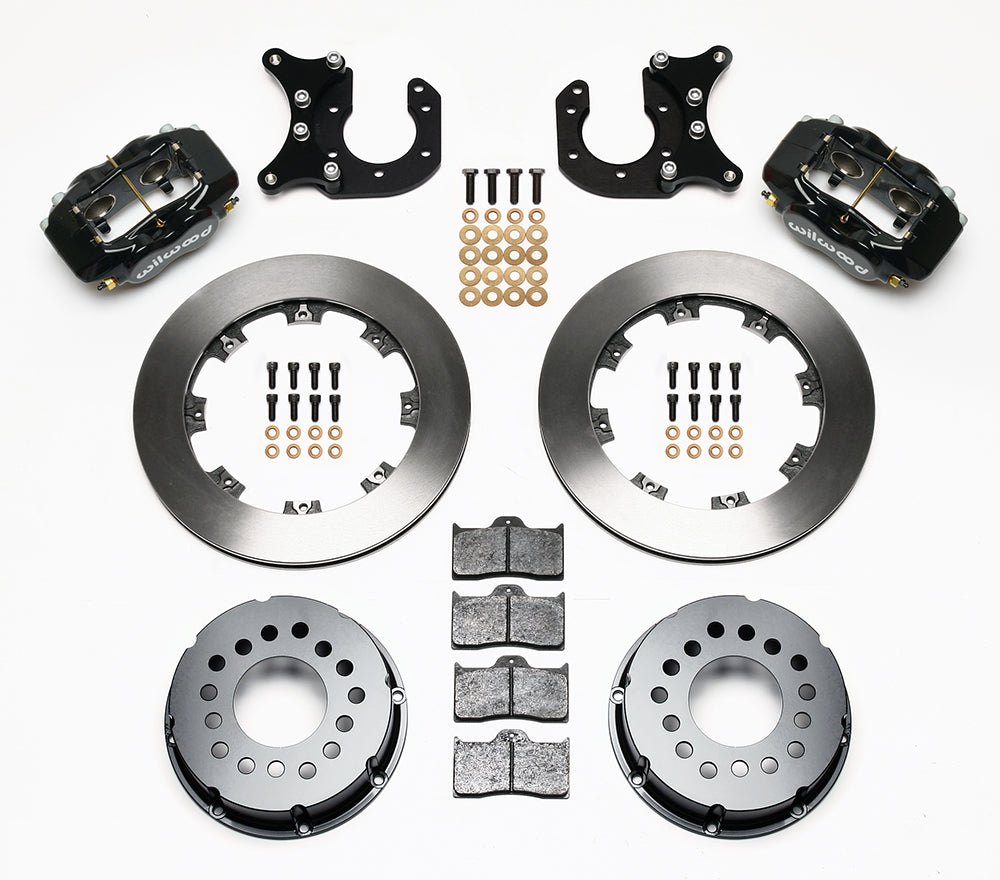

Components laid out for the Wilwood rear Dynalite Pro Series brake kit for New-Style Big Ford Ends, 2.50-Inch Offset, plain face rotors and black powder coat calipers

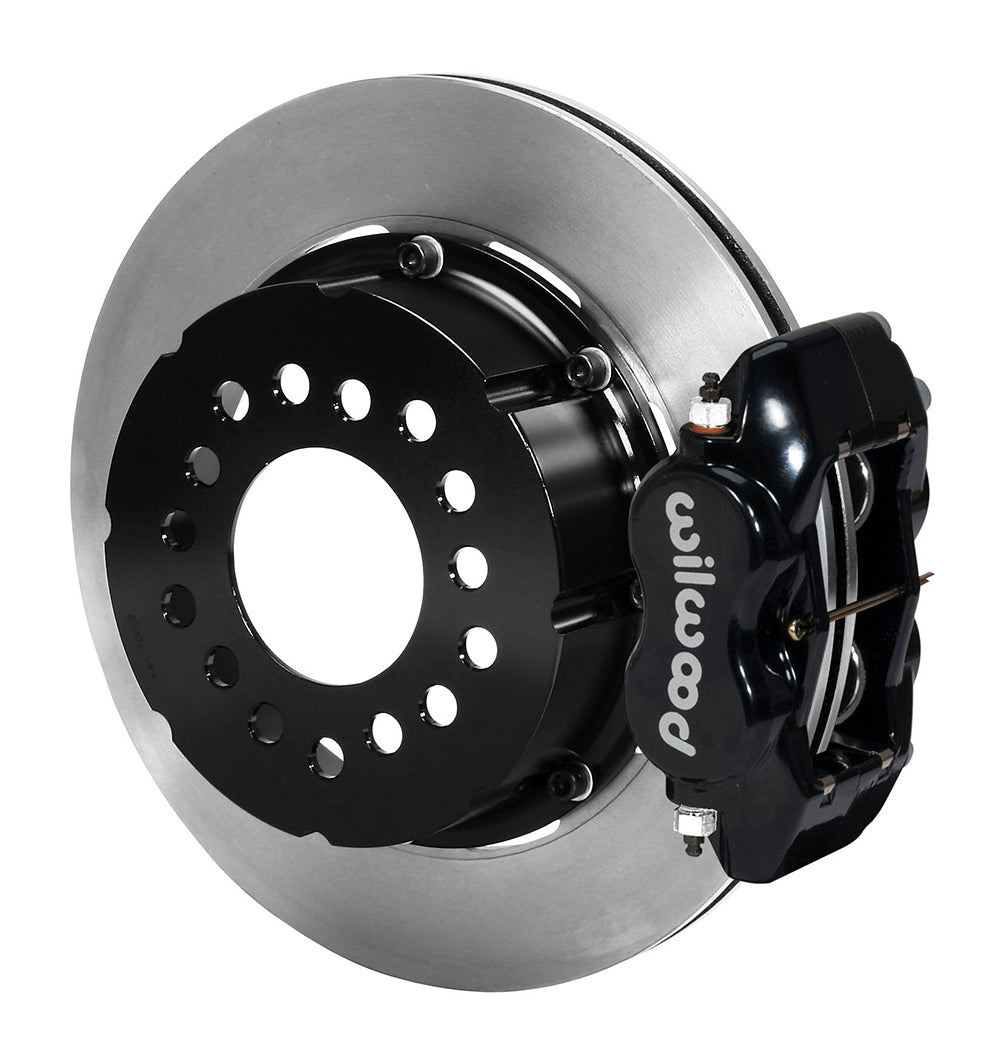

Assembled Wilwood rear Dynalite Pro Series caliper and rotor assembly for New-Style Big Ford Ends, 2.50-Inch Offset, plain face rotor and black powder coat caliper
Components laid out for the Wilwood rear Dynalite Pro Series brake kit for New-Style Big Ford Ends, 2.50-Inch Offset, plain face rotors and black powder coat calipers
Assembled Wilwood rear Dynalite Pro Series caliper and rotor assembly for New-Style Big Ford Ends, 2.50-Inch Offset, plain face rotor and black powder coat caliper

Wilwood Rear New-Style Big Ford Dynalite Kit, Black Calipers and Plain Rotors, 2.50-Inch Offset

SKU: 140-2118-B

$979.24 Sale
Shipping calculated at checkout.

Fitment questions?

Call (855) 786-7101 or text (801) 304-3141.
Real people. Real answers.

Shipping policyRefund policy

Product details

Wilwood rear conversion for new-style Big Ford ends at 2.50-inch offset. Black Dynalite calipers use plain 12.19-inch rotors; check the flange. Founded in 1977 under Bill Wood, Wilwood Engineering operates from Camarillo, California. The company designs and manufactures disc brake systems and the calipers, rotors, master cylinders, valves, fittings and lines used within them. Its motorsport, street-performance and specialized applications depend on compatible brake components.

Technical Details

  • Manufacturer part number: 140-2118-B
  • Brake calipers: For this package, the forged aluminum calipers have black powder coat exteriors and stainless pistons, 4 per caliper.
  • Rotor geometry: Each rotor is 0.81 inch wide with a 12.19-inch outside diameter; the vented iron design has plain face surfaces.
  • Installation interfaces: Confirm lug mounting and a hydraulic connection compatible with the 1/8-27 NPT inlet.
  • Axle mounting: Big Ford New Style; 2.50 in; 63.5 mm
  • Rotor/hat wheel-stud clearance pattern: 5 X 4.5 in; 5 X 4.75 in; 5 X 5 in (5 X 114.3 mm; 5 X 120.65 mm; 5 X 127 mm)
  • Wheel fit: Wheel diameter alone is insufficient: test the template for this nominal 15-inch minimum package.
  • Package scope: Supplied: mounting hardware. Not included: master cylinder, booster, spindles, flexible brake lines, hubs.
  • Parking brake: No parking-brake mechanism supplied

Fitment & Compatibility

Match the new-style flange in DS-127 and measure the axle offset rather than relying on the Town Car row below. Old-style big Ford and small Ford housing ends are different configurations. Verify the wheel pattern, hydraulic-line selection and the actual wheel profile before installation.

Manufacturer Documents

Wilwood kit specifications and component list

Manufacturer Warning

WARNING: This product can expose you to chemicals including Arsenic, Cadmium, Chromium (Hexavalent compounds), Lead, Nickel, Cobalt and Antimony Trioxide which are known to the State of California to cause cancer or other reproductive harm. For more information go to www.p65warnings.ca.gov.

Before ordering for a modified vehicle, contact PMB Performance with the relevant dimensions and component numbers. Our team draws on more than 20 years of parts and fitment experience.

Vehicle Applications

Years Make Model Model option Front brakes Rear brakes Kit application Notes
1990 Lincoln Town Car All Disc Drum Rear Kit 1, 2

Application Notes

  1. Kit may fit some 15" wheels. Check wheel clearance diagram in kit installation instructions before purchase.
  2. Line kit included (manufacturer): None
