Product details

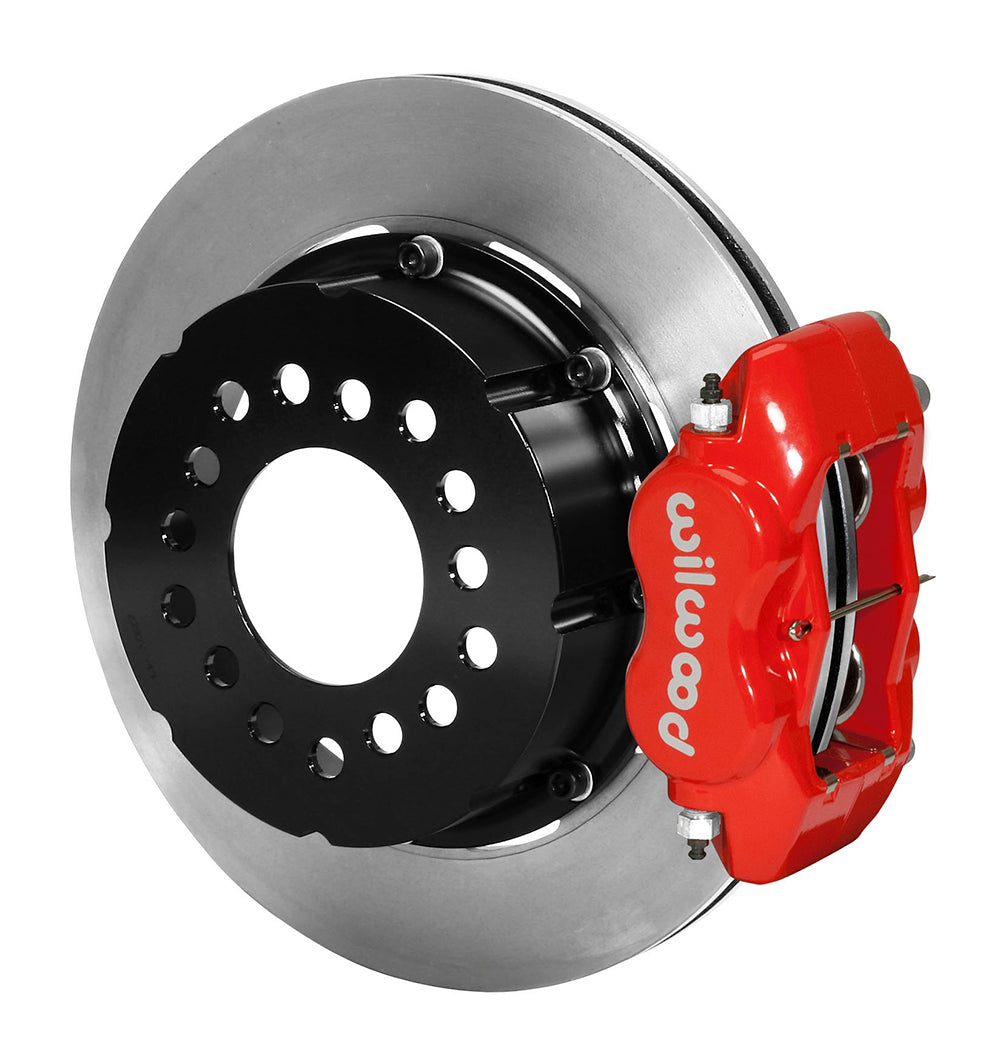

Plain Wilwood rear rotors pair with red calipers on the specified Mopar/Dana RP400 flange-bearing axle. Measure the 2.36-inch offset before ordering. Wilwood Engineering began in 1977 with founder Bill Wood and is based in Camarillo, California. It designs and manufactures disc brake systems and components, including calipers, brake rotors, master cylinders, valves, fittings and brake lines. The company serves motorsport, street-performance and specialized applications, where the complete system determines component selection.
Technical Details
- Manufacturer part number: 140-2117-R
- Caliper construction: Caliper bodies are forged aluminum, finished in red powder coat; each has 4 pistons made from stainless.
- Rotor dimensions and face: The plain face option uses iron, a 12.19-inch outside diameter and a 0.81-inch running width. Rotor construction is vented.
- Hydraulic and mounting layout: Brake-fluid connection: 1/8-27 NPT; caliper mounting arrangement: lug.
- Axle mounting: Mopar/Dana; 2.36 in; 59.94 mm
- Rotor/hat wheel-stud clearance pattern: 5 X 4.5 in; 5 X 4.75 in; 5 X 5 in (5 X 114.3 mm; 5 X 120.65 mm; 5 X 127 mm)
- Wheel fit: Use the manufacturer wheel template even when the wheel is 15 inches or larger.

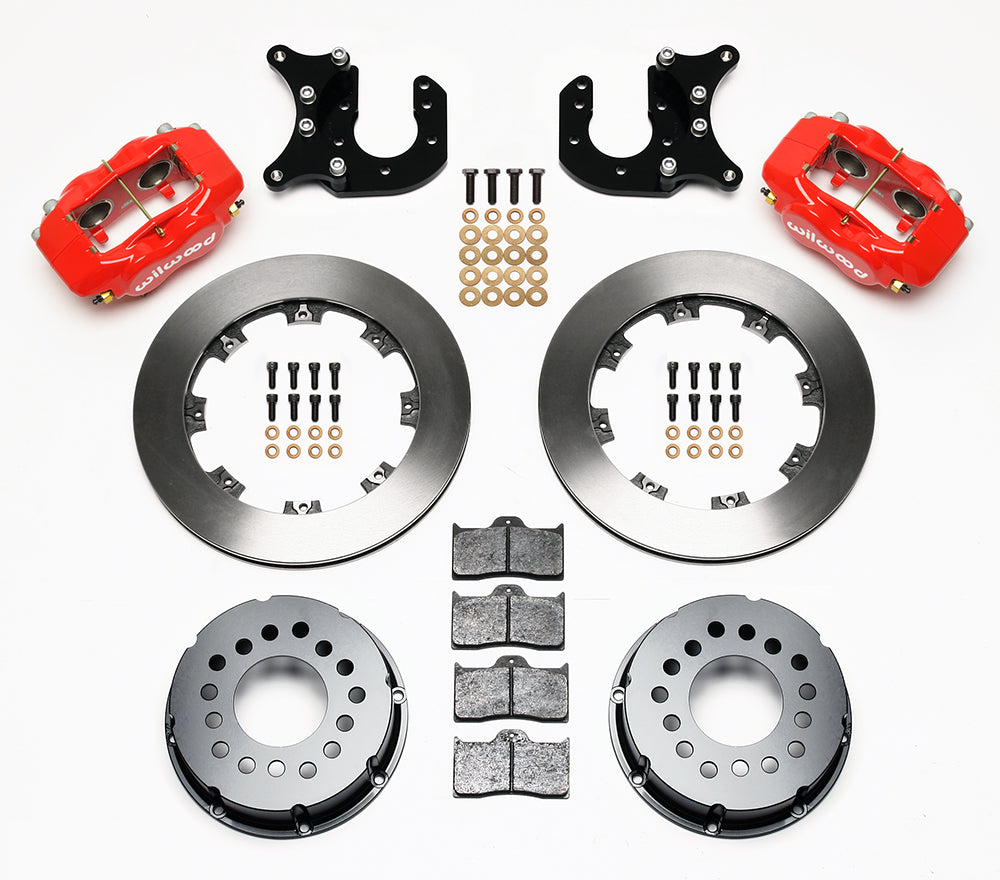

- Package scope: Supplied: mounting hardware. Not included: master cylinder, booster, spindles, flexible brake lines, hubs.
- Parking brake: No parking-brake mechanism supplied
Fitment & Compatibility
Match DS-126, which identifies the press-on five-hole flange bearing as Mopar RP400. Do not substitute the separate snap-ring-bearing kit solely because its nominal offset is also 2.36 inches. Verify housing-end dimensions, axle offset, wheel drilling and flexible-line routing.
Manufacturer Documents
Wilwood kit specifications and component list
Manufacturer Warning
WARNING: This product can expose you to chemicals including Arsenic, Cadmium, Chromium (Hexavalent compounds), Lead, Nickel, Cobalt and Antimony Trioxide which are known to the State of California to cause cancer or other reproductive harm. For more information go to www.p65warnings.ca.gov.
Discuss the current brake arrangement with PMB Performance if a mounting or clearance requirement is uncertain. More than 20 years of experience informs our parts and fitment support.
