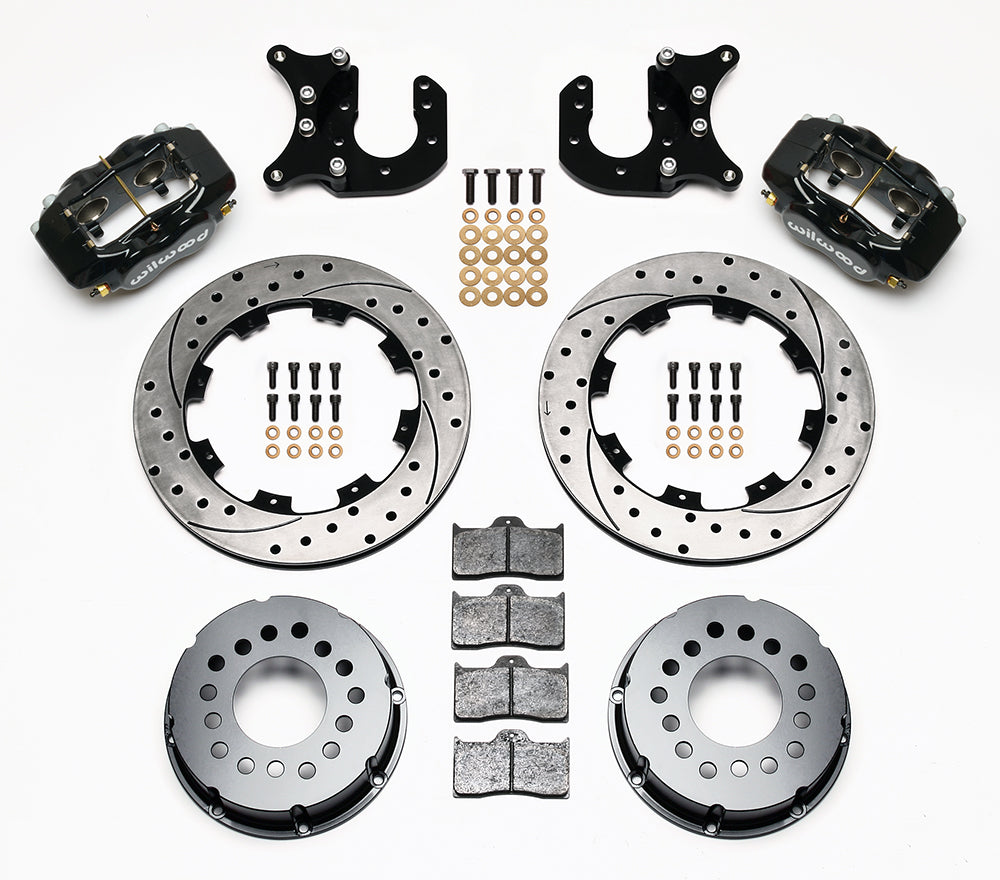

Components laid out for the Wilwood rear Dynalite Pro Series brake kit for Mopar/Dana Axles, 2.36-Inch Offset, SRP drilled and slotted rotors and black powder coat calipers

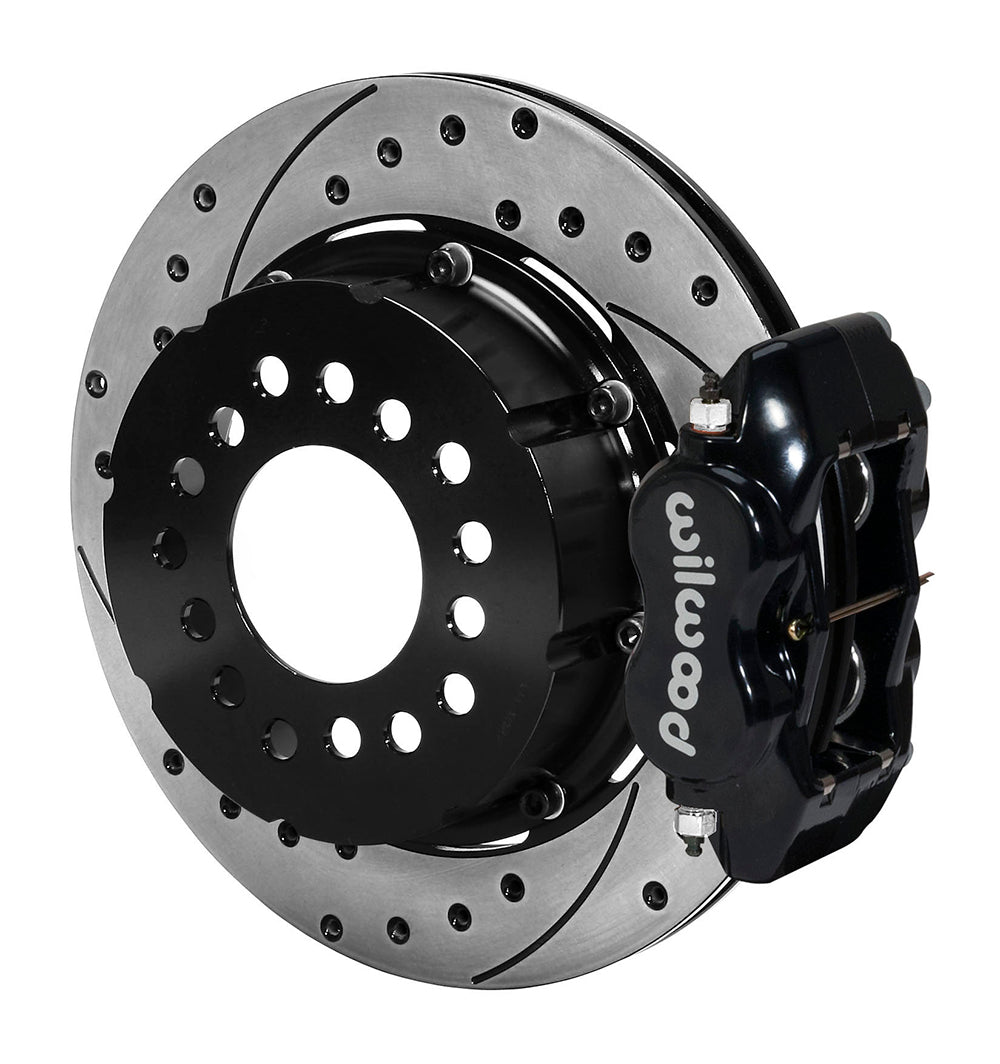

Assembled Wilwood rear Dynalite Pro Series caliper and rotor assembly for Mopar/Dana Axles, 2.36-Inch Offset, SRP drilled and slotted rotor and black powder coat caliper
Components laid out for the Wilwood rear Dynalite Pro Series brake kit for Mopar/Dana Axles, 2.36-Inch Offset, SRP drilled and slotted rotors and black powder coat calipers
Assembled Wilwood rear Dynalite Pro Series caliper and rotor assembly for Mopar/Dana Axles, 2.36-Inch Offset, SRP drilled and slotted rotor and black powder coat caliper

Wilwood Rear Mopar/Dana SRP Rotor Conversion, Black Calipers, Press-On Flange Bearing, 2.36-Inch Offset

SKU: 140-2117-BD

$1,121.55 Sale
Shipping calculated at checkout.

Fitment questions?

Call (855) 786-7101 or text (801) 304-3141. We check fitment by VIN.

Shipping policyRefund policy

Product details

Wilwood SRP rotors and black Dynalite calipers convert the matched Mopar/Dana rear end. Confirm the five-hole flange bearing and 2.36-inch offset. From Camarillo, California, Wilwood Engineering designs and builds disc braking systems for motorsport, street-performance and specialized uses. Founder Bill Wood started the company in 1977. Calipers, brake rotors, master cylinders, valves, fittings and brake lines are selected for the requirements of the complete brake system.

Technical Details

  • Manufacturer part number: 140-2117-BD
  • Brake calipers: For this package, the forged aluminum calipers have black powder coat exteriors and stainless pistons, 4 per caliper.
  • Rotor geometry: Each rotor is 0.81 inch wide with a 12.19-inch outside diameter; the vented iron design has srp drilled and slotted surfaces.
  • Installation interfaces: Confirm lug mounting and a hydraulic connection compatible with the 1/8-27 NPT inlet.
  • Axle mounting: Mopar/Dana; 2.36 in; 59.94 mm
  • Rotor/hat wheel-stud clearance pattern: 5 X 4.5 in; 5 X 4.75 in; 5 X 5 in (5 X 114.3 mm; 5 X 120.65 mm; 5 X 127 mm)
  • Wheel fit: Wheel diameter alone is insufficient: test the template for this nominal 15-inch minimum package.
  • Package scope: Supplied: mounting hardware. Not included: master cylinder, booster, spindles, flexible brake lines, hubs.
  • Parking brake: No parking-brake mechanism supplied

Fitment & Compatibility

Match DS-126, which identifies the press-on five-hole flange bearing as Mopar RP400. Do not substitute the separate snap-ring-bearing kit solely because its nominal offset is also 2.36 inches. Verify housing-end dimensions, axle offset, wheel drilling and flexible-line routing.
