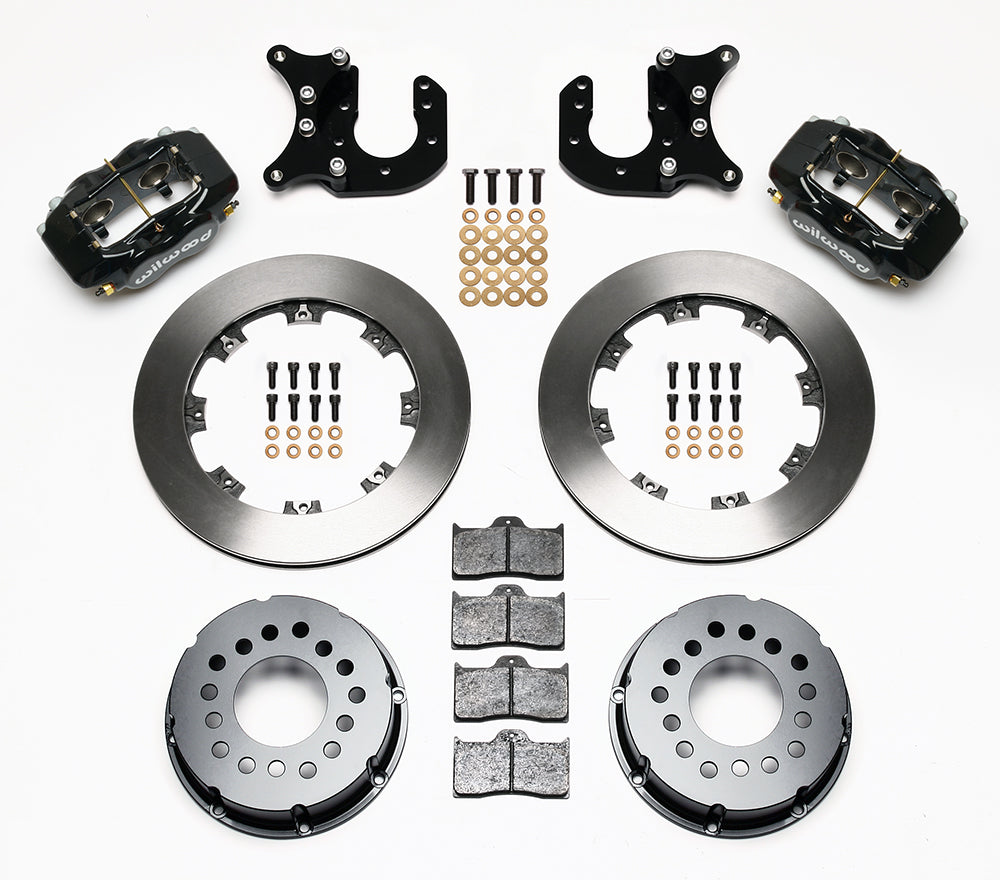

Components laid out for the Wilwood rear Dynalite Pro Series brake kit for Mopar/Dana Axles, 2.36-Inch Offset, plain face rotors and black powder coat calipers

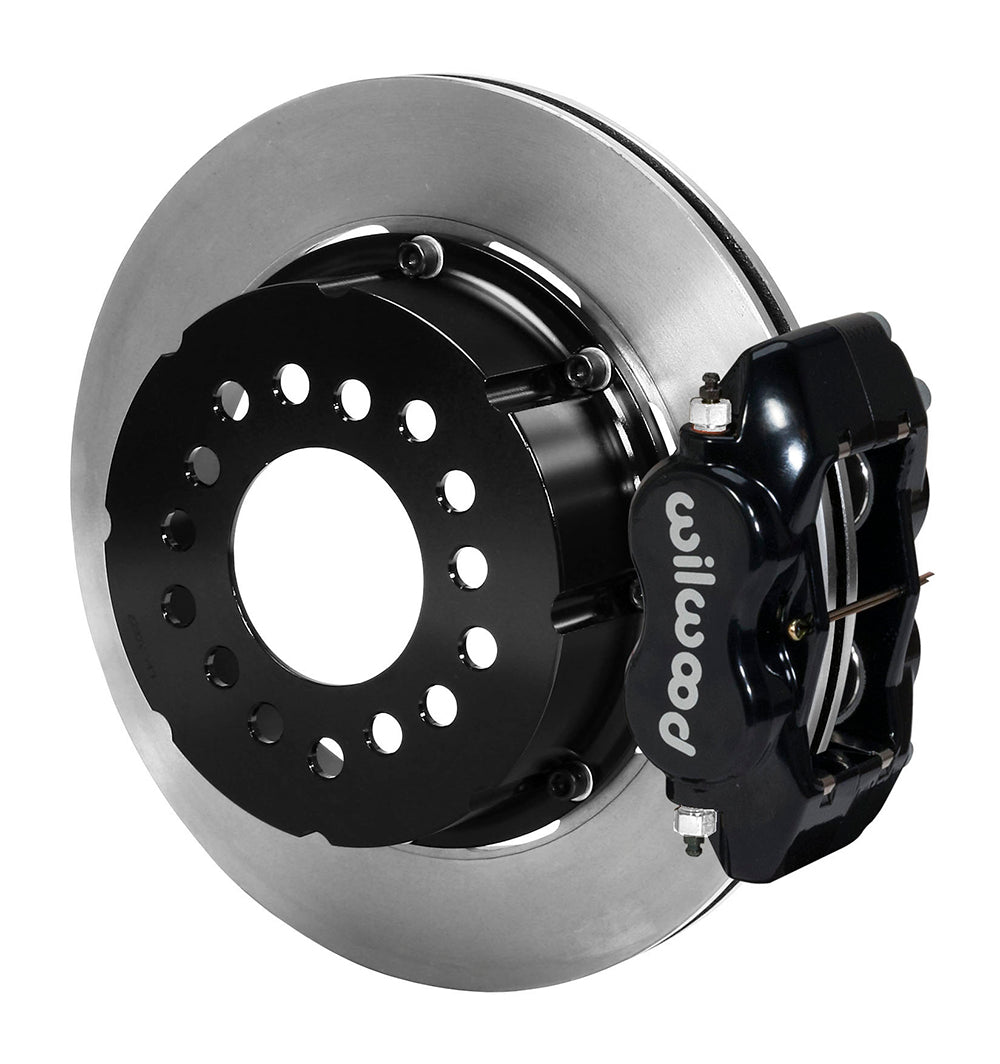

Assembled Wilwood rear Dynalite Pro Series caliper and rotor assembly for Mopar/Dana Axles, 2.36-Inch Offset, plain face rotor and black powder coat caliper
Components laid out for the Wilwood rear Dynalite Pro Series brake kit for Mopar/Dana Axles, 2.36-Inch Offset, plain face rotors and black powder coat calipers
Assembled Wilwood rear Dynalite Pro Series caliper and rotor assembly for Mopar/Dana Axles, 2.36-Inch Offset, plain face rotor and black powder coat caliper

Wilwood Rear Black Dynalite Kit for Mopar/Dana Five-Hole Flange Bearings, 2.36-Inch Offset, Plain Rotors

SKU: 140-2117-B

$979.24 Sale
Shipping calculated at checkout.

Fitment questions?

Call (855) 786-7101 or text (801) 304-3141.
Real people. Real answers.

Shipping policyRefund policy

Product details

Mopar/Dana rear kit with black Wilwood calipers and plain rotors. Verify the press-on five-hole RP400 bearing arrangement and 2.36-inch offset. The manufacturer is Wilwood Engineering of Camarillo, California, established in 1977 by Bill Wood. It designs and manufactures disc brake systems and components, including calipers, brake rotors, master cylinders, valves, fittings and lines for motorsport, street-performance and specialized vehicles; suitability depends on the full brake-system configuration.

Technical Details

  • Manufacturer part number: 140-2117-B
  • Axle arrangement: Mopar/Dana housing end with the press-on five-hole flange-bearing layout identified in DS-126; the nominal axle offset is 2.36 inches (59.94 mm).
  • Service-brake calipers: Black powder-coated forged aluminum, four stainless pistons per caliper, lug mounting and 1/8-27 NPT fluid inlets.
  • Rotors supplied: Vented iron with plain friction faces; 12.19-inch outside diameter and 0.81-inch running width.
  • Hat clearance drilling: 5 x 4.50, 5 x 4.75 and 5 x 5.00 inches (114.3, 120.65 and 127 mm bolt circles); confirm the installed axle and wheel drilling separately.
  • Wheel requirement: Wilwood lists a nominal 15-inch minimum. Compare the complete wheel profile with the installation drawing.
  • Package contents: Mounting hardware is included. Hubs, spindles, flexible brake lines, master cylinder and booster are not included.
  • Parking-brake provision: This package supplies rear service brakes without a parking mechanism.

Fitment & Compatibility

Match DS-126, which identifies the press-on five-hole flange bearing as Mopar RP400. Do not substitute the separate snap-ring-bearing kit solely because its nominal offset is also 2.36 inches. Verify housing-end dimensions, axle offset, wheel drilling and flexible-line routing.
