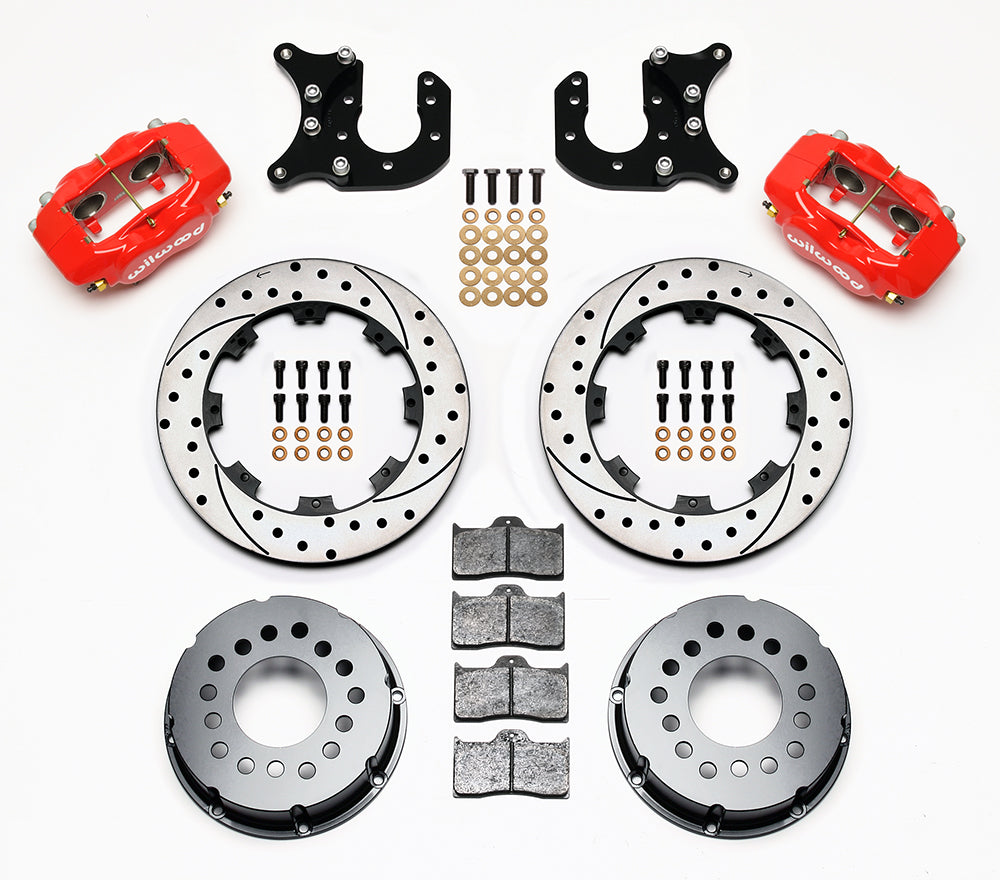

Components laid out for the Wilwood rear Dynalite Pro Series brake kit for Mopar/Dana Axles, 2.72-Inch Offset, SRP drilled and slotted rotors and red powder coat calipers

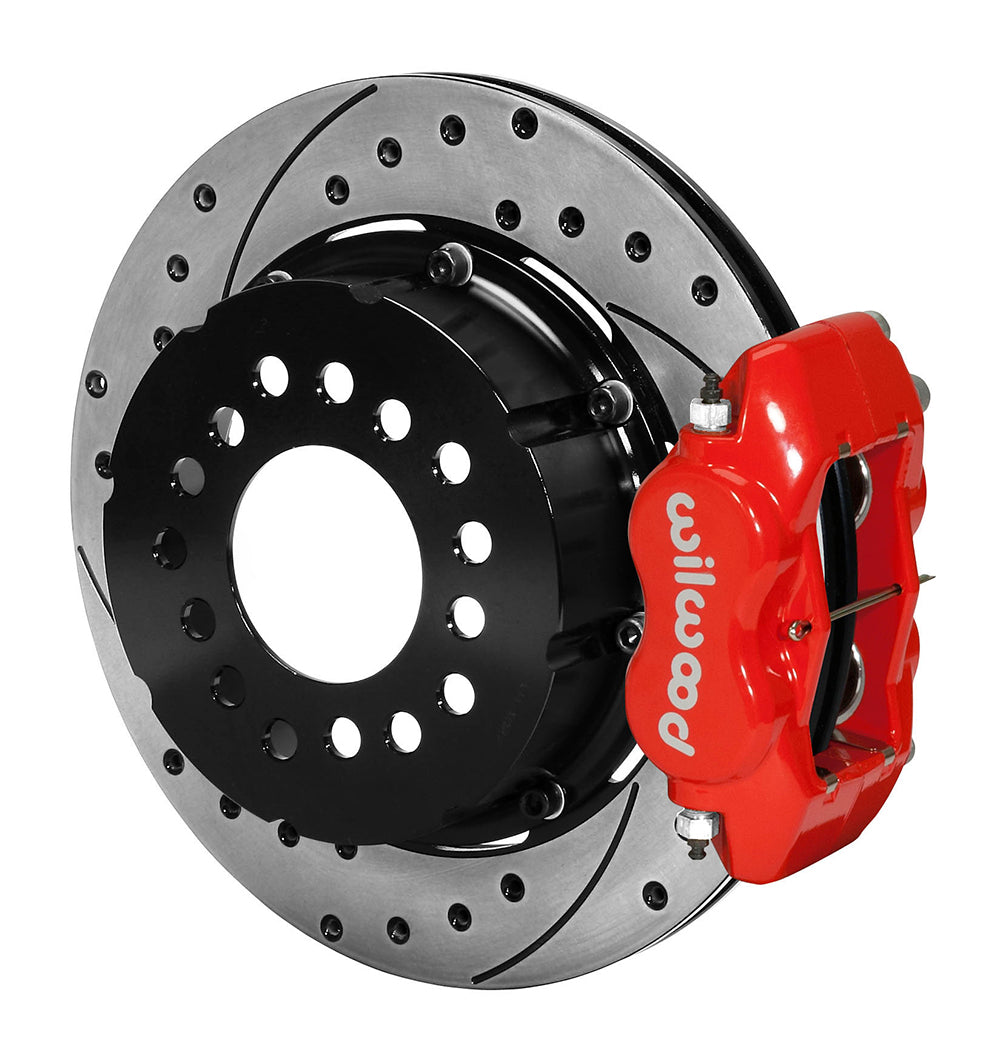

Assembled Wilwood rear Dynalite Pro Series caliper and rotor assembly for Mopar/Dana Axles, 2.72-Inch Offset, SRP drilled and slotted rotor and red powder coat caliper
Components laid out for the Wilwood rear Dynalite Pro Series brake kit for Mopar/Dana Axles, 2.72-Inch Offset, SRP drilled and slotted rotors and red powder coat calipers
Assembled Wilwood rear Dynalite Pro Series caliper and rotor assembly for Mopar/Dana Axles, 2.72-Inch Offset, SRP drilled and slotted rotor and red powder coat caliper

Wilwood Rear 12.19-Inch SRP Rotor and Red Dynalite Kit for Mopar/Dana Green RP400, 2.72-Inch Offset

SKU: 140-2116-DR

$1,121.55 Sale
Shipping calculated at checkout.

Fitment questions?

Call (855) 786-7101 or text (801) 304-3141. We check fitment by VIN.

Shipping policyRefund policy

Product details

Red Wilwood calipers and drilled/slotted rotors serve the specified Mopar/Dana rear end. Confirm RP400 bearings and the 2.72-inch offset. The manufacturer is Wilwood Engineering of Camarillo, California, established in 1977 by Bill Wood. It designs and manufactures disc brake systems and components, including calipers, brake rotors, master cylinders, valves, fittings and lines for motorsport, street-performance and specialized vehicles; suitability depends on the full brake-system configuration.

Technical Details

  • Manufacturer part number: 140-2116-DR
  • Brake calipers: For this package, the forged aluminum calipers have red powder coat exteriors and stainless pistons, 4 per caliper.
  • Rotor geometry: Each rotor is 0.81 inch wide with a 12.19-inch outside diameter; the vented iron design has srp drilled and slotted surfaces.
  • Installation interfaces: Confirm lug mounting and a hydraulic connection compatible with the 1/8-27 NPT inlet.
  • Axle mounting: Mopar/Dana; 2.72 in; 69.09 mm
  • Rotor/hat wheel-stud clearance pattern: 5 X 4.5 in; 5 X 4.75 in; 5 X 5 in (5 X 114.3 mm; 5 X 120.65 mm; 5 X 127 mm)
  • Wheel fit: Wheel diameter alone is insufficient: test the template for this nominal 15-inch minimum package.
  • Package scope: Supplied: mounting hardware. Not included: master cylinder, booster, spindles, flexible brake lines, hubs.
  • Parking brake: No parking-brake mechanism supplied

Fitment & Compatibility

DS-125 identifies the Green RP400 bearing arrangement; verify its retention system, housing-end dimensions and measured 2.72-inch offset. An axle name alone is insufficient. Compare the wheel pattern and use the wheel-clearance drawing before selecting hydraulic lines and completing the conversion.

Manufacturer Documents

Wilwood kit specifications and component list
