Product details

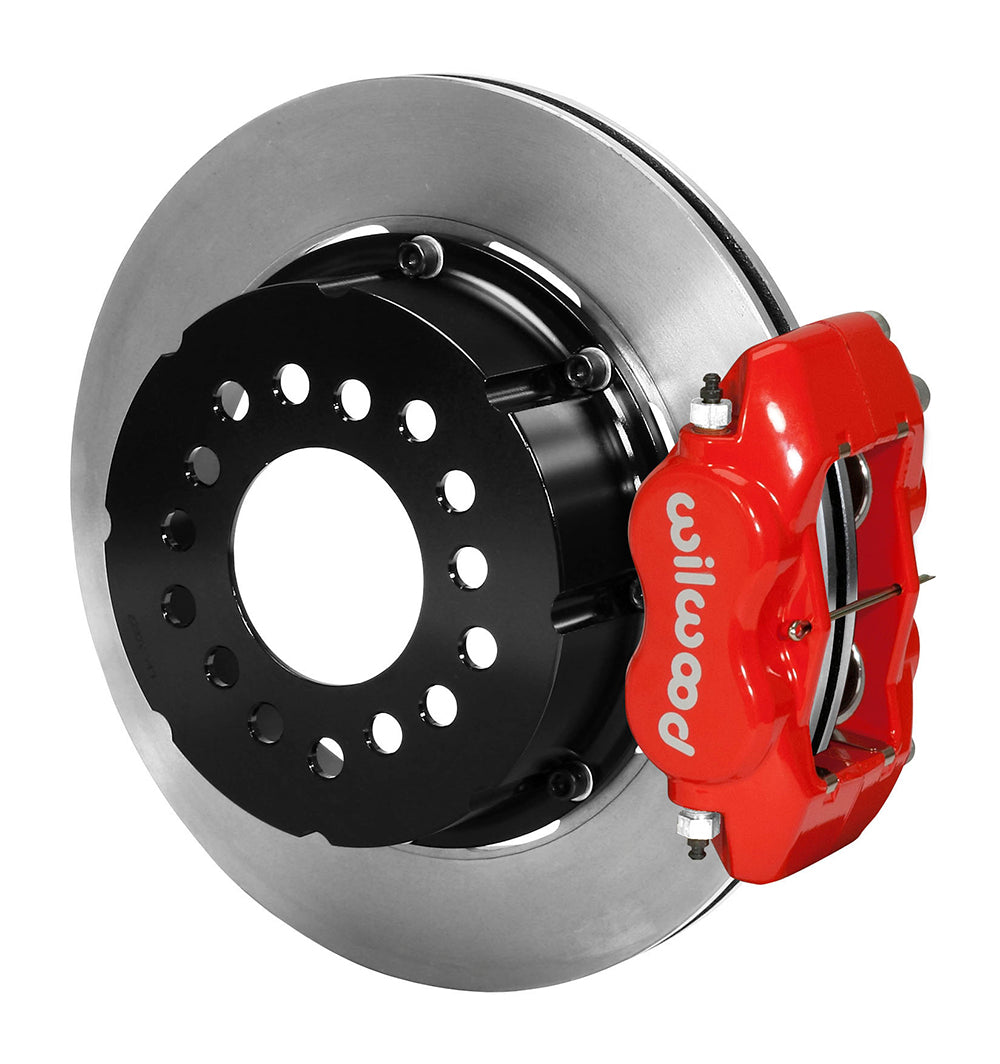

Measure the Big Ford rear axle for this Wilwood red-caliper and plain-rotor kit. It requires 2.36-inch offset and verified wheel clearance. From Camarillo, California, Wilwood Engineering designs and builds disc braking systems for motorsport, street-performance and specialized uses. Founder Bill Wood started the company in 1977. Calipers, brake rotors, master cylinders, valves, fittings and brake lines are selected for the requirements of the complete brake system.
Technical Details
- Manufacturer part number: 140-2115-R
- Caliper construction: Caliper bodies are forged aluminum, finished in red powder coat; each has 4 pistons made from stainless.
- Rotor dimensions and face: The plain face option uses iron, a 12.19-inch outside diameter and a 0.81-inch running width. Rotor construction is vented.
- Hydraulic and mounting layout: Brake-fluid connection: 1/8-27 NPT; caliper mounting arrangement: lug.
- Axle mounting: Big Ford; 2.36 in; 59.94 mm
- Rotor/hat wheel-stud clearance pattern: 5 X 4.5 in; 5 X 4.75 in; 5 X 5 in (5 X 114.3 mm; 5 X 120.65 mm; 5 X 127 mm)
- Wheel fit: Use the manufacturer wheel template even when the wheel is 15 inches or larger.

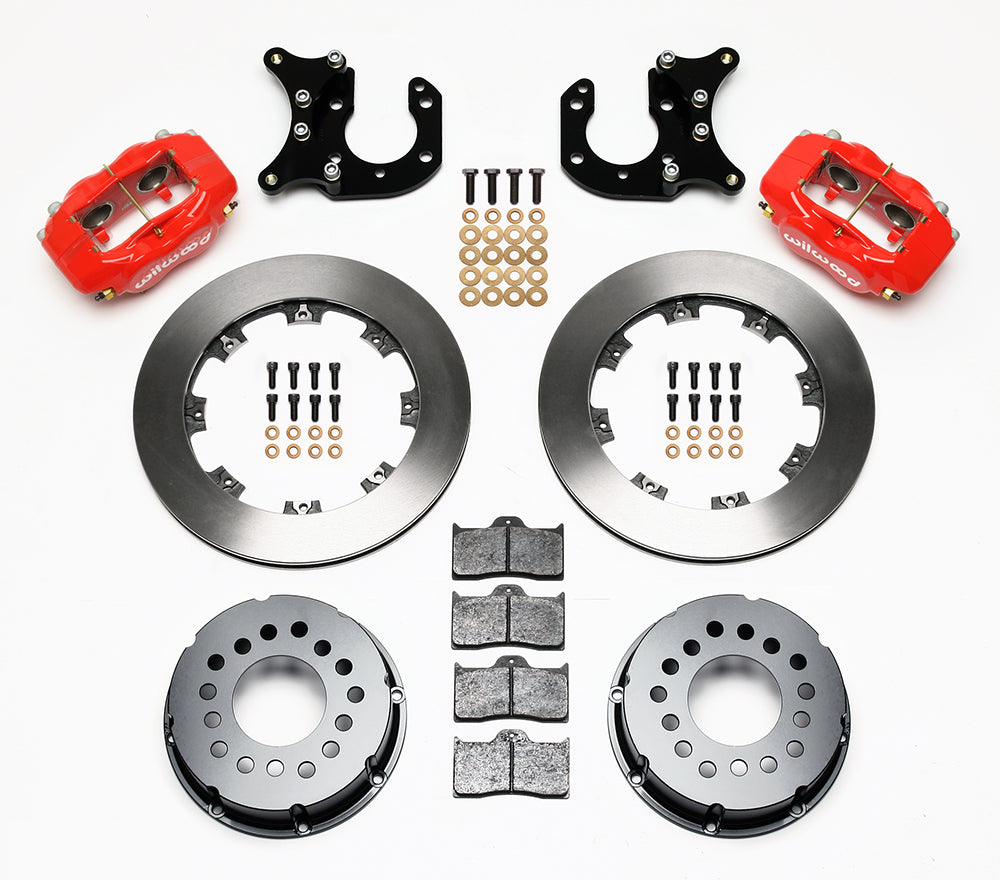

- Package scope: Supplied: mounting hardware. Not included: master cylinder, booster, spindles, flexible brake lines, hubs.
- Parking brake: No parking-brake mechanism supplied
Fitment & Compatibility
Compare the installed housing-end pattern and axle offset with DS-124 before ordering. No parking-brake mechanism is provided. The table below cannot establish the installed axle on a modified car; check the flange, actual offset, wheel drilling and clearance, and select separate flexible lines.
Manufacturer Documents
Wilwood kit specifications and component list
Manufacturer Warning
WARNING: This product can expose you to chemicals including Arsenic, Cadmium, Chromium (Hexavalent compounds), Lead, Nickel, Cobalt and Antimony Trioxide which are known to the State of California to cause cancer or other reproductive harm. For more information go to www.p65warnings.ca.gov.
Before ordering for a modified vehicle, contact PMB Performance with the relevant dimensions and component numbers. Our team draws on more than 20 years of parts and fitment experience.
Vehicle Applications
| Years | Make | Model | Model option | Front brakes | Rear brakes | Kit application | Notes |
|---|---|---|---|---|---|---|---|
| 1990 | Lincoln | Town Car | All | Disc | Drum | Rear Kit | 1, 2 |
Application Notes
- Kit may fit some 15" wheels. Check wheel clearance diagram in kit installation instructions before purchase.
- Line kit included (manufacturer): None
