Product details

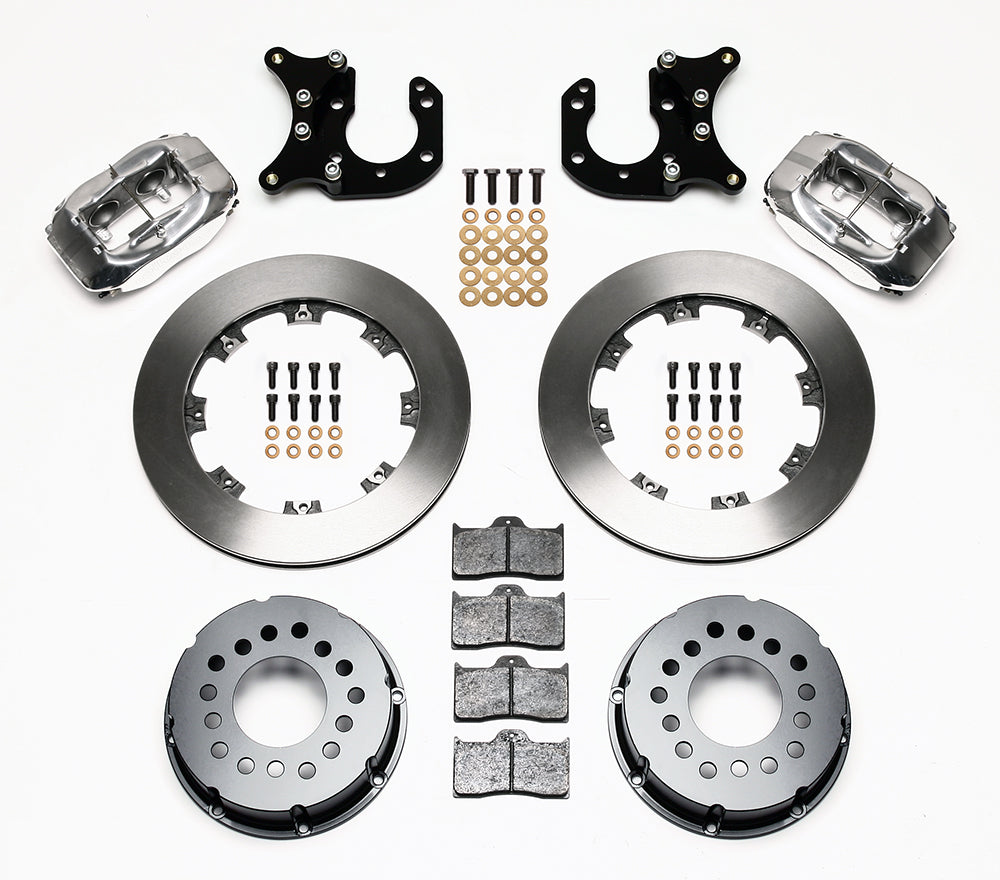

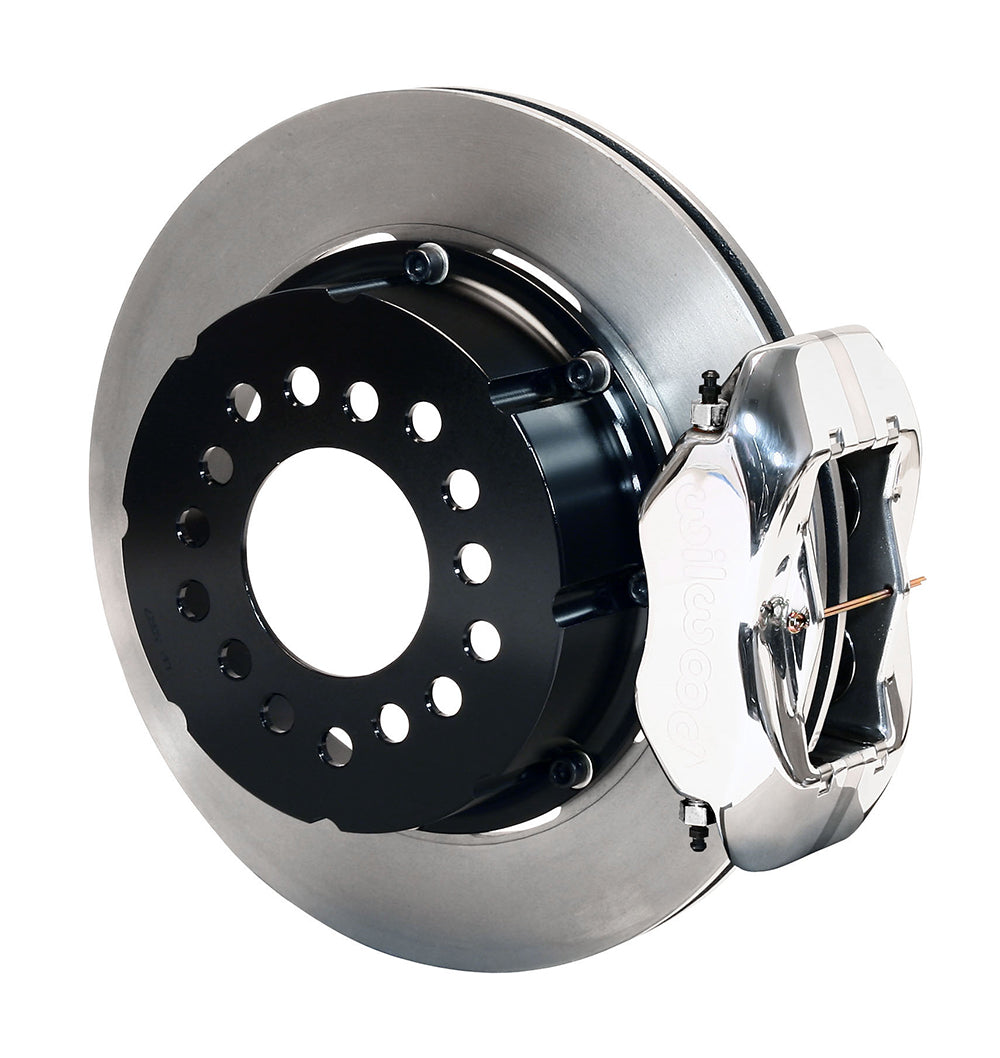

Big Ford rear service brakes with Wilwood polished calipers and plain 12.19-inch rotors. Match the 2.36-inch offset; parking brake is separate. The manufacturer is Wilwood Engineering of Camarillo, California, established in 1977 by Bill Wood. It designs and manufactures disc brake systems and components, including calipers, brake rotors, master cylinders, valves, fittings and lines for motorsport, street-performance and specialized vehicles; suitability depends on the full brake-system configuration.
Technical Details
- Manufacturer part number: 140-2115-P
- Rotor configuration: 12.19-inch diameter and 0.81-inch thickness; plain face vented iron.
- Caliper assembly: 4 stainless pistons in each forged aluminum caliper, with polished finish.
- Mount and inlet: Lug caliper attachment with 1/8-27 NPT fluid inlets.
- Housing-end requirement: Big Ford; 2.36 in; 59.94 mm
- Rotor/hat wheel-stud clearance pattern: 5 X 4.5 in; 5 X 4.75 in; 5 X 5 in (5 X 114.3 mm; 5 X 120.65 mm; 5 X 127 mm)
- Wheel fit: 15-inch nominal minimum; check both barrel and spoke clearance against the installation template.
- Kit supply: mounting hardware
- Not included: master cylinder, booster, spindles, flexible brake lines, hubs
- Parking brake: No parking-brake mechanism supplied
Fitment & Compatibility
Compare the installed housing-end pattern and axle offset with DS-124 before ordering. No parking-brake mechanism is provided. The table below cannot establish the installed axle on a modified car; check the flange, actual offset, wheel drilling and clearance, and select separate flexible lines.
Manufacturer Documents
Wilwood kit specifications and component list
Manufacturer Warning
WARNING: This product can expose you to chemicals including Arsenic, Cadmium, Chromium (Hexavalent compounds), Lead, Nickel, Cobalt and Antimony Trioxide which are known to the State of California to cause cancer or other reproductive harm. For more information go to www.p65warnings.ca.gov.
Discuss the current brake arrangement with PMB Performance if a mounting or clearance requirement is uncertain. More than 20 years of experience informs our parts and fitment support.
Vehicle Applications
| Years | Make | Model | Model option | Front brakes | Rear brakes | Kit application | Notes |
|---|---|---|---|---|---|---|---|
| 1990 | Lincoln | Town Car | All | Disc | Drum | Rear Kit | 1, 2 |
Application Notes
- Kit may fit some 15" wheels. Check wheel clearance diagram in kit installation instructions before purchase.
- Line kit included (manufacturer): None
