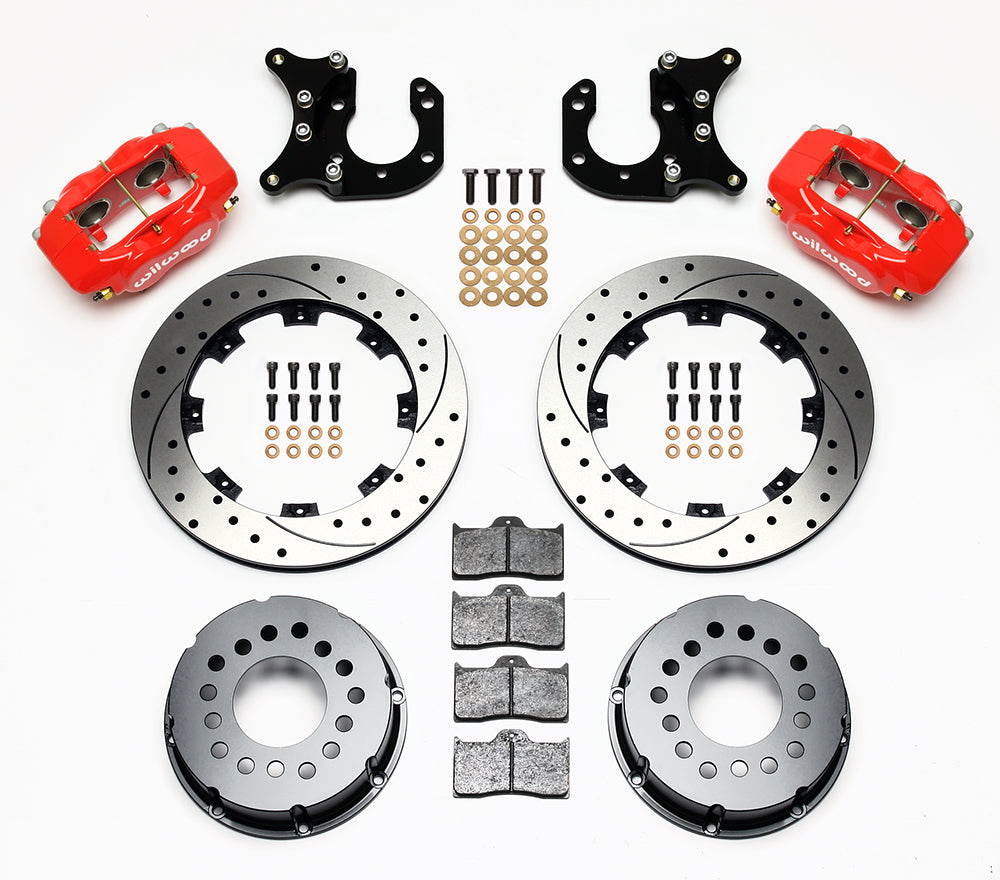

Components laid out for the Wilwood rear Dynalite Pro Series brake kit for Big Ford Housing Ends, 2.36-Inch Offset, SRP drilled and slotted rotors and red powder coat calipers

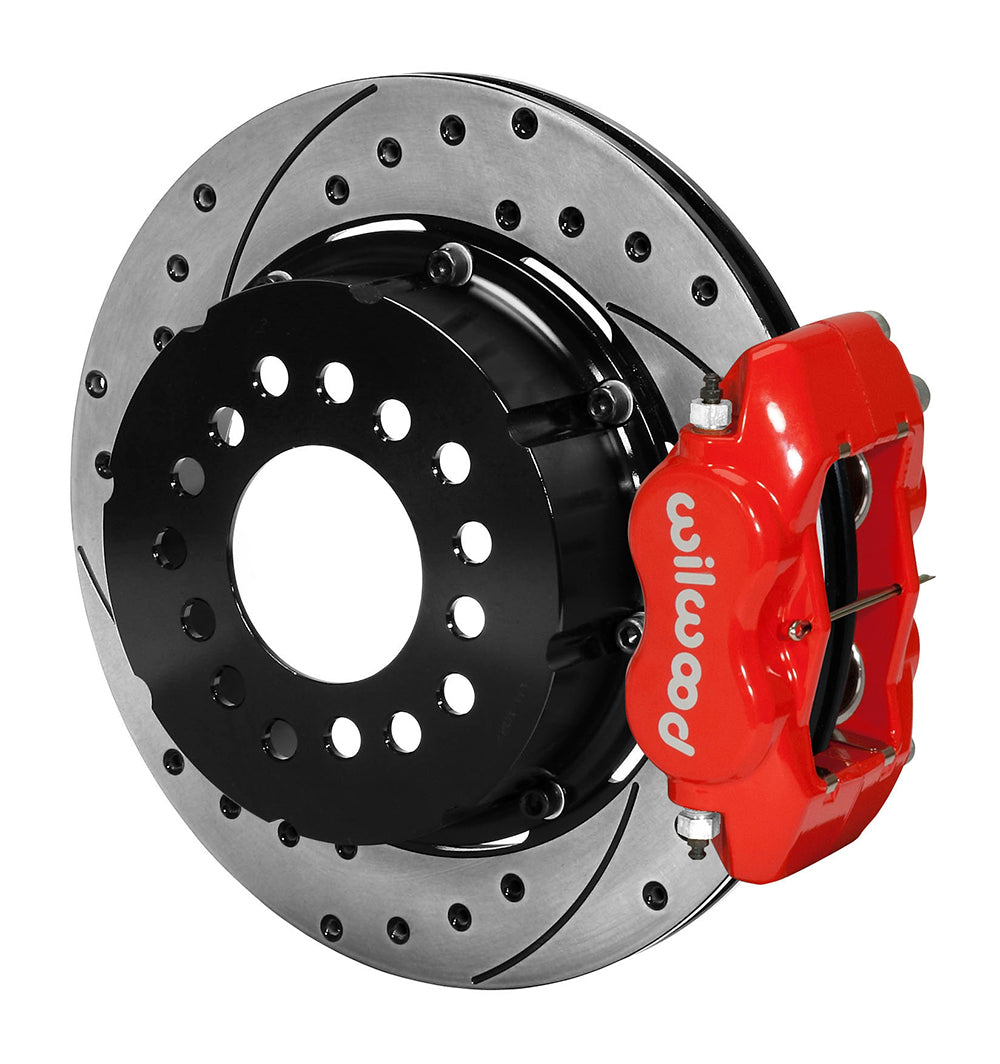

Assembled Wilwood rear Dynalite Pro Series caliper and rotor assembly for Big Ford Housing Ends, 2.36-Inch Offset, SRP drilled and slotted rotor and red powder coat caliper
Components laid out for the Wilwood rear Dynalite Pro Series brake kit for Big Ford Housing Ends, 2.36-Inch Offset, SRP drilled and slotted rotors and red powder coat calipers
Assembled Wilwood rear Dynalite Pro Series caliper and rotor assembly for Big Ford Housing Ends, 2.36-Inch Offset, SRP drilled and slotted rotor and red powder coat caliper

Wilwood Rear SRP Brake Set for Big Ford Ends, Red Dynalite Calipers, 12.19-Inch Rotors, 2.36-Inch Offset

SKU: 140-2115-DR

$1,121.55 Sale
Shipping calculated at checkout.

Fitment questions?

Call (855) 786-7101 or text (801) 304-3141. We check fitment by VIN.

Shipping policyRefund policy

Product details

Red calipers and 12.19-inch SRP rotors identify this Wilwood Big Ford rear conversion. Check the housing flange and 2.36-inch offset together. Bill Wood established Wilwood Engineering in 1977. From its base in Camarillo, California, the company designs and manufactures disc brake systems and components, including calipers, rotors, master cylinders, valves, fittings and brake lines. Individual parts are matched to complete motorsport, street-performance or specialized installations.

Technical Details

  • Manufacturer part number: 140-2115-DR
  • Brake calipers: For this package, the forged aluminum calipers have red powder coat exteriors and stainless pistons, 4 per caliper.
  • Rotor geometry: Each rotor is 0.81 inch wide with a 12.19-inch outside diameter; the vented iron design has srp drilled and slotted surfaces.
  • Installation interfaces: Confirm lug mounting and a hydraulic connection compatible with the 1/8-27 NPT inlet.
  • Axle mounting: Big Ford; 2.36 in; 59.94 mm
  • Rotor/hat wheel-stud clearance pattern: 5 X 4.5 in; 5 X 4.75 in; 5 X 5 in (5 X 114.3 mm; 5 X 120.65 mm; 5 X 127 mm)
  • Wheel fit: Wheel diameter alone is insufficient: test the template for this nominal 15-inch minimum package.
  • Package scope: Supplied: mounting hardware. Not included: master cylinder, booster, spindles, flexible brake lines, hubs.
  • Parking brake: No parking-brake mechanism supplied

Fitment & Compatibility

Compare the installed housing-end pattern and axle offset with DS-124 before ordering. No parking-brake mechanism is provided. The table below cannot establish the installed axle on a modified car; check the flange, actual offset, wheel drilling and clearance, and select separate flexible lines.

Manufacturer Documents

Wilwood kit specifications and component list

Manufacturer Warning

WARNING: This product can expose you to chemicals including Arsenic, Cadmium, Chromium (Hexavalent compounds), Lead, Nickel, Cobalt and Antimony Trioxide which are known to the State of California to cause cancer or other reproductive harm. For more information go to www.p65warnings.ca.gov.

PMB Performance brings over 20 years of parts and fitment experience. Send the installed brake and axle details for help confirming the correct configuration.

Vehicle Applications

Years Make Model Model option Front brakes Rear brakes Kit application Notes
1990 Lincoln Town Car All Disc Drum Rear Kit 1, 2

Application Notes

  1. Kit may fit some 15" wheels. Check wheel clearance diagram in kit installation instructions before purchase.
  2. Line kit included (manufacturer): None
