Wilwood Rear 2.36-Inch Big Ford Dynalite Kit, Polished Calipers and Drilled/Slotted Rotors

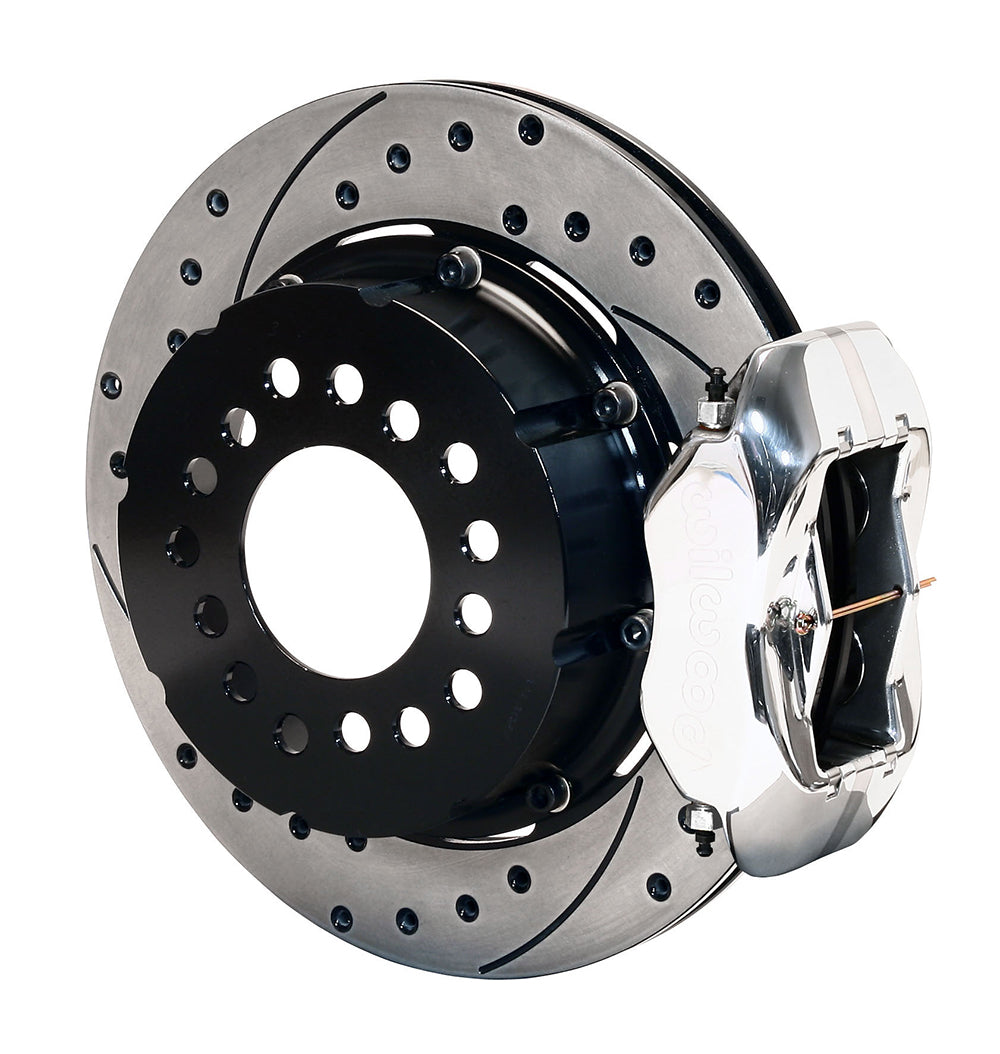

Wilwood polished Dynalite calipers mount over SRP rear rotors on the specified Big Ford end. Verify the 2.36-inch offset and wheel profile. Wilwood Engineering, founded by Bill Wood in 1977, is based in Camarillo, California. It designs and manufactures disc brake systems for motorsport, street-performance and specialized applications. Its calipers, brake rotors, master cylinders, valves, fittings and lines must be selected to suit the complete braking system.

Technical Details

• Manufacturer part number: 140-2115-DP
• Rotor material and size: Choose this 12.19 x 0.81-inch srp drilled and slotted rotor configuration. The rotor material is iron and its construction is vented.
• Caliper specification: Finish selection is polished. Each forged aluminum caliper carries 4 pistons with stainless construction.
• Caliper interface: 1/8-27 NPT inlet thread; calipers attach through the specified lug mounting layout.
• Housing-end requirement: Big Ford; 2.36 in; 59.94 mm
• Rotor/hat wheel-stud clearance pattern: 5 X 4.5 in; 5 X 4.75 in; 5 X 5 in (5 X 114.3 mm; 5 X 120.65 mm; 5 X 127 mm)
• Wheel fit: Check the wheel-clearance diagram; the listed minimum wheel diameter is 15 inches.

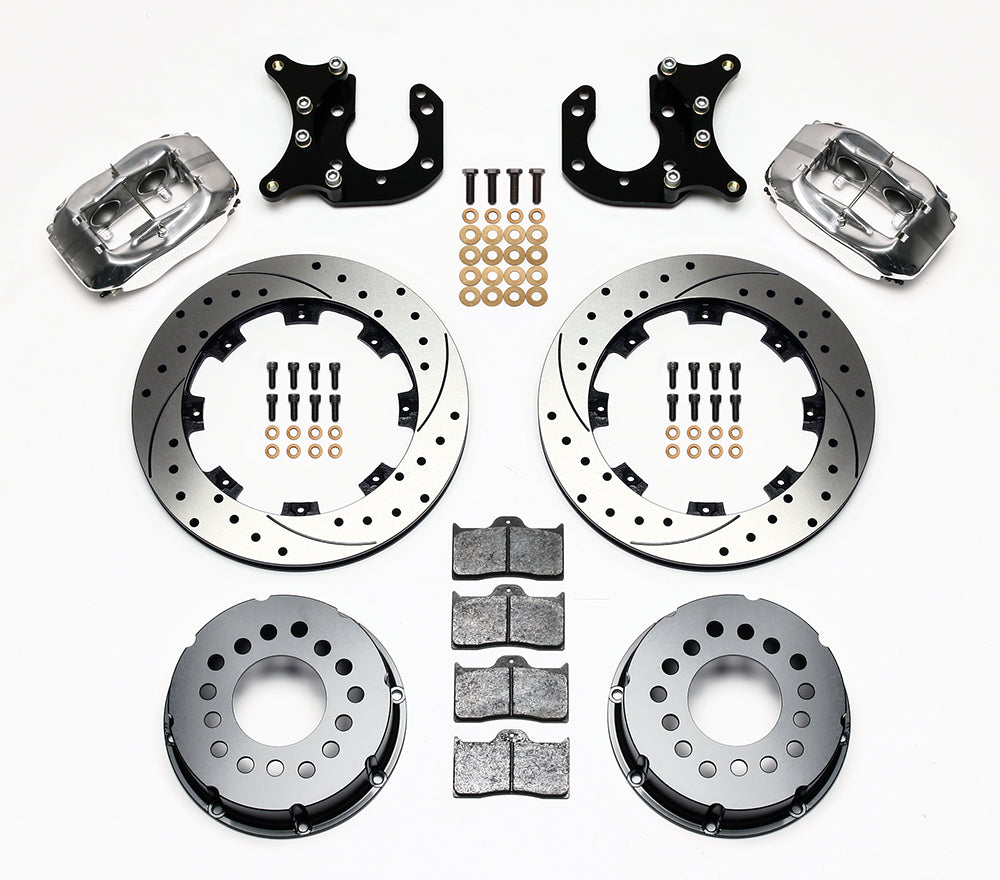

• Kit supply: mounting hardware
• Not included: master cylinder, booster, spindles, flexible brake lines, hubs
• Parking brake: No parking-brake mechanism supplied

Fitment & Compatibility

Compare the installed housing-end pattern and axle offset with DS-124 before ordering. No parking-brake mechanism is provided. The table below cannot establish the installed axle on a modified car; check the flange, actual offset, wheel drilling and clearance, and select separate flexible lines.

Manufacturer Documents

• Wilwood DS124 installation instructions
• Wilwood AXLE-OFFSET-WORKSHEET-WILWOOD technical bulletin

Wilwood kit specifications and component list

Manufacturer Warning

WARNING: This product can expose you to chemicals including Arsenic, Cadmium, Chromium (Hexavalent compounds), Lead, Nickel, Cobalt and Antimony Trioxide which are known to the State of California to cause cancer or other reproductive harm. For more information go to www.p65warnings.ca.gov.

With over 20 years of experience, PMB Performance can help identify the required brake-system components. Provide the vehicle details and the actual installed hardware when requesting a fitment check.

Vehicle Applications

Application Notes

1. Kit may fit some 15" wheels. Check wheel clearance diagram in kit installation instructions before purchase.
2. Line kit included (manufacturer): None
