Product details

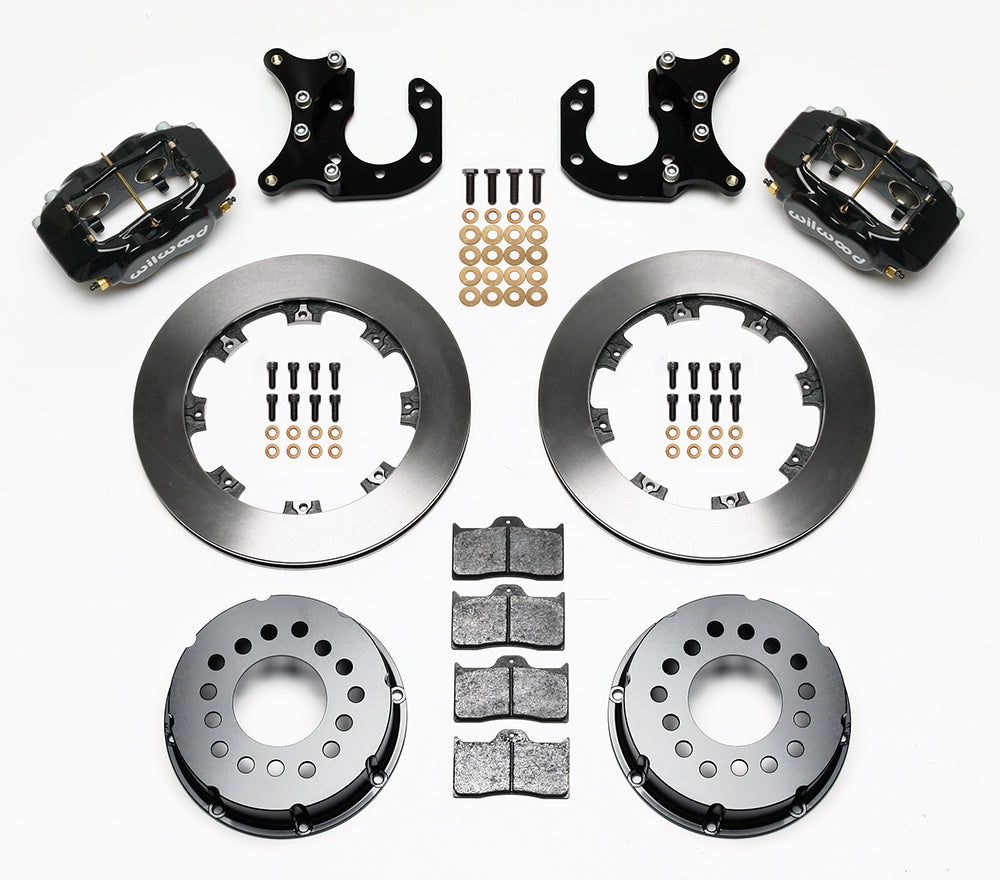

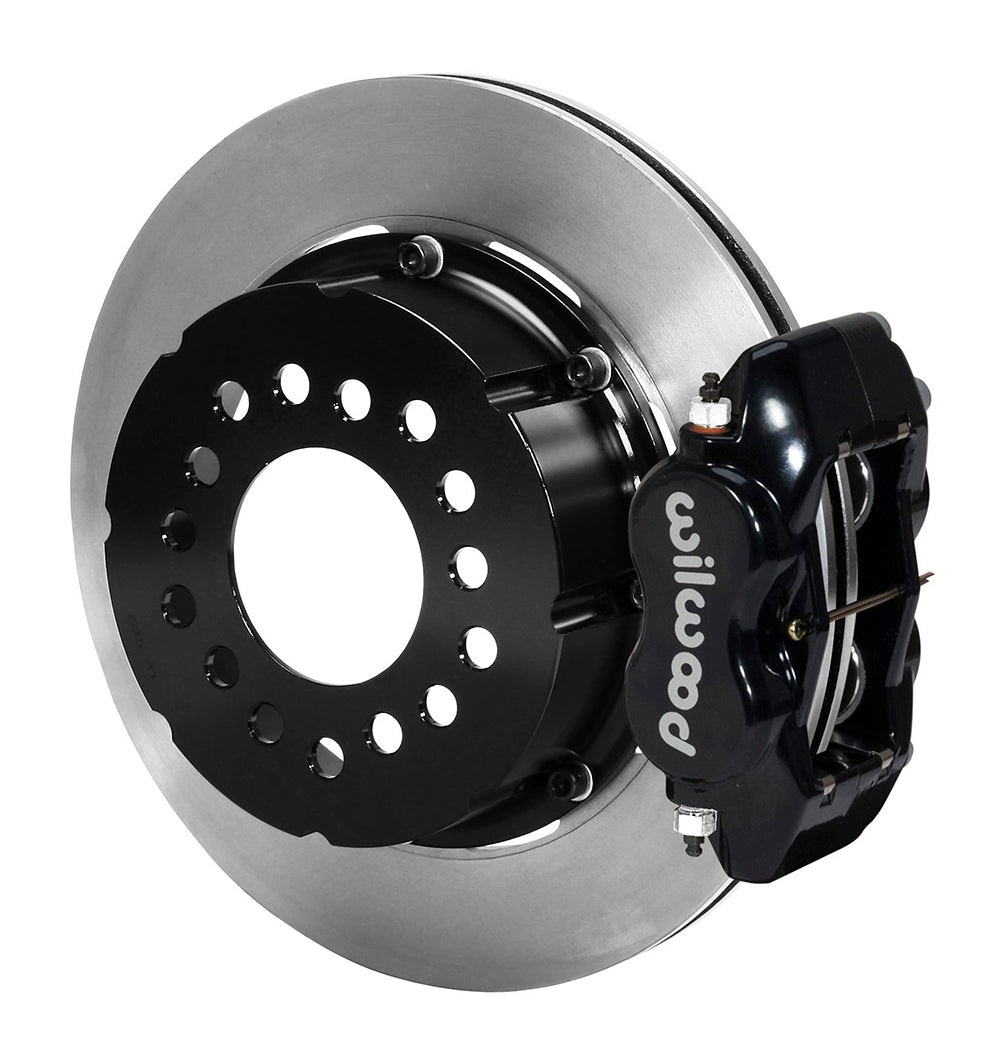

A 2.36-inch axle offset and Big Ford flange locate this black-caliper Wilwood rear package. Match the housing end before fitting the plain rotors. Founded in 1977 under Bill Wood, Wilwood Engineering operates from Camarillo, California. The company designs and manufactures disc brake systems and the calipers, rotors, master cylinders, valves, fittings and lines used within them. Its motorsport, street-performance and specialized applications depend on compatible brake components.
Technical Details
- Manufacturer part number: 140-2115-B
- Rotating brake parts: Vented iron rotors measure 12.19 inches across by 0.81 inch thick, with plain face friction surfaces.
- Service calipers: The black powder coat calipers use forged aluminum bodies and 4 stainless pistons apiece.
- Attachment requirements: The caliper uses a lug mount and accepts the specified 1/8-27 NPT inlet fitting.
- Housing-end requirement: Big Ford; 2.36 in; 59.94 mm
- Rotor/hat wheel-stud clearance pattern: 5 X 4.5 in; 5 X 4.75 in; 5 X 5 in (5 X 114.3 mm; 5 X 120.65 mm; 5 X 127 mm)
- Wheel fit: The nominal 15-inch wheel requirement is conditional on the actual spoke and barrel shape.
- Kit supply: mounting hardware
- Not included: master cylinder, booster, spindles, flexible brake lines, hubs
- Parking brake: No parking-brake mechanism supplied
Fitment & Compatibility
Compare the installed housing-end pattern and axle offset with DS-124 before ordering. No parking-brake mechanism is provided. The table below cannot establish the installed axle on a modified car; check the flange, actual offset, wheel drilling and clearance, and select separate flexible lines.
Manufacturer Documents
Wilwood kit specifications and component list
Manufacturer Warning
WARNING: This product can expose you to chemicals including Arsenic, Cadmium, Chromium (Hexavalent compounds), Lead, Nickel, Cobalt and Antimony Trioxide which are known to the State of California to cause cancer or other reproductive harm. For more information go to www.p65warnings.ca.gov.
With over 20 years of experience, PMB Performance can help identify the required brake-system components. Provide the vehicle details and the actual installed hardware when requesting a fitment check.
Vehicle Applications
| Years | Make | Model | Model option | Front brakes | Rear brakes | Kit application | Notes |
|---|---|---|---|---|---|---|---|
| 1990 | Lincoln | Town Car | All | Disc | Drum | Rear Kit | 1, 2 |
Application Notes
- Kit may fit some 15" wheels. Check wheel clearance diagram in kit installation instructions before purchase.
- Line kit included (manufacturer): None
