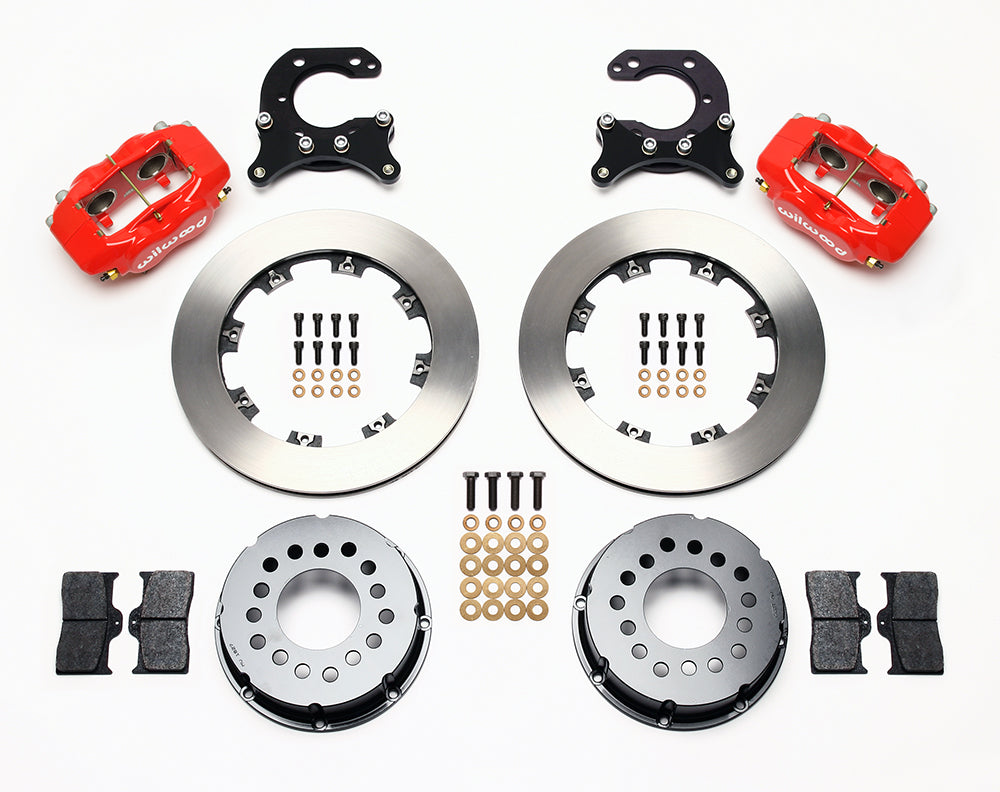

Components laid out for the Wilwood rear Dynalite Pro Series brake kit for Big Ford Housing Ends, 2.54-Inch Offset, plain face rotors and red powder coat calipers

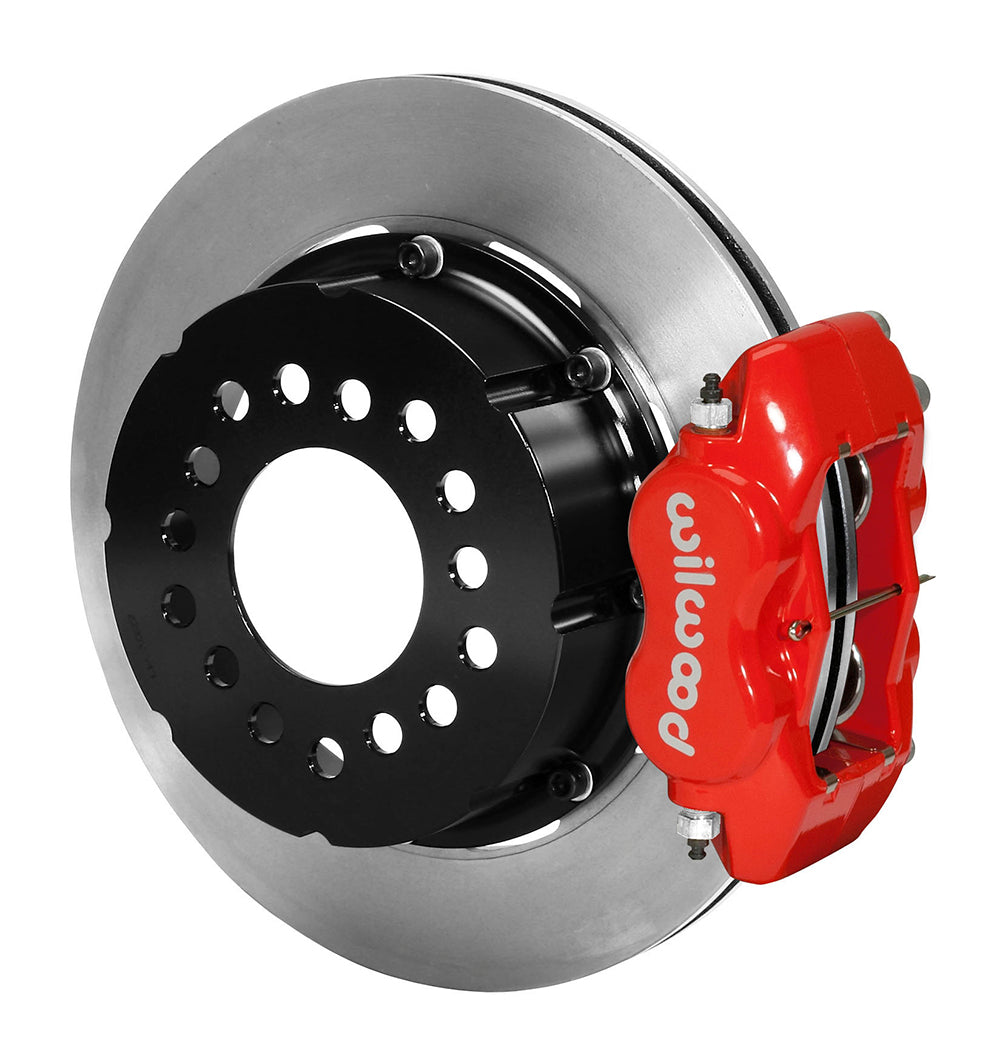

Assembled Wilwood rear Dynalite Pro Series caliper and rotor assembly for Big Ford Housing Ends, 2.54-Inch Offset, plain face rotor and red powder coat caliper
Components laid out for the Wilwood rear Dynalite Pro Series brake kit for Big Ford Housing Ends, 2.54-Inch Offset, plain face rotors and red powder coat calipers
Assembled Wilwood rear Dynalite Pro Series caliper and rotor assembly for Big Ford Housing Ends, 2.54-Inch Offset, plain face rotor and red powder coat caliper

Wilwood Rear Plain 12.19-Inch Rotor Conversion with Red Calipers, Big Ford 2.54-Inch Offset

SKU: 140-2114-R

$979.24 Sale
Shipping calculated at checkout.

Fitment questions?

Call (855) 786-7101 or text (801) 304-3141.
Real people. Real answers.

Shipping policyRefund policy

Product details

Wilwood rear service-brake conversion for Big Ford housing ends with 2.54-inch offset. Red Dynalite calipers use plain rotors; check axle geometry. Bill Wood established Wilwood Engineering in 1977. From its base in Camarillo, California, the company designs and manufactures disc brake systems and components, including calipers, rotors, master cylinders, valves, fittings and brake lines. Individual parts are matched to complete motorsport, street-performance or specialized installations.

Technical Details

  • Manufacturer part number: 140-2114-R
  • Rotor configuration: 12.19-inch diameter and 0.81-inch thickness; plain face vented iron.
  • Caliper assembly: 4 stainless pistons in each forged aluminum caliper, with red powder coat finish.
  • Mount and inlet: Lug caliper attachment with 1/8-27 NPT fluid inlets.
  • Housing-end requirement: Big Ford; 2.54 in; 64.52 mm
  • Rotor/hat wheel-stud clearance pattern: 5 X 4.5 in; 5 X 4.75 in; 5 X 5 in (5 X 114.3 mm; 5 X 120.65 mm; 5 X 127 mm)
  • Wheel fit: 15-inch nominal minimum; check both barrel and spoke clearance against the installation template.
  • Kit supply: mounting hardware
  • Not included: master cylinder, booster, spindles, flexible brake lines, hubs
  • Parking brake: No parking-brake mechanism supplied

Fitment & Compatibility

Use DS-123 to identify the correct big Ford housing end and measure the 2.54-inch offset directly. Other big Ford offsets and the new-style flange require different kits. Treat the Town Car row below as a conditional installation reference, then verify the actual axle, wheel pattern, brake lines and wheel envelope.

Manufacturer Documents

Wilwood kit specifications and component list

Manufacturer Warning

WARNING: This product can expose you to chemicals including Arsenic, Cadmium, Chromium (Hexavalent compounds), Lead, Nickel, Cobalt and Antimony Trioxide which are known to the State of California to cause cancer or other reproductive harm. For more information go to www.p65warnings.ca.gov.

PMB Performance brings over 20 years of parts and fitment experience. Send the installed brake and axle details for help confirming the correct configuration.

Vehicle Applications

Years Make Model Model option Front brakes Rear brakes Kit application Notes
1990 Lincoln Town Car All Disc Drum Rear Kit 1, 2

Application Notes

  1. Kit may fit some 15" wheels. Check wheel clearance diagram in kit installation instructions before purchase.
  2. Line kit included (manufacturer): None
