Product details

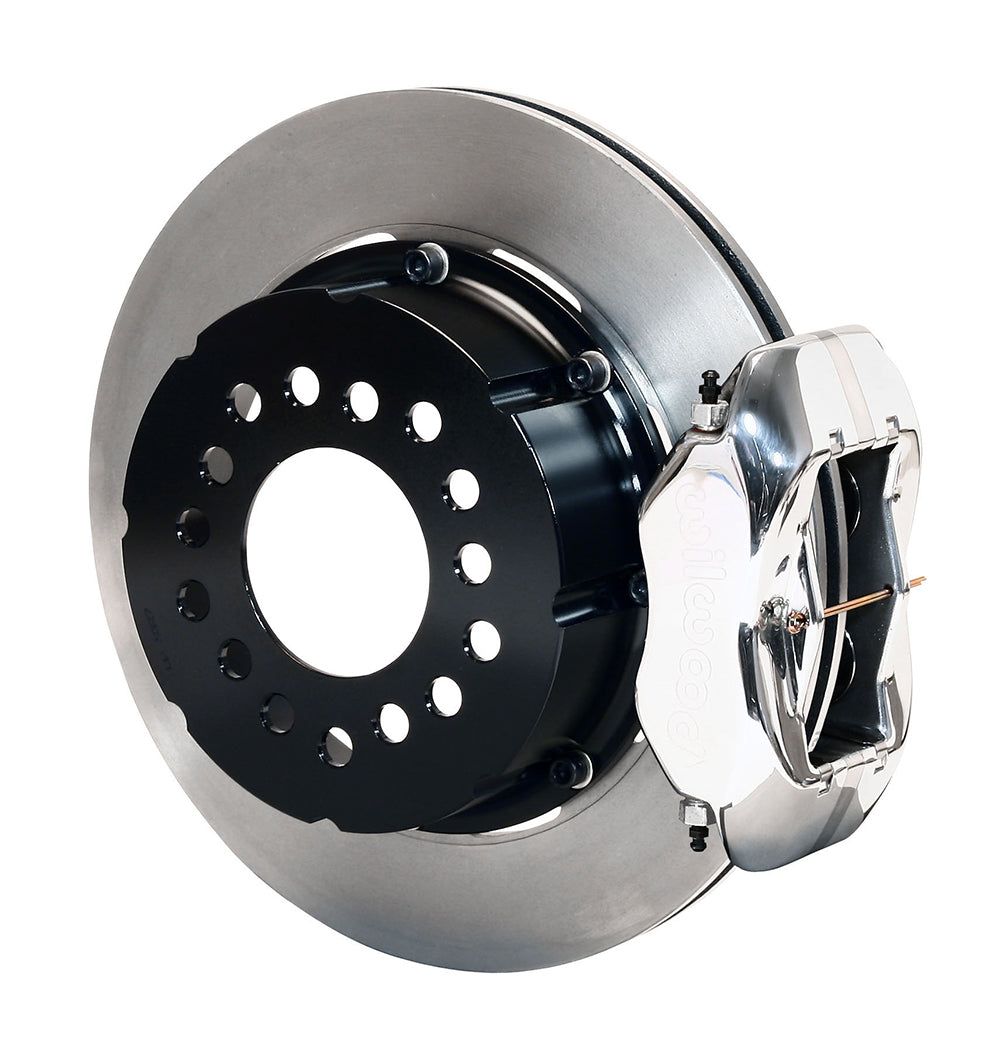

Polished calipers and plain 12.19-inch rotors form this Wilwood Big Ford rear kit. Measure the 2.54-inch offset; no parking brake is supplied. Wilwood Engineering, founded by Bill Wood in 1977, is based in Camarillo, California. It designs and manufactures disc brake systems for motorsport, street-performance and specialized applications. Its calipers, brake rotors, master cylinders, valves, fittings and lines must be selected to suit the complete braking system.
Technical Details
- Manufacturer part number: 140-2114-P
- Brake calipers: For this package, the forged aluminum calipers have polished exteriors and stainless pistons, 4 per caliper.
- Rotor geometry: Each rotor is 0.81 inch wide with a 12.19-inch outside diameter; the vented iron design has plain face surfaces.
- Installation interfaces: Confirm lug mounting and a hydraulic connection compatible with the 1/8-27 NPT inlet.
- Axle mounting: Big Ford; 2.54 in; 64.52 mm
- Rotor/hat wheel-stud clearance pattern: 5 X 4.5 in; 5 X 4.75 in; 5 X 5 in (5 X 114.3 mm; 5 X 120.65 mm; 5 X 127 mm)
- Wheel fit: Wheel diameter alone is insufficient: test the template for this nominal 15-inch minimum package.

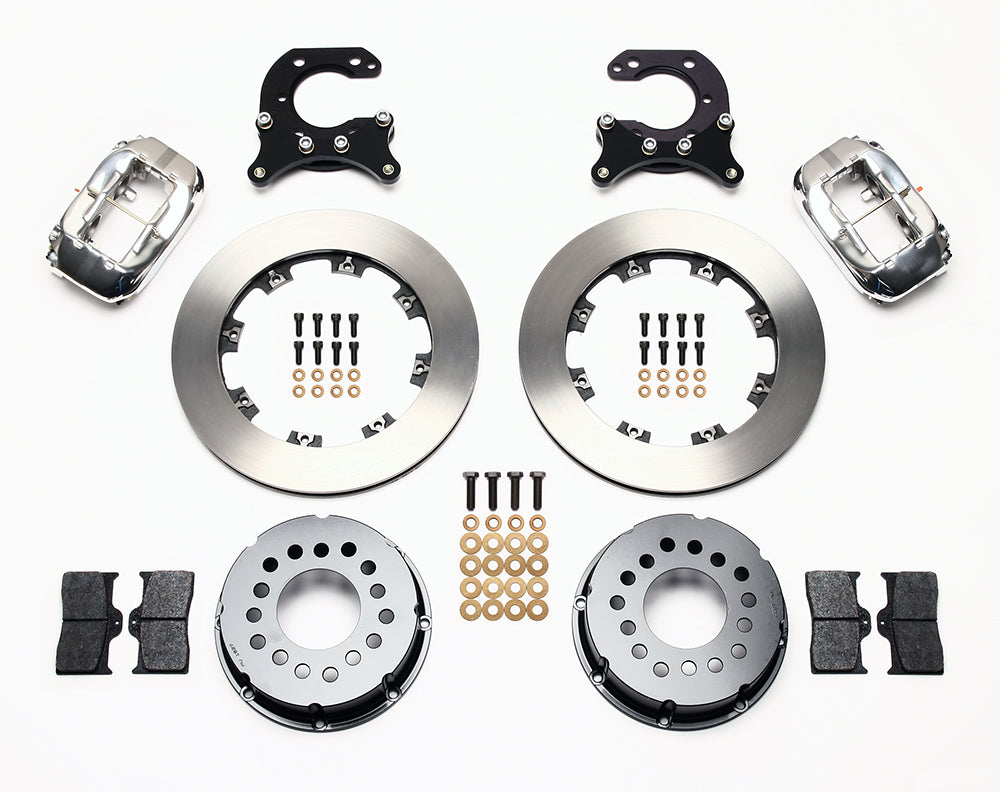

- Package scope: Supplied: mounting hardware. Not included: master cylinder, booster, spindles, flexible brake lines, hubs.
- Parking brake: No parking-brake mechanism supplied
Fitment & Compatibility
Use DS-123 to identify the correct big Ford housing end and measure the 2.54-inch offset directly. Other big Ford offsets and the new-style flange require different kits. Treat the Town Car row below as a conditional installation reference, then verify the actual axle, wheel pattern, brake lines and wheel envelope.
Manufacturer Documents
Wilwood kit specifications and component list
Manufacturer Warning
WARNING: This product can expose you to chemicals including Arsenic, Cadmium, Chromium (Hexavalent compounds), Lead, Nickel, Cobalt and Antimony Trioxide which are known to the State of California to cause cancer or other reproductive harm. For more information go to www.p65warnings.ca.gov.
With over 20 years of experience, PMB Performance can help identify the required brake-system components. Provide the vehicle details and the actual installed hardware when requesting a fitment check.
Vehicle Applications
| Years | Make | Model | Model option | Front brakes | Rear brakes | Kit application | Notes |
|---|---|---|---|---|---|---|---|
| 1990 | Lincoln | Town Car | All | Disc | Drum | Rear Kit | 1, 2 |
Application Notes
- Kit may fit some 15" wheels. Check wheel clearance diagram in kit installation instructions before purchase.
- Line kit included (manufacturer): None
