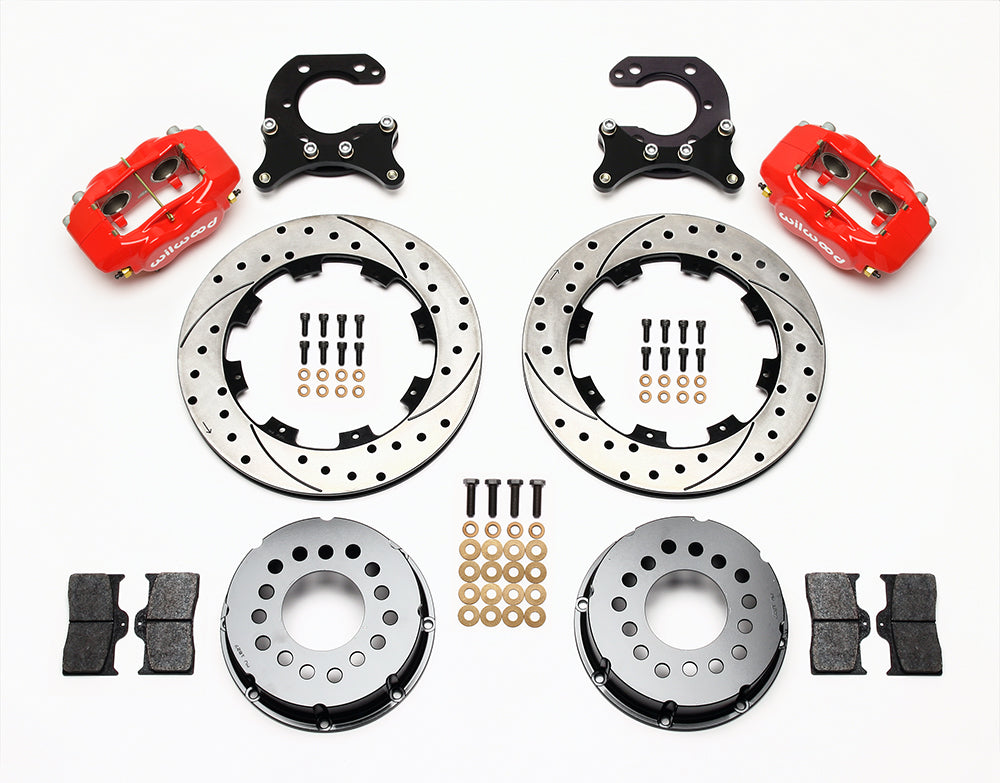

Components laid out for the Wilwood rear Dynalite Pro Series brake kit for Big Ford Housing Ends, 2.54-Inch Offset, SRP drilled and slotted rotors and red powder coat calipers

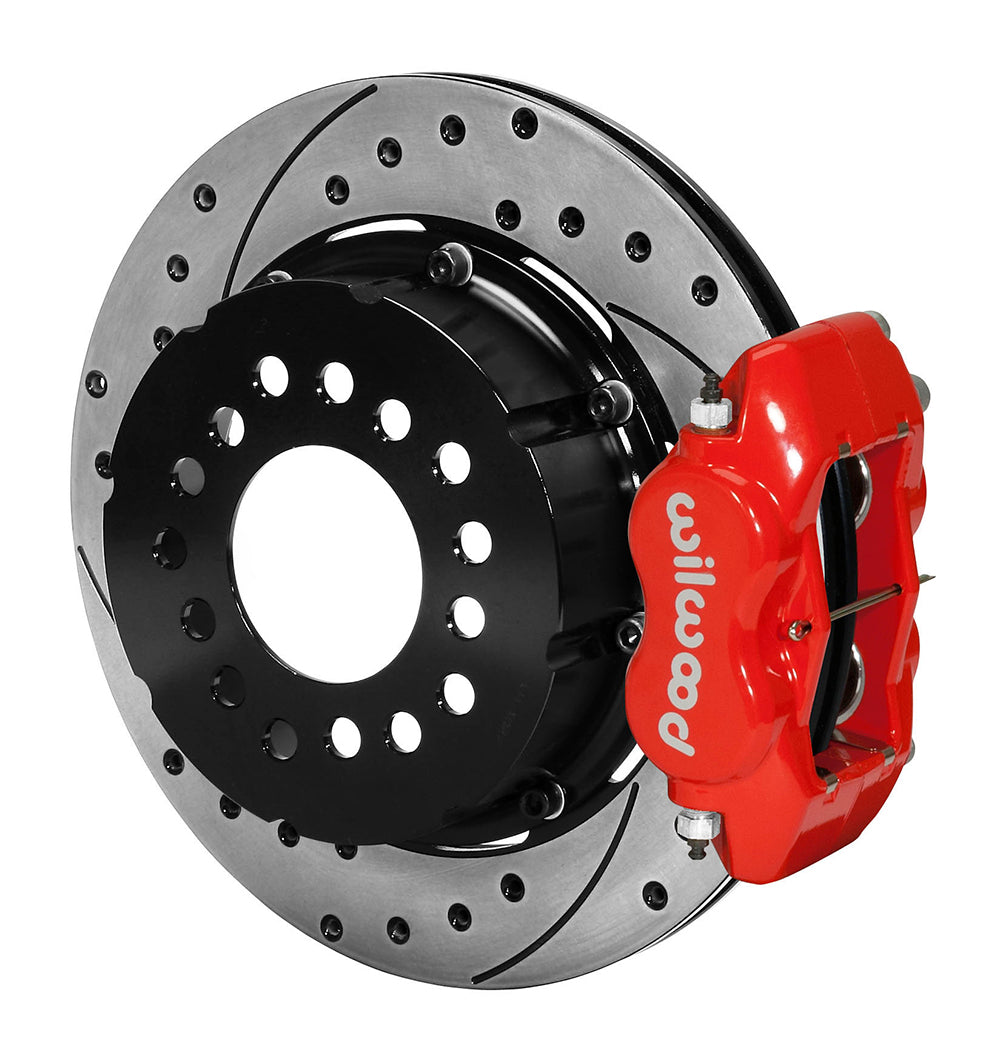

Assembled Wilwood rear Dynalite Pro Series caliper and rotor assembly for Big Ford Housing Ends, 2.54-Inch Offset, SRP drilled and slotted rotor and red powder coat caliper
Components laid out for the Wilwood rear Dynalite Pro Series brake kit for Big Ford Housing Ends, 2.54-Inch Offset, SRP drilled and slotted rotors and red powder coat calipers
Assembled Wilwood rear Dynalite Pro Series caliper and rotor assembly for Big Ford Housing Ends, 2.54-Inch Offset, SRP drilled and slotted rotor and red powder coat caliper

Wilwood Rear Red Dynalite and Drilled/Slotted Rotor Set for 2.54-Inch-Offset Big Ford Ends

SKU: 140-2114-DR

$1,121.55 Sale
Shipping calculated at checkout.

Fitment questions?

Call (855) 786-7101 or text (801) 304-3141.
Real people. Real answers.

Shipping policyRefund policy

Product details

Convert a matched Big Ford rear end using red Wilwood Dynalite calipers and SRP rotors. The 2.54-inch offset and wheel clearance must be verified. Wilwood Engineering began in 1977 with founder Bill Wood and is based in Camarillo, California. It designs and manufactures disc brake systems and components, including calipers, brake rotors, master cylinders, valves, fittings and brake lines. The company serves motorsport, street-performance and specialized applications, where the complete system determines component selection.

Technical Details

  • Manufacturer part number: 140-2114-DR
  • Rotor material and size: Choose this 12.19 x 0.81-inch srp drilled and slotted rotor configuration. The rotor material is iron and its construction is vented.
  • Caliper specification: Finish selection is red powder coat. Each forged aluminum caliper carries 4 pistons with stainless construction.
  • Caliper interface: 1/8-27 NPT inlet thread; calipers attach through the specified lug mounting layout.
  • Housing-end requirement: Big Ford; 2.54 in; 64.52 mm
  • Rotor/hat wheel-stud clearance pattern: 5 X 4.5 in; 5 X 4.75 in; 5 X 5 in (5 X 114.3 mm; 5 X 120.65 mm; 5 X 127 mm)
  • Wheel fit: Check the wheel-clearance diagram; the listed minimum wheel diameter is 15 inches.
  • Kit supply: mounting hardware
  • Not included: master cylinder, booster, spindles, flexible brake lines, hubs
  • Parking brake: No parking-brake mechanism supplied

Fitment & Compatibility

Use DS-123 to identify the correct big Ford housing end and measure the 2.54-inch offset directly. Other big Ford offsets and the new-style flange require different kits. Treat the Town Car row below as a conditional installation reference, then verify the actual axle, wheel pattern, brake lines and wheel envelope.

Manufacturer Documents

Wilwood kit specifications and component list

Manufacturer Warning

WARNING: This product can expose you to chemicals including Arsenic, Cadmium, Chromium (Hexavalent compounds), Lead, Nickel, Cobalt and Antimony Trioxide which are known to the State of California to cause cancer or other reproductive harm. For more information go to www.p65warnings.ca.gov.

Discuss the current brake arrangement with PMB Performance if a mounting or clearance requirement is uncertain. More than 20 years of experience informs our parts and fitment support.

Vehicle Applications

Years Make Model Model option Front brakes Rear brakes Kit application Notes
1990 Lincoln Town Car All Disc Drum Rear Kit 1, 2

Application Notes

  1. Kit may fit some 15" wheels. Check wheel clearance diagram in kit installation instructions before purchase.
  2. Line kit included (manufacturer): None
