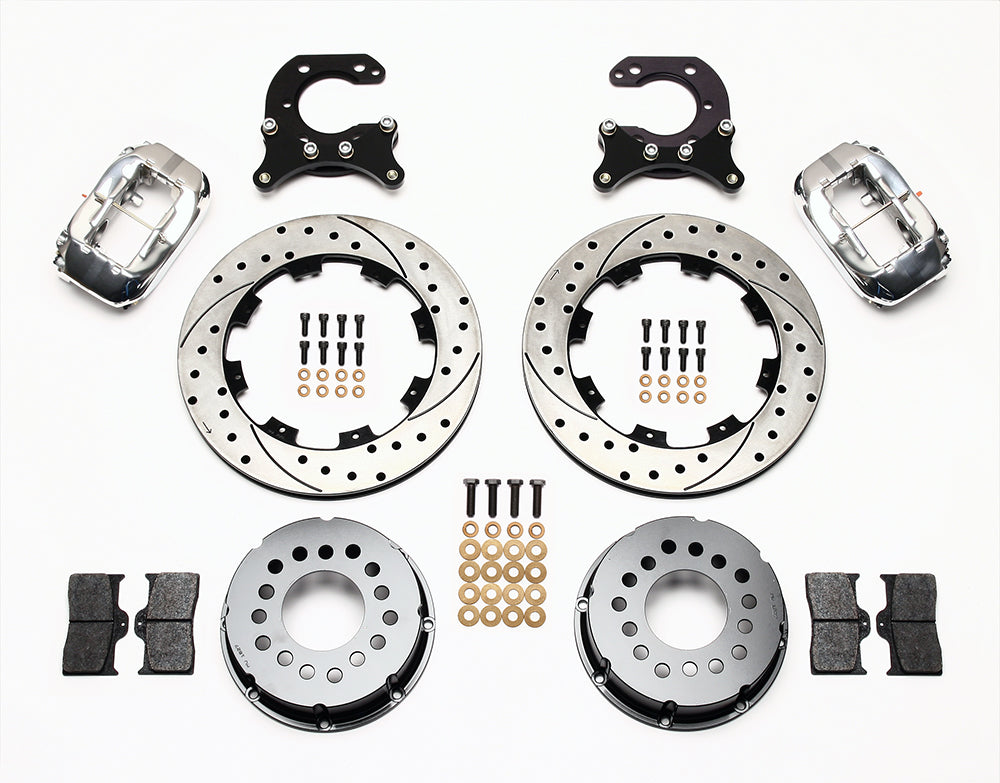

Components laid out for the Wilwood rear Dynalite Pro Series brake kit for Big Ford Housing Ends, 2.54-Inch Offset, SRP drilled and slotted rotors and polish calipers

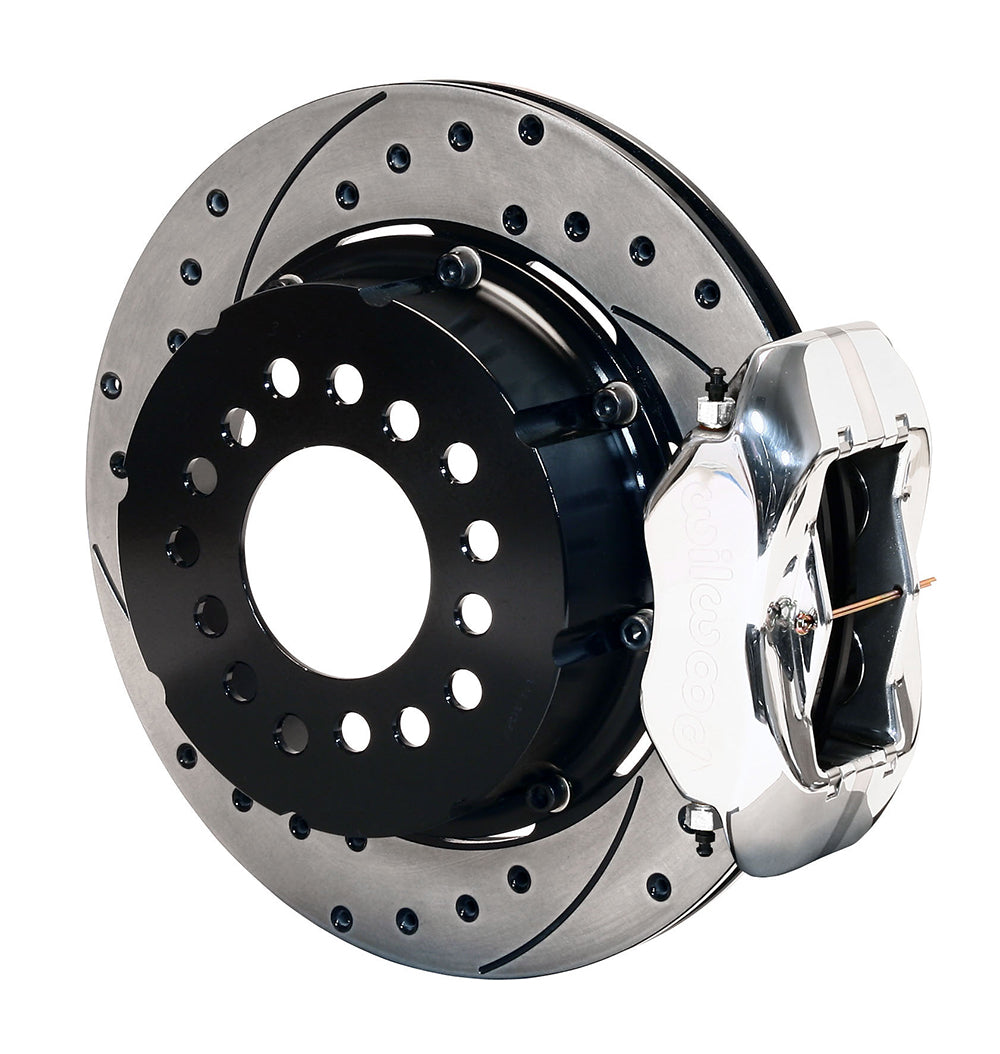

Assembled Wilwood rear Dynalite Pro Series caliper and rotor assembly for Big Ford Housing Ends, 2.54-Inch Offset, SRP drilled and slotted rotor and polish caliper
Components laid out for the Wilwood rear Dynalite Pro Series brake kit for Big Ford Housing Ends, 2.54-Inch Offset, SRP drilled and slotted rotors and polish calipers
Assembled Wilwood rear Dynalite Pro Series caliper and rotor assembly for Big Ford Housing Ends, 2.54-Inch Offset, SRP drilled and slotted rotor and polish caliper

Wilwood Rear Big Ford SRP Rotor Kit with Polished Dynalite Calipers, 2.54-Inch Offset

SKU: 140-2114-DP

$1,335.59 Sale
Shipping calculated at checkout.

Fitment questions?

Call (855) 786-7101 or text (801) 304-3141. We check fitment by VIN.

Shipping policyRefund policy

Product details

Big Ford 2.54-inch-offset rear brakes with polished Wilwood calipers and 12.19-inch drilled/slotted rotors. Check the exact housing-end pattern. Founded in 1977 under Bill Wood, Wilwood Engineering operates from Camarillo, California. The company designs and manufactures disc brake systems and the calipers, rotors, master cylinders, valves, fittings and lines used within them. Its motorsport, street-performance and specialized applications depend on compatible brake components.

Technical Details

  • Manufacturer part number: 140-2114-DP
  • Calipers supplied: 4-piston forged aluminum construction; piston material stainless; external finish polished.
  • Rotor selection: Diameter 12.19 in; width 0.81 in. The selected rotor has a srp drilled and slotted face and vented iron construction.
  • Fluid connections: Use the lug-mount bracket arrangement and fittings matched to the 1/8-27 NPT caliper inlet.
  • Axle mounting: Big Ford; 2.54 in; 64.52 mm
  • Rotor/hat wheel-stud clearance pattern: 5 X 4.5 in; 5 X 4.75 in; 5 X 5 in (5 X 114.3 mm; 5 X 120.65 mm; 5 X 127 mm)
  • Wheel fit: A 15-inch wheel is a starting dimension. Confirm the full wheel profile with the kit drawing.
  • Package scope: Supplied: mounting hardware. Not included: master cylinder, booster, spindles, flexible brake lines, hubs.
  • Parking brake: No parking-brake mechanism supplied

Fitment & Compatibility

Use DS-123 to identify the correct big Ford housing end and measure the 2.54-inch offset directly. Other big Ford offsets and the new-style flange require different kits. Treat the Town Car row below as a conditional installation reference, then verify the actual axle, wheel pattern, brake lines and wheel envelope.

Manufacturer Documents

Wilwood kit specifications and component list

Manufacturer Warning

WARNING: This product can expose you to chemicals including Arsenic, Cadmium, Chromium (Hexavalent compounds), Lead, Nickel, Cobalt and Antimony Trioxide which are known to the State of California to cause cancer or other reproductive harm. For more information go to www.p65warnings.ca.gov.

Before ordering for a modified vehicle, contact PMB Performance with the relevant dimensions and component numbers. Our team draws on more than 20 years of parts and fitment experience.

Vehicle Applications

Years Make Model Model option Front brakes Rear brakes Kit application Notes
1990 Lincoln Town Car All Disc Drum Rear Kit 1, 2

Application Notes

  1. Kit may fit some 15" wheels. Check wheel clearance diagram in kit installation instructions before purchase.
  2. Line kit included (manufacturer): None
