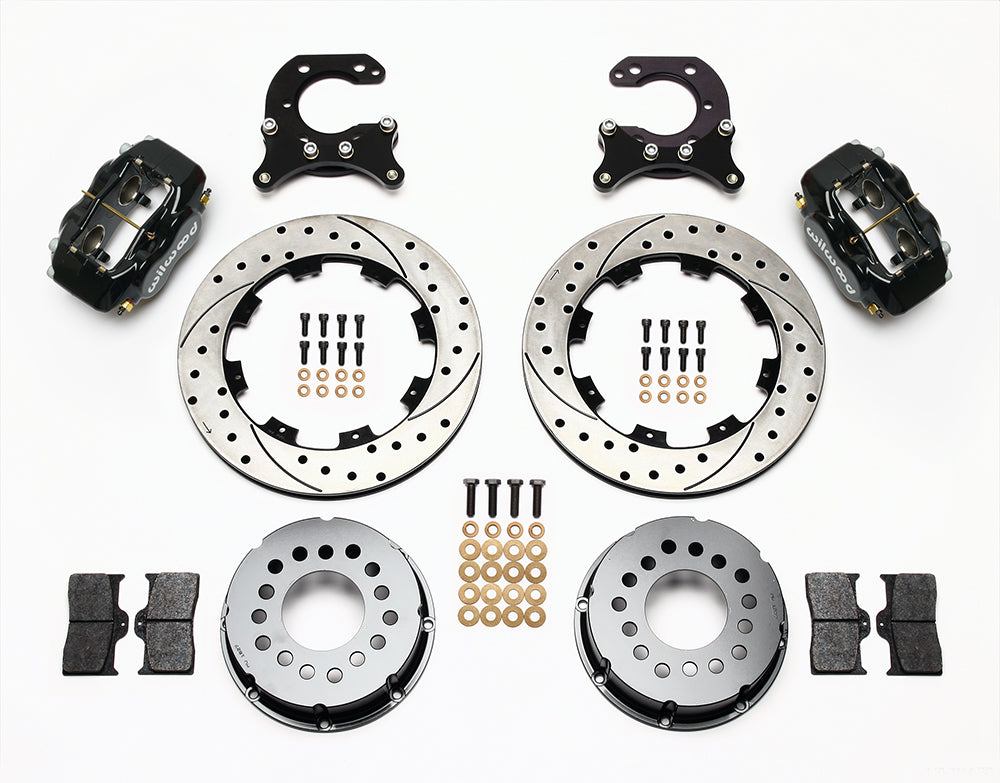

Components laid out for the Wilwood rear Dynalite Pro Series brake kit for Big Ford Housing Ends, 2.54-Inch Offset, SRP drilled and slotted rotors and black powder coat calipers

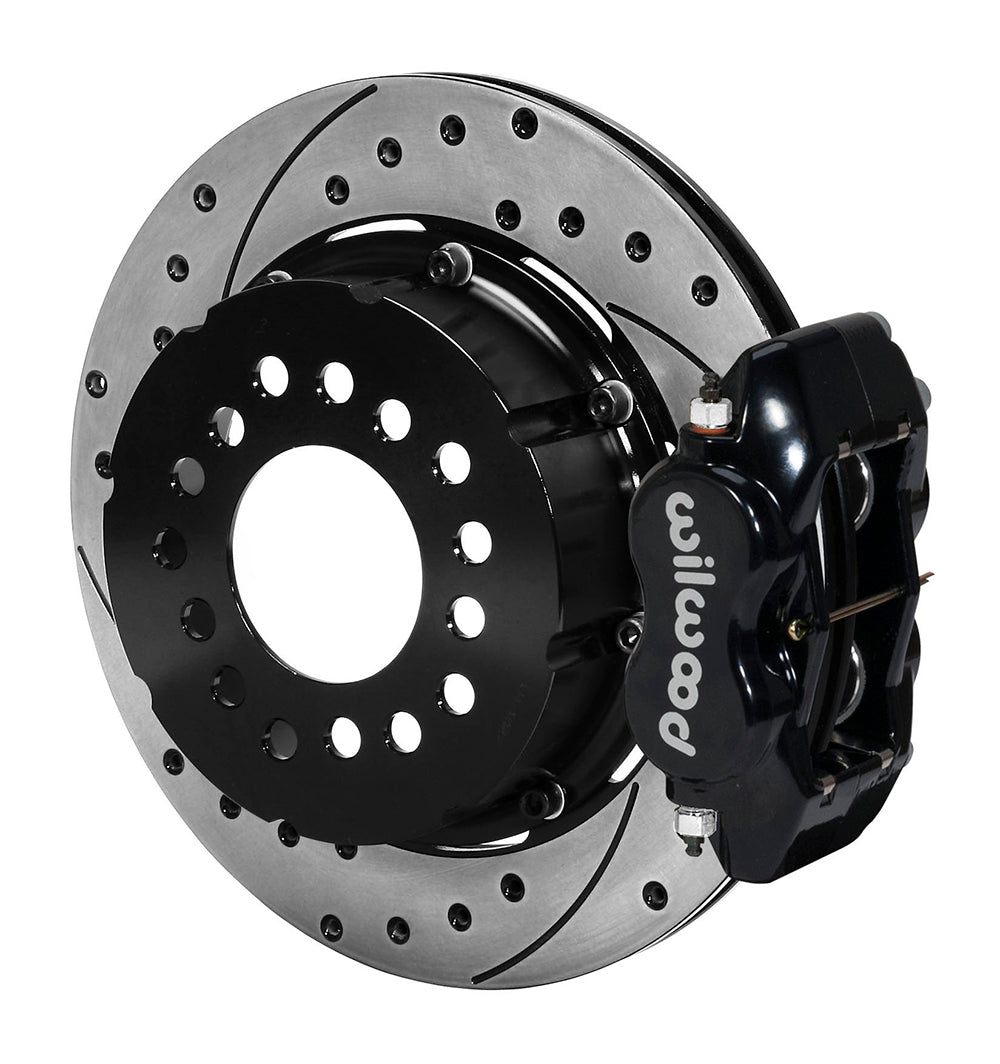

Assembled Wilwood rear Dynalite Pro Series caliper and rotor assembly for Big Ford Housing Ends, 2.54-Inch Offset, SRP drilled and slotted rotor and black powder coat caliper
Components laid out for the Wilwood rear Dynalite Pro Series brake kit for Big Ford Housing Ends, 2.54-Inch Offset, SRP drilled and slotted rotors and black powder coat calipers
Assembled Wilwood rear Dynalite Pro Series caliper and rotor assembly for Big Ford Housing Ends, 2.54-Inch Offset, SRP drilled and slotted rotor and black powder coat caliper

Wilwood Rear 12.19-Inch SRP Kit, Black Four-Piston Calipers, Big Ford 2.54-Inch Housing Offset

SKU: 140-2114-BD

$1,121.55 Sale
Shipping calculated at checkout.

Fitment questions?

Call (855) 786-7101 or text (801) 304-3141. We check fitment by VIN.

Shipping policyRefund policy

Product details

For Big Ford ends at 2.54-inch offset, this Wilwood rear package uses black Dynalite calipers and SRP rotors. Confirm the flange and wheel envelope. From Camarillo, California, Wilwood Engineering designs and builds disc braking systems for motorsport, street-performance and specialized uses. Founder Bill Wood started the company in 1977. Calipers, brake rotors, master cylinders, valves, fittings and brake lines are selected for the requirements of the complete brake system.

Technical Details

  • Manufacturer part number: 140-2114-BD
  • Rotating brake parts: Vented iron rotors measure 12.19 inches across by 0.81 inch thick, with srp drilled and slotted friction surfaces.
  • Service calipers: The black powder coat calipers use forged aluminum bodies and 4 stainless pistons apiece.
  • Attachment requirements: The caliper uses a lug mount and accepts the specified 1/8-27 NPT inlet fitting.
  • Housing-end requirement: Big Ford; 2.54 in; 64.52 mm
  • Rotor/hat wheel-stud clearance pattern: 5 X 4.5 in; 5 X 4.75 in; 5 X 5 in (5 X 114.3 mm; 5 X 120.65 mm; 5 X 127 mm)
  • Wheel fit: The nominal 15-inch wheel requirement is conditional on the actual spoke and barrel shape.
  • Kit supply: mounting hardware
  • Not included: master cylinder, booster, spindles, flexible brake lines, hubs
  • Parking brake: No parking-brake mechanism supplied

Fitment & Compatibility

Use DS-123 to identify the correct big Ford housing end and measure the 2.54-inch offset directly. Other big Ford offsets and the new-style flange require different kits. Treat the Town Car row below as a conditional installation reference, then verify the actual axle, wheel pattern, brake lines and wheel envelope.

Manufacturer Documents

Wilwood kit specifications and component list

Manufacturer Warning

WARNING: This product can expose you to chemicals including Arsenic, Cadmium, Chromium (Hexavalent compounds), Lead, Nickel, Cobalt and Antimony Trioxide which are known to the State of California to cause cancer or other reproductive harm. For more information go to www.p65warnings.ca.gov.

With over 20 years of experience, PMB Performance can help identify the required brake-system components. Provide the vehicle details and the actual installed hardware when requesting a fitment check.

Vehicle Applications

Years Make Model Model option Front brakes Rear brakes Kit application Notes
1990 Lincoln Town Car All Disc Drum Rear Kit 1, 2

Application Notes

  1. Kit may fit some 15" wheels. Check wheel clearance diagram in kit installation instructions before purchase.
  2. Line kit included (manufacturer): None
