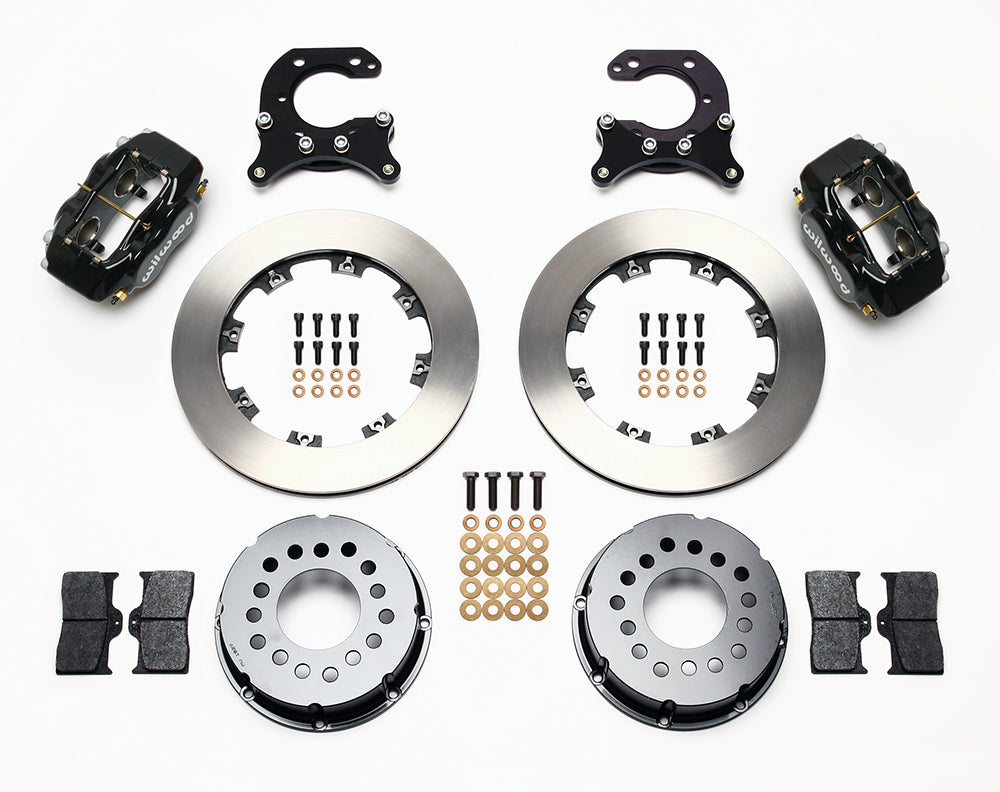

Components laid out for the Wilwood rear Dynalite Pro Series brake kit for Big Ford Housing Ends, 2.54-Inch Offset, plain face rotors and black powder coat calipers

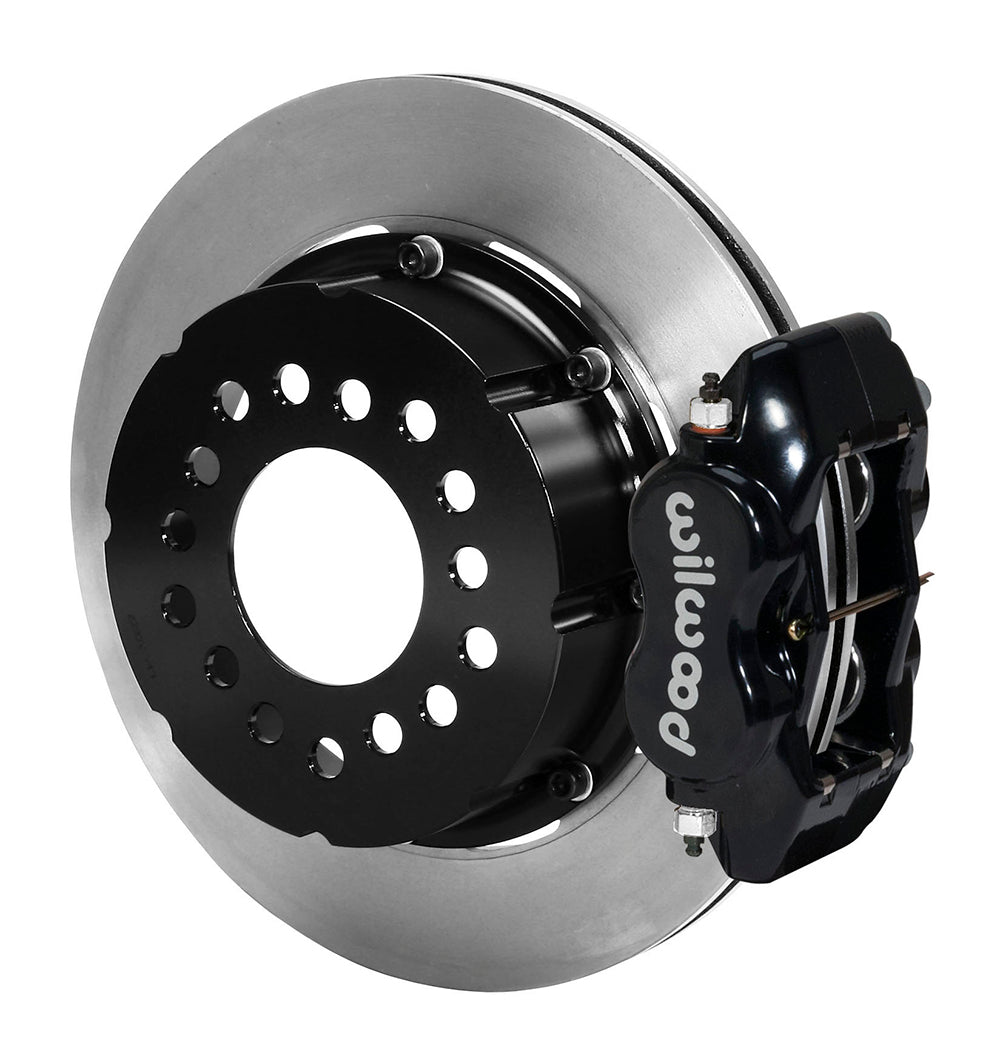

Assembled Wilwood rear Dynalite Pro Series caliper and rotor assembly for Big Ford Housing Ends, 2.54-Inch Offset, plain face rotor and black powder coat caliper
Components laid out for the Wilwood rear Dynalite Pro Series brake kit for Big Ford Housing Ends, 2.54-Inch Offset, plain face rotors and black powder coat calipers
Assembled Wilwood rear Dynalite Pro Series caliper and rotor assembly for Big Ford Housing Ends, 2.54-Inch Offset, plain face rotor and black powder coat caliper

Wilwood Rear Black Dynalite Pro Conversion for Big Ford Ends at 2.54-Inch Offset, Plain 12.19-Inch Rotors

SKU: 140-2114-B

$979.24 Sale
Shipping calculated at checkout.

Fitment questions?

Call (855) 786-7101 or text (801) 304-3141. We check fitment by VIN.

Shipping policyRefund policy

Product details

Black Wilwood calipers and plain vented rotors fit the specified Big Ford rear flange at 2.54-inch offset. Verify housing dimensions before purchase. The manufacturer is Wilwood Engineering of Camarillo, California, established in 1977 by Bill Wood. It designs and manufactures disc brake systems and components, including calipers, brake rotors, master cylinders, valves, fittings and lines for motorsport, street-performance and specialized vehicles; suitability depends on the full brake-system configuration.

Technical Details

  • Manufacturer part number: 140-2114-B
  • Caliper construction: Caliper bodies are forged aluminum, finished in black powder coat; each has 4 pistons made from stainless.
  • Rotor dimensions and face: The plain face option uses iron, a 12.19-inch outside diameter and a 0.81-inch running width. Rotor construction is vented.
  • Hydraulic and mounting layout: Brake-fluid connection: 1/8-27 NPT; caliper mounting arrangement: lug.
  • Axle mounting: Big Ford; 2.54 in; 64.52 mm
  • Rotor/hat wheel-stud clearance pattern: 5 X 4.5 in; 5 X 4.75 in; 5 X 5 in (5 X 114.3 mm; 5 X 120.65 mm; 5 X 127 mm)
  • Wheel fit: Use the manufacturer wheel template even when the wheel is 15 inches or larger.
  • Package scope: Supplied: mounting hardware. Not included: master cylinder, booster, spindles, flexible brake lines, hubs.
  • Parking brake: No parking-brake mechanism supplied

Fitment & Compatibility

Use DS-123 to identify the correct big Ford housing end and measure the 2.54-inch offset directly. Other big Ford offsets and the new-style flange require different kits. Treat the Town Car row below as a conditional installation reference, then verify the actual axle, wheel pattern, brake lines and wheel envelope.

Manufacturer Documents

Wilwood kit specifications and component list

Manufacturer Warning

WARNING: This product can expose you to chemicals including Arsenic, Cadmium, Chromium (Hexavalent compounds), Lead, Nickel, Cobalt and Antimony Trioxide which are known to the State of California to cause cancer or other reproductive harm. For more information go to www.p65warnings.ca.gov.

Before ordering for a modified vehicle, contact PMB Performance with the relevant dimensions and component numbers. Our team draws on more than 20 years of parts and fitment experience.

Vehicle Applications

Years Make Model Model option Front brakes Rear brakes Kit application Notes
1990 Lincoln Town Car All Disc Drum Rear Kit 1, 2

Application Notes

  1. Kit may fit some 15" wheels. Check wheel clearance diagram in kit installation instructions before purchase.
  2. Line kit included (manufacturer): None
