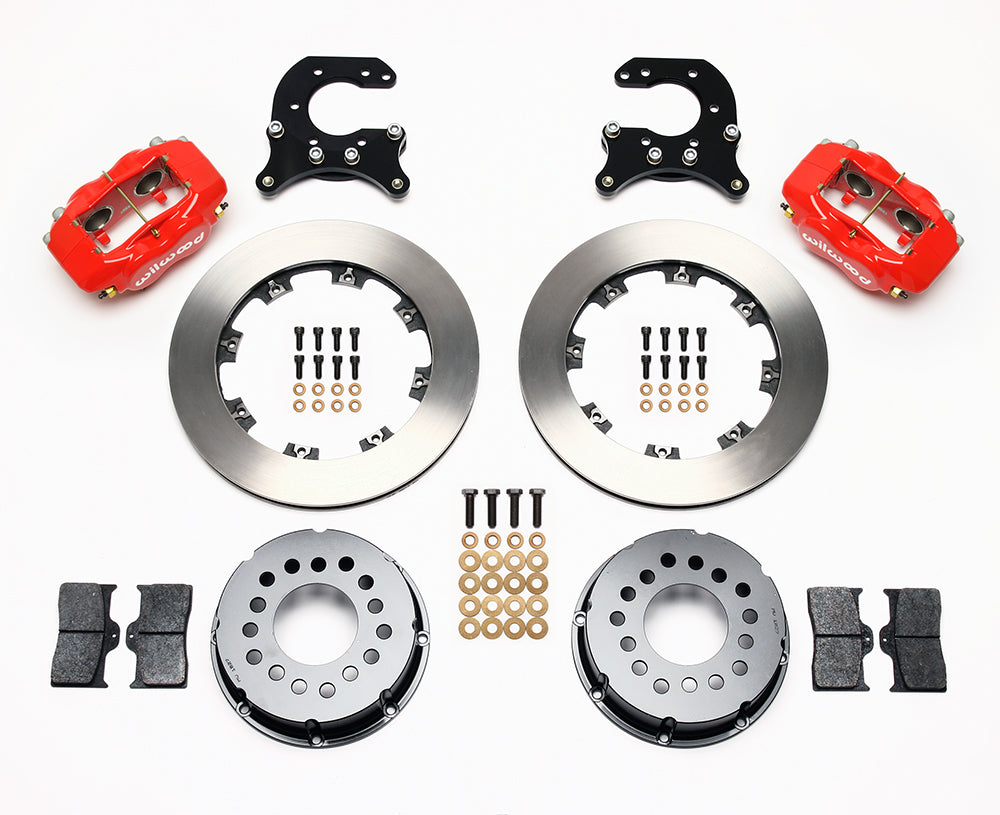

Components laid out for the Wilwood rear Dynalite Pro Series brake kit for Small Ford Housing Ends, 2.66-Inch Offset, plain face rotors and red powder coat calipers

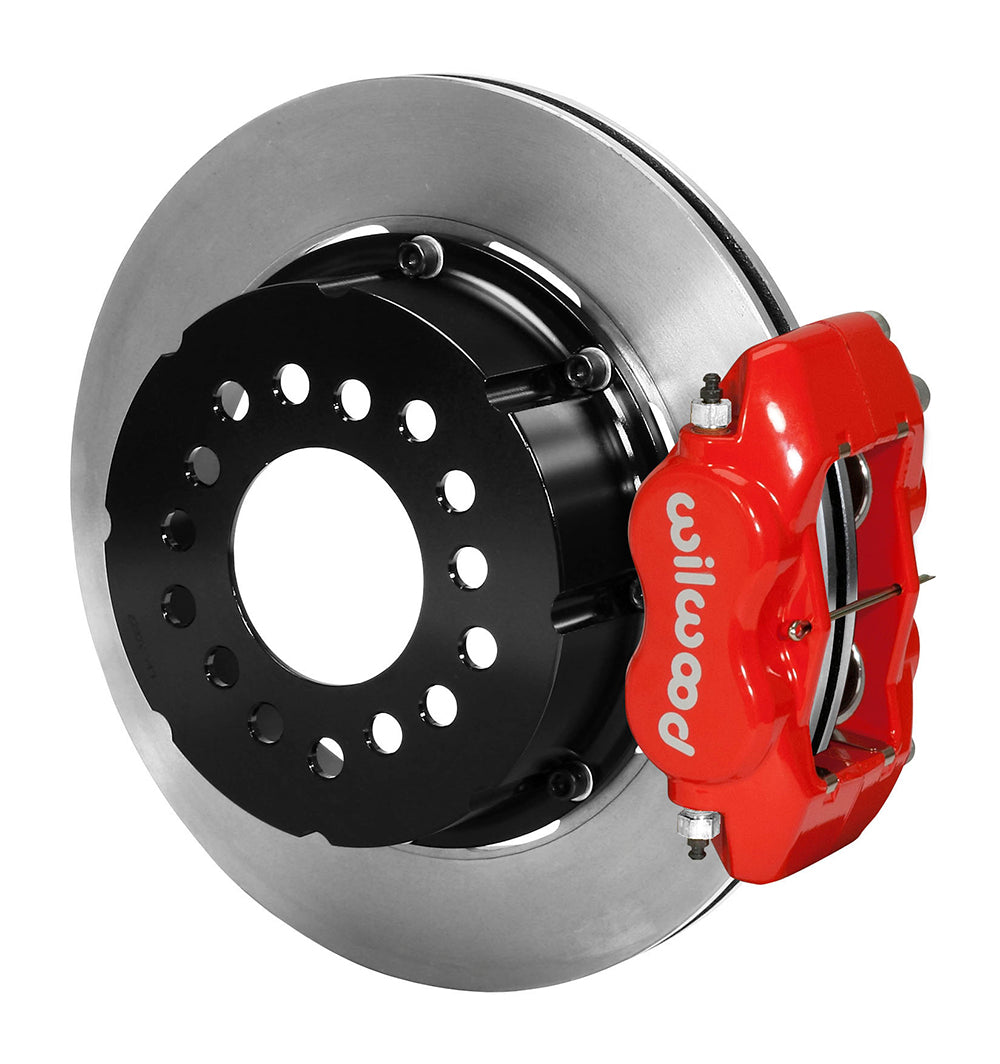

Assembled Wilwood rear Dynalite Pro Series caliper and rotor assembly for Small Ford Housing Ends, 2.66-Inch Offset, plain face rotor and red powder coat caliper
Components laid out for the Wilwood rear Dynalite Pro Series brake kit for Small Ford Housing Ends, 2.66-Inch Offset, plain face rotors and red powder coat calipers
Assembled Wilwood rear Dynalite Pro Series caliper and rotor assembly for Small Ford Housing Ends, 2.66-Inch Offset, plain face rotor and red powder coat caliper

Wilwood Rear Red Dynalite Service-Brake Kit, Small Ford Ends with 2.66-Inch Offset, Plain Rotors

SKU: 140-2113-R

$979.24 Sale
Shipping calculated at checkout.

Fitment questions?

Call (855) 786-7101 or text (801) 304-3141. We check fitment by VIN.

Shipping policyRefund policy

Product details

Small Ford rear conversion with red Dynalite calipers and plain Wilwood rotors. Check the measured 2.66-inch offset and wheel drilling. Wilwood Engineering began in 1977 with founder Bill Wood and is based in Camarillo, California. It designs and manufactures disc brake systems and components, including calipers, brake rotors, master cylinders, valves, fittings and brake lines. The company serves motorsport, street-performance and specialized applications, where the complete system determines component selection.

Technical Details

  • Manufacturer part number: 140-2113-R
  • Brake calipers: For this package, the forged aluminum calipers have red powder coat exteriors and stainless pistons, 4 per caliper.
  • Rotor geometry: Each rotor is 0.81 inch wide with a 12.19-inch outside diameter; the vented iron design has plain face surfaces.
  • Installation interfaces: Confirm lug mounting and a hydraulic connection compatible with the 1/8-27 NPT inlet.
  • Axle mounting: Small Ford; 2.66 in; 67.56 mm
  • Rotor/hat wheel-stud clearance pattern: 5 X 4.5 in; 5 X 4.75 in; 5 X 5 in (5 X 114.3 mm; 5 X 120.65 mm; 5 X 127 mm)
  • Wheel fit: Wheel diameter alone is insufficient: test the template for this nominal 15-inch minimum package.
  • Package scope: Supplied: mounting hardware. Not included: master cylinder, booster, spindles, flexible brake lines, hubs.
  • Parking brake: No parking-brake mechanism supplied

Fitment & Compatibility

Measure the axle flange-to-housing-end offset and compare the small Ford flange with DS-122 and the worksheet. The 1990 Town Car row below does not prove that an unmodified vehicle has this housing or offset. Confirm the actual axle assembly, wheel bolt pattern and caliper clearance; hydraulic lines are separate.

Manufacturer Documents

Wilwood kit specifications and component list

Manufacturer Warning

WARNING: This product can expose you to chemicals including Arsenic, Cadmium, Chromium (Hexavalent compounds), Lead, Nickel, Cobalt and Antimony Trioxide which are known to the State of California to cause cancer or other reproductive harm. For more information go to www.p65warnings.ca.gov.

Discuss the current brake arrangement with PMB Performance if a mounting or clearance requirement is uncertain. More than 20 years of experience informs our parts and fitment support.

Vehicle Applications

Years Make Model Model option Front brakes Rear brakes Kit application Notes
1990 Lincoln Town Car All Disc Drum Rear Kit 1, 2

Application Notes

  1. Kit may fit some 15" wheels. Check wheel clearance diagram in kit installation instructions before purchase.
  2. Line kit included (manufacturer): None
