Product details

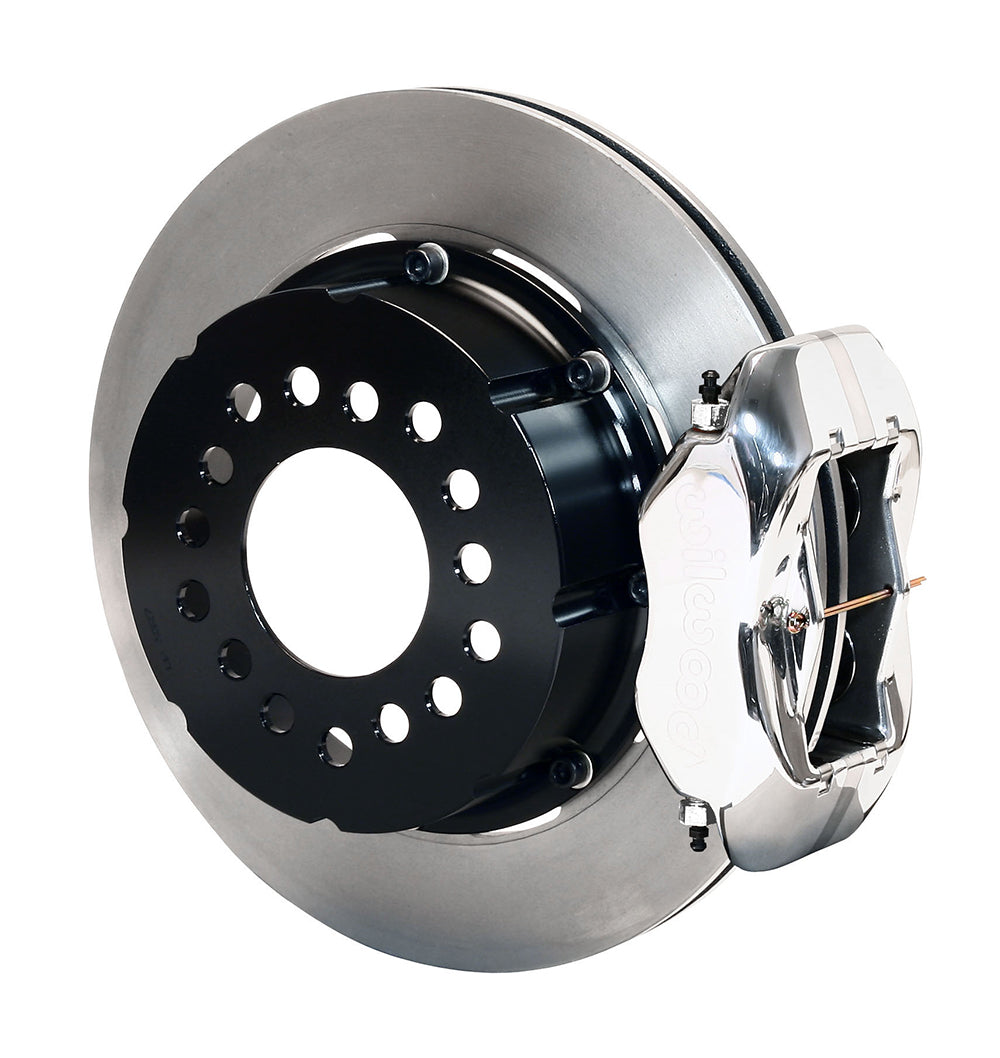

A Small Ford rear kit pairing polished calipers with plain 12.19-inch Wilwood rotors. Verify 2.66-inch offset and plan a separate parking brake. Founded in 1977 under Bill Wood, Wilwood Engineering operates from Camarillo, California. The company designs and manufactures disc brake systems and the calipers, rotors, master cylinders, valves, fittings and lines used within them. Its motorsport, street-performance and specialized applications depend on compatible brake components.
Technical Details
- Manufacturer part number: 140-2113-P
- Rotor material and size: Choose this 12.19 x 0.81-inch plain face rotor configuration. The rotor material is iron and its construction is vented.
- Caliper specification: Finish selection is polished. Each forged aluminum caliper carries 4 pistons with stainless construction.
- Caliper interface: 1/8-27 NPT inlet thread; calipers attach through the specified lug mounting layout.
- Housing-end requirement: Small Ford; 2.66 in; 67.56 mm
- Rotor/hat wheel-stud clearance pattern: 5 X 4.5 in; 5 X 4.75 in; 5 X 5 in (5 X 114.3 mm; 5 X 120.65 mm; 5 X 127 mm)
- Wheel fit: Check the wheel-clearance diagram; the listed minimum wheel diameter is 15 inches.

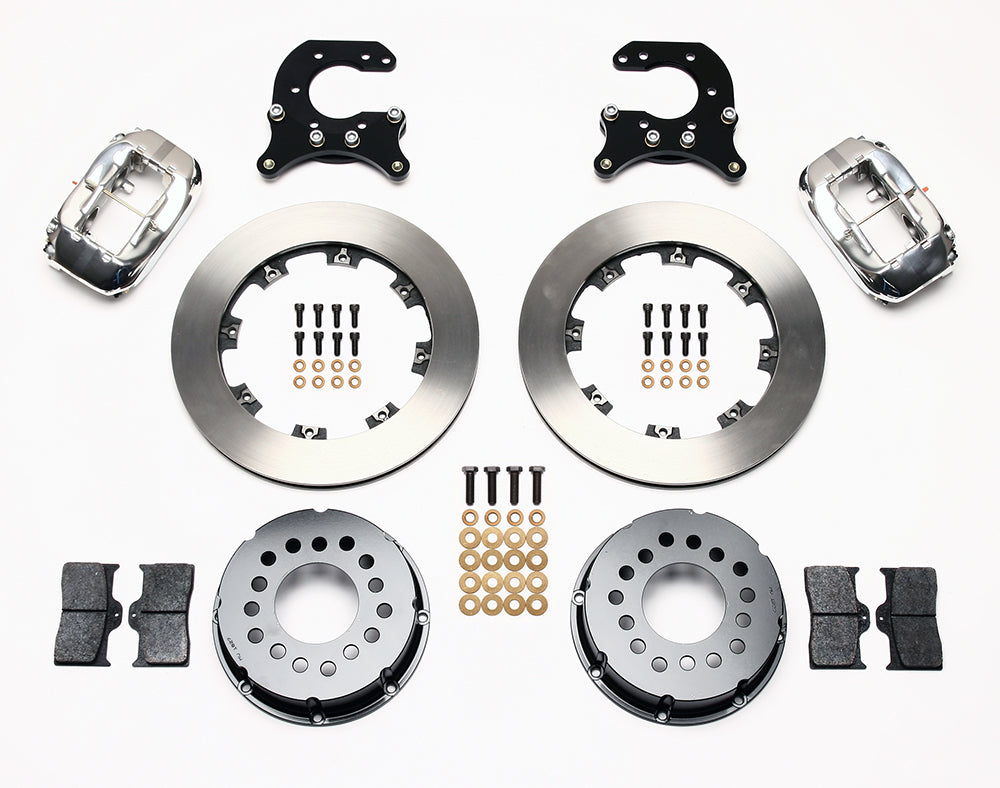

- Kit supply: mounting hardware
- Not included: master cylinder, booster, spindles, flexible brake lines, hubs
- Parking brake: No parking-brake mechanism supplied
Fitment & Compatibility
Measure the axle flange-to-housing-end offset and compare the small Ford flange with DS-122 and the worksheet. The 1990 Town Car row below does not prove that an unmodified vehicle has this housing or offset. Confirm the actual axle assembly, wheel bolt pattern and caliper clearance; hydraulic lines are separate.
Manufacturer Documents
Wilwood kit specifications and component list
Manufacturer Warning
WARNING: This product can expose you to chemicals including Arsenic, Cadmium, Chromium (Hexavalent compounds), Lead, Nickel, Cobalt and Antimony Trioxide which are known to the State of California to cause cancer or other reproductive harm. For more information go to www.p65warnings.ca.gov.
Before ordering for a modified vehicle, contact PMB Performance with the relevant dimensions and component numbers. Our team draws on more than 20 years of parts and fitment experience.
Vehicle Applications
| Years | Make | Model | Model option | Front brakes | Rear brakes | Kit application | Notes |
|---|---|---|---|---|---|---|---|
| 1990 | Lincoln | Town Car | All | Disc | Drum | Rear Kit | 1, 2 |
Application Notes
- Kit may fit some 15" wheels. Check wheel clearance diagram in kit installation instructions before purchase.
- Line kit included (manufacturer): None
