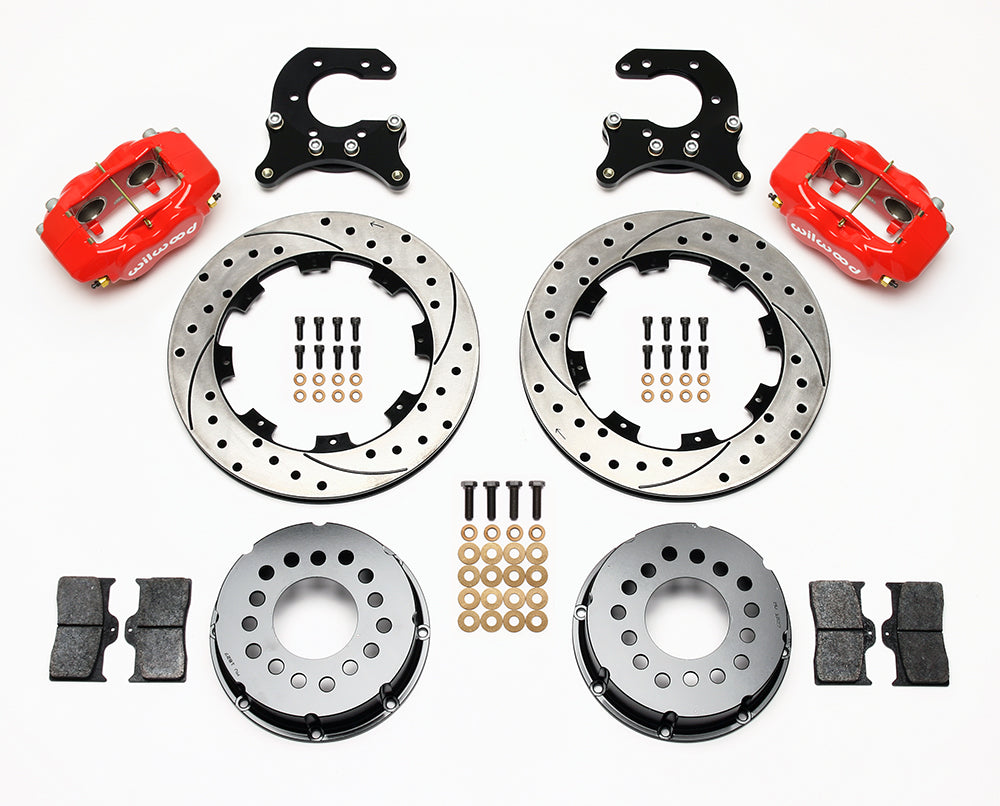

Components laid out for the Wilwood rear Dynalite Pro Series brake kit for Small Ford Housing Ends, 2.66-Inch Offset, SRP drilled and slotted rotors and red powder coat calipers

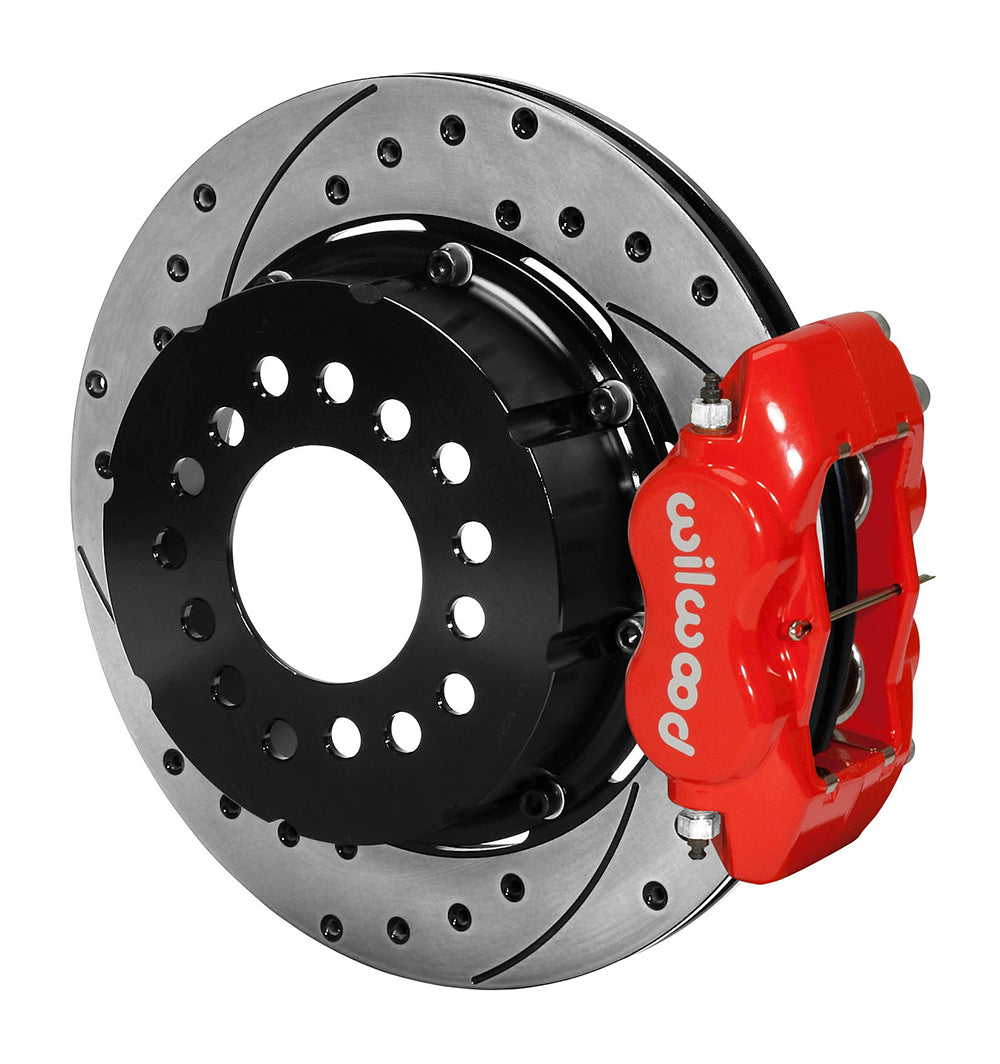

Assembled Wilwood rear Dynalite Pro Series caliper and rotor assembly for Small Ford Housing Ends, 2.66-Inch Offset, SRP drilled and slotted rotor and red powder coat caliper
Components laid out for the Wilwood rear Dynalite Pro Series brake kit for Small Ford Housing Ends, 2.66-Inch Offset, SRP drilled and slotted rotors and red powder coat calipers
Assembled Wilwood rear Dynalite Pro Series caliper and rotor assembly for Small Ford Housing Ends, 2.66-Inch Offset, SRP drilled and slotted rotor and red powder coat caliper

Wilwood Rear Drilled/Slotted Dynalite Kit with Red Calipers for Small Ford 2.66-Inch Axle Offset

SKU: 140-2113-DR

$1,121.55 Sale
Shipping calculated at checkout.

Fitment questions?

Call (855) 786-7101 or text (801) 304-3141. We check fitment by VIN.

Shipping policyRefund policy

Product details

Red Wilwood four-piston calipers and SRP rotors convert Small Ford rear service brakes. Match the 2.66-inch axle offset; supply flexible lines. From Camarillo, California, Wilwood Engineering designs and builds disc braking systems for motorsport, street-performance and specialized uses. Founder Bill Wood started the company in 1977. Calipers, brake rotors, master cylinders, valves, fittings and brake lines are selected for the requirements of the complete brake system.

Technical Details

  • Manufacturer part number: 140-2113-DR
  • Calipers supplied: 4-piston forged aluminum construction; piston material stainless; external finish red powder coat.
  • Rotor selection: Diameter 12.19 in; width 0.81 in. The selected rotor has a srp drilled and slotted face and vented iron construction.
  • Fluid connections: Use the lug-mount bracket arrangement and fittings matched to the 1/8-27 NPT caliper inlet.
  • Axle mounting: Small Ford; 2.66 in; 67.56 mm
  • Rotor/hat wheel-stud clearance pattern: 5 X 4.5 in; 5 X 4.75 in; 5 X 5 in (5 X 114.3 mm; 5 X 120.65 mm; 5 X 127 mm)
  • Wheel fit: A 15-inch wheel is a starting dimension. Confirm the full wheel profile with the kit drawing.
  • Package scope: Supplied: mounting hardware. Not included: master cylinder, booster, spindles, flexible brake lines, hubs.
  • Parking brake: No parking-brake mechanism supplied

Fitment & Compatibility

Measure the axle flange-to-housing-end offset and compare the small Ford flange with DS-122 and the worksheet. The 1990 Town Car row below does not prove that an unmodified vehicle has this housing or offset. Confirm the actual axle assembly, wheel bolt pattern and caliper clearance; hydraulic lines are separate.

Manufacturer Documents

Wilwood kit specifications and component list

Manufacturer Warning

WARNING: This product can expose you to chemicals including Arsenic, Cadmium, Chromium (Hexavalent compounds), Lead, Nickel, Cobalt and Antimony Trioxide which are known to the State of California to cause cancer or other reproductive harm. For more information go to www.p65warnings.ca.gov.

With over 20 years of experience, PMB Performance can help identify the required brake-system components. Provide the vehicle details and the actual installed hardware when requesting a fitment check.

Vehicle Applications

Years Make Model Model option Front brakes Rear brakes Kit application Notes
1990 Lincoln Town Car All Disc Drum Rear Kit 1, 2

Application Notes

  1. Kit may fit some 15" wheels. Check wheel clearance diagram in kit installation instructions before purchase.
  2. Line kit included (manufacturer): None
