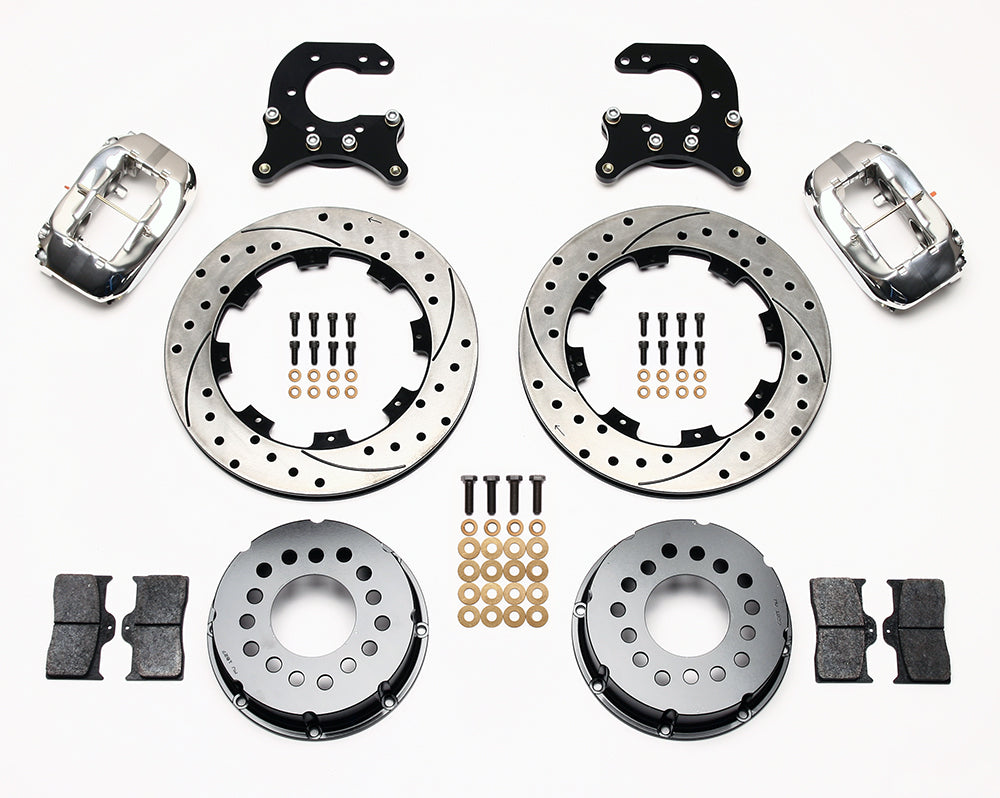

Components laid out for the Wilwood rear Dynalite Pro Series brake kit for Small Ford Housing Ends, 2.66-Inch Offset, SRP drilled and slotted rotors and polish calipers

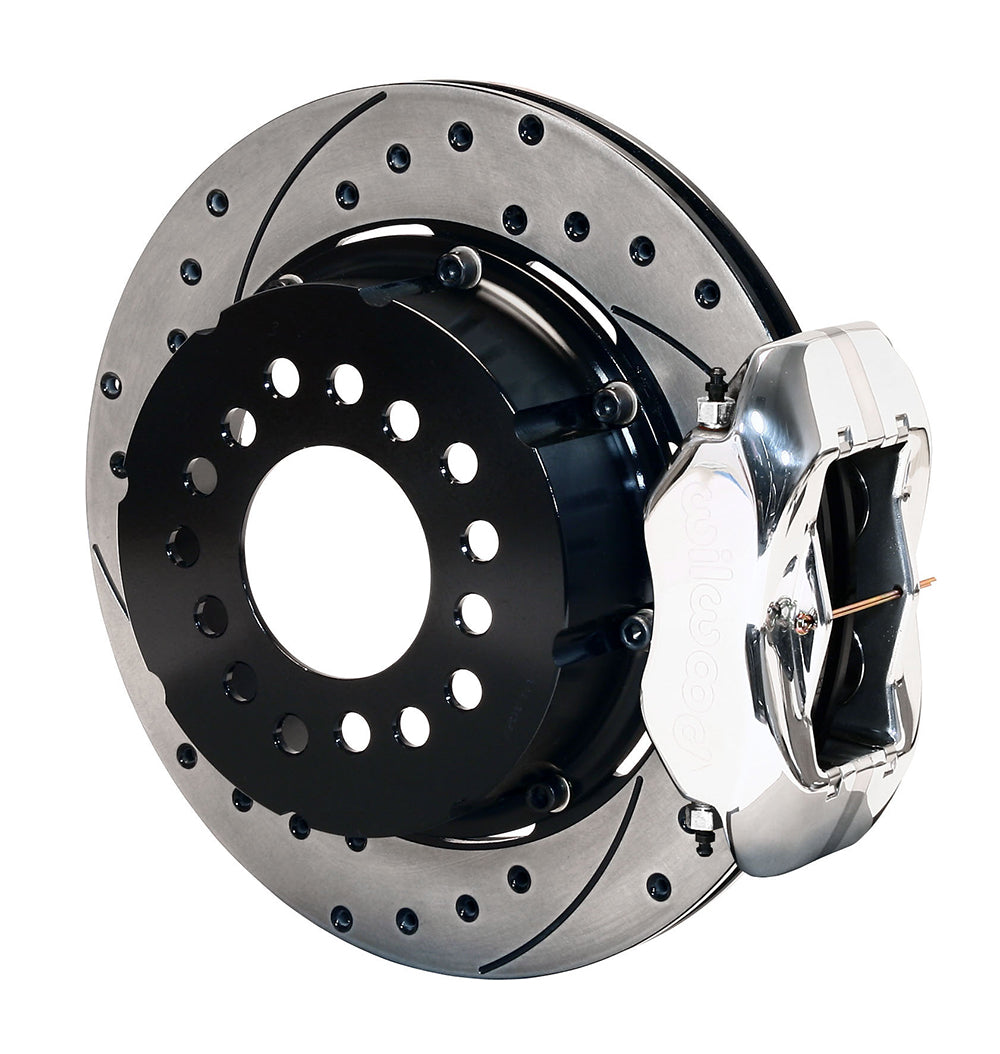

Assembled Wilwood rear Dynalite Pro Series caliper and rotor assembly for Small Ford Housing Ends, 2.66-Inch Offset, SRP drilled and slotted rotor and polish caliper
Components laid out for the Wilwood rear Dynalite Pro Series brake kit for Small Ford Housing Ends, 2.66-Inch Offset, SRP drilled and slotted rotors and polish calipers
Assembled Wilwood rear Dynalite Pro Series caliper and rotor assembly for Small Ford Housing Ends, 2.66-Inch Offset, SRP drilled and slotted rotor and polish caliper

Wilwood Rear Polished-Caliper SRP Brake Conversion, Small Ford Housing, 2.66-Inch Offset

SKU: 140-2113-DP

$1,335.59 Sale
Shipping calculated at checkout.

Fitment questions?

Call (855) 786-7101 or text (801) 304-3141. We check fitment by VIN.

Shipping policyRefund policy

Product details

Polished Dynalite calipers distinguish this Small Ford rear conversion with Wilwood 12.19-inch SRP rotors. Confirm the flange and 2.66-inch offset. The manufacturer is Wilwood Engineering of Camarillo, California, established in 1977 by Bill Wood. It designs and manufactures disc brake systems and components, including calipers, brake rotors, master cylinders, valves, fittings and lines for motorsport, street-performance and specialized vehicles; suitability depends on the full brake-system configuration.

Technical Details

  • Manufacturer part number: 140-2113-DP
  • Rotating brake parts: Vented iron rotors measure 12.19 inches across by 0.81 inch thick, with srp drilled and slotted friction surfaces.
  • Service calipers: The polished calipers use forged aluminum bodies and 4 stainless pistons apiece.
  • Attachment requirements: The caliper uses a lug mount and accepts the specified 1/8-27 NPT inlet fitting.
  • Housing-end requirement: Small Ford; 2.66 in; 67.56 mm
  • Rotor/hat wheel-stud clearance pattern: 5 X 4.5 in; 5 X 4.75 in; 5 X 5 in (5 X 114.3 mm; 5 X 120.65 mm; 5 X 127 mm)
  • Wheel fit: The nominal 15-inch wheel requirement is conditional on the actual spoke and barrel shape.
  • Kit supply: mounting hardware
  • Not included: master cylinder, booster, spindles, flexible brake lines, hubs
  • Parking brake: No parking-brake mechanism supplied

Fitment & Compatibility

Measure the axle flange-to-housing-end offset and compare the small Ford flange with DS-122 and the worksheet. The 1990 Town Car row below does not prove that an unmodified vehicle has this housing or offset. Confirm the actual axle assembly, wheel bolt pattern and caliper clearance; hydraulic lines are separate.

Manufacturer Documents

Wilwood kit specifications and component list

Manufacturer Warning

WARNING: This product can expose you to chemicals including Arsenic, Cadmium, Chromium (Hexavalent compounds), Lead, Nickel, Cobalt and Antimony Trioxide which are known to the State of California to cause cancer or other reproductive harm. For more information go to www.p65warnings.ca.gov.

PMB Performance brings over 20 years of parts and fitment experience. Send the installed brake and axle details for help confirming the correct configuration.

Vehicle Applications

Years Make Model Model option Front brakes Rear brakes Kit application Notes
1990 Lincoln Town Car All Disc Drum Rear Kit 1, 2

Application Notes

  1. Kit may fit some 15" wheels. Check wheel clearance diagram in kit installation instructions before purchase.
  2. Line kit included (manufacturer): None
