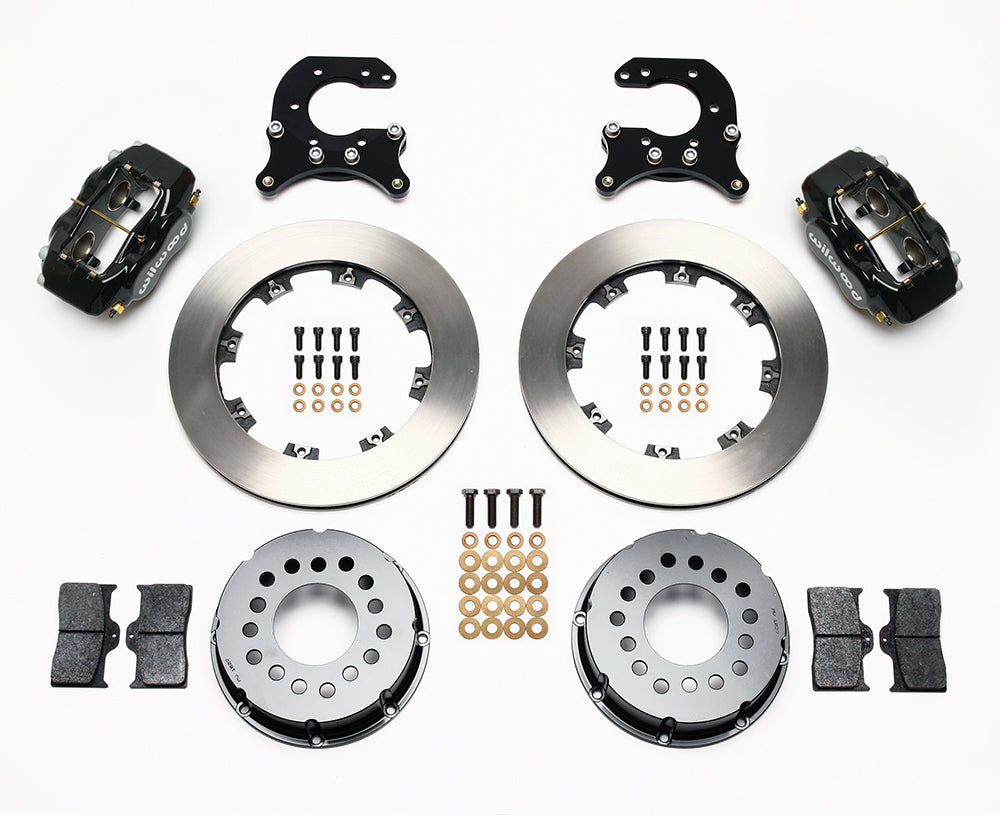

Components laid out for the Wilwood rear Dynalite Pro Series brake kit for Small Ford Housing Ends, 2.66-Inch Offset, plain face rotors and black powder coat calipers

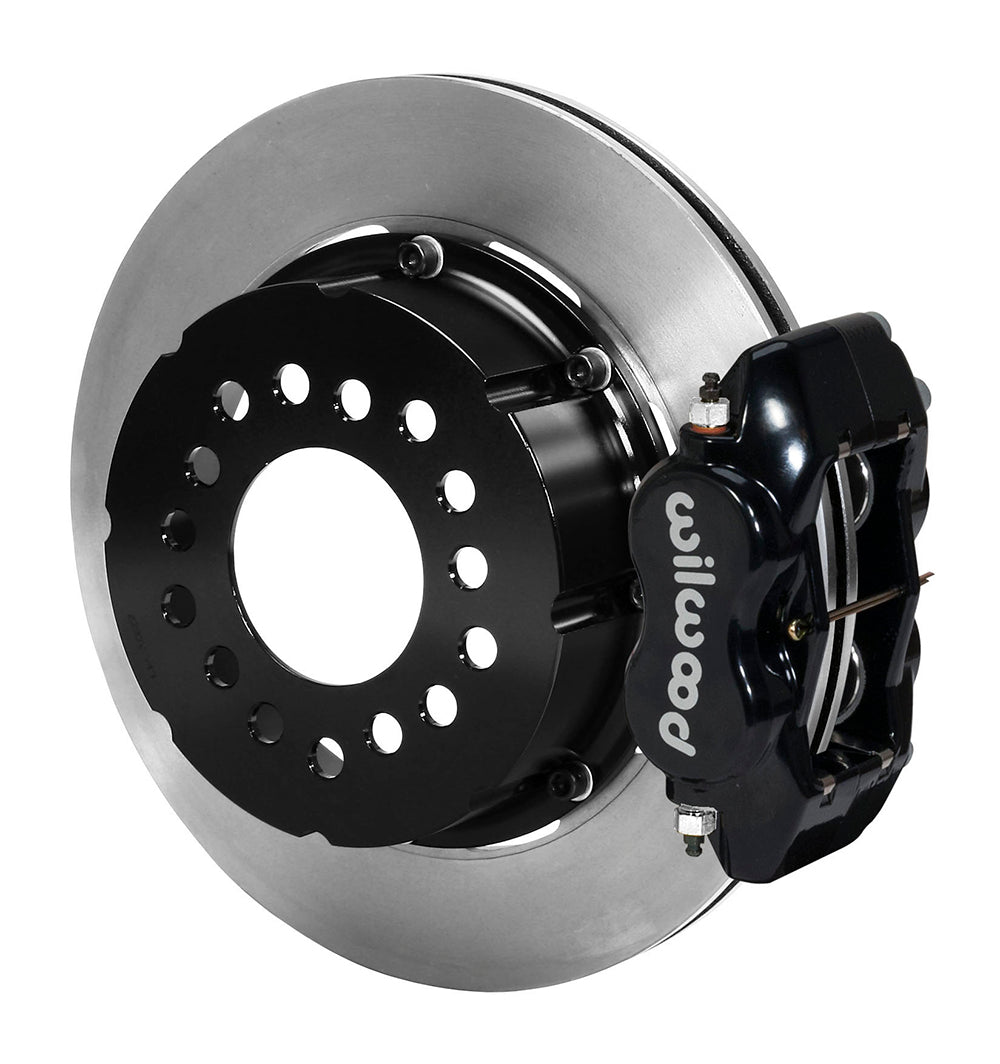

Assembled Wilwood rear Dynalite Pro Series caliper and rotor assembly for Small Ford Housing Ends, 2.66-Inch Offset, plain face rotor and black powder coat caliper
Components laid out for the Wilwood rear Dynalite Pro Series brake kit for Small Ford Housing Ends, 2.66-Inch Offset, plain face rotors and black powder coat calipers
Assembled Wilwood rear Dynalite Pro Series caliper and rotor assembly for Small Ford Housing Ends, 2.66-Inch Offset, plain face rotor and black powder coat caliper

Wilwood Rear Small Ford Dynalite Brake Kit, 2.66-Inch Offset, Black Calipers and Plain Rotors

SKU: 140-2113-B

$979.24 Sale
Shipping calculated at checkout.

Fitment questions?

Call (855) 786-7101 or text (801) 304-3141. We check fitment by VIN.

Shipping policyRefund policy

Product details

Small Ford housing ends with 2.66-inch offset take this black-caliper Wilwood rear kit. Check the flange and clearance for 12.19-inch plain rotors. Wilwood Engineering, founded by Bill Wood in 1977, is based in Camarillo, California. It designs and manufactures disc brake systems for motorsport, street-performance and specialized applications. Its calipers, brake rotors, master cylinders, valves, fittings and lines must be selected to suit the complete braking system.

Technical Details

  • Manufacturer part number: 140-2113-B
  • Rotor configuration: 12.19-inch diameter and 0.81-inch thickness; plain face vented iron.
  • Caliper assembly: 4 stainless pistons in each forged aluminum caliper, with black powder coat finish.
  • Mount and inlet: Lug caliper attachment with 1/8-27 NPT fluid inlets.
  • Housing-end requirement: Small Ford; 2.66 in; 67.56 mm
  • Rotor/hat wheel-stud clearance pattern: 5 X 4.5 in; 5 X 4.75 in; 5 X 5 in (5 X 114.3 mm; 5 X 120.65 mm; 5 X 127 mm)
  • Wheel fit: 15-inch nominal minimum; check both barrel and spoke clearance against the installation template.
  • Kit supply: mounting hardware
  • Not included: master cylinder, booster, spindles, flexible brake lines, hubs
  • Parking brake: No parking-brake mechanism supplied

Fitment & Compatibility

Measure the axle flange-to-housing-end offset and compare the small Ford flange with DS-122 and the worksheet. The 1990 Town Car row below does not prove that an unmodified vehicle has this housing or offset. Confirm the actual axle assembly, wheel bolt pattern and caliper clearance; hydraulic lines are separate.

Manufacturer Documents

Wilwood kit specifications and component list

Manufacturer Warning

WARNING: This product can expose you to chemicals including Arsenic, Cadmium, Chromium (Hexavalent compounds), Lead, Nickel, Cobalt and Antimony Trioxide which are known to the State of California to cause cancer or other reproductive harm. For more information go to www.p65warnings.ca.gov.

PMB Performance brings over 20 years of parts and fitment experience. Send the installed brake and axle details for help confirming the correct configuration.

Vehicle Applications

Years Make Model Model option Front brakes Rear brakes Kit application Notes
1990 Lincoln Town Car All Disc Drum Rear Kit 1, 2

Application Notes

  1. Kit may fit some 15" wheels. Check wheel clearance diagram in kit installation instructions before purchase.
  2. Line kit included (manufacturer): None
