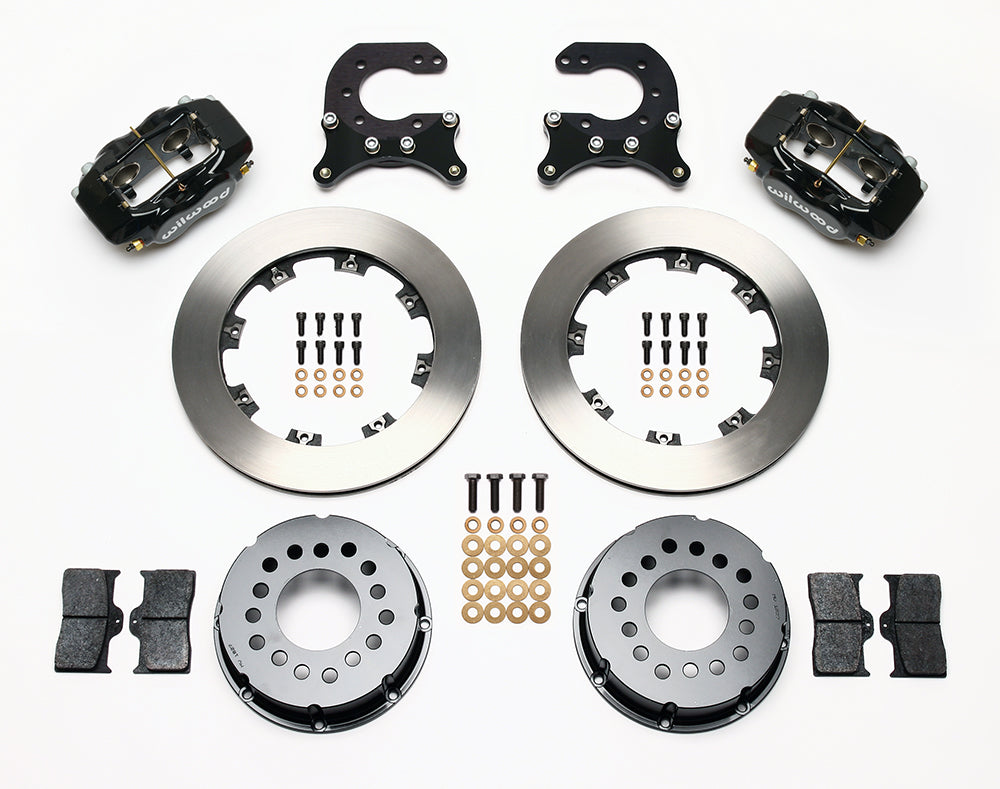

Components laid out for the Wilwood rear Dynalite Pro Series brake kit for Chevrolet 12-Bolt C-Clip Axles, plain face rotors and black powder coat calipers

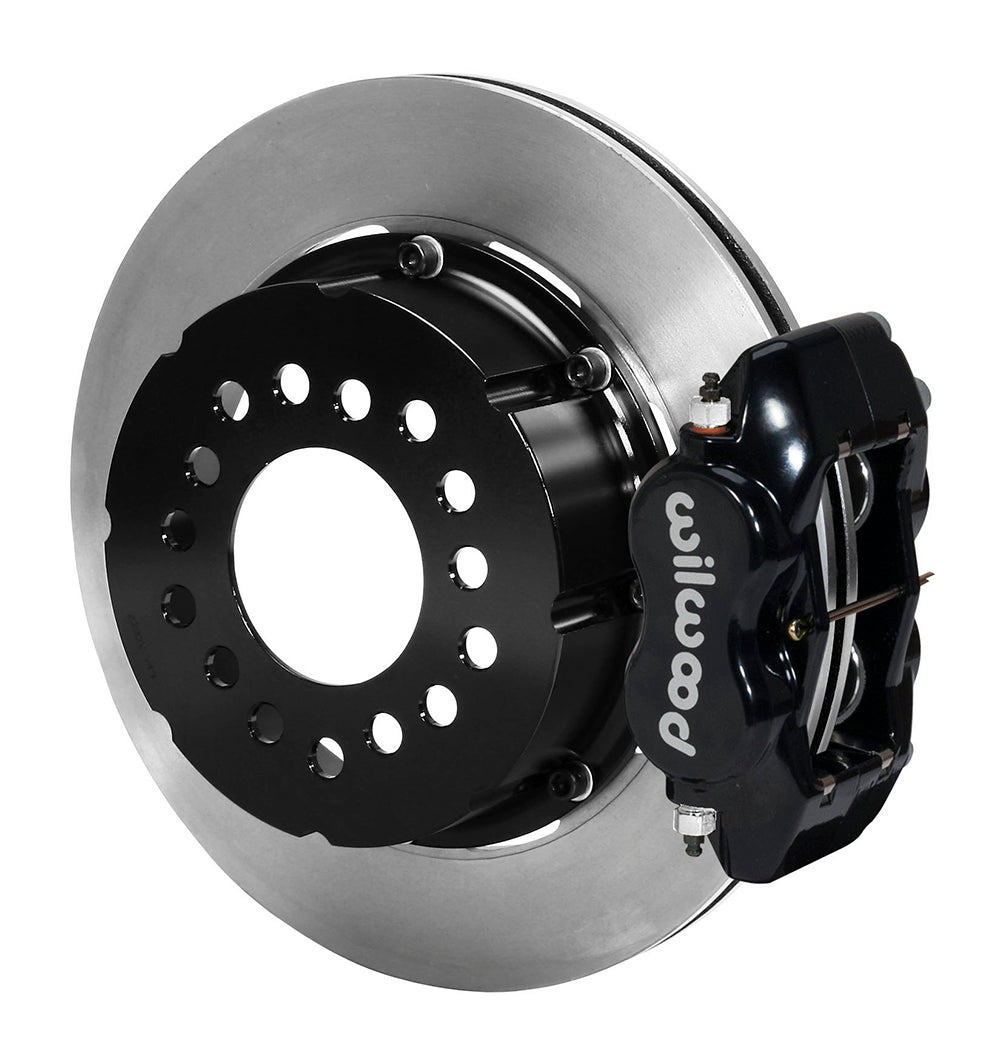

Assembled Wilwood rear Dynalite Pro Series caliper and rotor assembly for Chevrolet 12-Bolt C-Clip Axles, plain face rotor and black powder coat caliper
Components laid out for the Wilwood rear Dynalite Pro Series brake kit for Chevrolet 12-Bolt C-Clip Axles, plain face rotors and black powder coat calipers
Assembled Wilwood rear Dynalite Pro Series caliper and rotor assembly for Chevrolet 12-Bolt C-Clip Axles, plain face rotor and black powder coat caliper

Wilwood Rear Dynalite Kit for OE C-Clip Chevrolet 12-Bolt Axles, Black Calipers/Plain 12.19-Inch Rotors

SKU: 140-2112-B

$979.24 Sale
Shipping calculated at checkout.

Fitment questions?

Call (855) 786-7101 or text (801) 304-3141. We check fitment by VIN.

Shipping policyRefund policy

Product details

Keep OE C-clip retention with black Wilwood calipers and plain 12.19-inch rear rotors on Chevy 12-bolt axles. Verify the specified offset. Founded in 1977 under Bill Wood, Wilwood Engineering operates from Camarillo, California. The company designs and manufactures disc brake systems and the calipers, rotors, master cylinders, valves, fittings and lines used within them. Its motorsport, street-performance and specialized applications depend on compatible brake components.

Technical Details

  • Manufacturer part number: 140-2112-B
  • Brake calipers: For this package, the forged aluminum calipers have black powder coat exteriors and stainless pistons, 4 per caliper.
  • Rotor geometry: Each rotor is 0.81 inch wide with a 12.19-inch outside diameter; the vented iron design has plain face surfaces.
  • Installation interfaces: Confirm lug mounting and a hydraulic connection compatible with the 1/8-27 NPT inlet.
  • Axle mounting: 12 Bolt; Offset requires confirmation: manufacturer product page and instruction cover disagree.
  • Rotor/hat wheel-stud clearance pattern: 5 X 4.5 in; 5 X 4.75 in; 5 X 5 in (5 X 114.3 mm; 5 X 120.65 mm; 5 X 127 mm)
  • Wheel fit: Wheel diameter alone is insufficient: test the template for this nominal 15-inch minimum package.
  • Package scope: Supplied: mounting hardware. Not included: master cylinder, booster, spindles, flexible brake lines, hubs.
  • Parking brake: No parking-brake mechanism supplied

Fitment & Compatibility

This version requires the OE C-clip axle configuration and excludes special housing ends and C-clip eliminators. Confirm the housing, bearing retention and measured offset rather than choosing by the modified-vehicle examples below. The current page states 2.91-inch offset and DS-121 states 2.81 inches; resolve that difference with Wilwood before purchase. Select flexlines separately and check the wheel drawing.

Manufacturer Documents

Wilwood kit specifications and component list

Manufacturer Warning

WARNING: This product can expose you to chemicals including Arsenic, Cadmium, Chromium (Hexavalent compounds), Lead, Nickel, Cobalt and Antimony Trioxide which are known to the State of California to cause cancer or other reproductive harm. For more information go to www.p65warnings.ca.gov.

Discuss the current brake arrangement with PMB Performance if a mounting or clearance requirement is uncertain. More than 20 years of experience informs our parts and fitment support.

Vehicle Applications

Years Make Model Model option Front brakes Rear brakes Kit application Notes
1964-1968 Chevrolet Chevelle w/ Ridetech Hub Spindle Drop Drum Rear Kit 1, 2, 3, 4, 5
1964-1969 Chevrolet Chevelle w/ Ridetech Pin Spindle Drop Drum Rear Kit 1, 2, 3, 4, 5
1964 Oldsmobile 442 w/ Ridetech Hub Spindle Drop Drum Rear Kit 1, 2, 3, 4, 5
1964-1969 Pontiac Beaumont w/ Ridetech Hub Spindle Drop Drum Rear Kit 1, 2, 3, 4, 5
1964-1969 Pontiac Beaumont w/ Ridetech Pin Spindle Drop Drum Rear Kit 1, 2, 3, 4, 5
1967-1969 Chevrolet Camaro w/ Ridetech Hub Spindle Drop Drum Rear Kit 1, 2, 3, 4, 5
1967-1969 Chevrolet Camaro w/ Ridetech Pin Spindle Drop Drum Rear Kit 1, 2, 3, 4, 5
1970 Oldsmobile 442 w/ Ridetech Pin Spindle Drop Drum Rear Kit 1, 2, 3, 4, 5
1973-1974 Buick Apollo w/ Ridetech Hub Spindle Drop Drum Rear Kit 1, 2, 3, 4, 5
1973-1974 Buick Apollo w/ Ridetech Pin Spindle Drop Drum Rear Kit 1, 2, 3, 4, 5

Application Notes

  1. For OE C-Clip axles only. Does not support Special End or C-Clip Eliminator modifications
  2. Kit may fit some 15" wheels. Check wheel clearance diagram in kit installation instructions before purchase.
  3. Universal Flexline kits available: 220-7056 (14"), 220-7699 (16") or 220-8307 (18"). Choose correct length for your application.
  4. This rear service-brake kit has no parking-brake mechanism and includes no parking-brake cables. A separate compatible parking-brake solution is required where applicable.
  5. Line kit included (manufacturer): None
