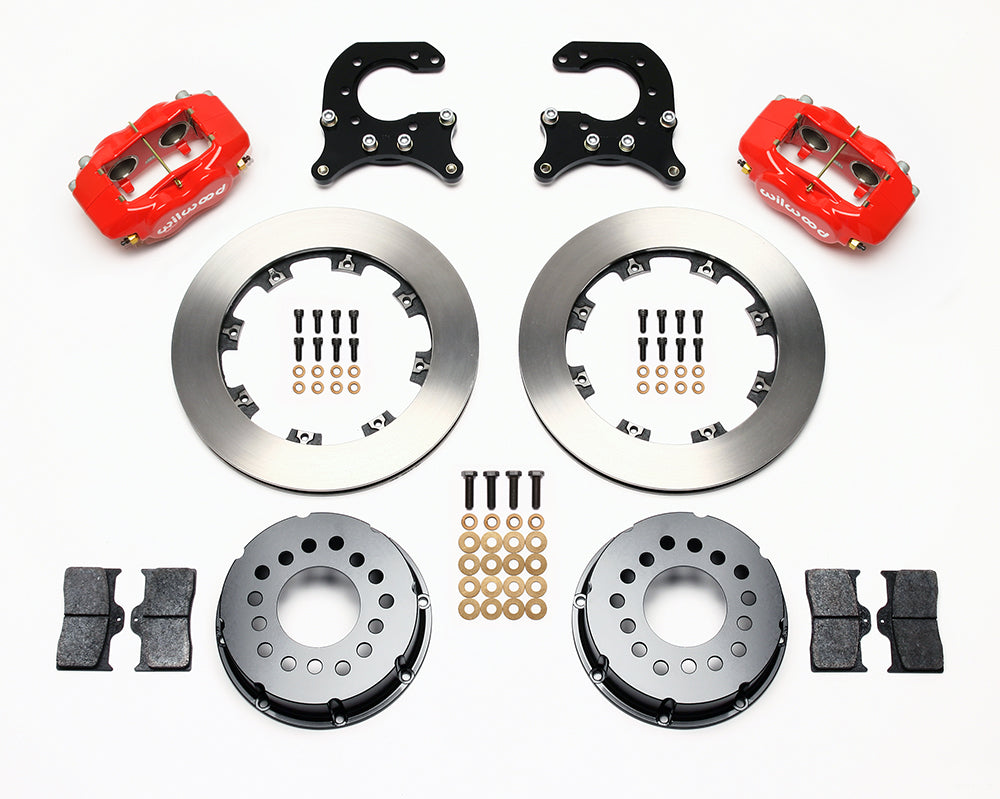

Components laid out for the Wilwood rear Dynalite Pro Series brake kit for Oldsmobile/Pontiac Housing Ends, plain face rotors and red powder coat calipers

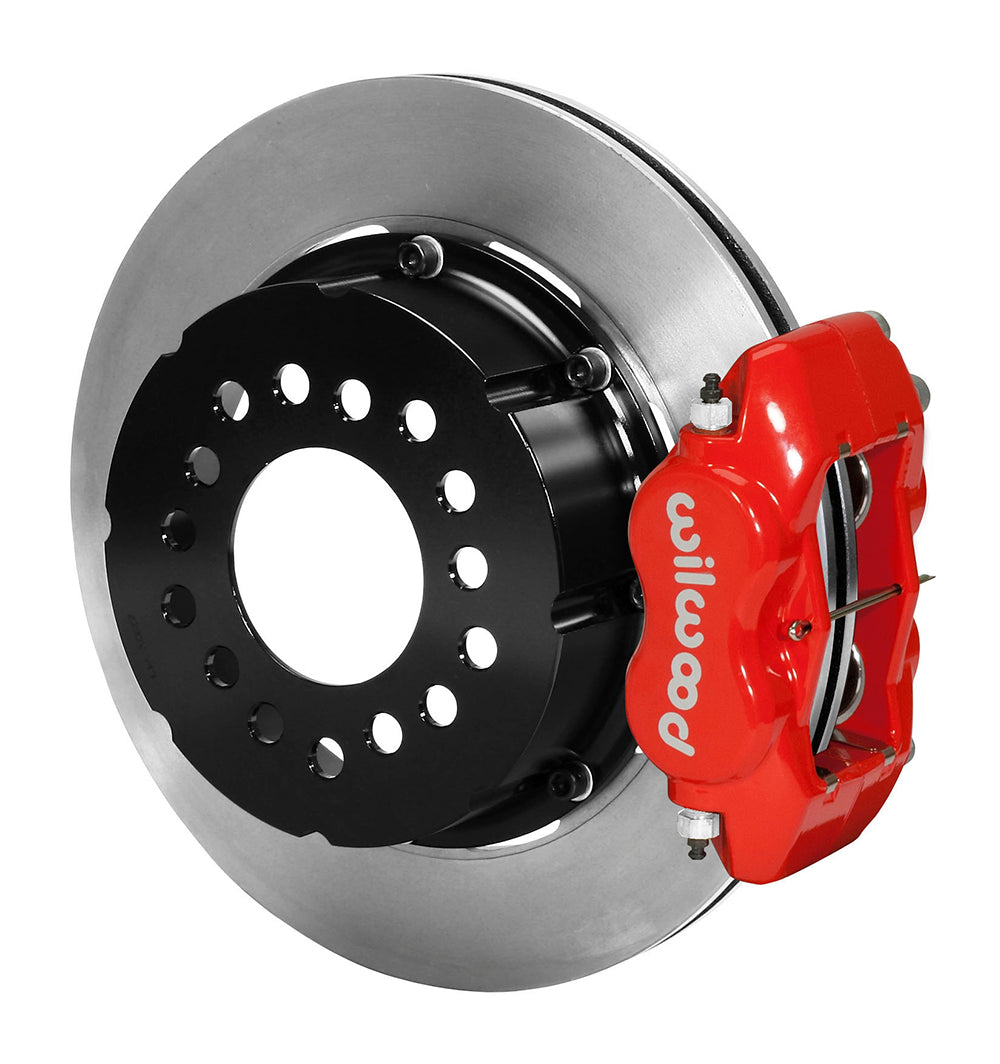

Assembled Wilwood rear Dynalite Pro Series caliper and rotor assembly for Oldsmobile/Pontiac Housing Ends, plain face rotor and red powder coat caliper
Components laid out for the Wilwood rear Dynalite Pro Series brake kit for Oldsmobile/Pontiac Housing Ends, plain face rotors and red powder coat calipers
Assembled Wilwood rear Dynalite Pro Series caliper and rotor assembly for Oldsmobile/Pontiac Housing Ends, plain face rotor and red powder coat caliper

Wilwood Rear Red Dynalite Pro Caliper Kit with Plain Rotors for Oldsmobile/Pontiac Ends, 12.19 Inches

SKU: 140-2111-R

$979.24 Sale
Shipping calculated at checkout.

Fitment questions?

Call (855) 786-7101 or text (801) 304-3141. We check fitment by VIN.

Shipping policyRefund policy

Product details

Olds/Pontiac rear service brakes with red Dynalite calipers and plain Wilwood 12.19-inch rotors. Confirm housing measurements before ordering. Wilwood Engineering began in 1977 with founder Bill Wood and is based in Camarillo, California. It designs and manufactures disc brake systems and components, including calipers, brake rotors, master cylinders, valves, fittings and brake lines. The company serves motorsport, street-performance and specialized applications, where the complete system determines component selection.

Technical Details

  • Manufacturer part number: 140-2111-R
  • Caliper construction: Caliper bodies are forged aluminum, finished in red powder coat; each has 4 pistons made from stainless.
  • Rotor dimensions and face: The plain face option uses iron, a 12.19-inch outside diameter and a 0.81-inch running width. Rotor construction is vented.
  • Hydraulic and mounting layout: Brake-fluid connection: 1/8-27 NPT; caliper mounting arrangement: lug.
  • Axle mounting: Olds/Pontiac; Offset requires confirmation: manufacturer product page and instruction cover disagree.
  • Rotor/hat wheel-stud clearance pattern: 5 X 4.5 in; 5 X 4.75 in; 5 X 5 in (5 X 114.3 mm; 5 X 120.65 mm; 5 X 127 mm)
  • Wheel fit: Use the manufacturer wheel template even when the wheel is 15 inches or larger.
  • Package scope: Supplied: mounting hardware. Not included: master cylinder, booster, spindles, flexible brake lines, hubs.
  • Parking brake: No parking-brake mechanism supplied

Fitment & Compatibility

Verify the housing-end drawing and axle offset before selecting this kit. The modified-vehicle examples in the table below do not identify the installed rear axle from a model name or front-spindle option. DS-120 labels a 2.81-inch offset while the current kit page lists 2.91 inches; have Wilwood confirm the required configuration from measurements before ordering. A generic cable note does not add a parking-brake mechanism to this assembly.

Manufacturer Documents

Wilwood kit specifications and component list

Manufacturer Warning

WARNING: This product can expose you to chemicals including Arsenic, Cadmium, Chromium (Hexavalent compounds), Lead, Nickel, Cobalt and Antimony Trioxide which are known to the State of California to cause cancer or other reproductive harm. For more information go to www.p65warnings.ca.gov.

Before ordering for a modified vehicle, contact PMB Performance with the relevant dimensions and component numbers. Our team draws on more than 20 years of parts and fitment experience.

Vehicle Applications

Years Make Model Model option Front brakes Rear brakes Kit application Notes
1964-1968 Chevrolet Chevelle w/ Ridetech Hub Spindle Drop Drum Rear Kit 1, 2, 3, 4
1964-1969 Chevrolet Chevelle w/ Ridetech Pin Spindle Drop Drum Rear Kit 1, 2, 3, 4
1964 Oldsmobile 442 w/ Ridetech Hub Spindle Drop Drum Rear Kit 1, 2, 3, 4
1964-1969 Pontiac Beaumont w/ Ridetech Hub Spindle Drop Drum Rear Kit 1, 2, 3, 4
1964-1969 Pontiac Beaumont w/ Ridetech Pin Spindle Drop Drum Rear Kit 1, 2, 3, 4
1967-1969 Chevrolet Camaro w/ Ridetech Hub Spindle Drop Drum Rear Kit 1, 2, 3, 4
1967-1969 Chevrolet Camaro w/ Ridetech Pin Spindle Drop Drum Rear Kit 1, 2, 3, 4
1970 Oldsmobile 442 w/ Ridetech Pin Spindle Drop Drum Rear Kit 1, 2, 3, 4
1973-1974 Buick Apollo w/ Ridetech Hub Spindle Drop Drum Rear Kit 1, 2, 3, 4
1973-1974 Buick Apollo w/ Ridetech Pin Spindle Drop Drum Rear Kit 1, 2, 3, 4

Application Notes

  1. Kit may fit some 15" wheels. Check wheel clearance diagram in kit installation instructions before purchase.
  2. Universal Flexline kits available: 220-7056 (14"), 220-7699 (16") or 220-8307 (18"). Choose correct length for your application.
  3. This rear service-brake kit has no parking-brake mechanism and includes no parking-brake cables. A separate compatible parking-brake solution is required where applicable.
  4. Line kit included (manufacturer): None
