Product details

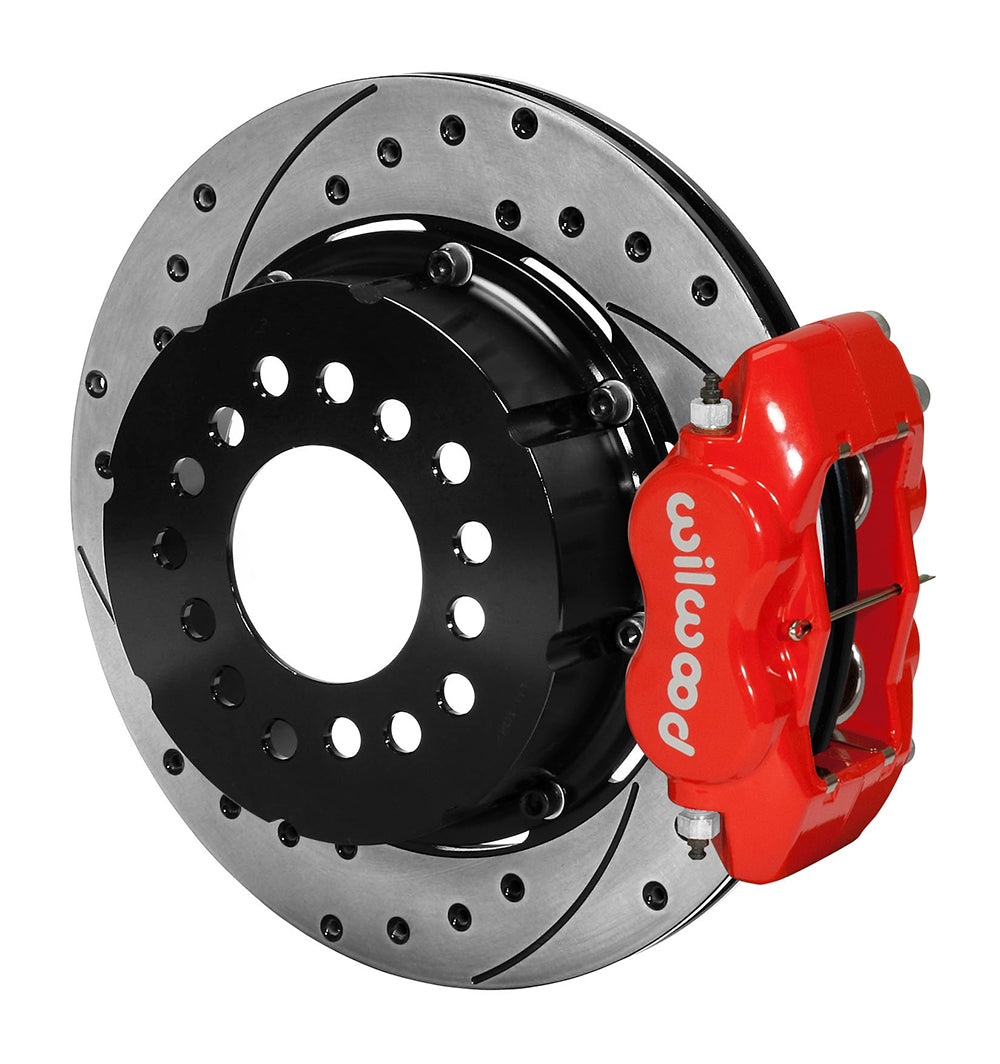

Red Wilwood calipers and 12.19-inch SRP rotors serve Olds/Pontiac rear-end conversions. Verify offset; no parking-brake mechanism is included. Founded in 1977 under Bill Wood, Wilwood Engineering operates from Camarillo, California. The company designs and manufactures disc brake systems and the calipers, rotors, master cylinders, valves, fittings and lines used within them. Its motorsport, street-performance and specialized applications depend on compatible brake components.
Technical Details
- Manufacturer part number: 140-2111-DR
- Rotor configuration: 12.19-inch diameter and 0.81-inch thickness; srp drilled and slotted vented iron.
- Caliper assembly: 4 stainless pistons in each forged aluminum caliper, with red powder coat finish.
- Mount and inlet: Lug caliper attachment with 1/8-27 NPT fluid inlets.
- Housing-end requirement: Olds/Pontiac; Offset requires confirmation: manufacturer product page and instruction cover disagree.
- Rotor/hat wheel-stud clearance pattern: 5 X 4.5 in; 5 X 4.75 in; 5 X 5 in (5 X 114.3 mm; 5 X 120.65 mm; 5 X 127 mm)
- Wheel fit: 15-inch nominal minimum; check both barrel and spoke clearance against the installation template.

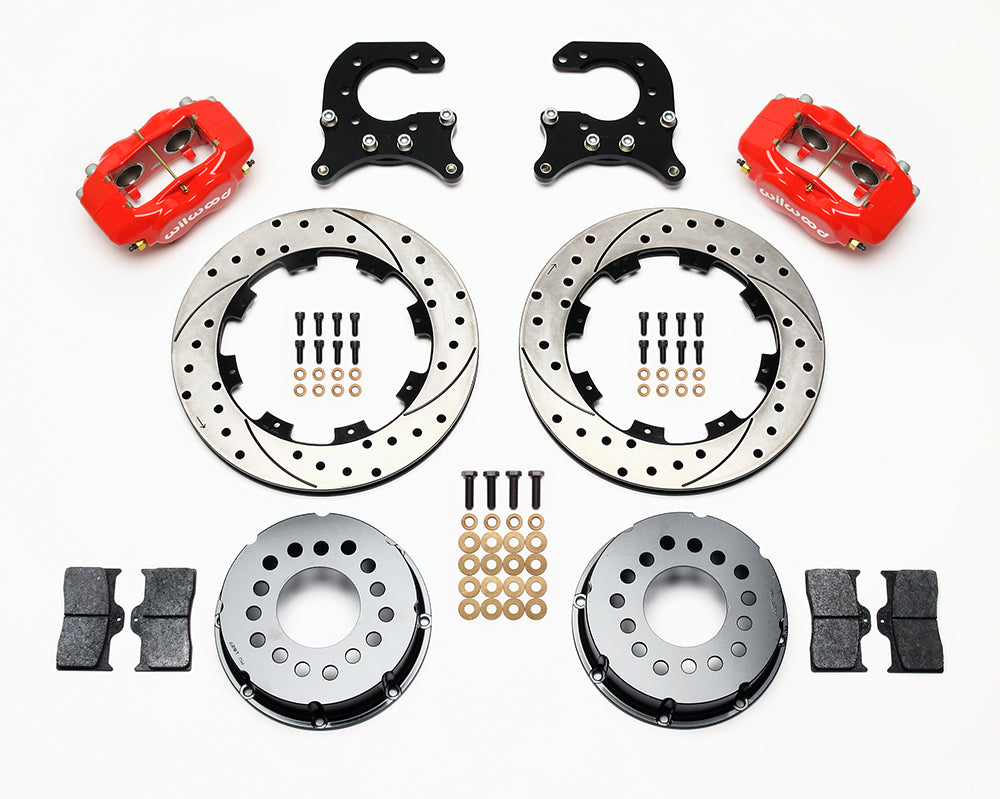

- Kit supply: mounting hardware
- Not included: master cylinder, booster, spindles, flexible brake lines, hubs
- Parking brake: No parking-brake mechanism supplied
Fitment & Compatibility
Verify the housing-end drawing and axle offset before selecting this kit. The modified-vehicle examples in the table below do not identify the installed rear axle from a model name or front-spindle option. DS-120 labels a 2.81-inch offset while the current kit page lists 2.91 inches; have Wilwood confirm the required configuration from measurements before ordering. A generic cable note does not add a parking-brake mechanism to this assembly.
Manufacturer Documents
Wilwood kit specifications and component list
Manufacturer Warning
WARNING: This product can expose you to chemicals including Arsenic, Cadmium, Chromium (Hexavalent compounds), Lead, Nickel, Cobalt and Antimony Trioxide which are known to the State of California to cause cancer or other reproductive harm. For more information go to www.p65warnings.ca.gov.
PMB Performance brings over 20 years of parts and fitment experience. Send the installed brake and axle details for help confirming the correct configuration.
Vehicle Applications
| Years | Make | Model | Model option | Front brakes | Rear brakes | Kit application | Notes |
|---|---|---|---|---|---|---|---|
| 1964-1968 | Chevrolet | Chevelle | w/ Ridetech Hub Spindle | Drop | Drum | Rear Kit | 1, 2, 3, 4 |
| 1964-1969 | Chevrolet | Chevelle | w/ Ridetech Pin Spindle | Drop | Drum | Rear Kit | 1, 2, 3, 4 |
| 1964 | Oldsmobile | 442 | w/ Ridetech Hub Spindle | Drop | Drum | Rear Kit | 1, 2, 3, 4 |
| 1964-1969 | Pontiac | Beaumont | w/ Ridetech Hub Spindle | Drop | Drum | Rear Kit | 1, 2, 3, 4 |
| 1964-1969 | Pontiac | Beaumont | w/ Ridetech Pin Spindle | Drop | Drum | Rear Kit | 1, 2, 3, 4 |
| 1967-1969 | Chevrolet | Camaro | w/ Ridetech Hub Spindle | Drop | Drum | Rear Kit | 1, 2, 3, 4 |
| 1967-1969 | Chevrolet | Camaro | w/ Ridetech Pin Spindle | Drop | Drum | Rear Kit | 1, 2, 3, 4 |
| 1970 | Oldsmobile | 442 | w/ Ridetech Pin Spindle | Drop | Drum | Rear Kit | 1, 2, 3, 4 |
| 1973-1974 | Buick | Apollo | w/ Ridetech Hub Spindle | Drop | Drum | Rear Kit | 1, 2, 3, 4 |
| 1973-1974 | Buick | Apollo | w/ Ridetech Pin Spindle | Drop | Drum | Rear Kit | 1, 2, 3, 4 |
Application Notes
- Kit may fit some 15" wheels. Check wheel clearance diagram in kit installation instructions before purchase.
- Universal Flexline kits available: 220-7056 (14"), 220-7699 (16") or 220-8307 (18"). Choose correct length for your application.
- This rear service-brake kit has no parking-brake mechanism and includes no parking-brake cables. A separate compatible parking-brake solution is required where applicable.
- Line kit included (manufacturer): None
