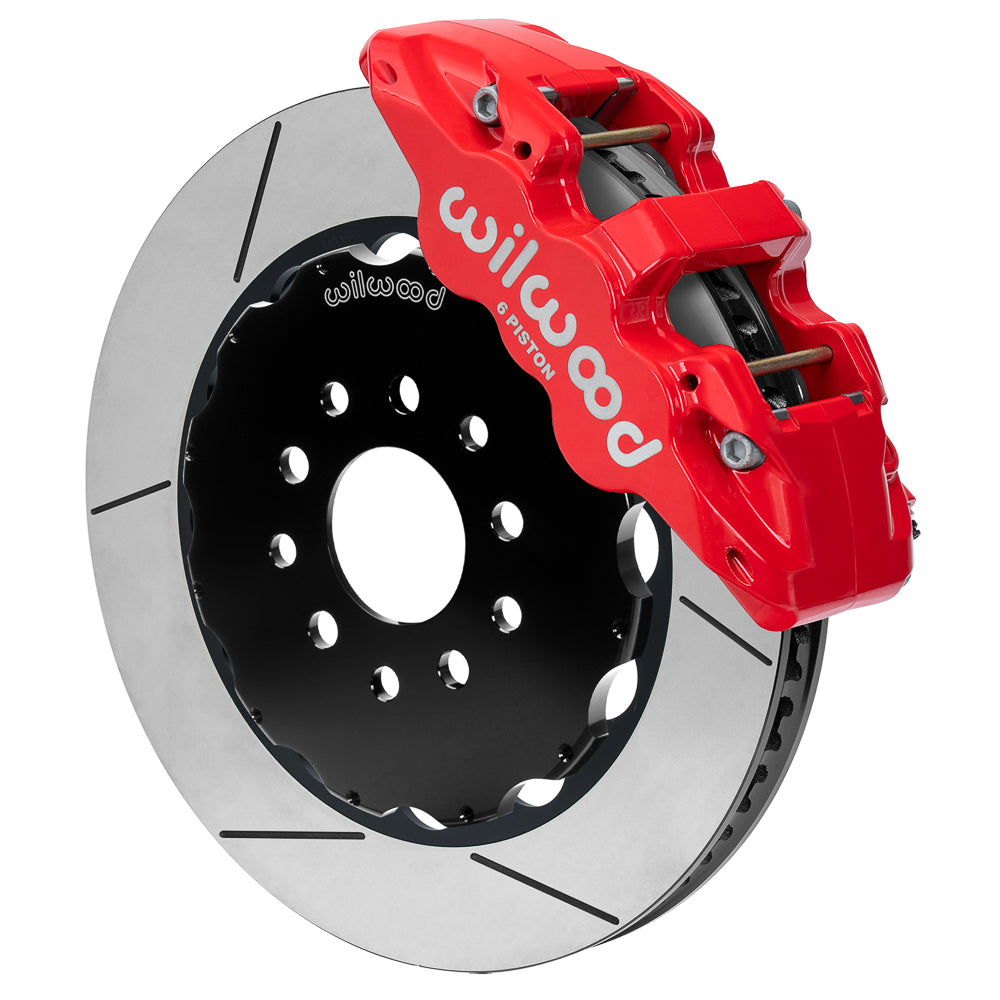

Wilwood Front AERO6 Red-Caliper/GT Slotted Rotor Kit, 14 Inches, Corvette C7 (2014–2019)

Corvette C7 upright/hub conversion with red Wilwood AERO6 calipers and 14-inch GT rotors. Match the wheel drawing and choose compatible flexlines. From Camarillo, California, Wilwood Engineering designs and builds disc braking systems for motorsport, street-performance and specialized uses. Founder Bill Wood started the company in 1977. Calipers, brake rotors, master cylinders, valves, fittings and brake lines are selected for the requirements of the complete brake system.

Technical Details

• Manufacturer part number: 140-18535-R
• Rotor configuration: 14.00-inch diameter and 1.25-inch thickness; gt slotted vented spec-37 iron.
• Caliper assembly: 6 stainless pistons in each forged aluminum caliper, with red powder coat finish.
• Mount and inlet: Radial caliper attachment with 1/8-27 NPT fluid inlets.
• Rotor/hat wheel-stud clearance pattern: 5 x 4.5 in; 5 x 4.75 in (5 x 114.3 mm; 5 x 120.65 mm)
• Wheel fit: 18-inch nominal minimum; check both barrel and spoke clearance against the installation template.

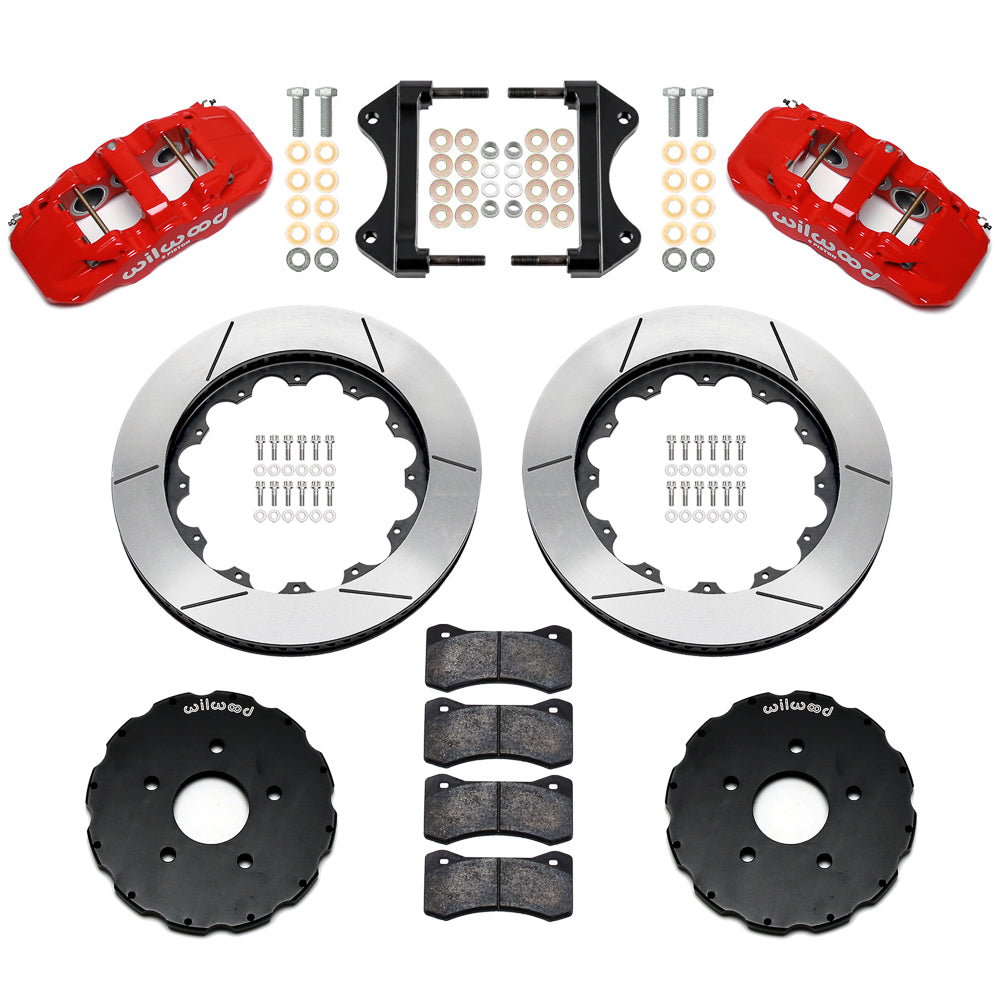

• Kit supply: mounting hardware
• Not included: master cylinder, booster, spindles, flexible brake lines, hubs
• Rotor assembly: Separate aluminum hats and vented iron rotors; compatible vehicle hubs retained
• Supplied brake pads: BP-20 compound for this rotor configuration.

Fitment & Compatibility

DS-1730 defines the AERO6 mounting arrangement for 2014–2019 C7 uprights and hubs. Consult the table below for the separate Stingray, Z51, Z06, Grand Sport and ZR1 year limits. Verify the existing components, select compatible flexlines and check the 18-inch-wheel template; factory trim alone does not establish that the original brake hardware can be reused.

Manufacturer Documents

• Wilwood DS1730 installation instructions

Wilwood kit specifications and component list

Manufacturer Warning

WARNING: This product can expose you to chemicals including Arsenic, Cadmium, Chromium (Hexavalent compounds), Lead, Nickel, Cobalt and Antimony Trioxide which are known to the State of California to cause cancer or other reproductive harm. For more information go to www.p65warnings.ca.gov.

PMB Performance brings over 20 years of parts and fitment experience. Send the installed brake and axle details for help confirming the correct configuration.

Vehicle Applications

Application Notes

1. Line kit included (manufacturer): None
2. Front line-kit reference: 220-8176, 220-9100, , , 220-12168
